Altova UModel

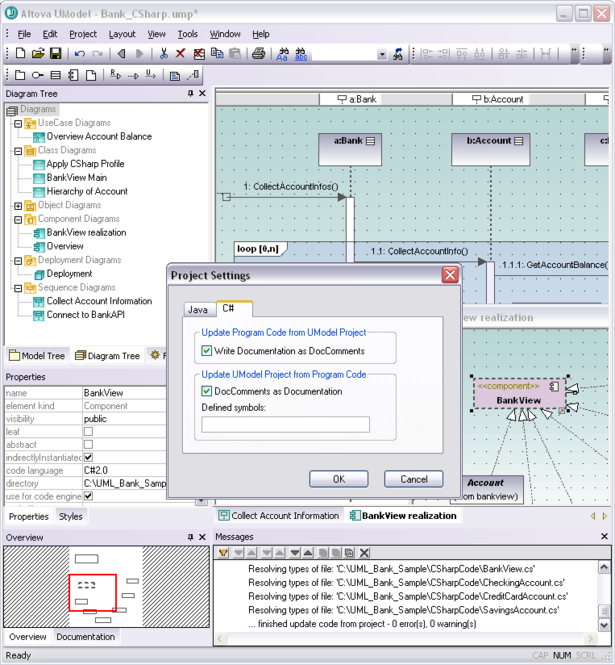

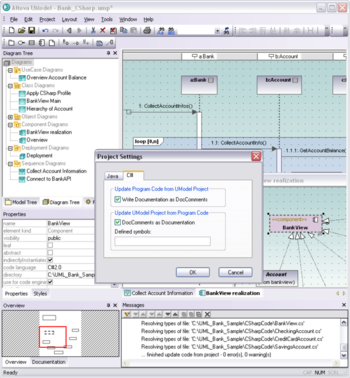

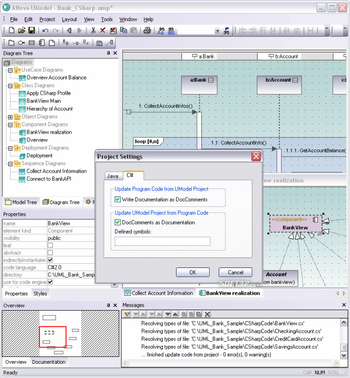

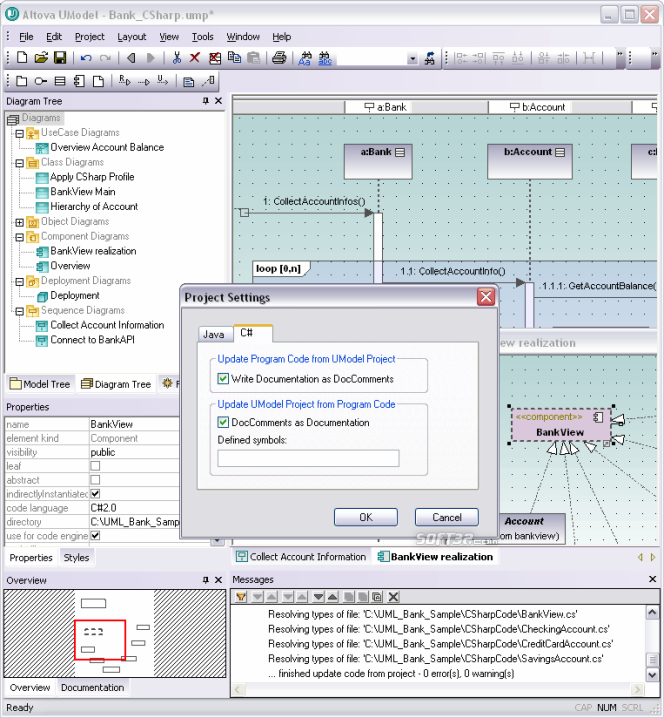

Altova UModel 2012 Enterprise Edition is the starting point for successful software development. Use UModel to create software models and SQL database designs via the power of UML. Generate Java, C#, or Visual Basic .NET code, and SQL scripts from UML models. Reverse engineer existing programs and databases into clear, accurate UML diagrams to visually analyze legacy software. You can even revise your code or UML models and complete the round trip by automatically updating diagrams or regenerating code. UModel supports all 14 UML 2 diagram types and adds a unique diagram for modeling XML Schemas in UML. UModel 2012 Enterprise Edition supports Model Driven Architecture with platform independent UML models and model transformations between C#, Java, and VB.NET source code, databases, or XSD. UModel also supports SysML and business process (BPMN) modeling. UModel supports teams working on large projects with editable sibling or nested sub-projects, and lets you generate customized project documentation in HTML, Word, RTF, and PDF formats. UModel 2012 Enterprise Edition integrates with Visual Studio 2010, 2008, and 2005 and Eclipse 3.2 and higher, automatically synchronizing UML diagrams as source code is edited in these popular IDEs. UModel also integrates with most popular source-code control systems. An extensive API and scripting language editor let you automate UModel functionality to create custom menus or plug-ins. UModel supports the XMI interchange specification, allowing you to open and edit models created in more cumbersome or expensive UML tools. UModel is the cost-effective, user friendly tool that takes the mystery out of UML with context sensitive entry helpers, syntax coloring, cascading styles, customizable design elements, multiple layout views, diagram layers, unlimited undo/redo, and much more. UModel is available in 32-bit and 64-bit versions. Free trial: www.altova.com.
