FemtoScan Online

FemtoScan Online is a powerful software for analysis of different kinds of microscopic images. Mainly oriented for the scanning probe microscopy 3D images processing and analysis, but can be also used for optical and electron microscopy images. Between its features are powerful 3D representation, with ability to record movies, clipboard integration, USB cameras support, Fourier analysis, pattern recognition functions.
You will be able to easily measure spatial dimensions of any object, calculate the roughness parameters or build histograms.
A special attention is payed to the processing of the force curves - calculation of separation curves, WLC model approximation, calculation of statistics for multiple curves.
Here are some key features of "FemtoScan Online":

FemtoScan Base (fsmbase)

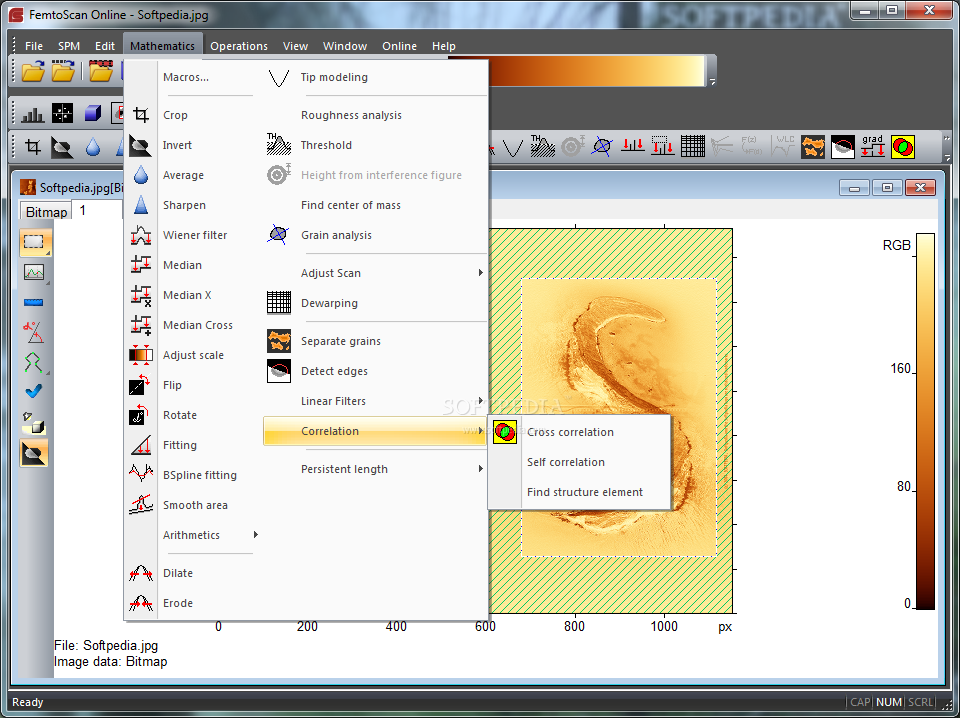

· Crop - Crop image
· Average - Average selected area with mask of arbitrary width
· Sharpen - Sharpen selected area with mask of size 3
· Wiener Filter - Filter selected area with Wiener filter
· Median - Median filtering of selected area with arbitrary mask
· Median X - Adjust image scan lines/columns with median filter by X mask 3x3
· Median Cross - Median filtering of selected area with "Cross" mask 3x3
· Adjust scale - Normalize inner data representation, so that data would lie between -16384 and +16383
· Flip - Transpose image
· Rotate - Rotate image on an arbitrary angle
· Fitting - Remove average slope (1-st or 2-nd power polynome), evaluated by LMS method
· BSpline - Remove large-scale relief by subtraction of cubic B-spline
· Filtering with threshold
· Highlighting (gradient transform by angle, sine or tangent)
· Scaling by Z-axis
· Changing horisontal scales
· Deleting areas in fourier, which results in changing of original

Creating:

· Profiles (sections)
· Histograms

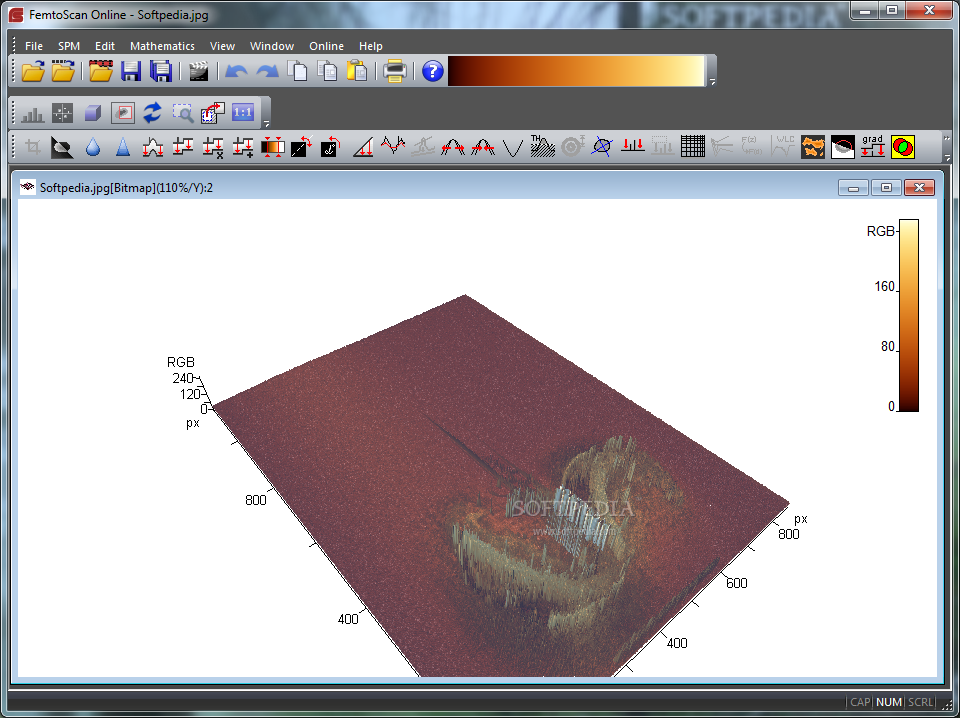

· 3-dimensional views with different parameters
· Fouriers

Measurements:

· Roughness
· Surface square
· Distance
· Angle
· Curves length
· Isolines length, square and corresponding volume
· Distance, angle, height, contour length, integral square in sections
· Part of square, conforming to selected heights, in histograms

Miscellaneous:

· Working with BMP and proper TXT files

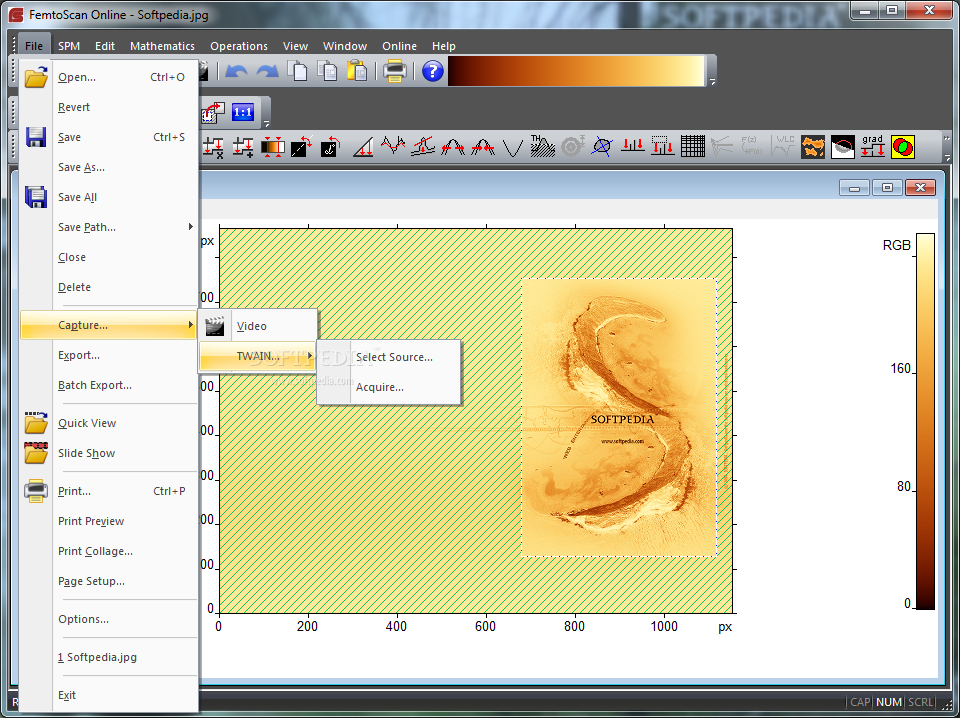

· Capturing images from scanners and cameras
· Exporting images to TXT, BMP, JPEG, and VRML formats (depends on image type)
· Moving images to clipboard
· Working with multiple documents simultaneously
· Moving, resizing, minimizing images
· Duplicating image or part of it
· Adding and subtracting images
· Viewing raw text header and changing its comment
· Sections lines showed on every image in one document (for Nanoscope-3 multi-image format)
· Sections cursors showed on the image
· Different sections can be showed with the same scale for easy comparison
· Automatic or manual colors mapping
· Quick preview of multiple files
· Different predefined and custom palettes
· X, Y and Z coordinates in the status string while cursor moving on the image
· Tooltips and context help in the status string
· Legend (file name, image data name, dimensions) can be showed on image

SPM Processing module (fsmspm)

· Adjust Scan / Whole image - Adjust image scan lines to the same mean level
· Adjust Scan / Excluding Selection - Adjust image scan lines to the same mean level, calculated excluding the selected area
· Dewarping - Remove image dewarping (caused by hysteresis) by applying selected coefficients
· Normalize curve - Bring force curve to normalized form
· Separation Curve - Build separation curve (force vice separation)
· Force Curve Analysis- Find force curve main parameters
· WLC Analysis- Analyze force curve by WLC model

TEM Processing module (fsmtem)

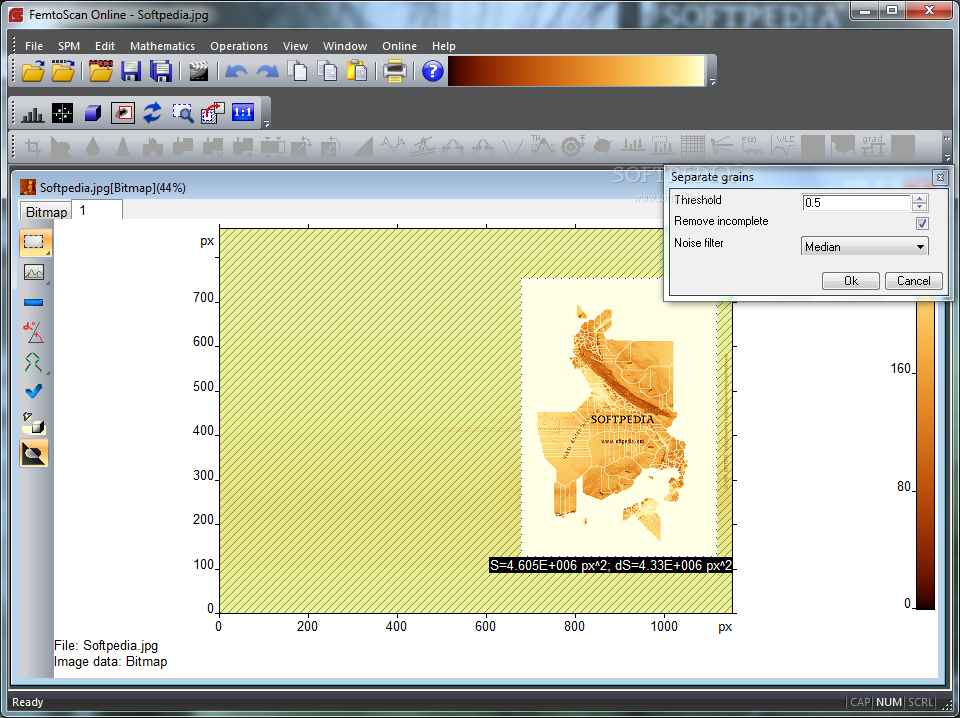

· Separate grains - Separate grains
· Detect edges - Detect edges by Canny edge detector
· Linear filters - gradient filter, 3x3 Laplace filter, 3x3 Gaussian averaging filter

Metrology Processing module (fsmmtr)

· Roughness analysis - Calculate rougness parameters by cross-sections of the surface
· Roughness analysis - Calculate roughness parameters of the curve
Limitations:
· 30 days trial period
· Nag screen
