Triangulation for IntelliCAD Details

Rating: 2.391304347 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 1059
License: Demo / Trial Version

Triangulation for IntelliCAD is a demo software by RCAD Software and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download Triangulation for IntelliCAD which is 601.22 KB in size and belongs to the software category WEB Design.
Triangulation for IntelliCAD was released on 2015-01-14 and last updated on our database on 2017-04-27 and is currently at version 3.9.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

Triangulation for IntelliCAD Description

TRIANGULATION, ISOLINES, VOLUME, LOADING of XYZ points files, 3DINTERSECTION, cross sections and a longitudinal profile, color-filled contour map; 7 functions for IntelliCAD versions which can load SDS applications (dll).TRIANGULATION performs the triangulation of a set of 3D points with compulsory interconnections between the points. The outcome is represented by 3DFACE entities. ISOLINES determines the curves of intersection of a set of 3DFACE entities with a set of equidistance planes, horizontally or vertically. The outcome is made up of POLYLINE entities optionally interpolated. VOLUME determines volume and center of gravity of a body limited by 3DMESH and 3DFACE entities. You can load and draw a file of points having the format: Number X Y Z Code. 3DINTERSECTION determines the intersection curves between 2 sets consisting of 3DFACE and 3DMESH entities. The outcome is represented by 3DPOLY entities. You can make the projection over a triangulation of a 2D POLYLINE and generate cross sections and a longitudinal profile corresponding at projection. The POLYLINE may contain arcs. You can also make color-filled contour map.

The price is for the first license! You can buy anytime after, other licenses at a lower price!

Whats new in this version:

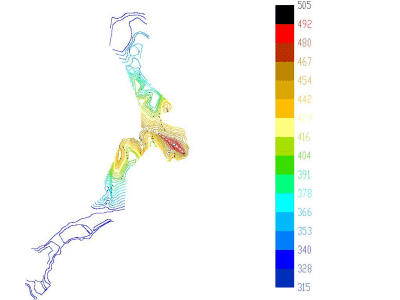

Color-filled contour map.
