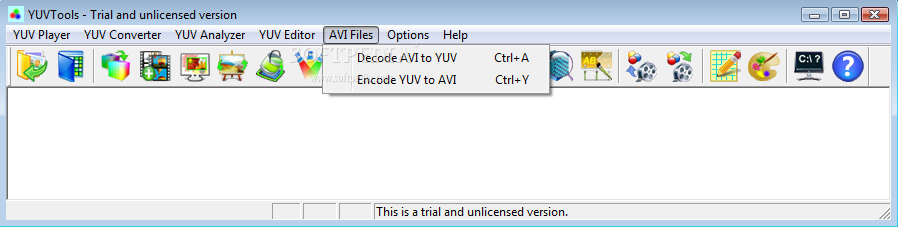

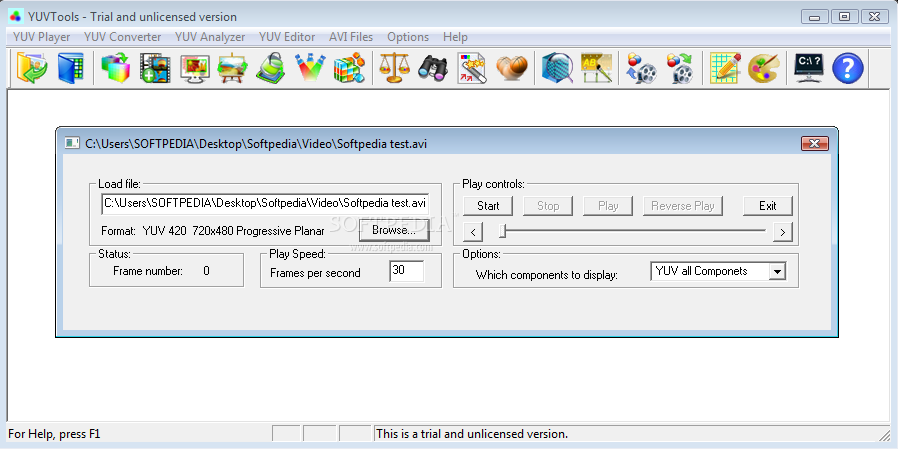

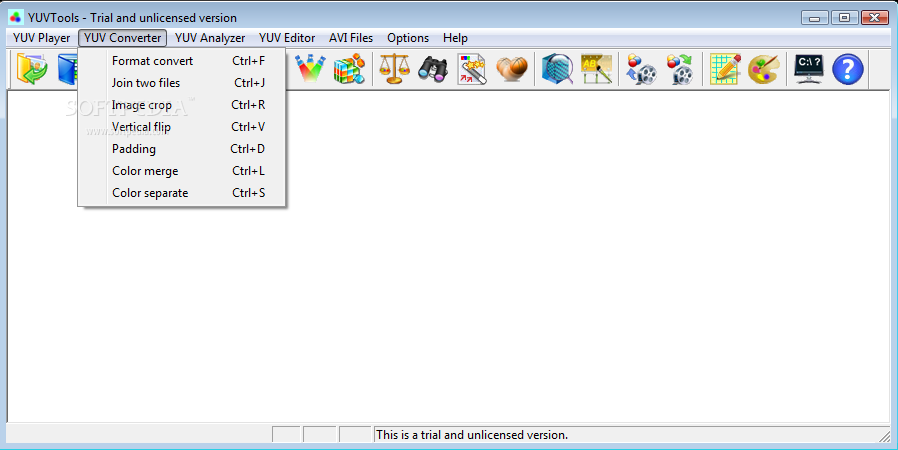

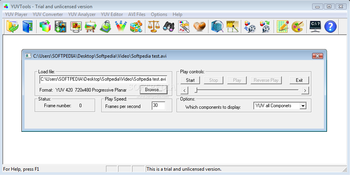

View Screenshots(3)

Comments

Download

Liked it? Tell others:

YUVTools Tags

YUV player YUV converter YUV editor YUV player editor analyzer

YUVTools Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows 2012
SHA1 Hash: 1ba0ac0f7b01ab98c741df084e515af65d0c0d0b
Size: 6.29 MB
File Format: zip

Rating: 2.608695652 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 259
License: Demo / Trial Version

YUVTools is a demo software by sunrayimage.com and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download YUVTools which is 6.29 MB in size and belongs to the software category Video.
YUVTools was released on 2009-12-14 and last updated on our database on 2017-02-26 and is currently at version 3.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

YUVTools Description

It can accept (play, convert and analyse) the combination of following 4 formats:
in 4:4:4, 4:2:2 or 4:2:0 YUV sample format, or in 4:4:4 RGB format;
in different compoent order, like YUV, YVU, UYV, RGB, BGR, etc.
in progressive (one single field) or interlaced (two fields) format;
in planar (YYY...UUU...VVV...) or packed (YUV, YUV....) pixel format;
in predefined or arbitrary resolution;
Support FOURCC
When one FOURCC is selected, other cooresponding formats are set to match this FOURCC:
UYVY (YUV422, U-Y-V-Y, progressive, packed)
UYNV (same as UYVY )
Y422 (same as UYVY )
IUYV ( YUV422, U-Y-V-Y, interlaced, packed)
YUYV (YUV422, Y-U-Y-V, progressive, packed)
YUNV (same asYUYV)
V422 (same asYUYV)
YUY2 (same asYUYV)
YVYU (YUV422, Y-V-Y-U, progrssive, packed)
IYU2 ( YUV444, U-Y-V, progressive, packed)
YV16 (YUV422, Y-U-V, progressive, planar)
YV12 (YUV420, Y-V-U, progressive, planar)
IYUV (YUV420, Y-U-V, progressive, planar)
I420 (same as IYUV)
Since the raw video data is headless and with no format information saved in the file, a format guess function is provided when the video data is loaded to play, convert and analyse.
For each format combination, an image preview (first frame), a format diagram (illustrating the data structure) and a raw data dump map will be displayed interactively, to help the users to try the combination of above format, till right format is obtained.
YUV Player
When playing a video file, user can start/stop, play/pause, reverse play, frame by frame forward/backward, or directly drag to certain frame;
When playing a video file, user can select display YUV all components, or Y, U, V components separately;
User can open and play multiple video files at same time;
YUV Converter
Converter: It can be used to convert any combination of above format to another;
It can convert a sequence of BMP files into a single YUV/RGB format, or vice versa;
It can convert only some of the frames of the input file;
It can scale up/down if the input and output have different resolution
Join: Two YUV files can be joined into one file.
Crop: One area of all frames can be cropped and saved into a new YUV file.
Filp: Vertically flipping all frames in original file and saved into a new YUV file.
YUV Analyzer
PSNR : It tools can be used to calculate the PSNR of two input video file;
The PSNR can be calculated for certain frames only;
A PSNR report file can be generated;
Compare: Two video files can be compared frame by frame, and the difference (residual) will be displayed
The brightness of the difference image can be scaled up, in case the difference is very small;
The comparison can be applied to YUV all components, or Y, U, V components separately;
The difference residual can be played frame by frame (back and forth), or directly drag to certain frame
Data Overlay: Other information can be overlaid on top of video display while it is playing.
For each macroblock, one dimensional (like block type) or two dimensional inforation (like motion vector) can be overlaied;
Separate file needed to load the information.
YUV Editor
Inspector and editor: You can select one block, and zoom in to check each pixel values, whether in RGB or in YUV, and at the same time, you can change the pixel values, in order to create sepecial colors or patterns in block.
Grid Display : Overlay two layers of grid, which can be used to show MB (Macro Block, 16x16 in MPEG2) and Block (8x8 in MPEG2), in two different colors;
The grid color can be selected by a visual color select tool.
Support command line options, useful for batch process or scripting. Support command line control for play and converting functions.
