Name: 4nec2
Works on: windowsWindows XP and above
Developer: Arie Voors
Version: 5.7
Last Updated: 22 Feb 2017
Release: 09 Oct 2008
Category: Science CAD
Rate this software:
869 downloads
screenshotsView Screenshots(5)
commentsComments
downloadDownload
try it nowTry It In Browser!
Liked it? Tell others:
details

4nec2 Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows XP | Windows 2000 | Windows 2003 | Windows 2008 | Windows Vista | Windows 2012
SHA1 Hash: b212f9406f97c5d8a38cfda0ded2c3fa43150d64
Size: 3.81 MB
File Format: zip
Downloads: 869
License: Free
4nec2 is a free software by Arie Voors and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download 4nec2 which is 3.81 MB in size and belongs to the software category Science CAD.
4nec2 was released on 2008-10-09 and last updated on our database on 2017-02-22 and is currently at version 5.7.
download button
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
Now you can try out this software directly in your browser without downloading or installing on your PC!
try it now
features

4nec2 Description

  • Graphical 2D and 3D visualization of Far- and Near-field data and Geometry strutures (including circular polarization view).
  • Line-chart visualization for freq-sweep Gain, F/B, F/R, SWR and impedance data.
  • Drag and drop style Geometry Editor to assist the starting antenne modeller.
  • Full Nec2 and Nec4 command support, including GX, GM, GR, GA, GH and surface patches.
  • Capable of running up to 11000 wires and/or segments (limited by the max of 2Gb of windows on-board memory)
  • Support for inclusion of surface-wave component in far-field data.
  • 3D geometry display for surface patches included.
  • Variable substitution included for complete Nec2/4 command set enabling you to model by equation.
  • Sophisticated real-time 3D geometry and pattern viewer showing real wire-radius.
  • AO-style gradient/hill-climbing optimizer included.
  • Genetic Algorithms based optimizer included.
  • Automatic variable sweeper with line-chart output.
  • Automatic convergence tester with line-chart output.
  • Interactive Smith chart visualization for freq-sweeps.
  • Integrated Sommerfeld ground calculations with frequency-sweep.
  • Automatic generation of VOACAP propagation prediction type 13 and –14 antenna files.
  • Automatic coversion of AO (*.ant)and EZnec (*.ez)input files.
  • Insulated-Wire’ and 'LC-trap' loading-types included.
  • Automatic conversion for feet, inch, #awg to meters and elevation/azimuth to phi/theta and reverse.
  • Batch processing for automatic testing, calculation and/or conversion of multiple Nec, AO and/or EZnec input-files.
  • Extensive segment- en geometry validation, such as: Intersecting volumes, Short/thick wires at sharp angle, Unequal segmentation for parallel wires, Too low hight, Large radius or length changes at junctions, etc.
  • Screen grabber for easy cut/paste, print or save parts of the screen, window or form.

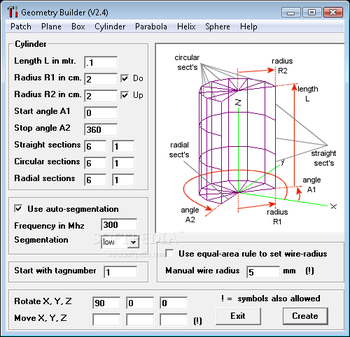

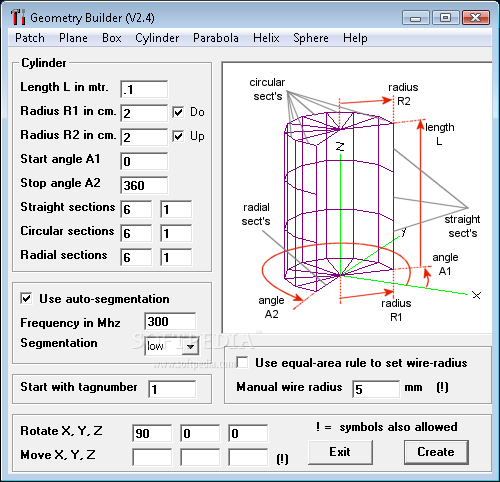

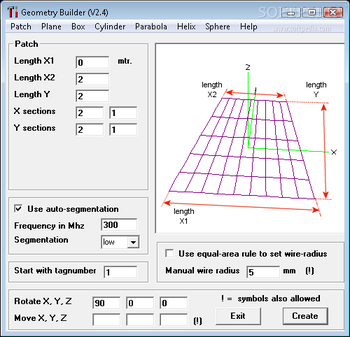

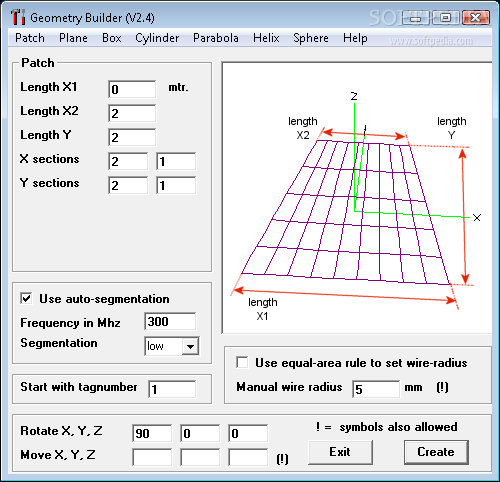

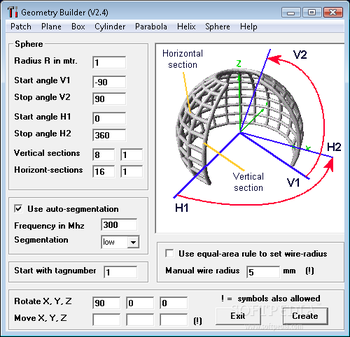

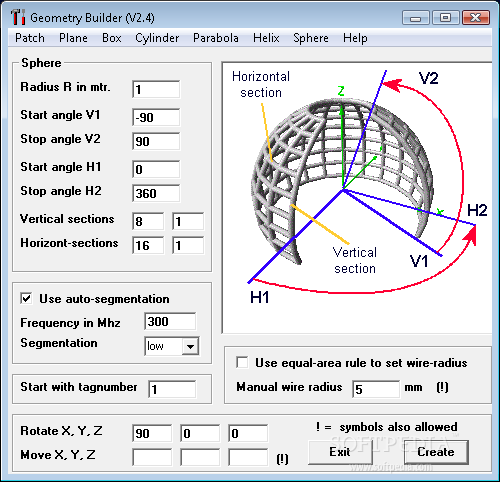

  • Geometry builder to create cylindric, patch, plane, box, helix and parabola shaped structures using auto-segmentation and/or equal-area rules.
  • Automatic generation of Stub-, L-, Pi- and Tee-matching-networks (low- and high-pass)
  • Visualization of circular polarization components E(left) and E(right) for far-field.
  • EZnec style MiniNec ground included.
  • Capable of running the default Lawrence Livermore National Laboratories Nec4 engine.
  • Running on all systems from early Windows-95 to latest Windows-Vista
  • More than 450 example files
  • Context sensitive Help-file.
screenshots

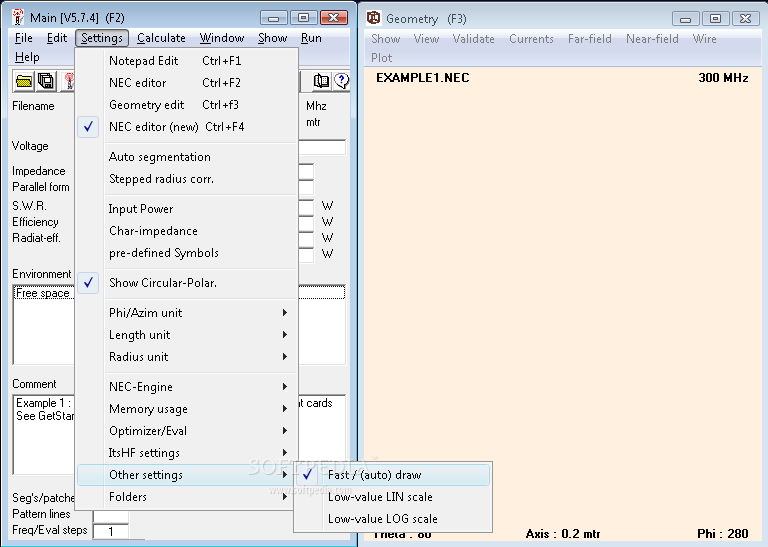

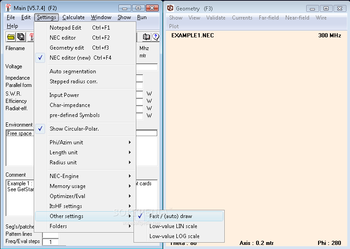

4nec2 Screenshots

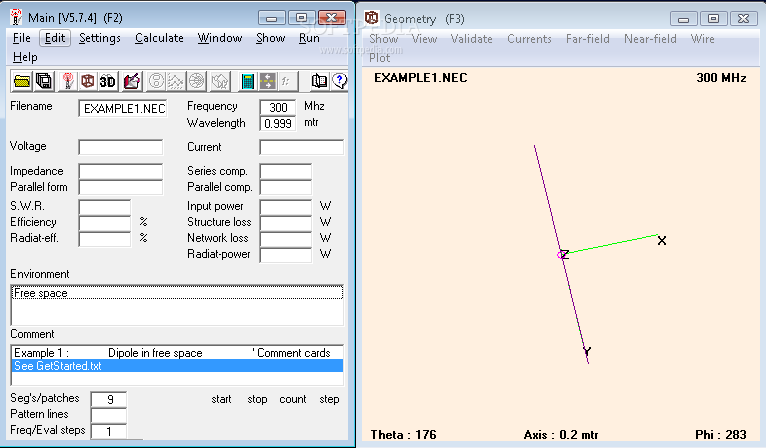

4nec2 screenshot 1 4nec2 screenshot 2 4nec2 screenshot 3 4nec2 screenshot 4 4nec2 screenshot 5
