Analog

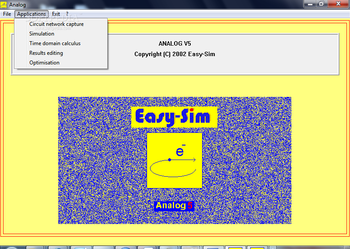

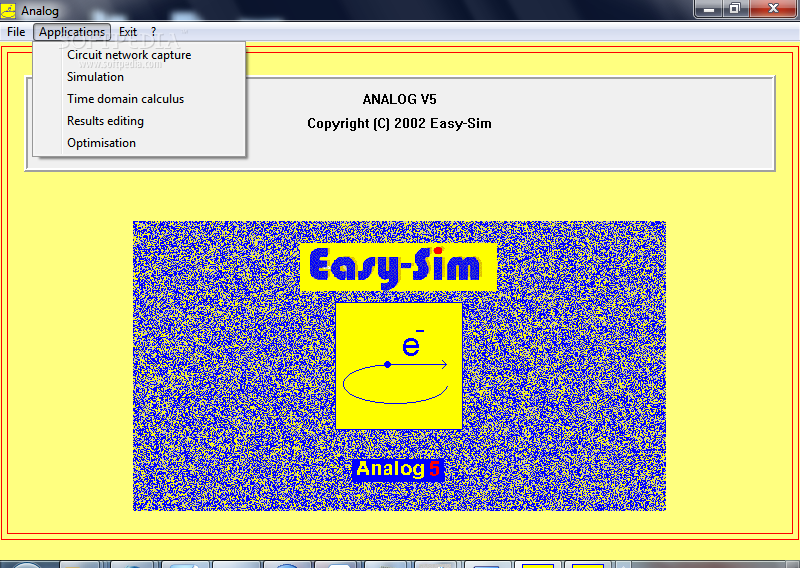

Analog is a simulation software for analogical, digital or mixed, linear and non-linear electronic circuits. It includes a schema capture, a simulator, a module for editing results (time domain, Fourier domain) and a module for optimising circuits.
The simulator uses the symbolic computation techniques for solving the system of equations of the circuit. By principle this resolution is performed accurately, without any iteration and without any numerical round off generating errors.

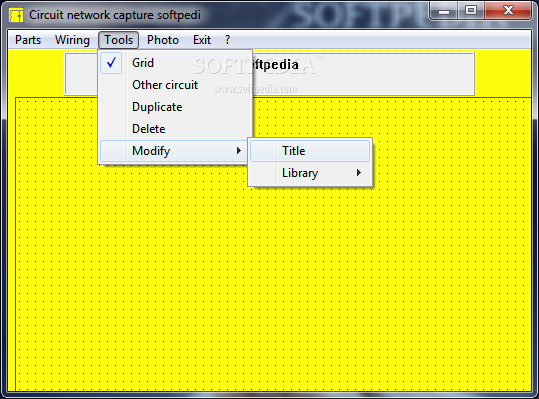

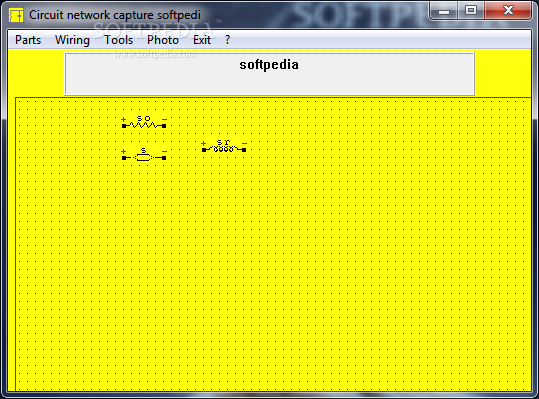

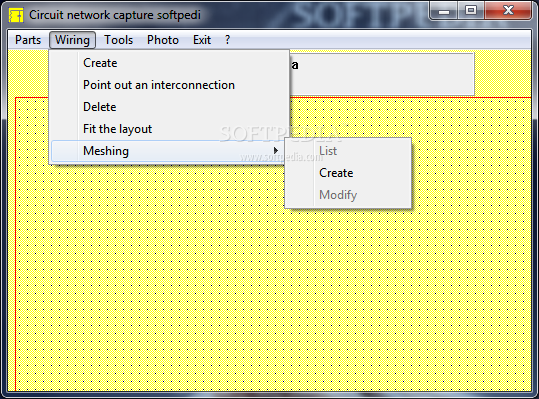

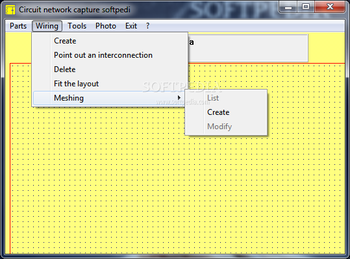

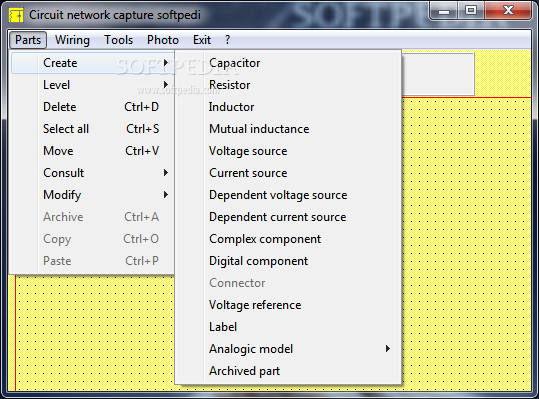

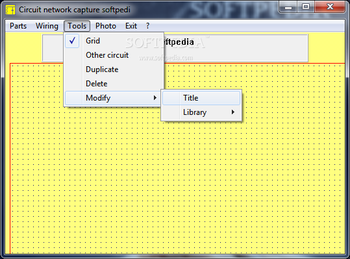

The application can capture Hierarchical and graphical schema and it features analogical, linear and non-linear components.
Native models of non-linear temperature dependent resistors, magnetic core inductors, capacitors and inductors and transformers with hysteresis.
It also features models of non-linear delay lines and filters of Butterworth, Bessel, Chebycheff and Legendre, current or voltage sources of different types, voltage or current multipliers, diodes, bipolar, JFET, MOST and MESFET transistors.

Note: you must request a free trial keyLimitations in the unregistered version20-day trial
