Atlence Resistor Viewer

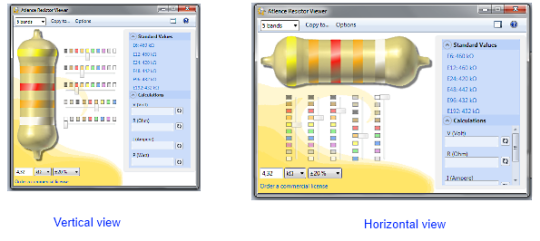

Atlence Resistor Viewer allows electronics engineers to quickly and easily get the value and characteristics of a resistor from its color bands and vice versa. It can also be used to learn the resistor color code with the lesson and quiz included with this software. Youve just determined the theoretical value of a resistor and want to get the closest standard values and the band colors. In Atlence Resistor Viewer, you enter the theoretical value, the expected characteristics such as the tolerance of the real resistance and you get instant colors and a list of all the closest standard values among the different existing series. Conversely, you have a resistor and want to get its value and characteristics such as its tolerance and its temperature coefficient. In Atlence Resistor Viewer, drag the sliders of each band to select the appropriate color. The value and characteristics are instantly displayed. To complete a calculation (eg to get a theoretical value of a resistor), a module allows you to calculate current, voltage, resistance or power from the Ohms law. A multiple choice quiz is included to check that you are familiar with the resistor color code: it allows you to test your knowledge of the resistor color code (4 and 5-band resistors).Free for personal use, otherwise a professional license is required.

Whats new in this version:

* Improved program stability* Improved quality of resistor images which can be exported* Integration of Jumplists (recent values) in Windows�® 7 and 8* New simplified setup program* Save the last values used when closing the application* Support value overflow by displaying an error message* Support precisions in relation to the number of selected color bands
