AutoCAD icon

AutoCAD

2 big stars

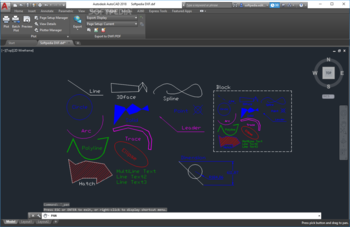

AutoCAD screenshot
Name: AutoCAD
Works on: windowsWindows 7 and above
Developer: Autodesk Inc
Version: 2018
Last Updated: 24 Apr 2017
Release: 24 Mar 2017
Category: Science CAD
Rate this software:
1713 downloads
screenshotsView Screenshots(9)
commentsComments
downloadDownload
Liked it? Tell others:
details

AutoCAD Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows 2012
File Format: exe

SHA1 Hash 32bit version: 9c8f50298c7a0f2ed9e7f39237939de5b28ba09d
Size 32bit version: 1.8 GB

SHA1 Hash 64bit version: fa3093e61c4cd46bc5dc3b94c3fa5e0e0fe32734
Size 64bit version: 2.12 GB

Rating: 2.739130434 out of 5 based on 23 user ratings
Publisher Website: External Link
Downloads: 1713
License: Demo / Trial Version
AutoCAD is a demo software by Autodesk Inc and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download AutoCAD which is 1.8 GB in size and belongs to the software category Science CAD.
AutoCAD was released on 2017-03-24 and last updated on our database on 2017-04-24 and is currently at version 2018.
We also have AutoCAD 64bit version which is 2.12 GB in size and will work on x64 computers.
download button 32 bitdownload button 64 bit
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
features

AutoCAD Description

  • Ribbon:
  • With the ribbon interface, overall drafting productivity is increased as the number of steps to reach a command is decreased. The ribbon interface presents command options in a concise visual format, allowing you to quickly select commands based on the work you're doing.
  • Moving between applications is now quick and intuitive. The ribbon is both customizable and expandable so that it can be optimized for each user and meet each company's standards.
  • ViewCube and SteeringWheels:
  • The ViewCube is an interactive tool used to rotate and orient any solid or surface model in AutoCAD. Selecting a face, edge, or corner of the cube brings the model quickly to that predefined orientation.
  • Clicking and holding the ViewCube allows the model to be freely roated in any direction. Since the cube is in a fixed location on the screen, it provides at-a-glance orientation. The ViewCube will be introduced in all Autodesk products as a common tool for working with 3D models.
  • In addition to allowing quick access to the orbit command, the new SteeringWheels tool allows quick access to the pan, center, and zoom commands. The SteeringWheels is highly customizable so you can add walk through commands to help create and record a walk-through of your model.
  • Menu Browser:
  • Reviewing and working with several files is no longer a tedious and time-consuming process. The new menu browser interface allows you to browse files and examine thumbnail images and provides detailed information about file size and file creator. Plus, you can organize recently used files by name, date, or title.
  • Action Recorder:
  • The new action recorder saves time and increases productivity by automating repetitive tasks without requiring the skill or assistance of a professional CAD manager. Users can quickly record a task, add text messages and requests for input, then quickly select and play back recorded files.
  • Layer Dialog:
  • The new layer dialog makes creating and editing layer properties faster and less prone to error. Changes are instantly reflected in the drawing as they are made in the dialog.
  • The manipulation of the dialog box has been simplified, and columns in the dialog can be individually resized so the contents of that column or its title are not truncated. Individual columns can be fixed in place so that the rest of the columns can be scrolled through and referenced to a fixed column such as the layer name.
  • Quick Properties:
  • The easily customizable quick properties menu increases productivity by reducing the steps to access properties information, ensuring that information presented is optimized for that particular user and project.
  • Quick View:
  • The quick view feature uses thumbnails instead of file names, making opening the correct drawing file and layout faster and decreasing the time spent opening incorrect drawing files.
currency

Where to buy?

Last updated price and discount information 6 years agoupdate now
$185.00Monthly
$1470.001 Year
screenshots

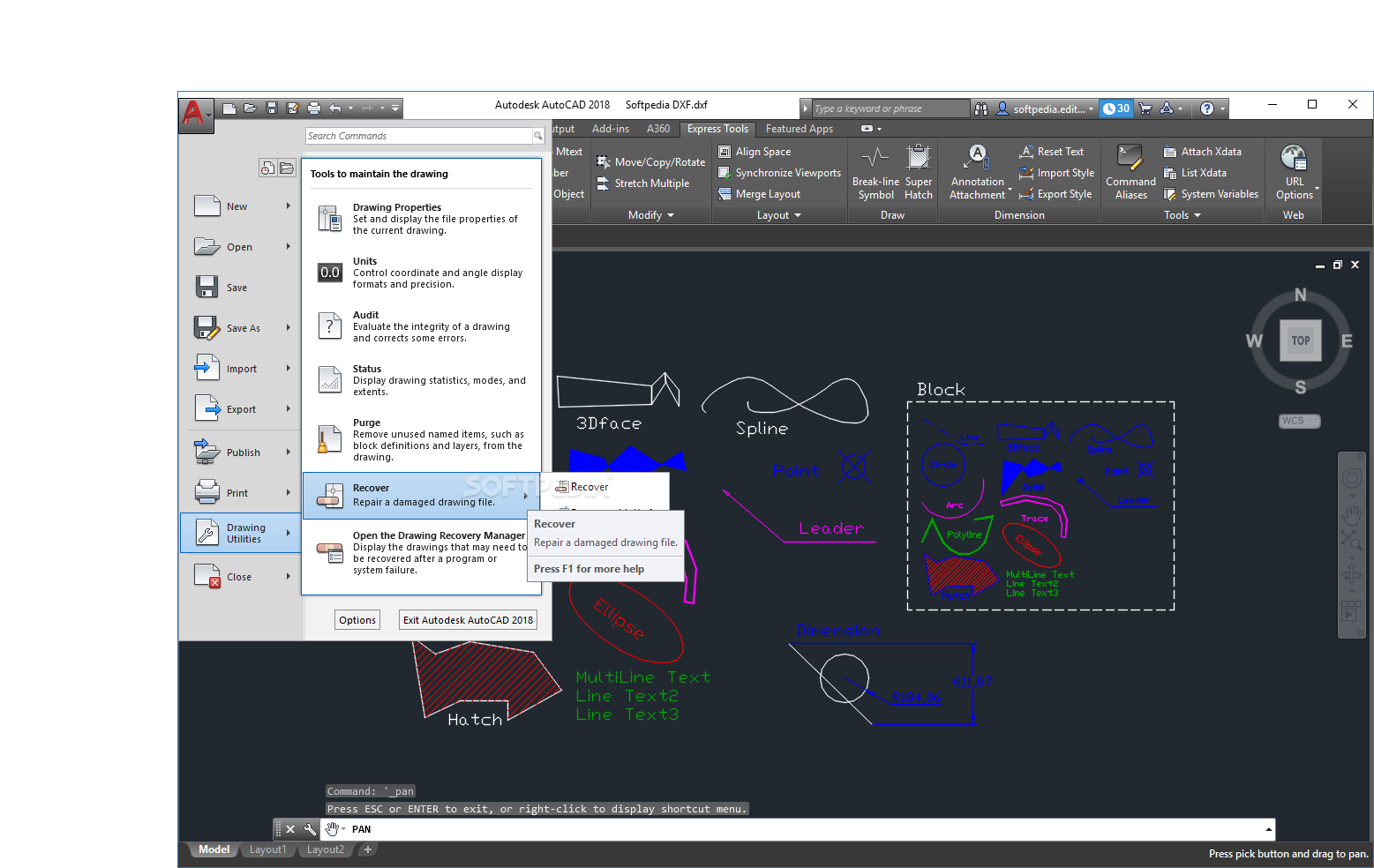

AutoCAD Screenshots

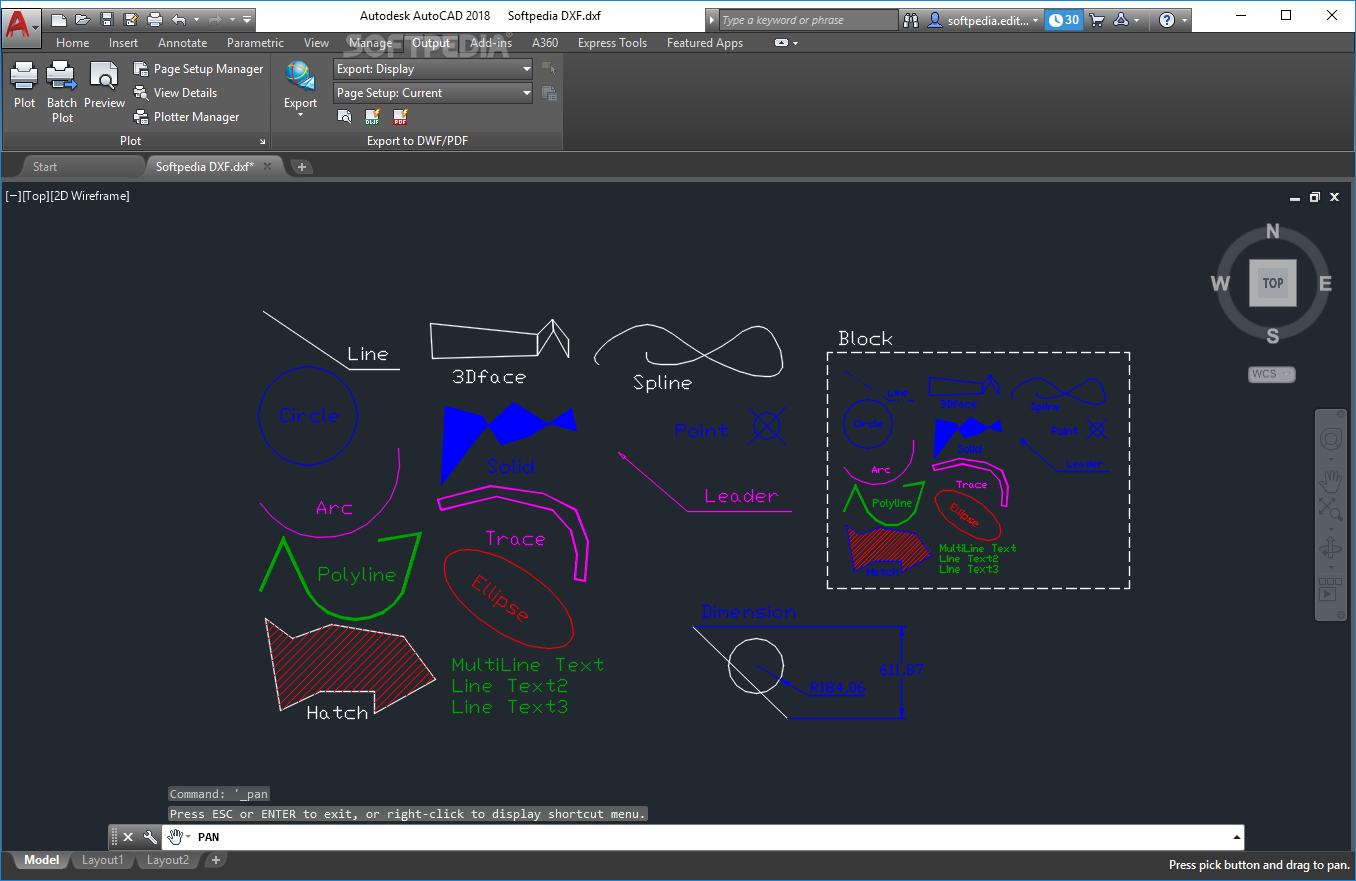

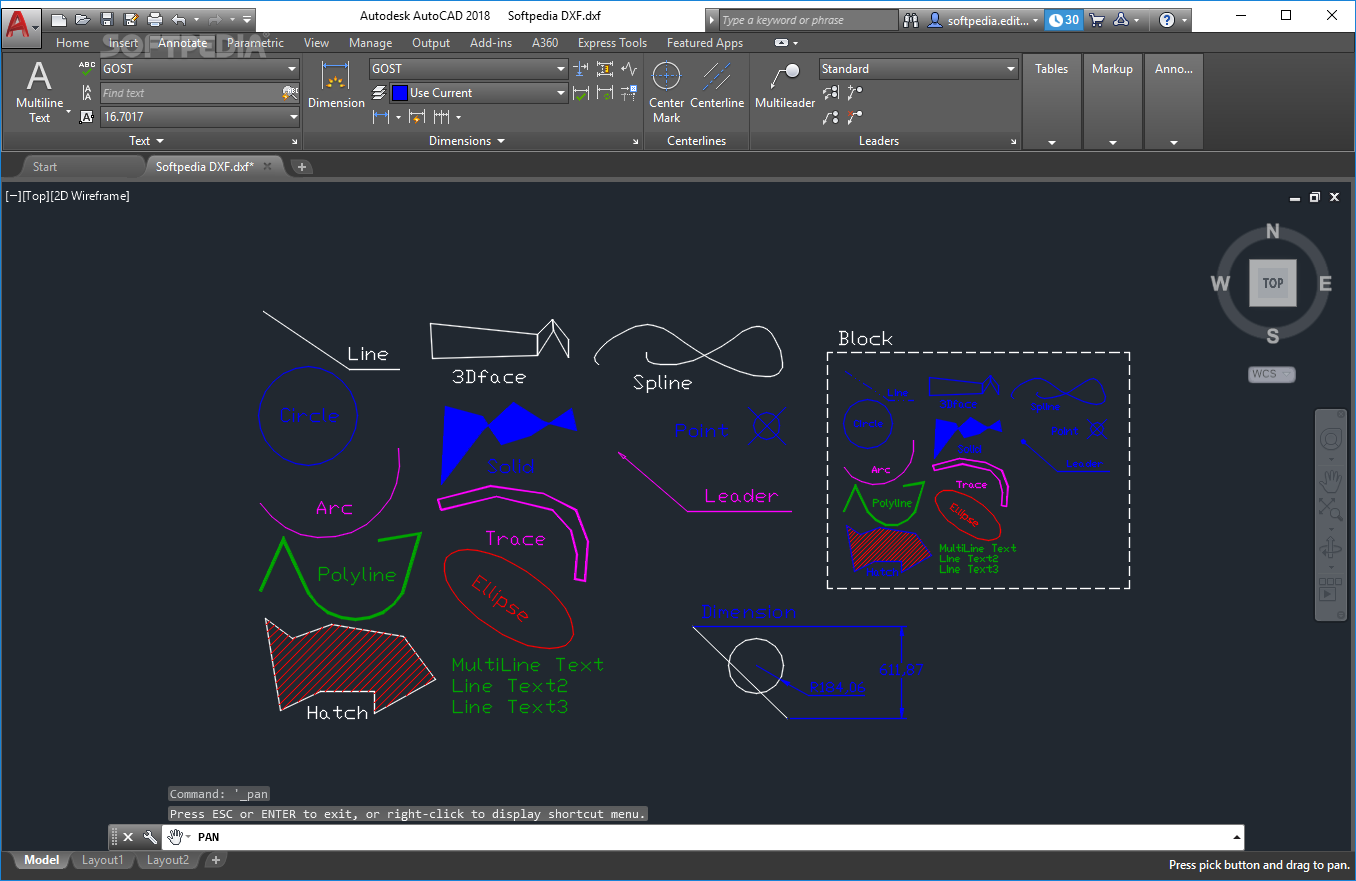

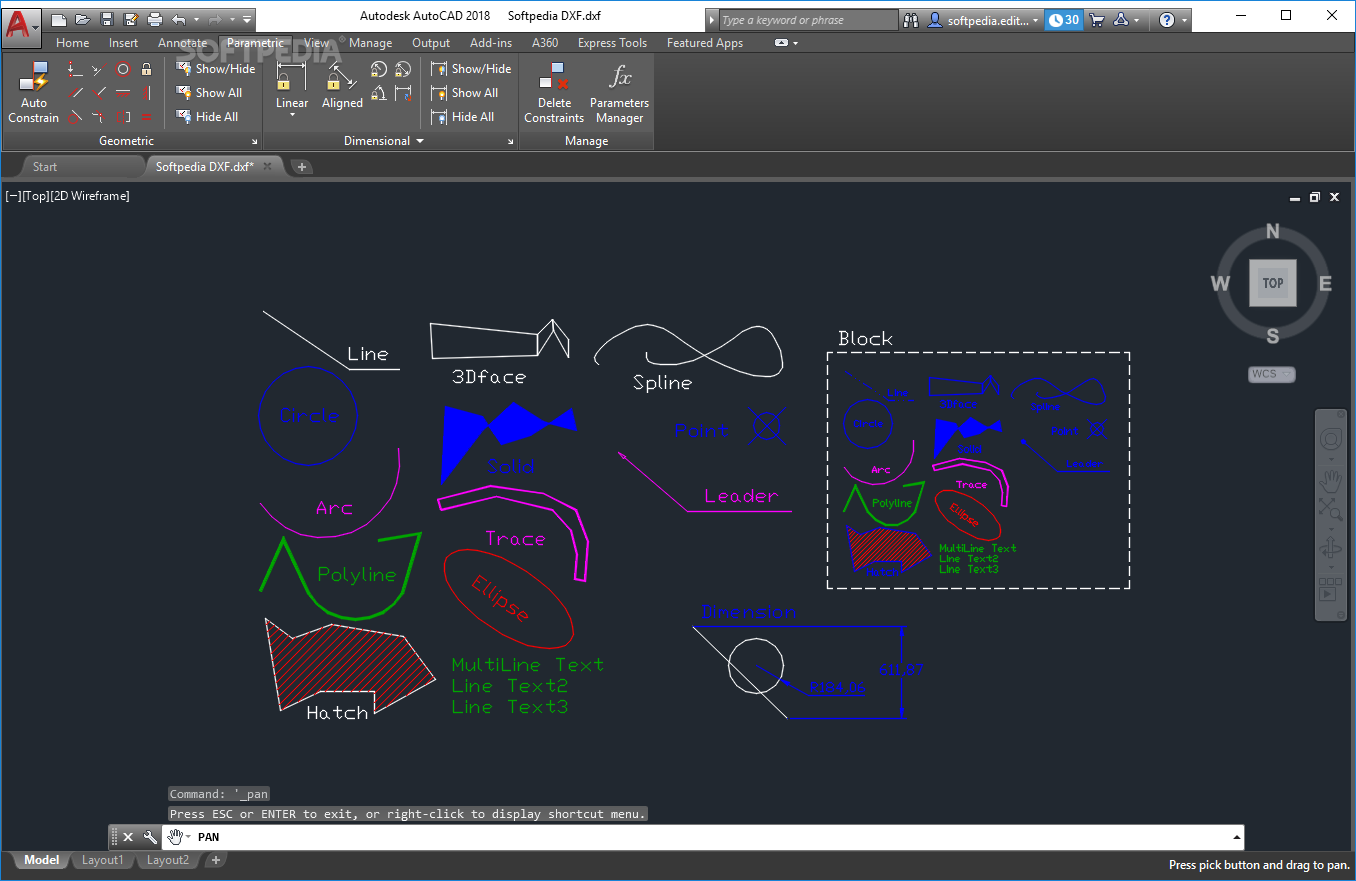

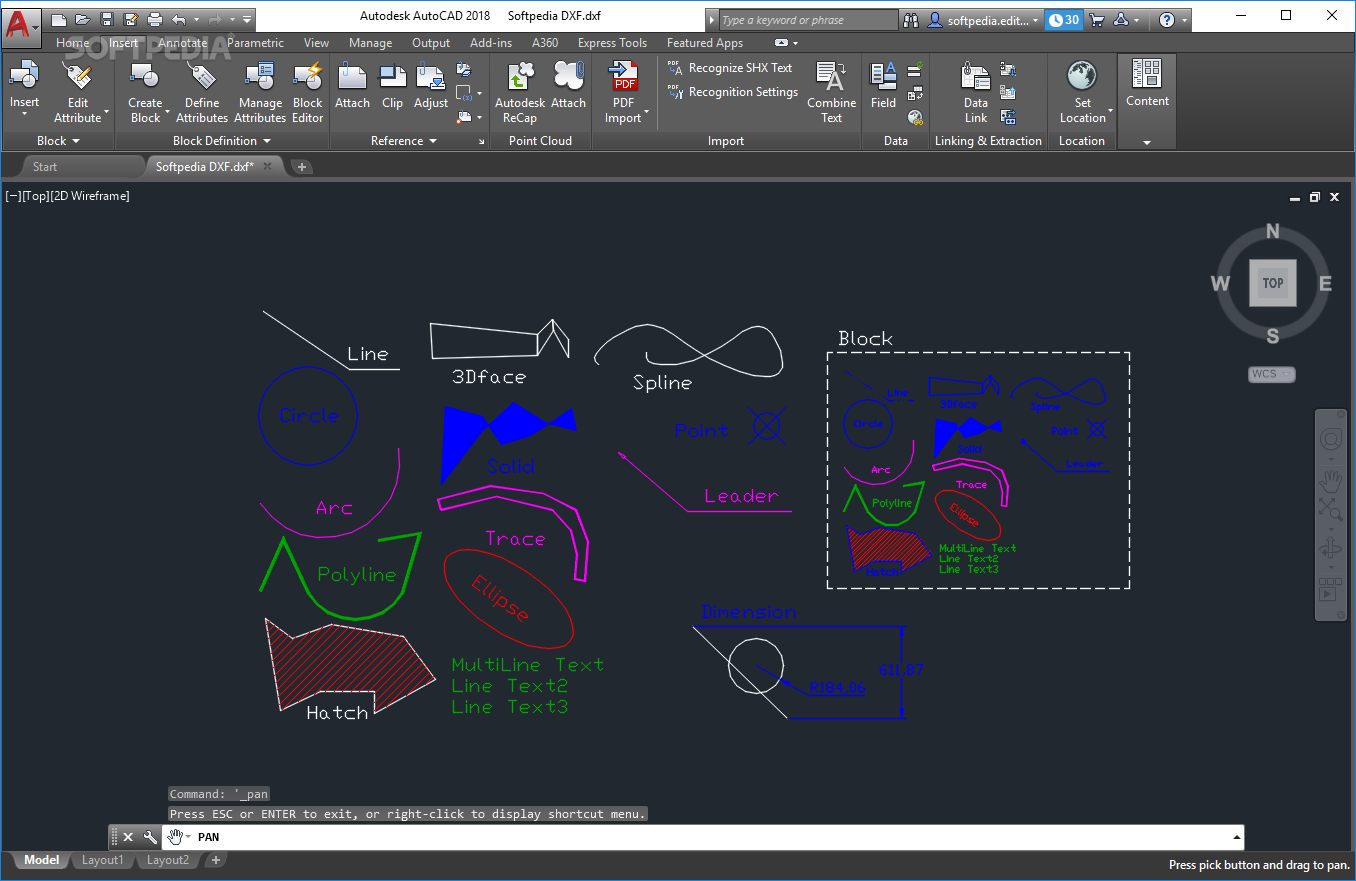

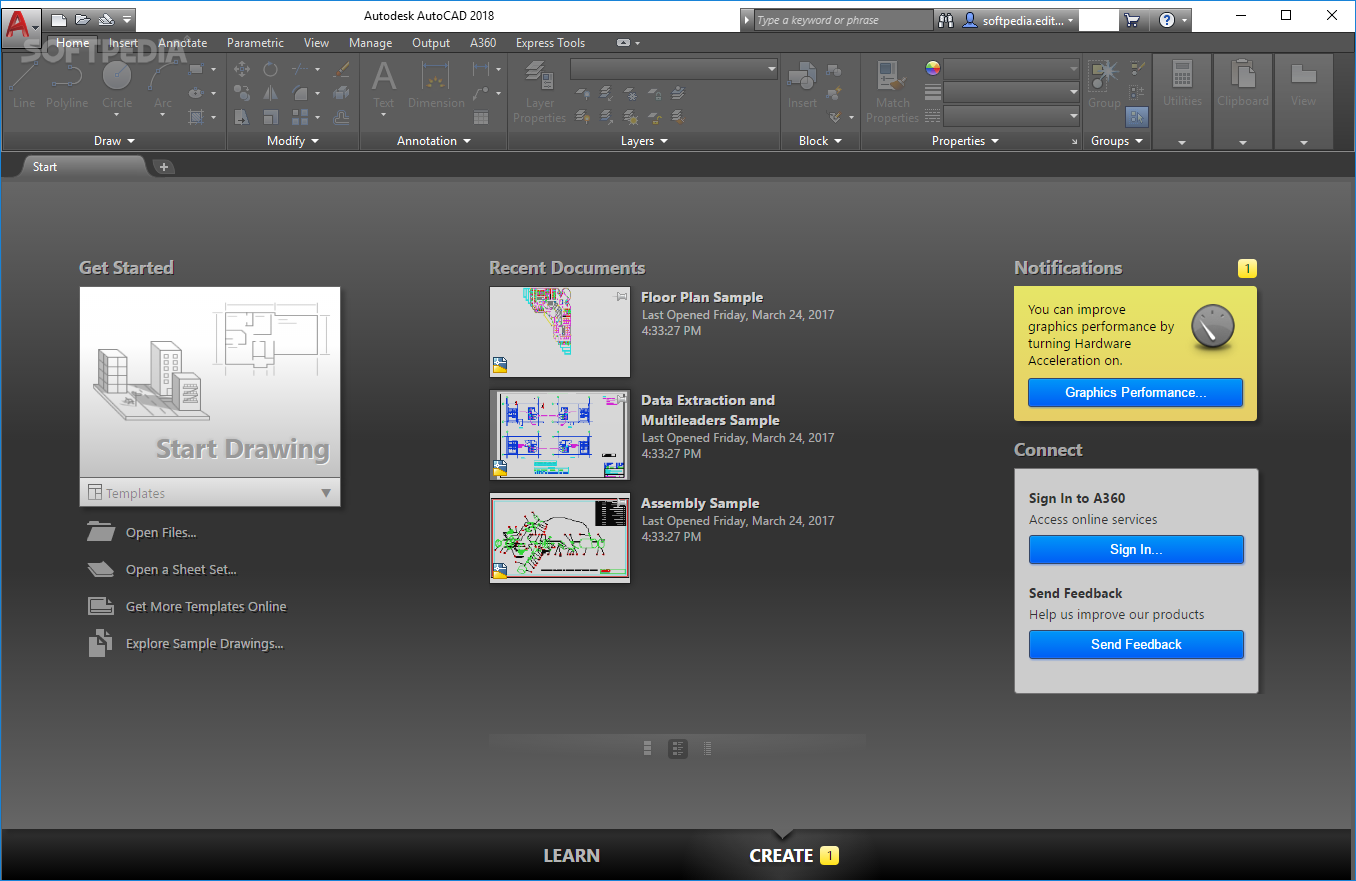

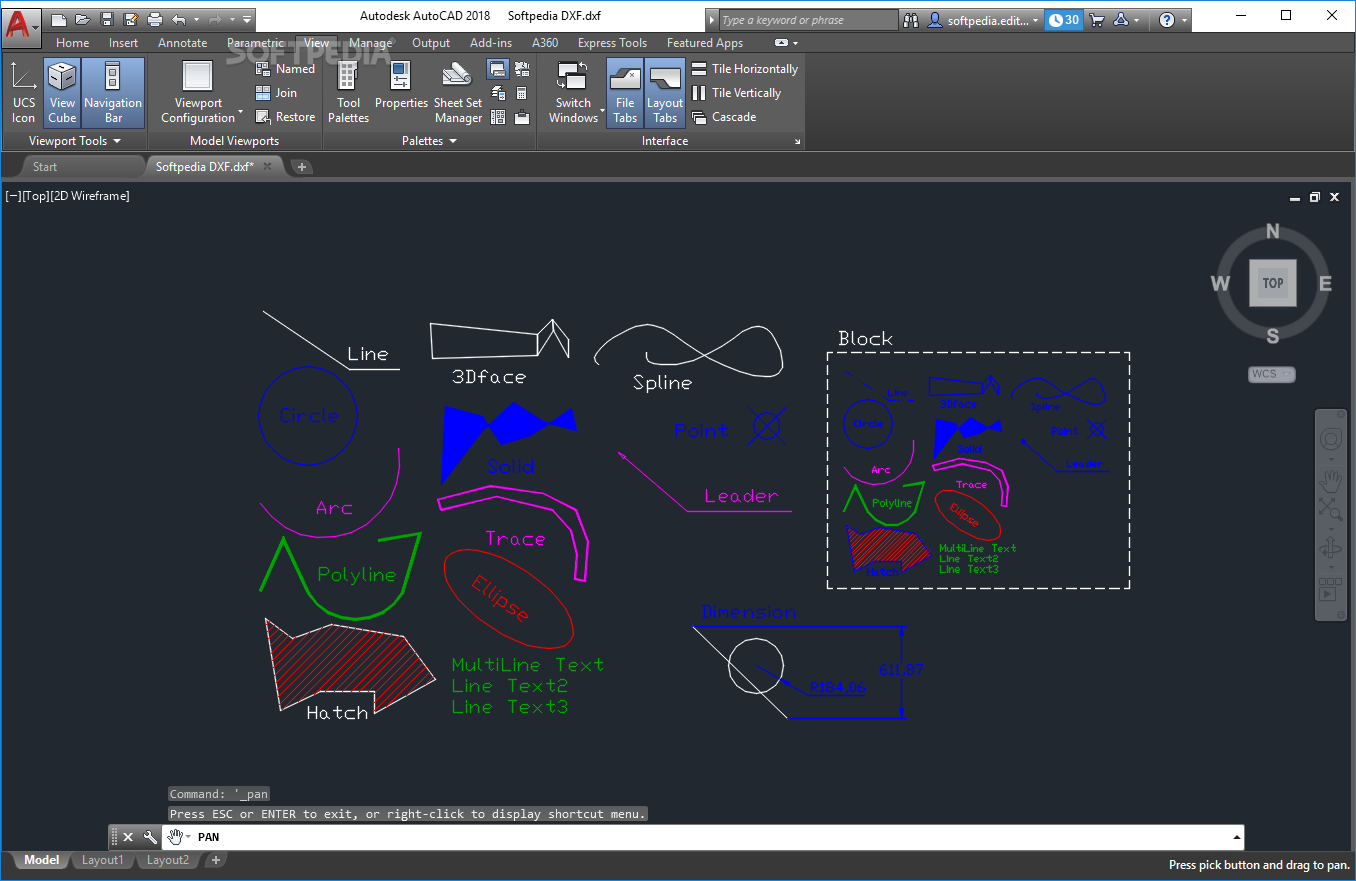

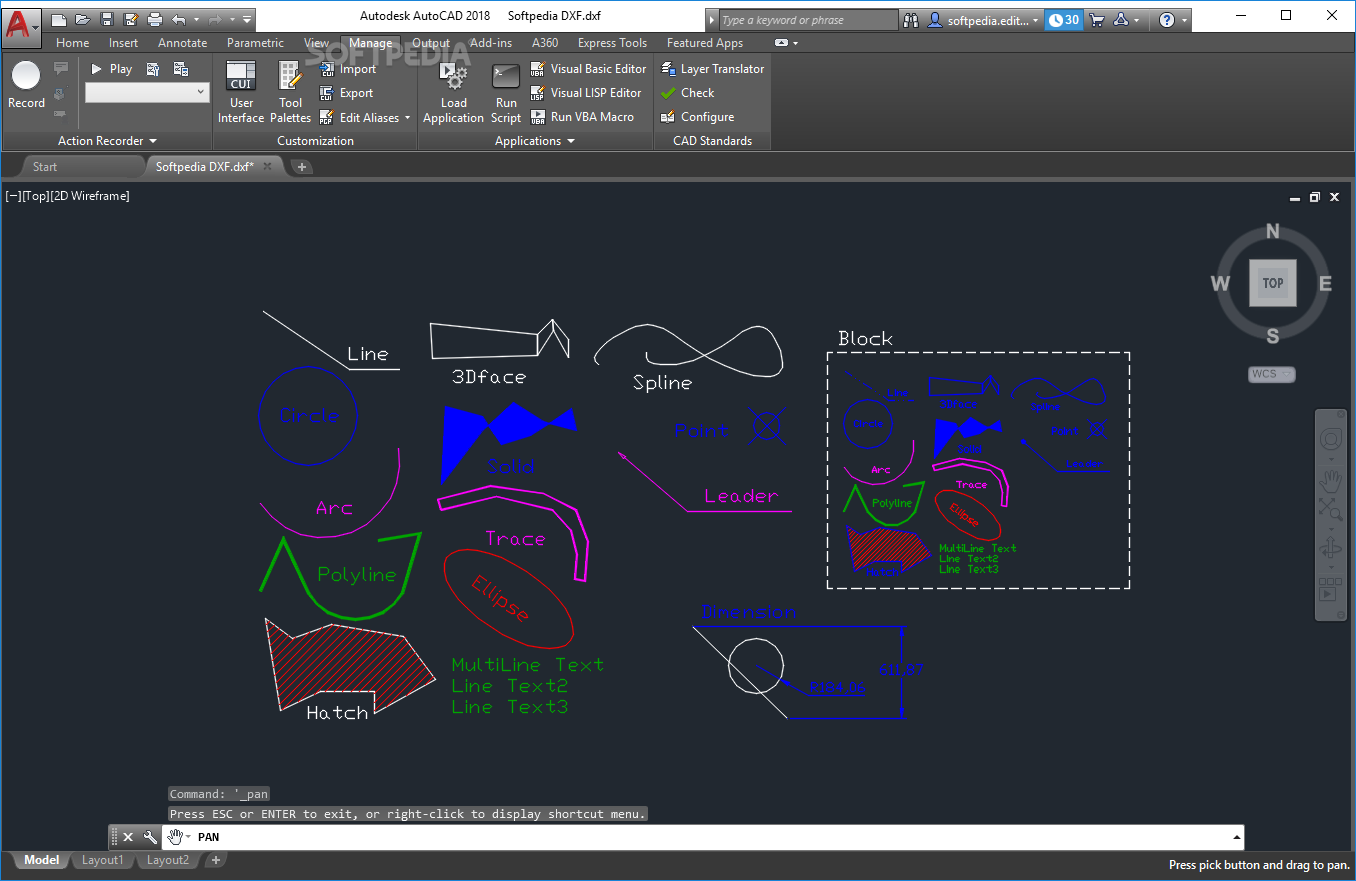

AutoCAD screenshot 1 AutoCAD screenshot 2 AutoCAD screenshot 3 AutoCAD screenshot 4 AutoCAD screenshot 5 AutoCAD screenshot 6 AutoCAD screenshot 7 AutoCAD screenshot 8 AutoCAD screenshot 9
