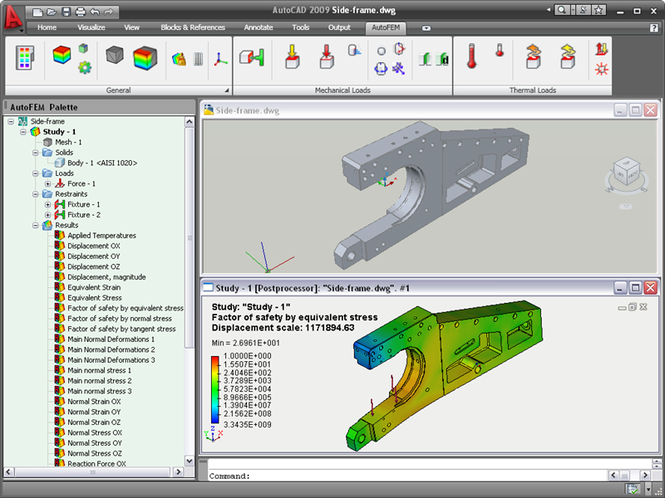

View Screenshots(3)

Comments

Download

Liked it? Tell others:

AutoFEM Analysis Details

Rating: 2.391304347 out of 5 based on 23 user ratings

Downloads: 1218
License: Demo / Trial Version

AutoFEM Analysis is a demo software by Autofem Software Llp and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download AutoFEM Analysis which is 179.59 MB in size and belongs to the software category Science CAD.
AutoFEM Analysis was released on 2012-07-03 and last updated on our database on 2017-02-15 and is currently at version 1.7.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

AutoFEM Analysis Description

AutoFEM Analysis is a system of finite-element analysis. The main feature of the system is its deep integration with AutoCAD
Using AutoFEM Analysis an user of AutoCAD gets possibility solve the problem of finite-element modeling of various physical phenomena:
-Static analysis (stress analysis of structures);
-Calculation of natural frequencies of structures;
-Calculation of critical load (the stability of the system);
-Thermal calculations and other tasks.
General algorithm of working with AutoFEM Analysis is the following:
First, the user must create three-dimensional (3D) model of the product in the AutoCAD environment.
Then, without leaving AutoCAD, user creates a problem of finite-element analysis so called as a "Study".
The model is loaded into the preprocessor AutoFEM which is fully integrated into AutoCAD.
By using the Preprocessor the user specifies the external and internal parameters of the simulated physical phenomena (finite-element mesh, boundary conditions, materials, etc.) and transmits the "Study" in Processor of AutoFEM Analysis.
Processor of AutoFEM Analysis performs assembling and solution of systems of algebraic equations in accordance with the finite element method. In the AutoFEM Analysis Postprocessor the user performs an analysis of the results and the formation of the accompanying documents - reports, video, avi, etc.
Thus AutoCAD users are able to perform the finite-element analysis in the usual and familiar for them software environment.
