Name: Axon Test
Works on: windowsWindows XP and above
Developer: Axon Group
Version: 4.1
Last Updated: 22 Apr 2017
Release: 01 Feb 2017
Category: Others > Miscellaneous
Rate this software:
753 downloads
screenshotsView Screenshots(4)
commentsComments
downloadDownload
Liked it? Tell others:
details

Axon Test Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows XP | Windows 2000 | Windows 2003 | Windows 2008 | Windows Vista | Windows 2012
SHA1 Hash: 528c6986ab4103e08f04a931ef054bb4eae79701
Size: 28.19 MB
File Format: zip
Rating: 1.739130434 out of 5 based on 23 user ratings
Publisher Website: External Link
Downloads: 753
License: Demo / Trial Version
Axon Test is a demo software by Axon Group and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download Axon Test which is 28.19 MB in size and belongs to the software category Miscellaneous.
Axon Test was released on 2017-02-01 and last updated on our database on 2017-04-22 and is currently at version 4.1.
download button
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
features

Axon Test Description

Axon Test is a reliable application that offers you a comprehensive working space, for test simulating several types of networking devices. The software can help you test the signal strength and the trace received by the device, as well as analyze the master-slave relations between certain components.

Test simulator and protocol analysis

Axon Test is a simple to use, lightweight application that you can use in order to test the functions of IEDs, networking devices, servers and data exchange tools. You may easily test the connections and signal received by the device in a certain network, in order to establish the most suitable configuration.
The software also works as a protocol simulator and allows you to test and analyze several IEDs or control centers. The supported protocols for analysis are DNP3 LAN/WAN (Master/Slave), DNP3 serial (Master/Slave), IEC 60870-5-104 (Master/Slave), IEC 60870-5-101 (Master/Slave) and Modbus (Master/Slave). It allows you to analyze the source of the signal received and filter the range, in order to obtain the exact location.

A reliable assistant for simulations, test, commands

Axon Test allows you to easily separate connections for both master and slave devices, establish the hierarchy between the multiple elements contained in the protocol or simulate the incoming signal. You can simulate the signal, since you do not need to create a real one in order to run the IED tests.
The software displays the tree-like structure of the selected device, on the left and allows you to select each node, then thoroughly analyze it. You can view Traces and run different commands, whether they are present or configured on the spot. Preset commands are displayed in the first tab, while the Advanced Commands tab allows you to create a new type of command.

Easy to use program, with readable output

Axon Test allows you to save your current simulation as a project file, that you can open at a later time, but you may also save logs, traces, signal reports or errors to RTF files. The software is simple to use and allows you to pin several editing areas to the main window. Thus, you may pin or hide the project explorer, node properties editor or the log viewer.
screenshots

Axon Test Screenshots

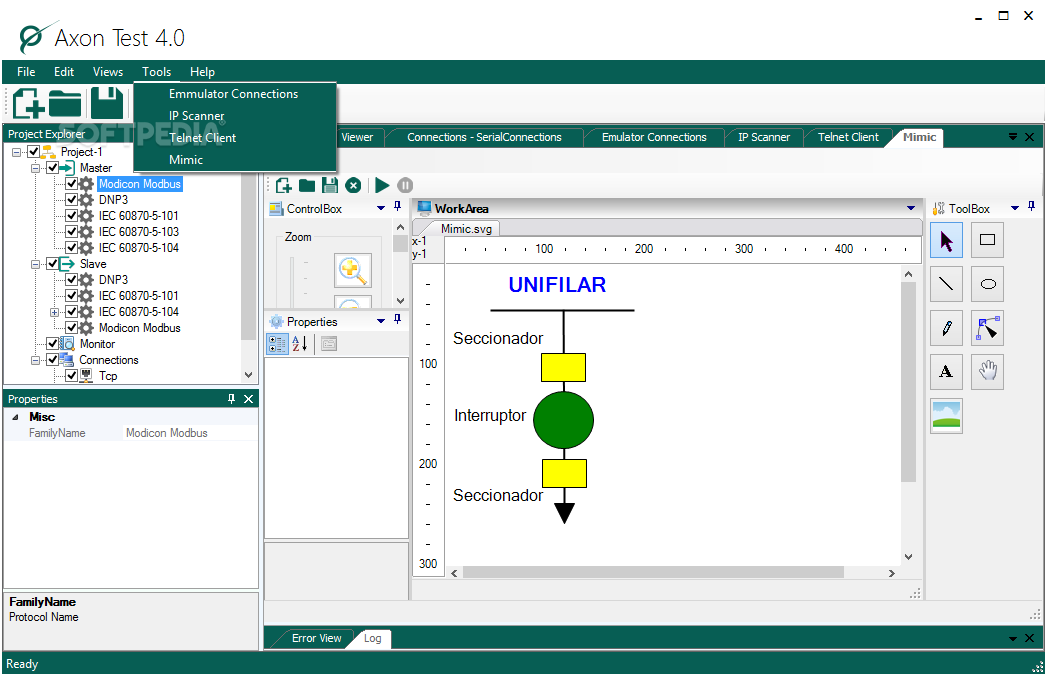

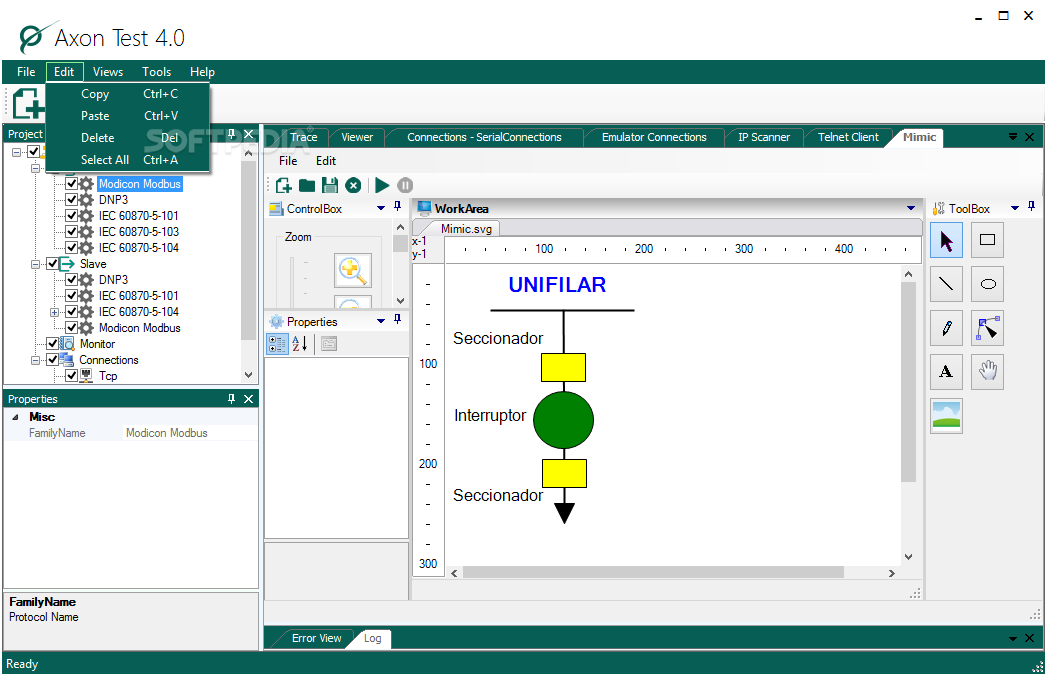

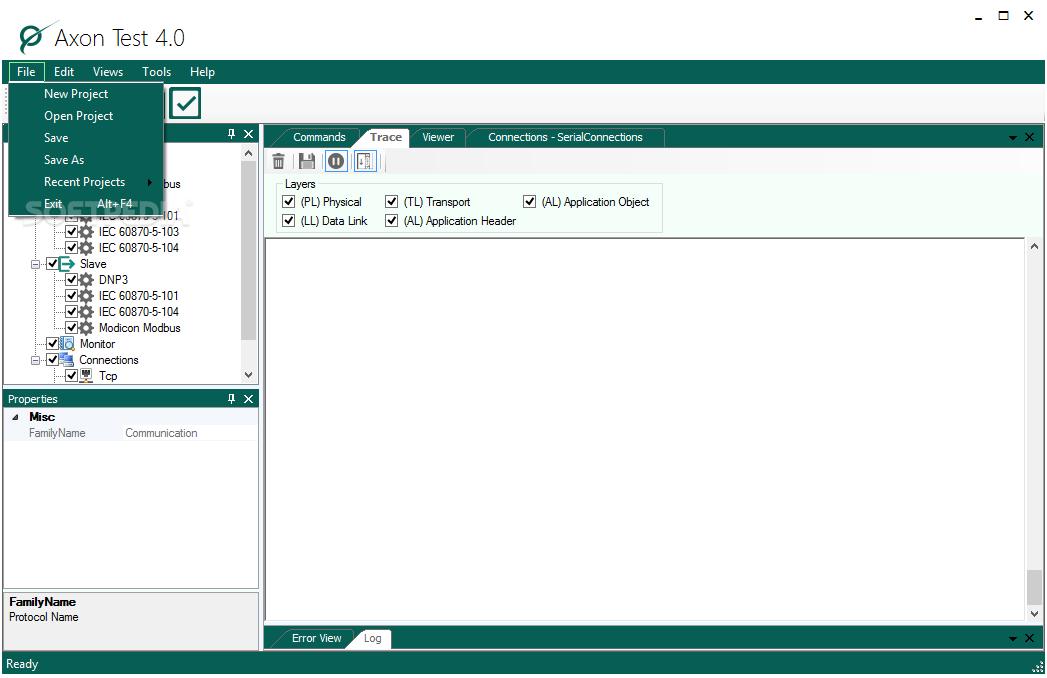

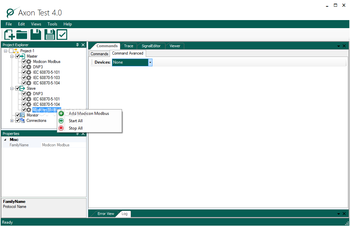

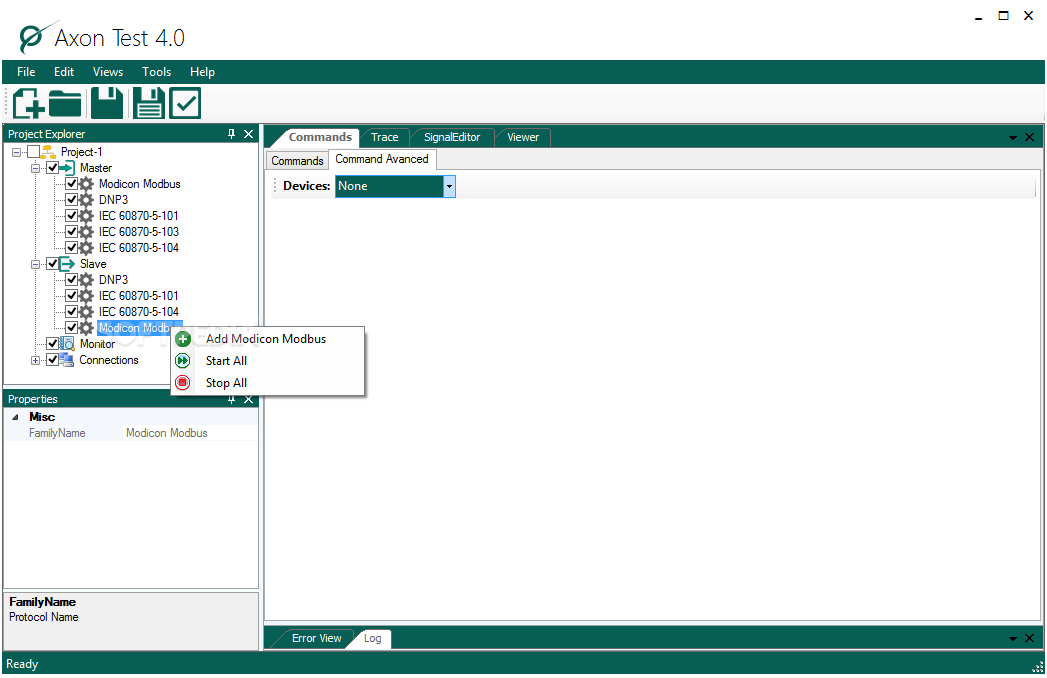

Axon Test screenshot 1 Axon Test screenshot 2 Axon Test screenshot 3 Axon Test screenshot 4
