CAD-COMPO3 for Windows

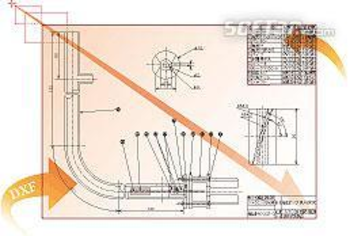

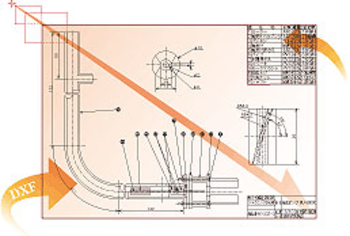

Adobe Illustrator ~2D-CAD Component Plug-in~. CAD-COMPO 3 is a plug-in software includes "BPT-Pro3" and "EXDXF-Pro2". "BPT-Pro3" is a software to add a highly functional 2D-CAD program into Illustrator. "EXDXF-Pro2" provides that to import CAD standard DXF files to Illustrator, and to export AI files to CAD. Illustrator becomes a highly functional 2D-CAD program. To make your Adobe Illustrator becomes a highly functional 2D-CAD program, equipped with 8 kinds and 19 different tools, all accessed through the Illustrator tool box with a convenient information palette. You can easily display the dimensions of objects with free curved lines, and measure everything from a segment of an object, to the object itself, and even groups of objects. To export and import to bridge Adobe Illustrator and the CAD. EXDXF-Pro3 provides you with the capability to import CAD standard DXF files to Adobe Illustrator, and to export AI files to CAD, allowing you to make your data compatible in both applications.
