Circuit Construction Kit (AC+DC) icon

Circuit Construction Kit (AC+DC)

1 big stars
Circuit Construction Kit (AC+DC) screenshot
Name: Circuit Construction Kit (AC+DC)
Works on: windowsWindows XP and above
Version: 3.2
Last Updated: 28 Mar 2017
Release: 01 Apr 2013
Category: Others > Home and Education
Rate this software:
433 downloads
screenshotsView Screenshots(1)
commentsComments
downloadDownload
Liked it? Tell others:
details

Circuit Construction Kit (AC+DC) Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows XP | Windows 2000 | Windows 2003 | Windows 2008 | Windows Vista | Windows 2012
SHA1 Hash: b0a18555bd39c94fe5194bc4f30988065f2c326d
Size: 2.21 MB
File Format: jar
Rating: 1.826086956 out of 5 based on 23 user ratings
Downloads: 433
License: Free
Circuit Construction Kit (AC+DC) is a free software by University of Colorado and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download Circuit Construction Kit (AC+DC) which is 2.21 MB in size and belongs to the software category Home and Education.
Circuit Construction Kit (AC+DC) was released on 2013-04-01 and last updated on our database on 2017-03-28 and is currently at version 3.2.
download button
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
features

Circuit Construction Kit (AC+DC) Description

Electronics is a part of physics that makes it possible for all our devices and machines to run. All of them are based on complex schematics for electricity flow, with computer applications serving as a more practical means of design. However, for learning purposes, Circuit Construction Kit comes with a friendly interface, suitable for youngsters for basic studying of circuit design.

Intuitive interface makes it easy to use

The interface is more than intuitive, with cleverly arranged elements and clearly visible icons. The workspace is available in three different size specifications, but does not really hold a lot of room for more advanced schematics.
Placing objects is easily done by grabbing them from the panel they are stored in and dragged over the desired location. Each element has two connectors that need to be joined in order for electricity to flow. What's more, this is properly emphasized with an animation that simulates the path of electrons.

Little content to work with

Amongst the elements a circuit can be composed of, you can find the common conductor, which is the wire, resistors, battery, light bulb, switch, capacitors and a few more. The list is pretty shallow with little extra content. However, it's enough to get a beginner up and running. Measuring tools are also included, with functionality and connectivity done in the same manner as the rest of the objects.

Test connectivity of various materials

In addition, there are several more items that allow you to test out the conductivity of different materials. These are all stored in the “Grab Bag”, and you can choose from a dollar bill, paper clip, penny, eraser, pencil lead, hand and a dog.

A few last words

To sum it up, Circuit Construction Kit is one of the first steps you need to take in order o understand electronics. The interface is intuitive enough, with no accommodation problems whatsoever. Little effort is required to create a circuit and view as electricity flows through wires, making you better understand electronics.
screenshots

Circuit Construction Kit (AC+DC) Screenshots

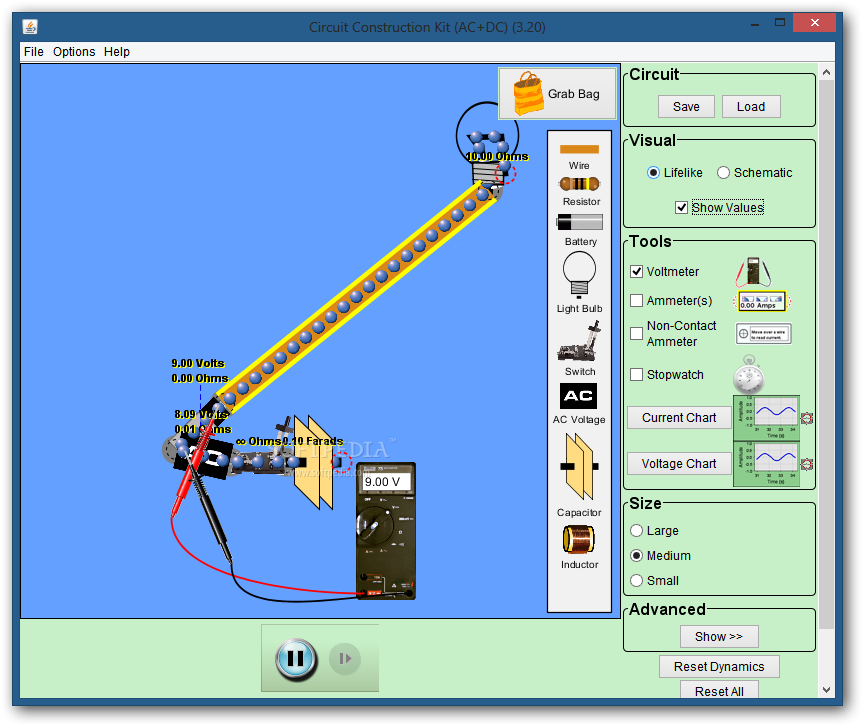

Circuit Construction Kit (AC+DC) screenshot 1
