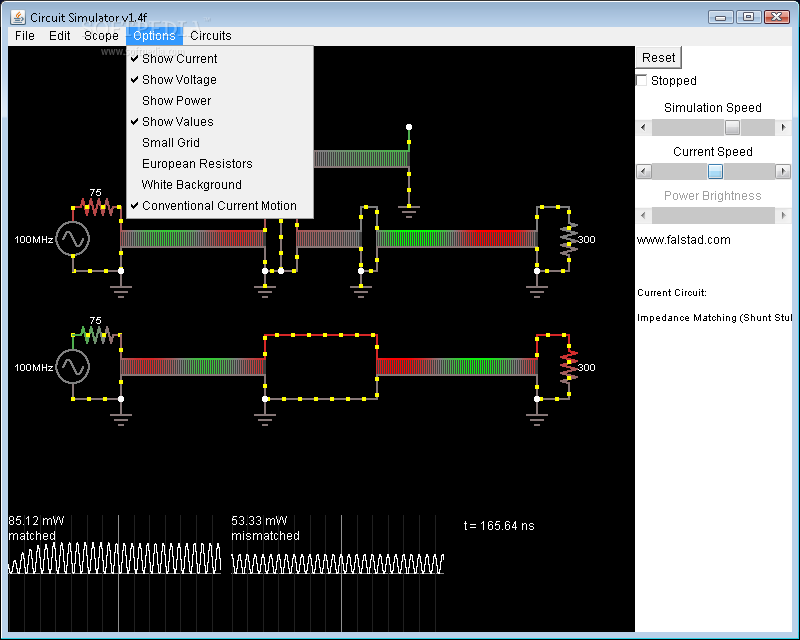

Circuit Simulator screenshot
Name: Circuit Simulator
Works on: windowsWindows 7 and above
Developer: Paul Falstad
Version: 1.6
Last Updated: 04 Apr 2017
Release: 17 Nov 2014
Category: Science CAD
Rate this software:
638 downloads
screenshotsView Screenshots(3)
commentsComments
downloadDownload
try it nowTry It In Browser!
Liked it? Tell others:
details

Circuit Simulator Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows 2012
SHA1 Hash: e4c91ff30edf90acee5ed72b23cf2c071761ab6f
Size: 779.14 KB
File Format: zip
Rating: 5 out of 5 based on 2 user ratings
Downloads: 638
License: Free
Circuit Simulator is a free software by Paul Falstad and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download Circuit Simulator which is 779.14 KB in size and belongs to the software category Science CAD.
Circuit Simulator was released on 2014-11-17 and last updated on our database on 2017-04-04 and is currently at version 1.6.
download button
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
Now you can try out this software directly in your browser without downloading or installing on your PC!
try it now
features

Circuit Simulator Description

Circuit Simulator is an easy to use Java-based application that can assist you in simulating a wide range of electronic circuits, providing you with numerous customizable options.
The application makes use of animations and colors to help you visualize the many elements in a circuit. As such, a green color indicates a positive voltage, while a red color is indicative of negative voltage. The color gray will indicates ground and the moving yellow dots indicate flowing current as well as its direction.
The right-side panel enables you to adjust the simulation and the current speed, as well as the power brightness.

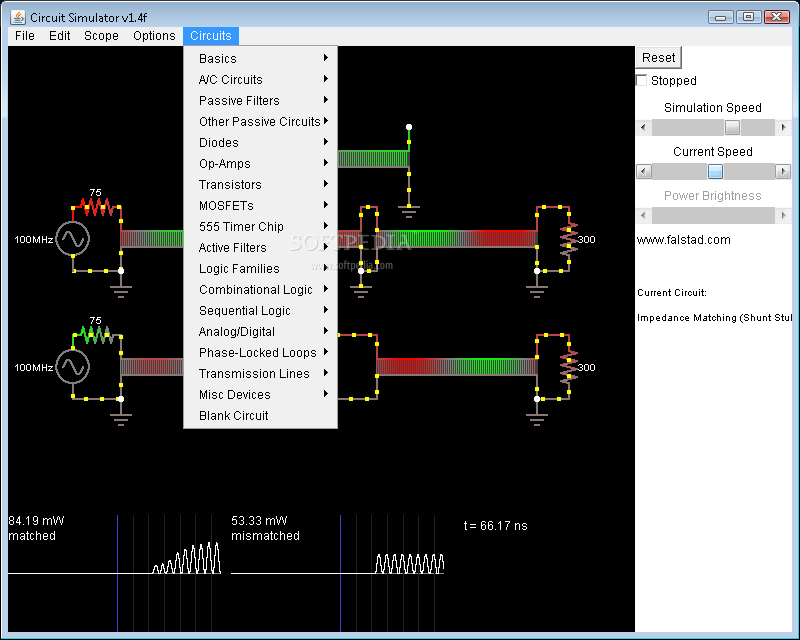

Circuit Simulator comes with a pre-existing library of circuit demonstrations, so all you have to do is select which one you want to run. The simulations are grouped in various categories, for instance 'Basics', 'Passive Filters', 'Diodes', 'Transistors', 'Logic Families', 'Sequential Logic' or 'Transmission Lines'.
As such, the 'Basics' circuits can help you visualize Ohm's Law, Resistors, Capacitors or Thevenin's Theorem, while the 'Passive Filters' will demonstrate a 'Crossover' or a 'Notch Filter', and many more.
Aside from allowing you to run existing simulations, Circuit Simulator also enables you to add elements to the circuits, customizing them to suit your needs. From the context menu, you can add a 'Wire' or a 'Resistor' as well as 'Passive' or 'Active Components', 'Logic Gates' or Chips'.
The newly created electronic circuits are stored in TXT format files, that you can later re-use and modify with ease.
Circuit Simulator is a great learning tool, that makes it very easy to demonstrate numerous circuits, while also permitting you to create your own, using the provided simulations as a starting-point. Thus, it can prove a reliable application for physics teachers, but also students who want to better understand specific laws and theorems.
screenshots

Circuit Simulator Screenshots

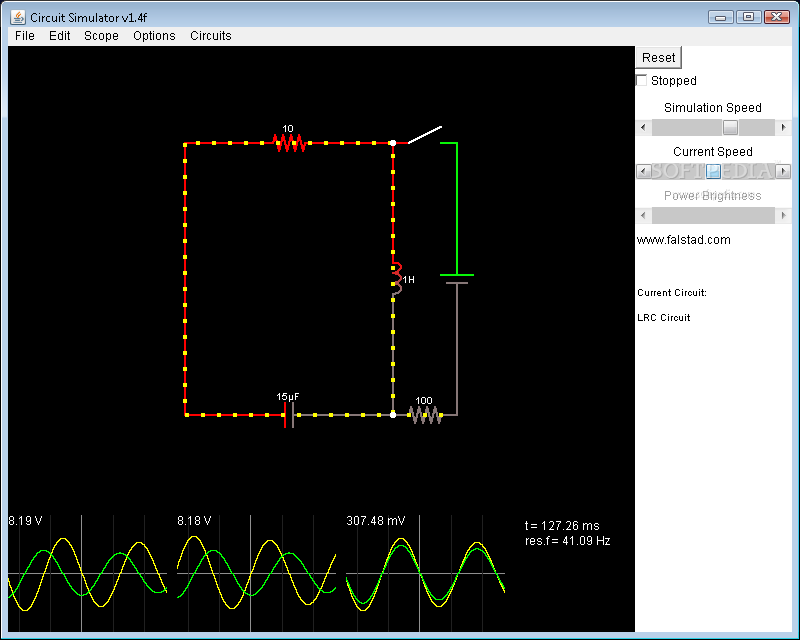

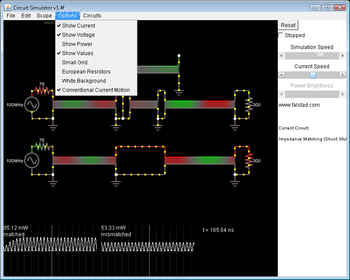

Circuit Simulator screenshot 1 Circuit Simulator screenshot 2 Circuit Simulator screenshot 3
