CtrlCAD source code C++

Name: CtrlCAD source code C++
Works on: windows

Windows ME and above

Version: 11.4
Last Updated: 27 Feb 2017
Release: 05 Apr 2011
Category: Programming > Components Libraries

Rate this software:
123 downloads

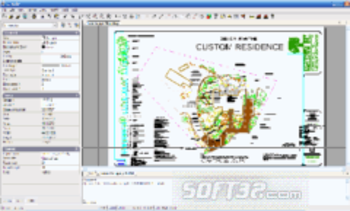

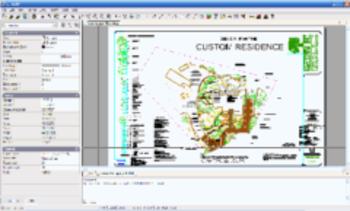

View Screenshots(3)

Comments

Download

Liked it? Tell others:

CtrlCAD source code C++ Details

Rating: 2.608695652 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 123
License: Demo / Trial Version

CtrlCAD source code C++ is a demo software by Design&software and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows ME, Windows Vista, Windows 2012.
You can download CtrlCAD source code C++ which is 2.41 MB in size and belongs to the software category Components Libraries.
CtrlCAD source code C++ was released on 2011-04-05 and last updated on our database on 2017-02-27 and is currently at version 11.4.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

CtrlCAD source code C++ Description

CtrlCAD is a 2D source code cad for C++.It is the starting point to build your own customized drawing applications. The library is furnished in source code formats for c++
More then 1000 functions,well documented with a lot of examples.
CtrlCAD features:
- Supported formats: AutoCAD DWG/ DXF format.
- Pages, Layers, Linetypes, Blocks, TextStyles, PointStyles, Multi-line Styles (parallel lines), Selection Sets.
- Graphics objects: Points, Lines, Sub-classed Polylines, Circles, Arcs, Ellipses, Rectangles, Text, Block
Insertions, Raster Images, Hatches.
- Vectorization of raster images
- A unique ID for each graphical object facilitates external database referencing.
- Access to all the properties of any object, either programmatically or via dialogs.
- Zoom capabilities allowing you to view the entire drawing or any desired part of it.
- Mouse Wheel supports real-time Zoom and Pan.
- Print Preview.
- Command window to insert command by keywords.
- Advanced user interface
- Layers and Blocks management
- Model and Layout space
- Uses Autocad style print (.CTB and .STB files)
- Boolean operations between polygons
- Edit operations: Copy, Move, Rotate, Scale, Mirror, Array,Explode, Erase, Join. Single objects can be edited by moving their control points (grips).
- Event-driven mechanism that allows for application control of the user's actions with a drawing.
- Supports Windows TTF fonts and AutoCAD SHP fonts.
- Supports AutoCAD hatch patterns (PAT) and linetypes (LIN).
- Unlimited Undo-Redo
- Easy localization to any language.
