DXF 2 G-Code

DXF 2 G-Code is a simple-to-use software utility designed to help you create G-Code from drawing files with the DXF format. It comes loaded with standard and advanced settings alike, so it should meet the requirements of most users.

Swift setup and clear-cut GUI

The installation procedure takes minimal time and effort. DXF 2 G-Code is packed in a familiar interface made from a normal frame with a neatly organized structure, where you can use the Explorer-based folder view to navigate directories and locate DXF files for processing.

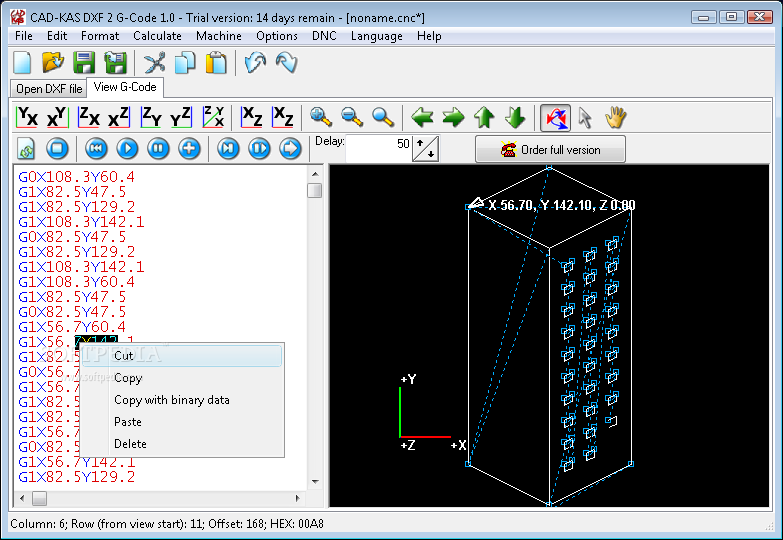

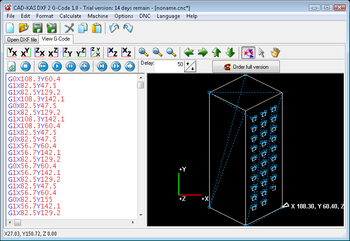

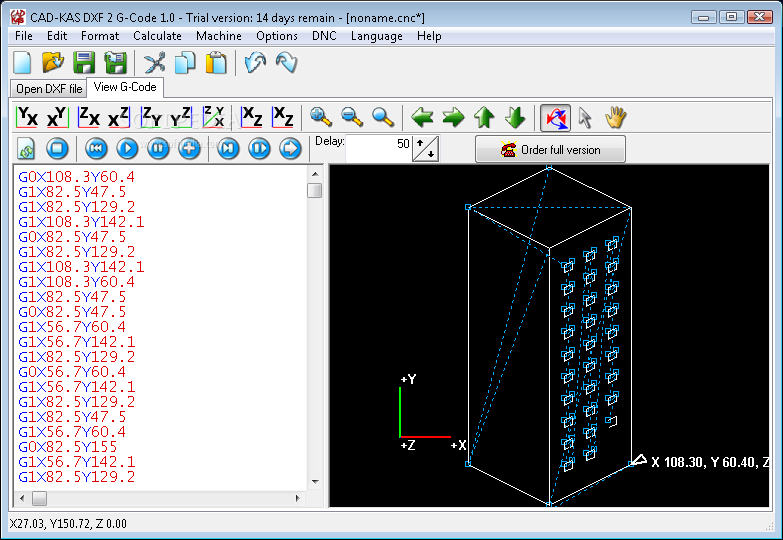

View the G-Code and design

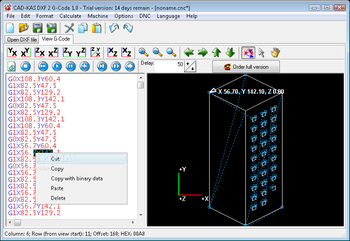

The application immediately shows its corresponding G-Code and graphical representation, allowing you to refresh the backplot, break the renderer, play the animation, set a delay time, as well as to switch to isometric 3D view.

Configure conversion settings

Before proceeding with the conversion operation, you can set the start point and size, use DXF coordinates directly as G-Code coordinates, specify the number of digits after comma, output Z coordinates, create G91 relative coordinates, and more.

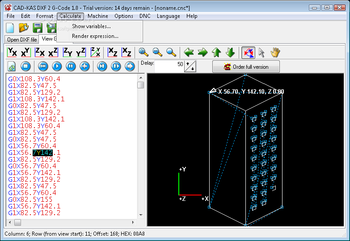

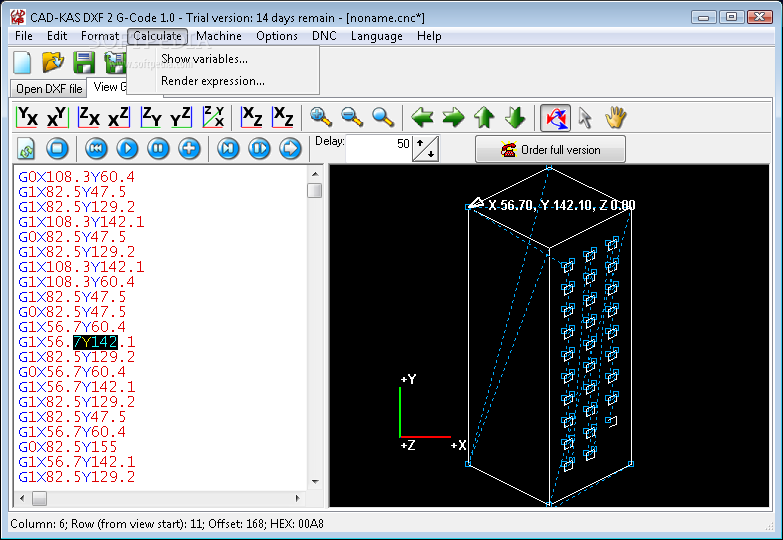

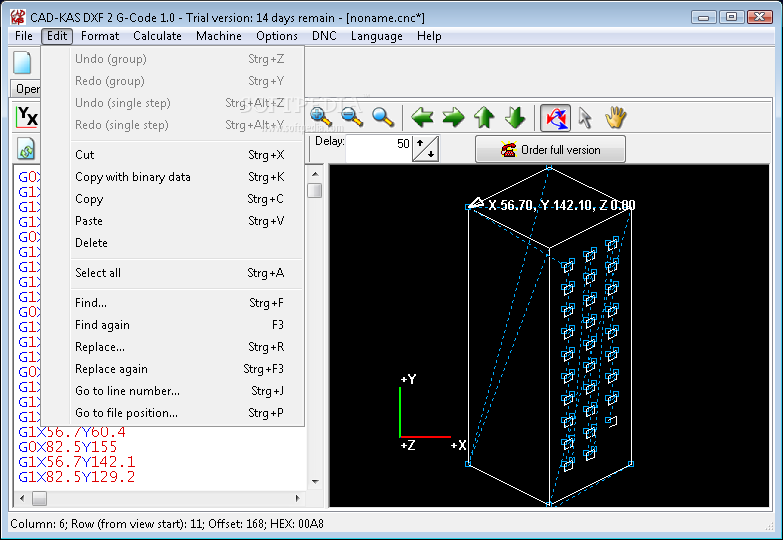

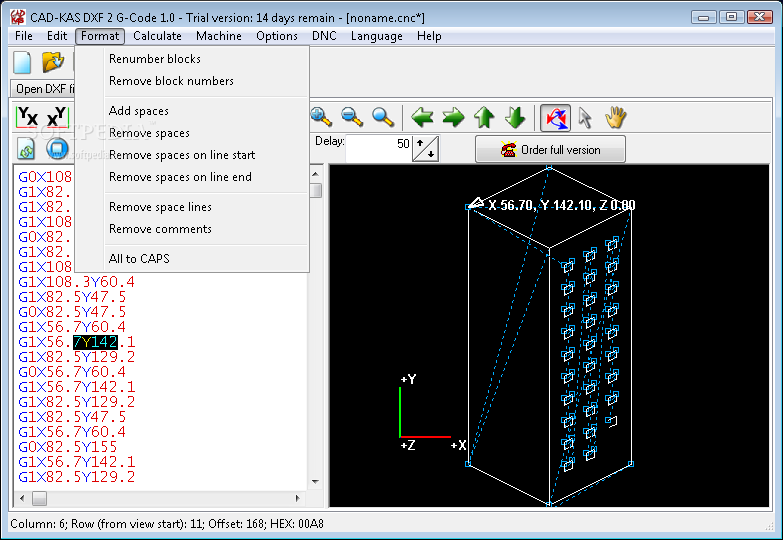

In addition, it is possible to save the DXF file with modified settings, use a search function when dealing with large amounts of data, change the block numbering, add and remove spaces, delete space lines and comments, convert all to uppercase, calculate expressions, and much more.

Evaluation and conclusion

No error messages were shown in our testing, and the tool did not hang or crash. It runs on low CPU and RAM, so it shouldn't put a strain on computer performance. To conclude, DXF 2 G-Code puts numerous options and configuration parameters at your disposal for creating G-Code from DXF files.
