DXF Export for Alibre Design

DXF Export for Alibre Design is an AutoCAD DXF file export add-on for Alibre Design®. This add-on gives Alibre Design the ability to export 3D solid data from a Alibre Design part and assembly document to 3d solids or meshes in an AutoCAD DXF file.
DXF Export for Alibre Design reads the solid models from the current Alibre Design part or assembly and writes them as 3d solids in an AutoCAD DXF file. It can also tessellate the solid bodies into individual triangular meshes. These meshes are then exported to a DXF file as 3D Polyface Mesh, 3D Face, Line or Point objects.

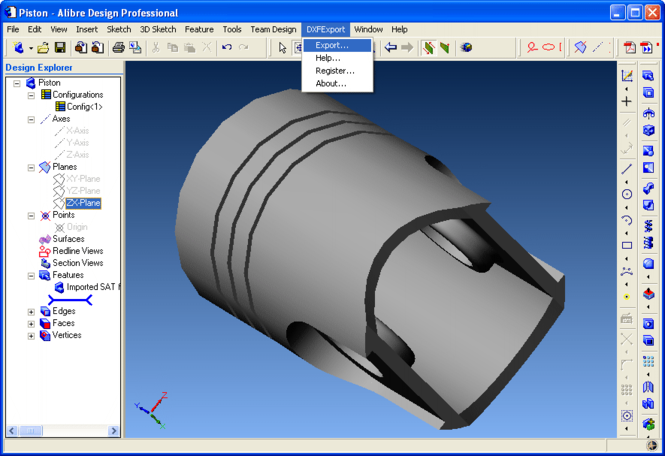

DXF Export for Alibre Design is very easy to use. It adds new commands to Alibre Design. Once installed, it automatically loads itself into Alibre Design and adds a new submenu called "DXFExport" to the Alibre Design menu containing these newly added commands.
The 'DXF Export for Alibre Design' menu consists of the following commands:
# Export - Export meshes to a DXF file
# Help - Display the DXF Export for Alibre Design help file
# Register - Register your copy of DXF Export for Alibre Design
# About - Display the DXF Export for Alibre Design About box
DXF Export for Alibre Design comes with detailed documentation for each command as well as a tutorial to get you started in the shortest possible time.
