EAGLE PCB Power Tools

EAGLE PCB Power Tools is a lightweight application built specifically for extending the functionality of EAGLE Light, an advanced software application that helps users design circuit boards.
EAGLE PCB Power Tools comes packed with several dedicated tools that give you a hand when it comes to preparing your files for PCB designs. This way, you can convert DXF and GBR files, and edit images.
The conversion process and the editing operations can be run from separate windows, and the tool also offers support for EAGLE Light toolbar integration, so you can easily access its functions while working on your PCB designs.

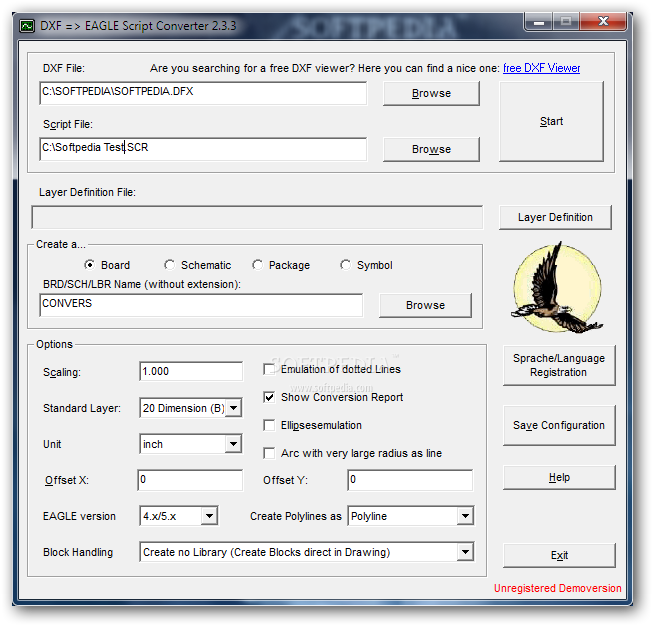

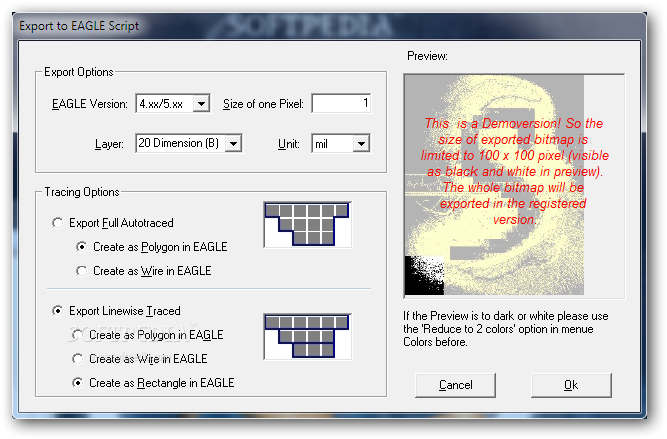

When it comes to converting DXF files to script items, you are allowed to specify the saving directory, choose the output format (e.g. board, schematic), select the EAGLE Light version of the program, and pick the measurement unit.

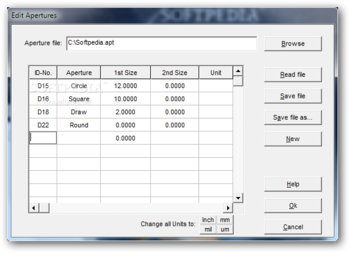

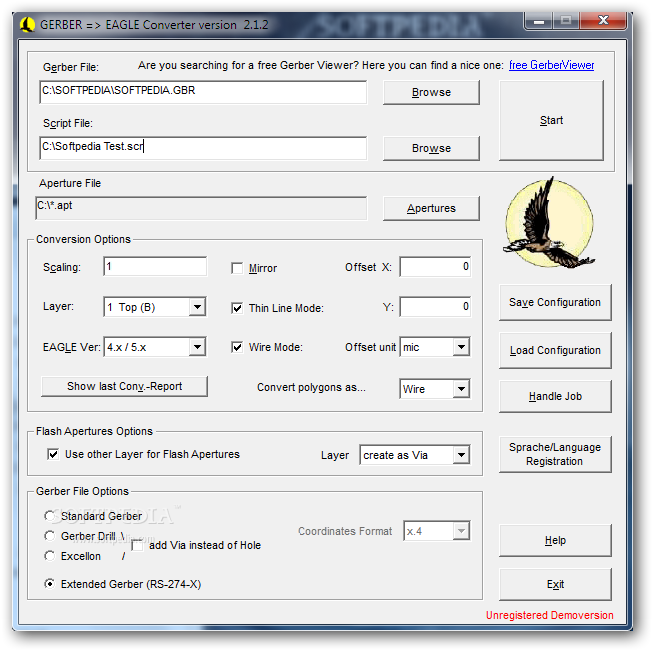

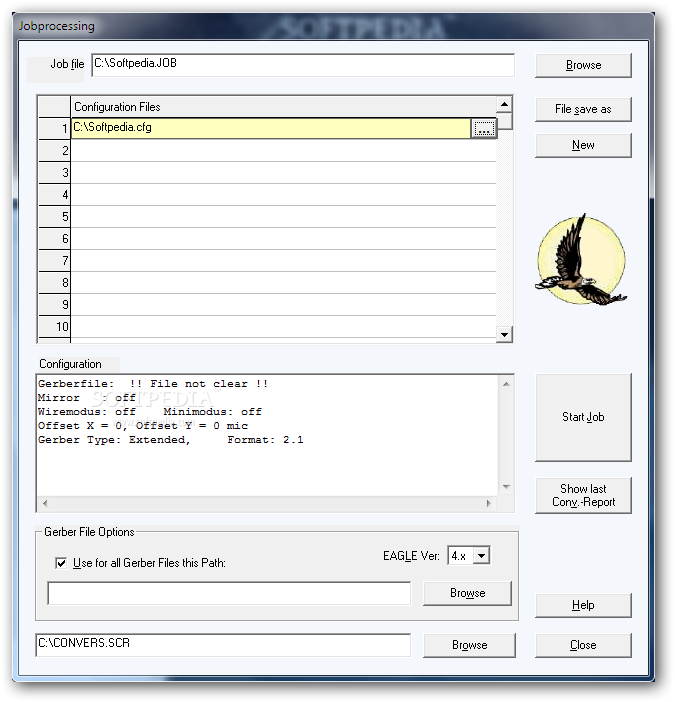

EAGLE PCB Power Tools gives users the possibility to convert Gerber files to script items by configuring several dedicated parameters, such as scaling level, wire mode, EAGLE Light version, and polygons.

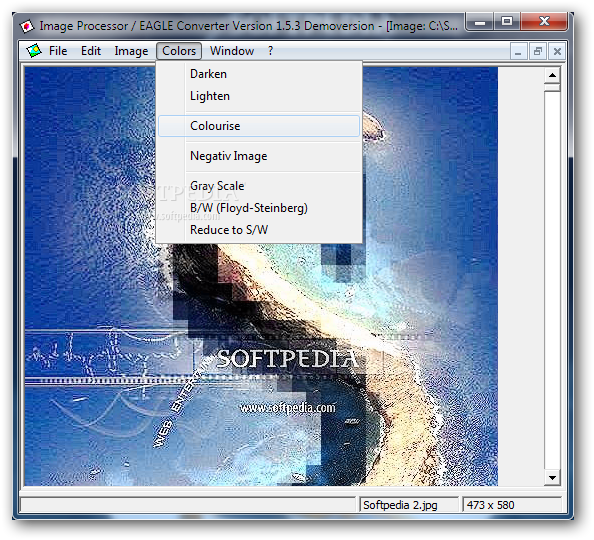

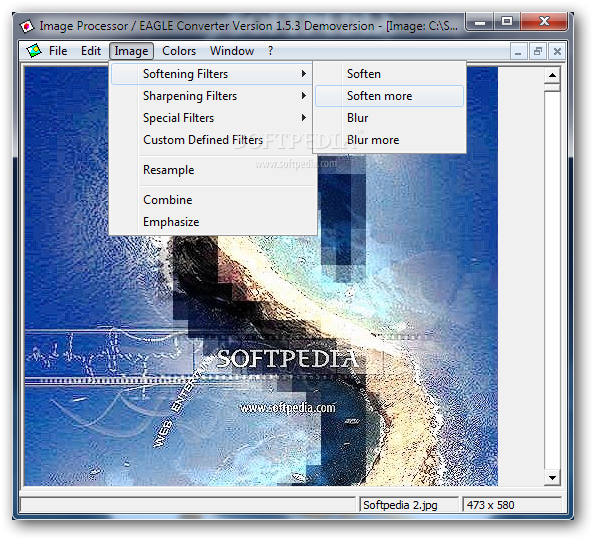

The application bundles several editing tools that allow users to apply special effects (e.g. sharpen, grayscale, negative, darken, lighten), copy the images to the Clipboard, undo their actions, and switch to a full screen mode.
It works with the following file formats: BMP, GIF, JPG, DIB, WMF, EMF, ICO, and CUR, and lets you import data via TWAIN devices. The edited photos can be exported to BMP file format.
The program comprises several tweaking options designed to help you customize the layout of the application, namely, description, tooltip text, and icon.
As a conclusion, EAGLE PCB Power Tools offers a handy set of tools that help users prepare documents for PCB designs.
