Filter Wiz PRO is a demo software by Schematica Software and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download Filter Wiz PRO which is 8.33 MB in size and belongs to the software category Science CAD.
Filter Wiz PRO was released on 2015-09-16 and last updated on our database on 2017-04-07 and is currently at version 5.6.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

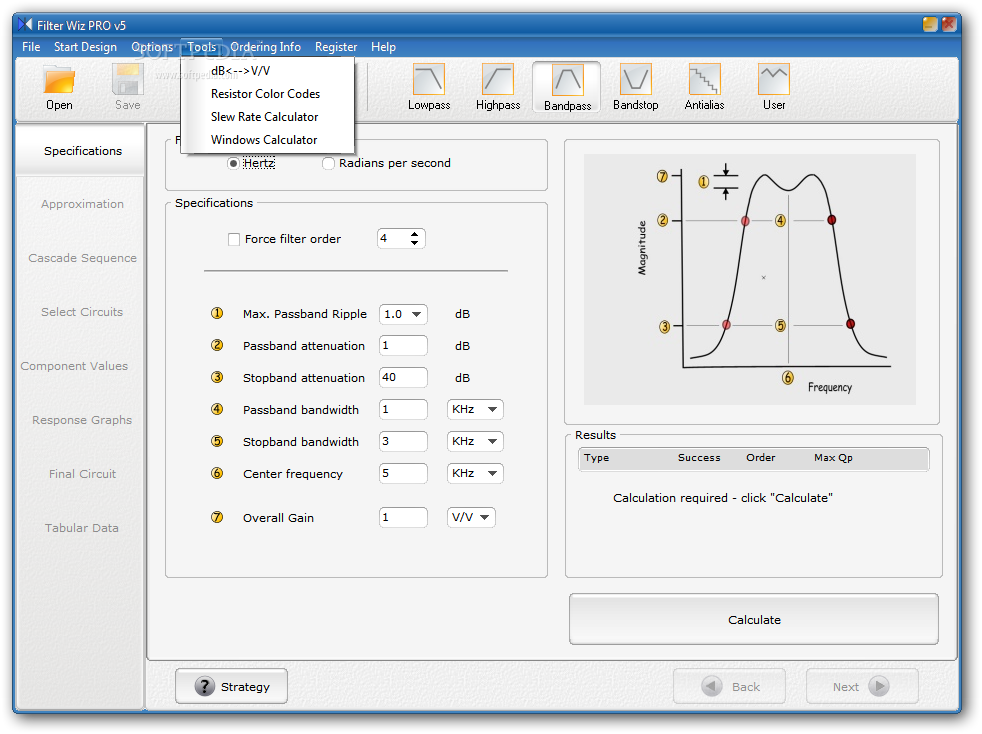

Filter Wiz PRO Description

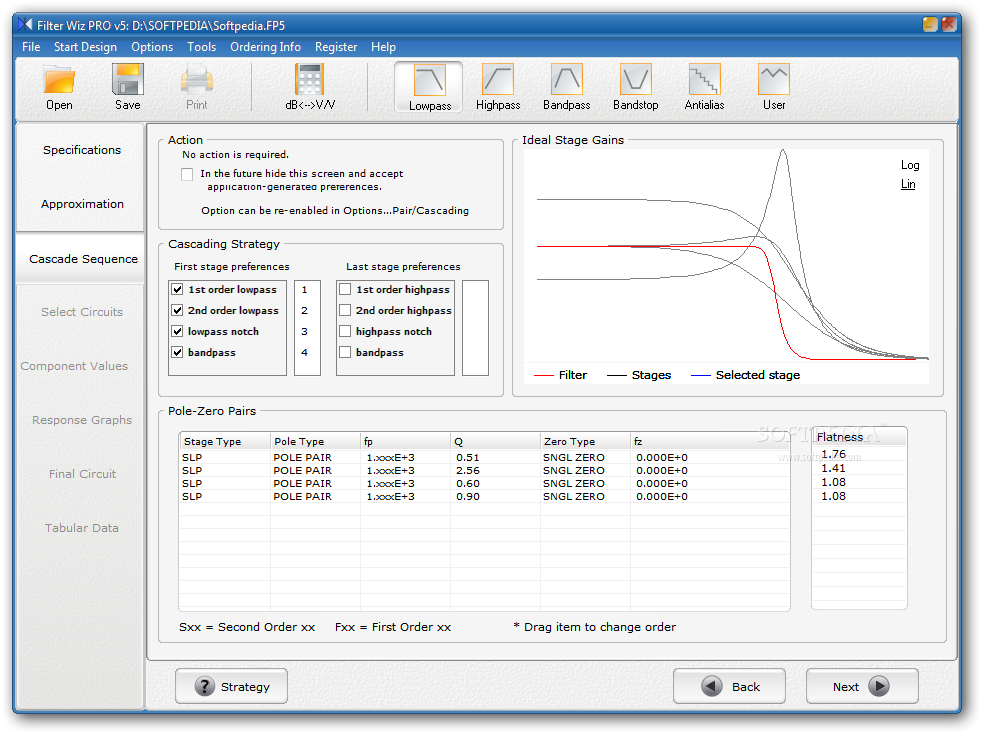

Built-in simulator:

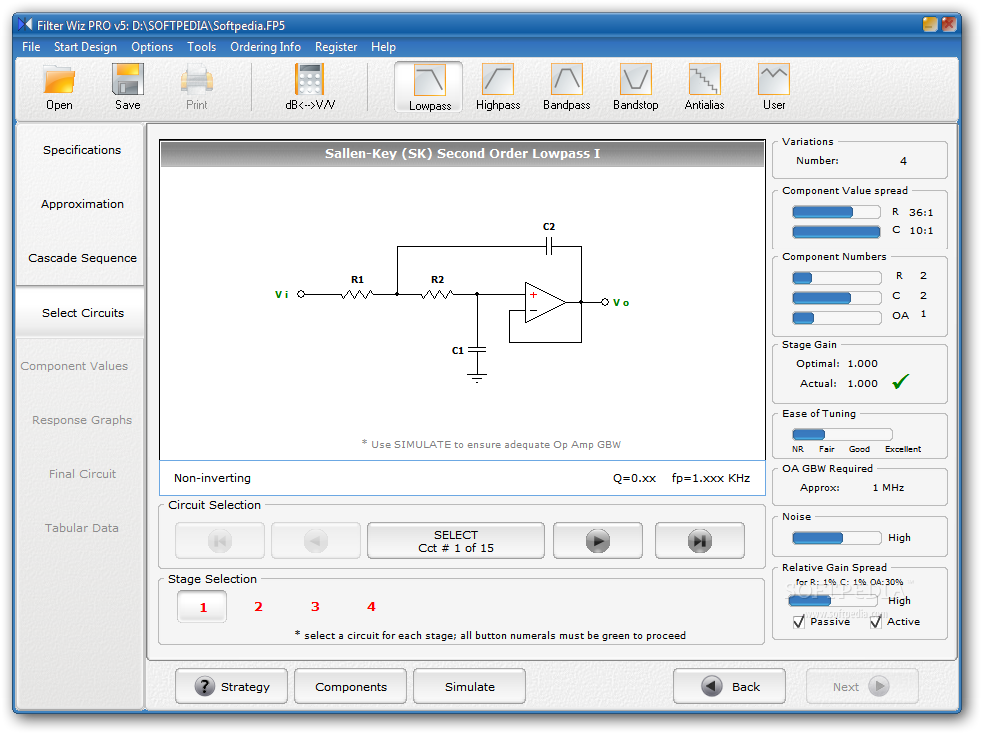

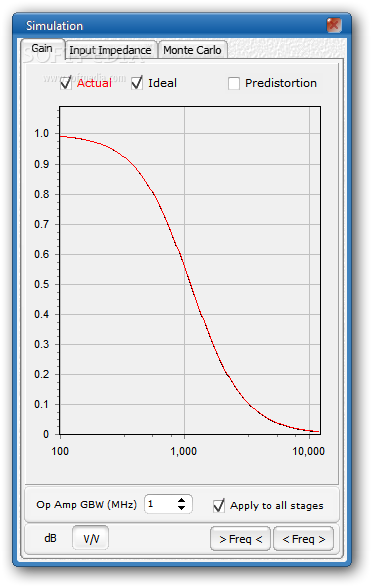

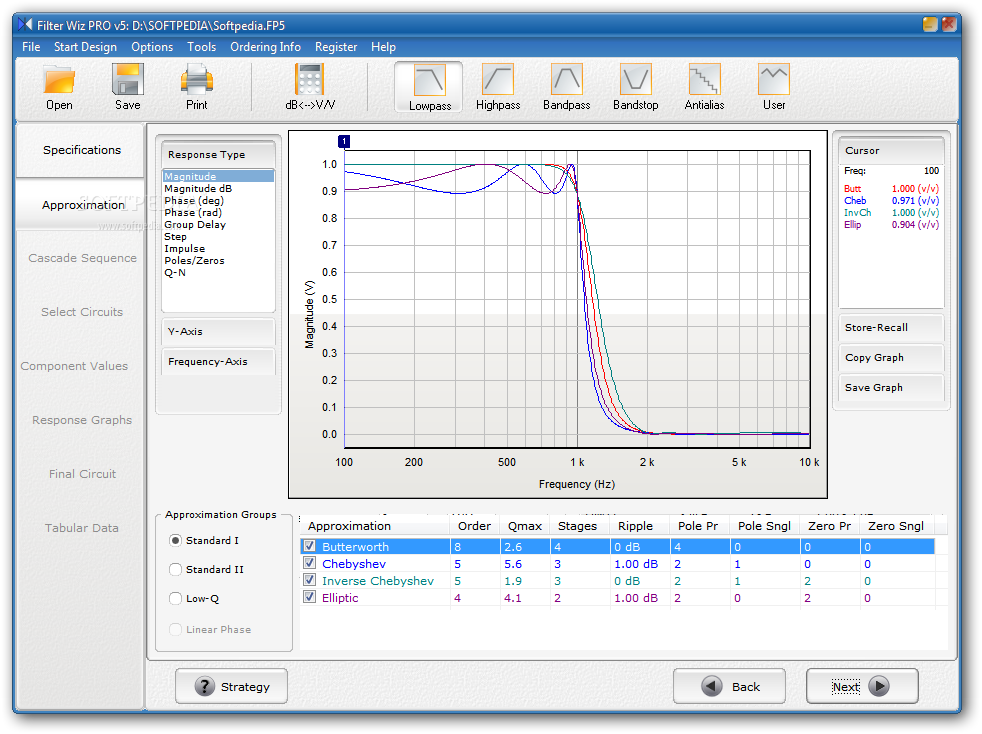

Provides eSketch-like simulation of the filter design, including effects of op amp Gain BandWidth. The user can preview the gain response when selecting circuits for each stage.

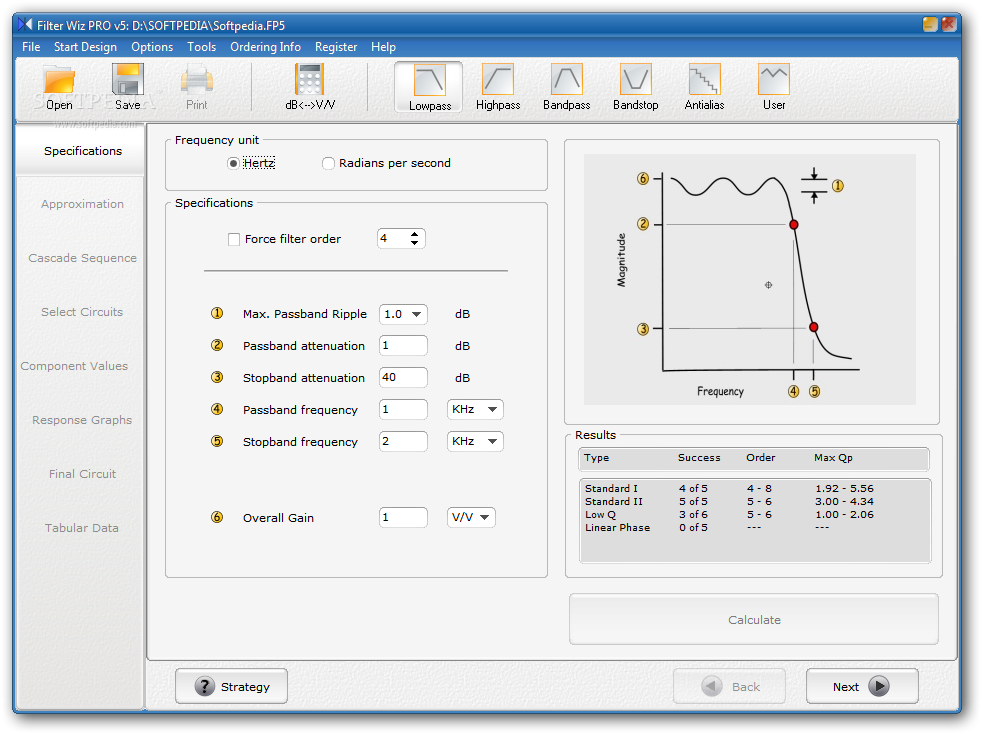

Up to 21 Approximations available:

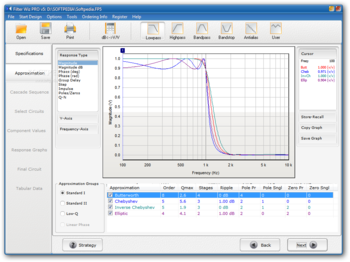

Choose from 10 "standard" Approximations, plus 5 linear phase Approximations, and 6 Low-Q Approximations that are extremely useful for augmenting filter stability

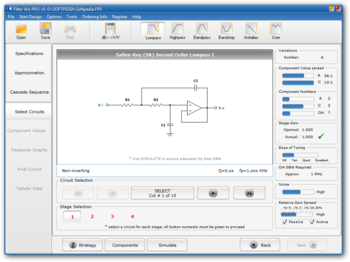

More circuit topologies:
Includes new topologies (circuits), and many variations of existing topologies, including voltage divider inputs to better meet optimal stage gain requirements

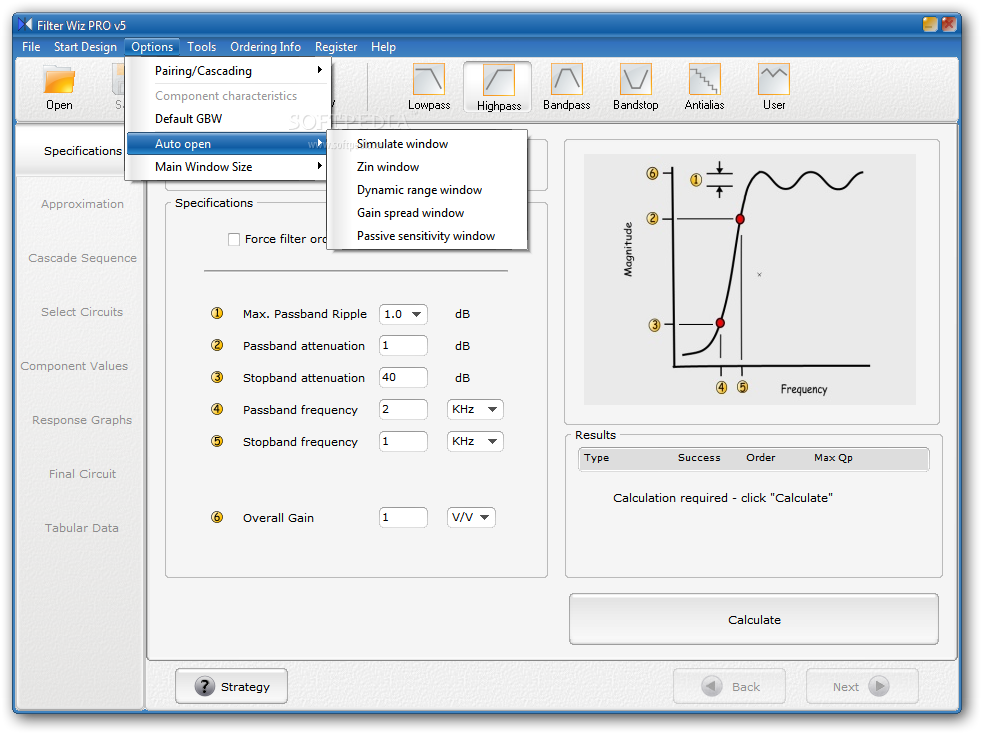

More selection aids:
In addition to stage gain simulation, view indicators of stage Noise (resistor noise), GBW requirement, and Gain Spread. Also view design windows showing Input Impedance (vs frequency), Passive Sensitivity, Active Sensitivity, Dynamic Range, and Tuning instructions
Monte Carlo analysis:

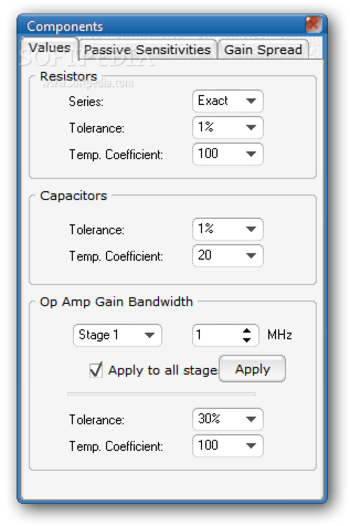

Simulate gain spread due to inexact component values, with a choice of 3 probability distributions - Uniform, Gaussian and Worst Case
Temperature Effect analysis:
Determine response change due to environmental temperature rise and component temperature coefficients
"Strategy" help windows:
View help topics appropriate to each design phase, accessible through "Strategy" buttons. All help topics are also available through a standard help file
