Hullform is a free software by Blue Peter Marine Systems Pty Ltd and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download Hullform which is 1.25 MB in size and belongs to the software category Science CAD. Hullform was released on 2012-04-12 and last updated on our database on 2017-03-04 and is currently at version 9.12.
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
Hullform Description
Design and Fairing:

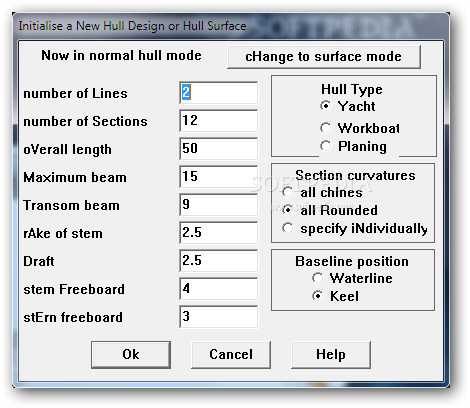

based on a network of 400 lines and 100 transverse sections;
add, delete, edit sections on an isometric view of all lines and sections;

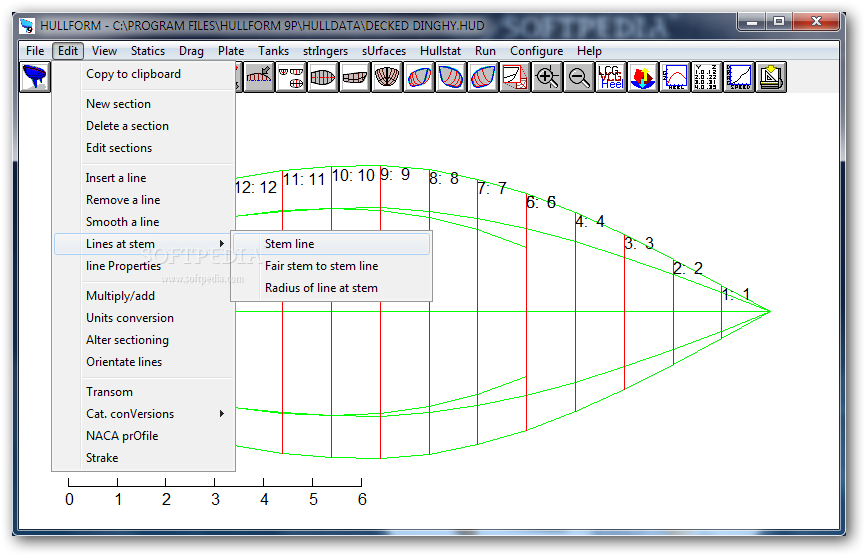

add, delete, edit lines;
relocate and redefine sections;

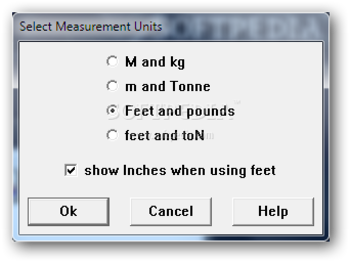

alter measurement units;

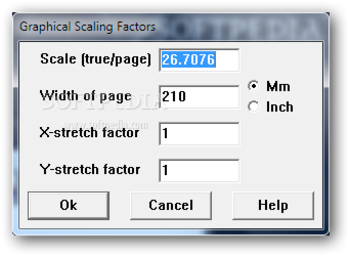

rescale all or part of design;
enter offsets of existing design;
catamaran support;
generate NACA foil profiles automatically;
design hull using multiple intersecting surfaces;
rounded stem;
rounded and raked transom;
zoom in section editing;
automatic conversion of monohull to catamaran;
automatic generation of stringers (See below);
plate development (See below);

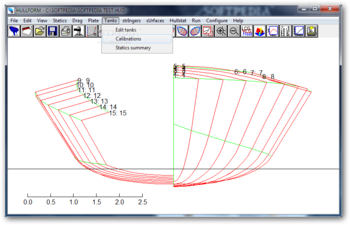

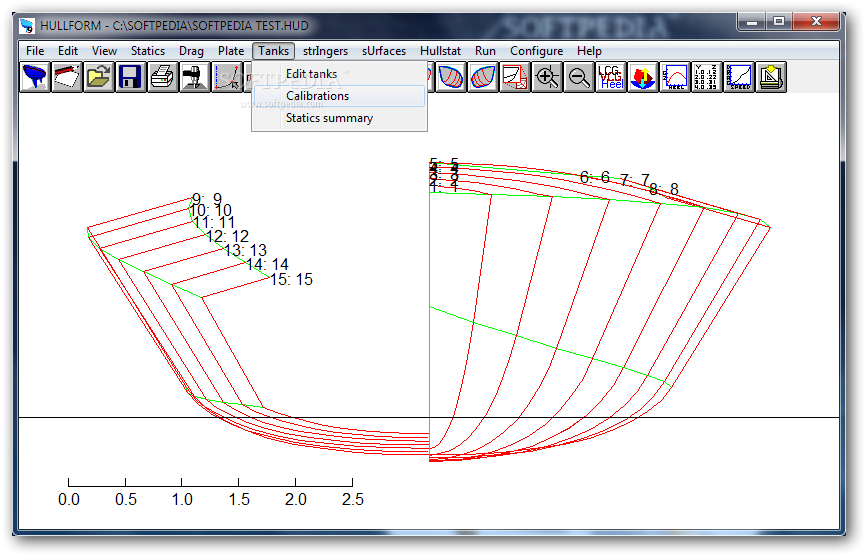

internal tanks for damage and operating stability assessments;.
retain "overlay" design for reference viewing when working on a similar design.
Hydrostatics:

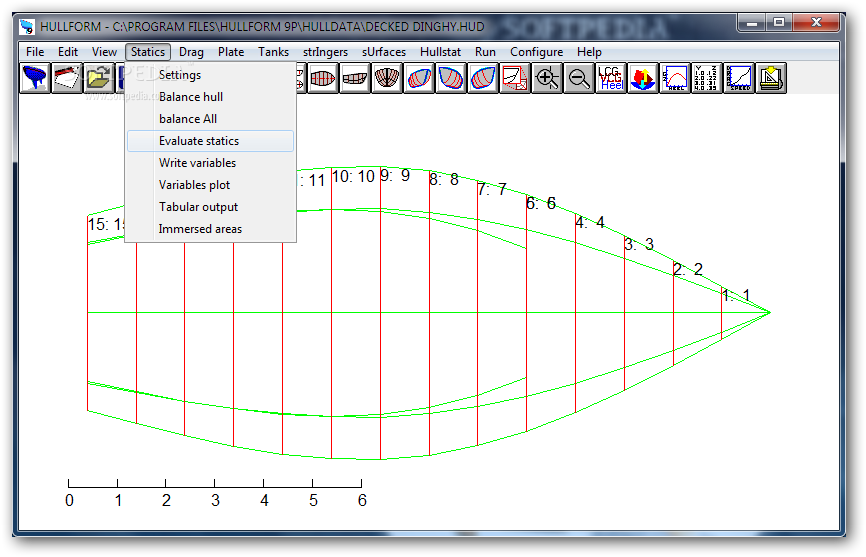

fixed or free floating;
reports to screen for any heel angle;
write hydrostatic values in tabular form to a text file;
hydrostatic cross-plots and tables, all exportable to word processors and spreadsheets..
Viewing:

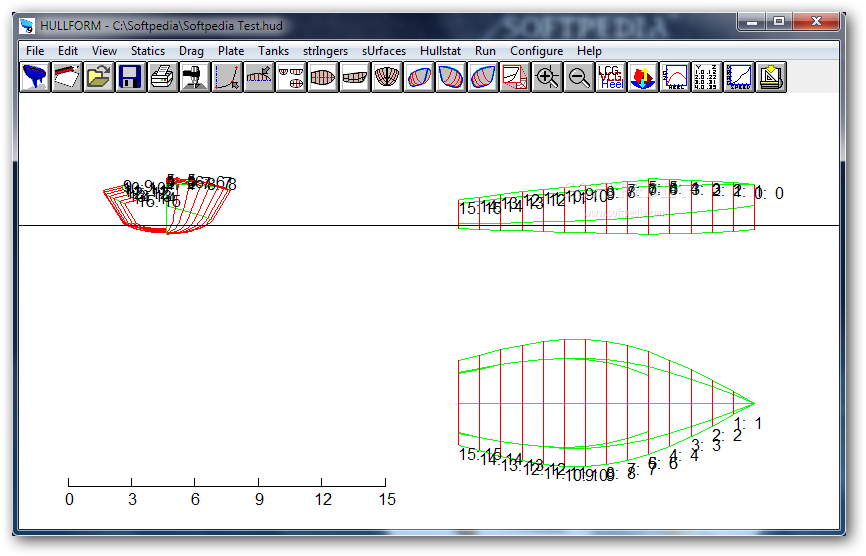

orthogonal - plan, profile (elevation) and body plan (end elevation);

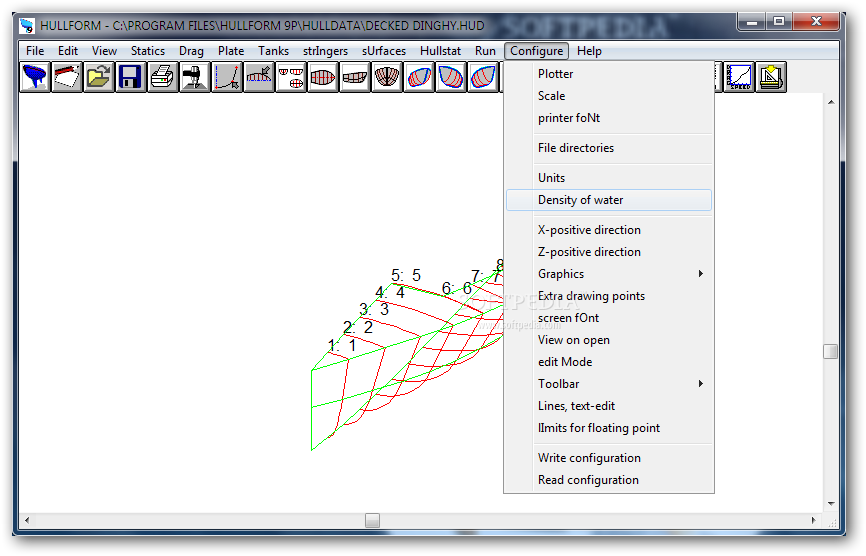

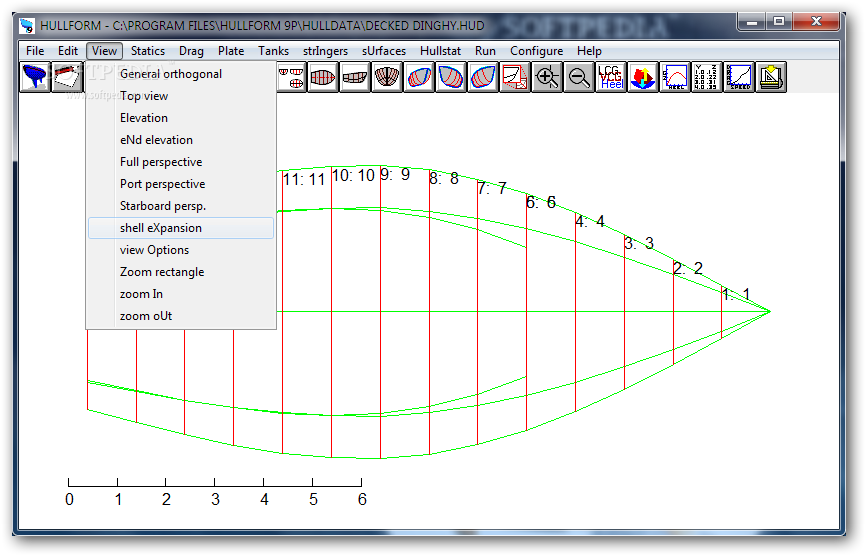

perspective - full, port and starboard half. Perspective views can be rotated and perspective effects adjusted using the keyboard arrow keys or the scrollbar. Draw fair lines between sections; animated and shaded surface views;
zoom in on any orthogonal or persective view.

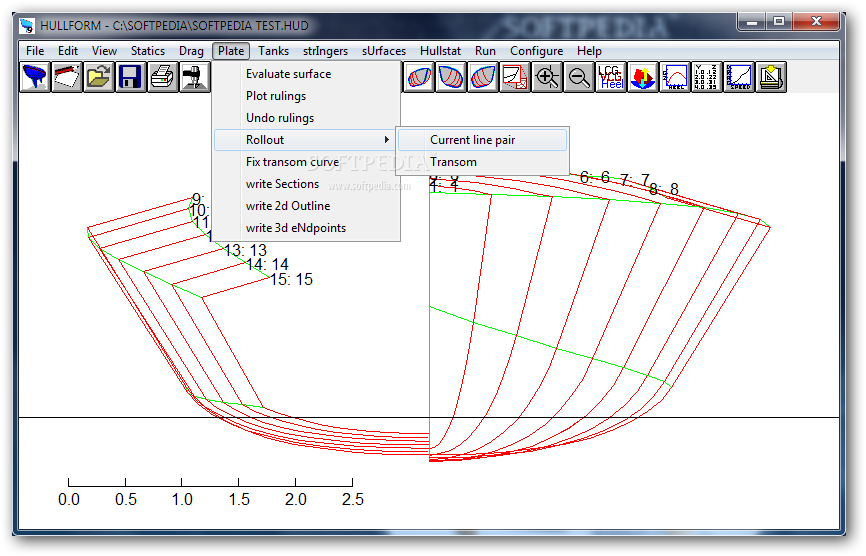

Plate Development:
evaluate and show the developability of a surface between any pair of adjacent hull lines;
plot the shape of any developed surface when rolled out flat (for cutting from plate);
export rolled-out plate to a DXF file.
Stringers:

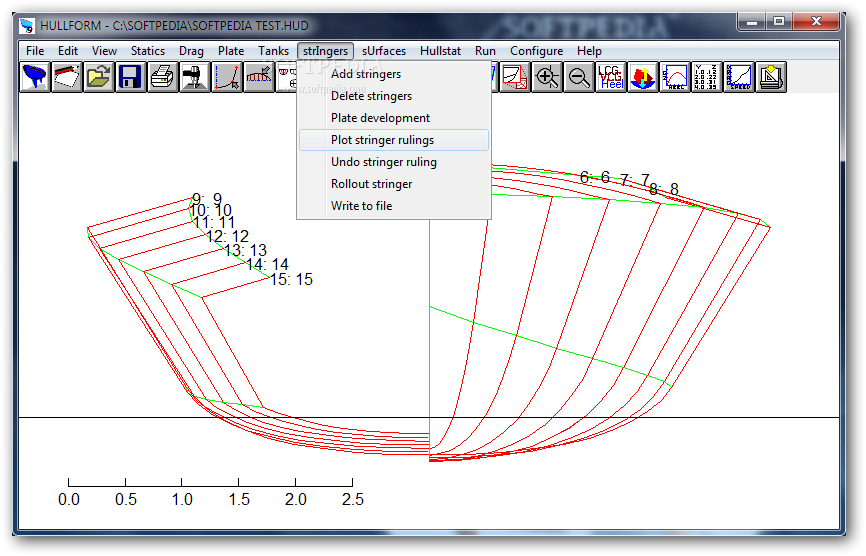

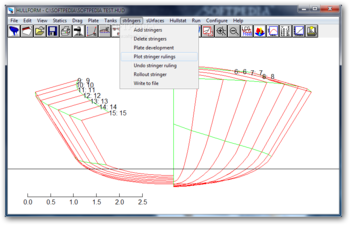

calculate stringer locations between any adjacent pair of hull lines, for fixed stringer count or fixed stringer spacing;
include stringer notches in frame views (See File Output, below).
Drag calculations:

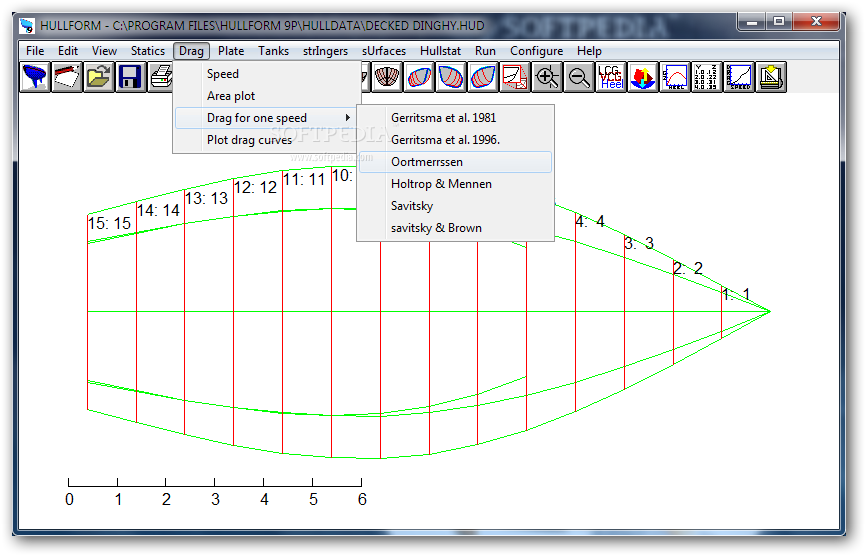

six empirical drag schemes (Gerritsma 1981 and 1996, Holtrop and Mennen, Oortmerrssen, Savitsky, Savitsky and Brown);
detailed summary of drag for any speed;
plot any combination of the six drag curves against speed.
Data Input:
read vertical offsets of curved waterline (e.g., wave effects on stability);

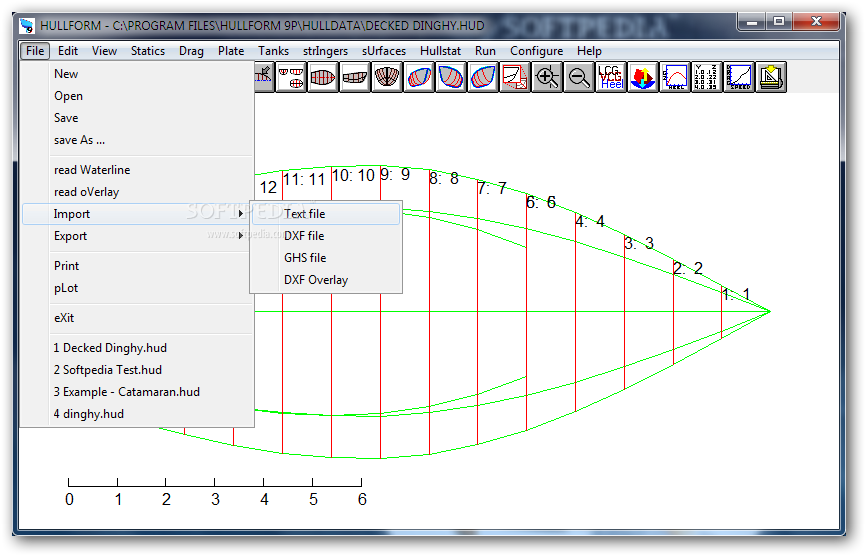

import offsets of an existing design in a range of tabular formats.
import some DXF files
import GHS files
File Output:
print or plot any display;
frame outlines with thickness corrections and stringer notches (including angled cutouts on corners and holes at frame corners) ;
lateral offsets of waterlines;
VRML output of hull surface;

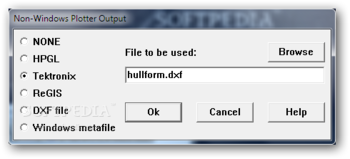

write 2- or 3-dimensional DXF representation of the hull, for use by CAD programs.
export GHS file
Utility Functions:
run any program from Hullform menu;
DDE server.
Print/Plot Output:
print to any printer or plotter device supported by Windows;
plot to any printer device with graphics capacity or any plotter supported by Windows.

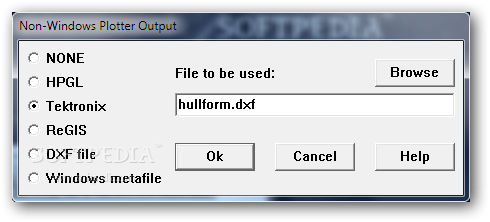

write any view to a range of graphic formats (particularly WMF, DXF and HPGL)
Graphical User Interface:
use any display supported by Windows;
mouse support for all normal functions plus line and section editing;
