Image Lab

Name: Image Lab
Works on: windows

Windows 7 and above

Version: 2.2
Last Updated: 25 Feb 2017
Release: 30 Sep 2009
Category: Multimedia > Graphic

Rate this software:
1101 downloads

View Screenshots(11)

Comments

Download

Liked it? Tell others:

Image Lab Tags

Image Analyzer Capture Image Process Image Image Analyzer Analyze Capture

Image Lab Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows 2012
SHA1 Hash: e69fb0ab046ae86590dc3bd08da15930ac12c4a8
Size: 5.42 MB
File Format: exe

Rating: 1.913043478 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 1101
License: Demo / Trial Version

Image Lab is a demo software by MCM DESIGN and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download Image Lab which is 5.42 MB in size and belongs to the software category Graphic.
Image Lab was released on 2009-09-30 and last updated on our database on 2017-02-25 and is currently at version 2.2.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

Image Lab Description

Acquire an Image:

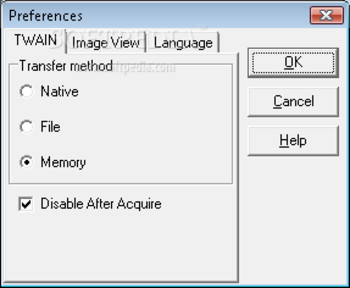

Images are recorded and imported directly into Image Lab from any TWAIN compatible Scanners, Digital Cameras and CCD cameras interfaced via Frame Grabbers. All that is needed, is a TWAIN driver (a software driver), which supports the hardware acquisition unit connected to your computer. MCM DESIGN supplies a handful of TWAIN driver for different frame grabbers. The latest version of these, can be found at the TWAIN Driver page.

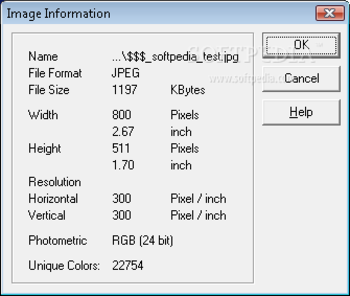

Images can be imported and exported in different image file formats: BMP, CRI, JPEG and TIFF. Image Lab handles images with colour resolutions from 16, 256 to 16,7 mil. colours or 16 and 256 grey scales.

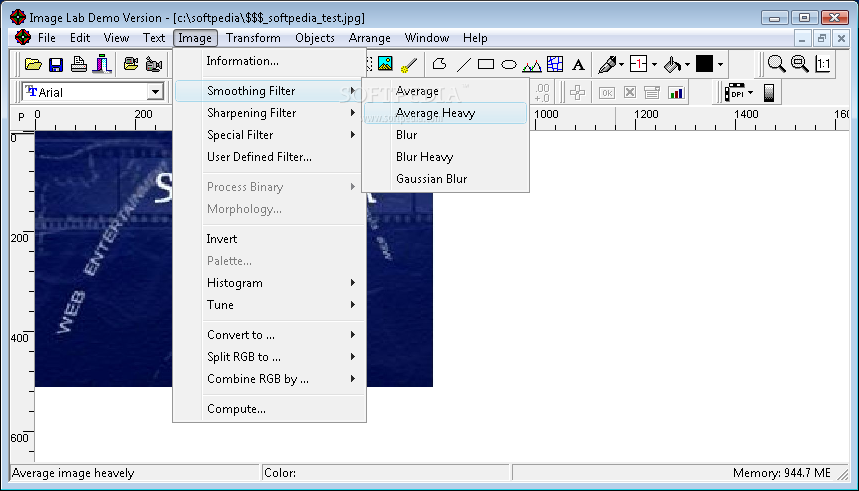

Filters:

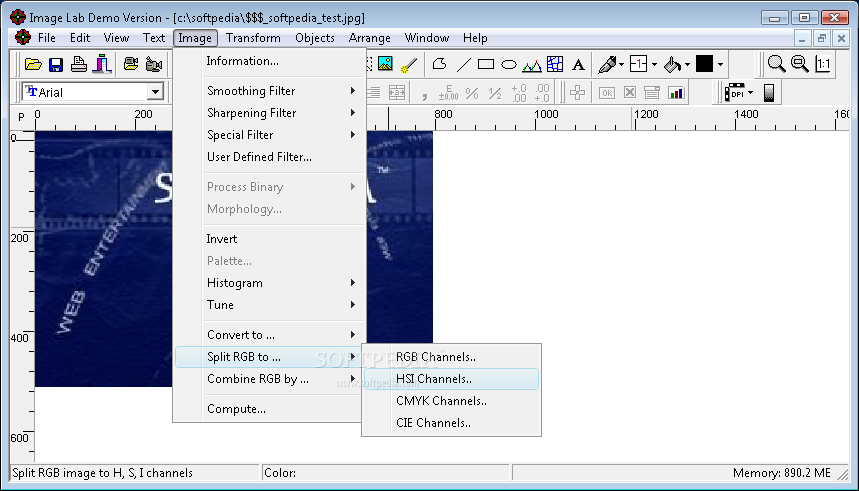

With the many predefined filters you can remove noise, average and enhance features in an image. Apart from this you'll find erode and dilate filters to change the size of features in the image, detect edges of features, level intensities of objects and background. If the filter you seek isn't among the pre-defined filters in Image Lab, you can construct exactly the filter that meets your requirements, whether this is a single or combined double filter.

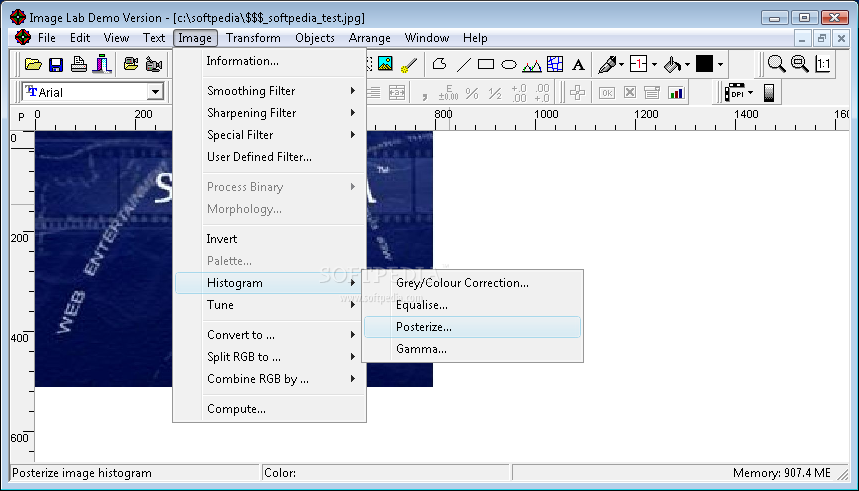

Histogram & Tune:
The different Histogram and Tune functions, makes it possible to modify the intensities and colours in your images so that interesting features becomes clear.

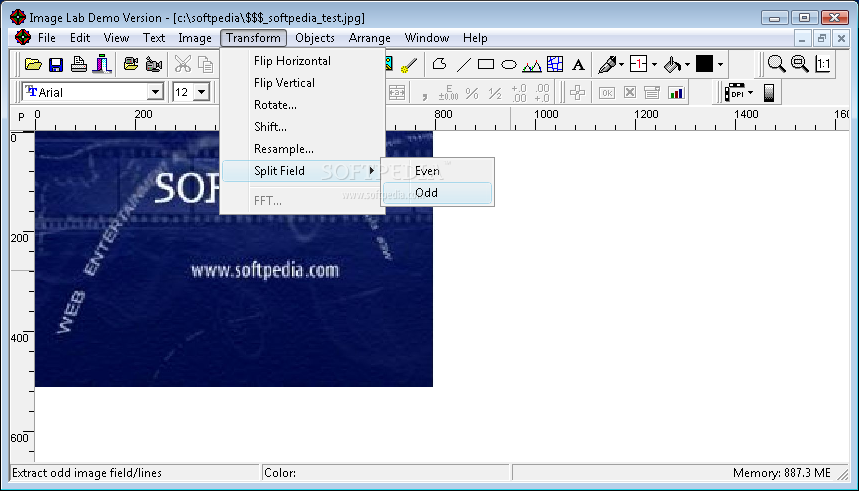

Transformation:
Images are resampled, rotated, shifted but of perticular interest, transformed using Fast Fourier Transformation or FFT. The FFT transformation allows you to transform images forth and back between the frequency domain and time domain.

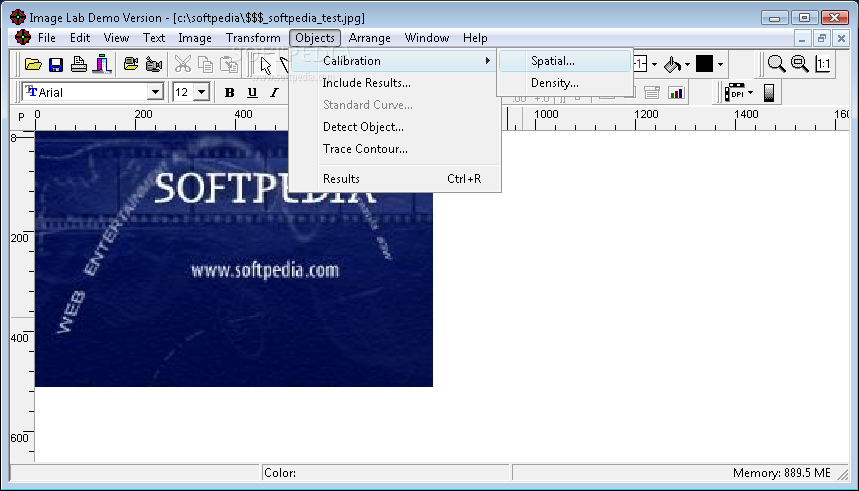

Optical & Spatial Calibration:
It is often desirable to calibrate the system so that the measured data units are represented in a standard unit. Image Lab makes it possible to express densities measurements in true O.D. (Optical Density) values, by performing a simple calibration. Likewise, measured object length, perimeter, area etc. are of cause reported in the meter system.
Images are easily calibrated to the spatial resolution of you choise. Either to one of your predefined resolution, or a new definitions. Image Lab even allows you to perform spatial calibrations with different horizontal and vertical resolutions.
Standard Curves:
Standard curves can be create from known objects, using the objects area or density etc. as one parameter and a user defined parameter (mass, concentration or any other data size) as the second parameter. This, can in turn be used to calculate the unknown "user defined" data for all other features in the image.
Measuring Features:
Extracting information from objects in an image, i.e. measure density, intensity, length, area etc. are the main interest here.
The Features in an image can either be detected automatically by Image Lab or you can simply draw around the object using one of the drawing tools.
Getting the Results:
All reports are displayed in a spreadsheet that allows you to take advantage of the more than 300 mathematical functions. The results can easily be copied to your word processor or other spreadsheet programs, or stored in Microsoft Excel file format.
Adding comments on the image:
You can easily add comments, with the Text tool anywhere in the image, using any font and size.
