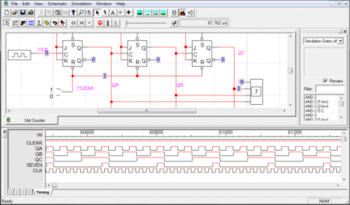

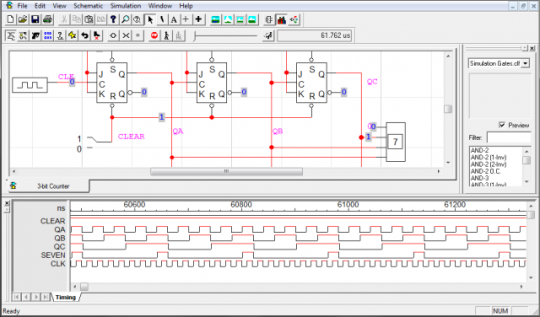

LogicWorks is an interactive circuit design tool intended for teaching and learning digital logic. The package gives you the power, speed and flexibility to create and test an unlimited number of circuit elements on screen. This means that you can study advanced concepts much more quickly and clearly using on screen simulation than you can by spending time wiring up expensive and damage-prone parts in a lab.LogicWorks is so easy to use that students will be creating and testing circuits in a matter of minutes, instead of spending precious lab time just getting started. LogicWorks includes a full schematic editor with bussing, multi-level Undo/Redo, interactive connection tracing, and many other powerful features. This is coupled with the unique, interactive digital simulator. Changes made to signal connections or device parameters on the screen are immediately reflected in the timing waveforms and probes placed right on the diagram.
