Magnetic Loop Antenna

Magnetic Loop Antenna is a small Windows application whose purpose is to help you perform different calculations related to the aspects of a radio broadcasting antenna. It is suitable for computing the design specifications for small magnetic loop transmitting antennas operating from 1 to 30 mHz.

Keep it stored on portable devices

You can take advantage of the tool’s portability status and copy it on USB flash drives. In addition, you may run it without administrative privileges on the target computer. Getting rid of the utility requires a simple deletion task, because it does not store entries in the Windows registry.

Simple looks

You are welcomed by a clean and intuitive design that integrates all configuration settings into a single panel. A help manual is included in the package and offers a short description about the key features of the app.

Supported calculations

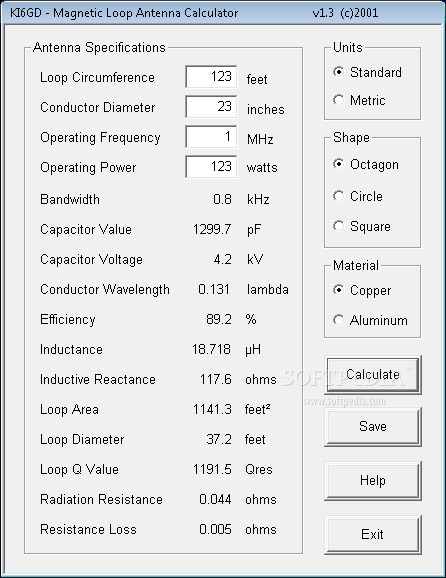

Magnetic Loop Antenna gives you the possibility to set up several antenna specifications, namely loop circumference, conductor diameter, operating frequency, and operating power.
Based on the aforementioned parameters, the program is able to display information about the bandwidth, capacitor value and voltage, conductor wavelength, efficiency, inductance, inductive reactance, loop area, loop diameter, loop Q value, radiation resistance, and resistance loss.
Other important configuration settings worth being mentioned enable you to change the unit of measurement (standard or metric), alter the shape (octagon, circle or square), and select the material (copper or aluminum). Last but not least, you can export the results to plain text file format.
Tests have shown that Magnetic Loop Antenna computes the results very quickly and without errors. It leaves a minimal footprint on system resources so the overall performance of the computer is not hampered.

Bottom line

All things considered, Magnetic Loop Antenna delivers a straightforward solution for working with a magnetic loop antenna calculator. It can be mastered by beginners and professionals alike.
