Managed Switch Port Mapping Tool

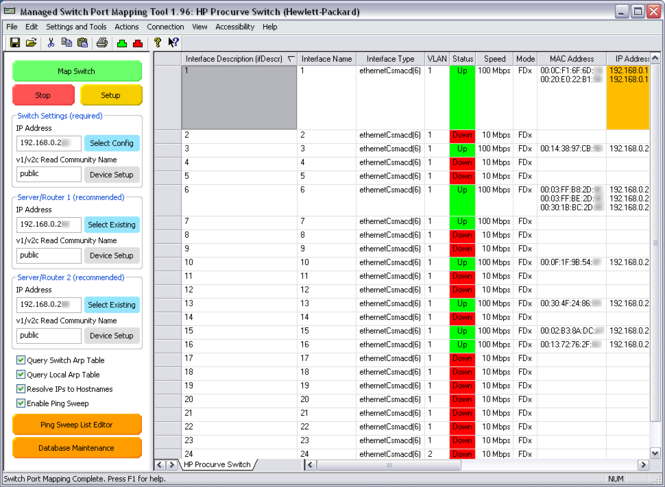

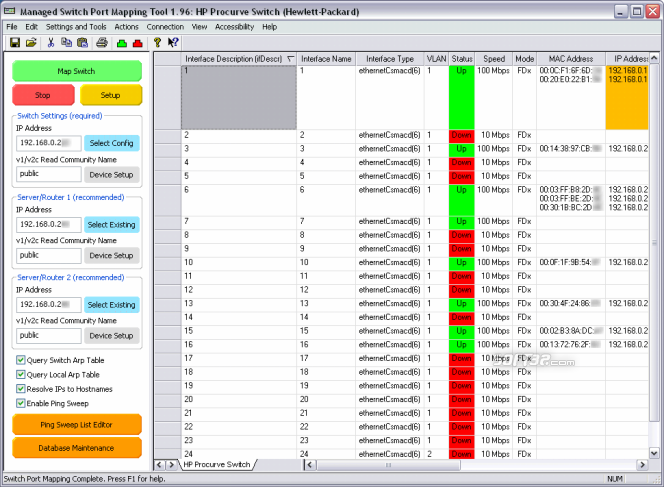

The Managed Switch Port Mapping tool communicates with a managed ethernet switch using SNMPv1/v2c and maps the physical port connections to MAC and IP addresses of the attached devices.

Capable of mapping many different brands and models of managed switches.
Saves technicians time mapping out the physical layout of your network by helping identify network devices attached to the physical switch ports.
Shows multiple downstream devices connected by hubs or other switches.
Shows VLAN assignment, port status, speed, duplex, bytes in/out, connected device interface manufacturer, interface bandwidth utilization and more.
Shows Spanning Tree Protocol status and root information.
Shows the elapsed time since a port has changed from up to down or vice versa. Use to see how long a device has been connected to a port.
Reports Microsoft and VMWare virtual operating systems attached to ports.
Spreadsheet format results can be printed in color and searched for text strings.
Export results to XML or tab delimited text. The XML file can be directly opened by Microsoft Excel XP/2003/2007 or OpenOffice Calc.
Results can be saved and reloaded for later review.
Switch and device 'configurations' including IPs and community names are automatically saved in an SQLite database and can be loaded for rapid change between multiple switches. No need to re-enter switch information.
