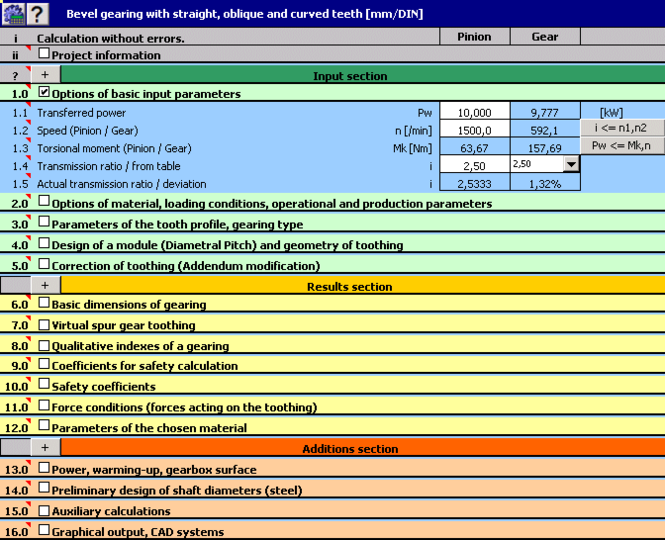

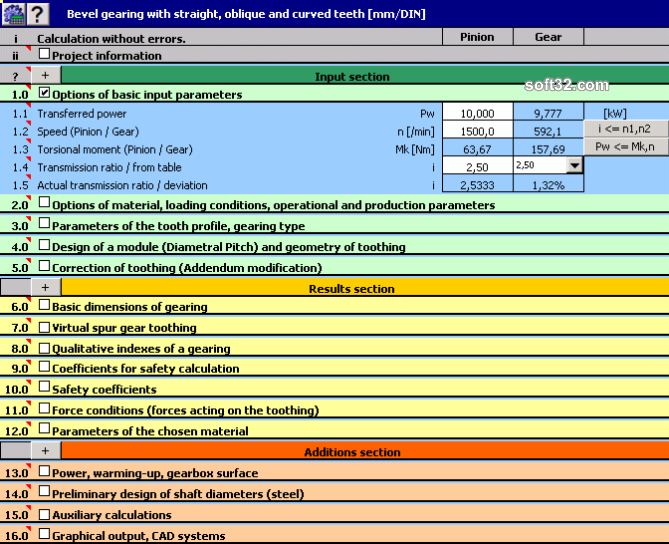

View Screenshots(3)

Comments

Download

Liked it? Tell others:

MITCalc - Bevel Gear Calculation Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows 2012
SHA1 Hash: cc7612f3eb6f74ca1c68fb61d1f47f30d0c778c3
Size: 1.97 MB
File Format: exe

Rating: 2.130434782 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 1381
License: Demo / Trial Version

MITCalc - Bevel Gear Calculation is a demo software by Mitcalc and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download MITCalc - Bevel Gear Calculation which is 1.97 MB in size and belongs to the software category Science CAD.
MITCalc - Bevel Gear Calculation was released on 2011-10-24 and last updated on our database on 2017-03-08 and is currently at version 1.16.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

MITCalc - Bevel Gear Calculation Description

Geometric design and strength check of bevel gear with with straight, helical and curved toothing. Application is
developed in MS Excel, is multi-language and supports Imperial and Metric units and solves the following main
tasks:
- Calculation of straight, helical and curved toothing.
- Automatic design of a transmission with the minimum number of input requirements.
- Design for entered coefficients of safety (static, dynamic).
- Calculation of complete geometric parameters (including corrected toothing).
- Calculation of strength parameters, safety check.
- Supplementary calculations (calculation of parameters of the existing gear, temperature rise, design of shafts)
- Optimization of parameters (dimensions, weight, volume, transmission ratio)
- Support of 2D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD) and 3D CAD in full
calculation package (Autodesk Inventor, SolidWorks, SolidEdge, Pro/E).
The calculations use procedures, algorithms and data from standards ANSI, ISO, DIN, BS and specialized literature.
Used standards: DIN 3971, DIN 3991 Kegelradern 1-4, ISO 6336 1-3, DIN 3965 Toleranzen f
