OBJ Import for KeyCreator

OBJ Import for KeyCreator is a Wavefront OBJ file import add-in for KeyCreator. This add-in gives KeyCreator the ability to import geometric data from OBJ files. OBJ Import for KeyCreator reads polygon mesh data stored in OBJ files and imports it into KeyCreator. A polygon mesh in an OBJ file is comprised of a set of triangular and/or quad faces. OBJ Import for KeyCreator creates trimmed planar surfaces for each triangle/quad and knits them together to create a body. If the polygon mesh is closed (i.e. it does not contain boundary edges) then OBJ Import for KeyCreator will create a closed body feature, otherwise an open surface will be created.

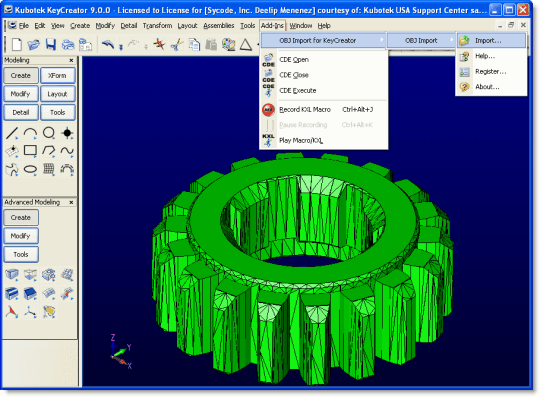

OBJ Import for KeyCreator is designed to be extremely user friendly and easy to understand. Once installed, it must be loaded into the KeyCreator environment. To load the add-in follow the simple instructions in the ReadMe file. Once loaded it adds new commands to KeyCreator. It also adds a new submenu called "OBJ Import for KeyCreator" to the KeyCreators "Add-Ins" menu containing these commands.
