OBJ Import for Pro Engineer

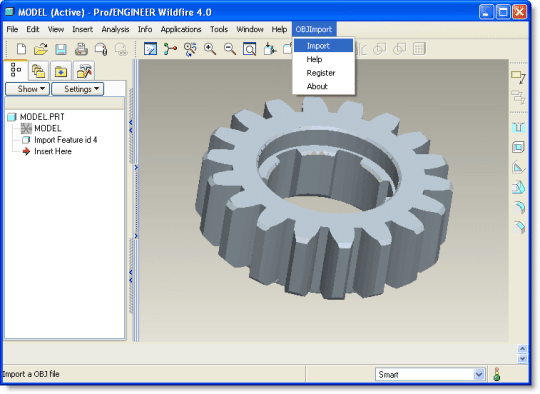

OBJ Import for Pro/ENGINEER is a Wavefront (.obj) file import plug-in for Pro/ENGINEER Wildfire. This plug-in gives Pro/ENGINEER Wildfire the ability to import geometric data from OBJ files. OBJ Import for Pro/ENGINEER reads polygon mesh data stored in OBJ files and imports it into Pro/ENGINEER Wildfire. A polygon mesh in an OBJ file is comprised of a set of triangular/quad faces. OBJ Import for Pro/ENGINEER creates trimmed planar surfaces for each triangle/quad and knits them together to create a body. If the polygon mesh is closed (i.e. it does not contain boundary edges) then OBJ Import for Pro/ENGINEER will create a closed body feature, otherwise an open surface will be created. OBJ Import for Pro/ENGINEER is very easy to use. Once installed, it must be loaded into the Pro/ENGINEER Wildfire environment. Follow the simple instructions in the "ReadMe" document which can be found in the installation folder. Once loaded, it adds new commands to Pro/ENGINEER Wildfire and a submenu called "OBJImport" to the Pro/ENGINEER Wildfire menu.
