PLCEdit

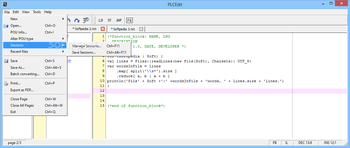

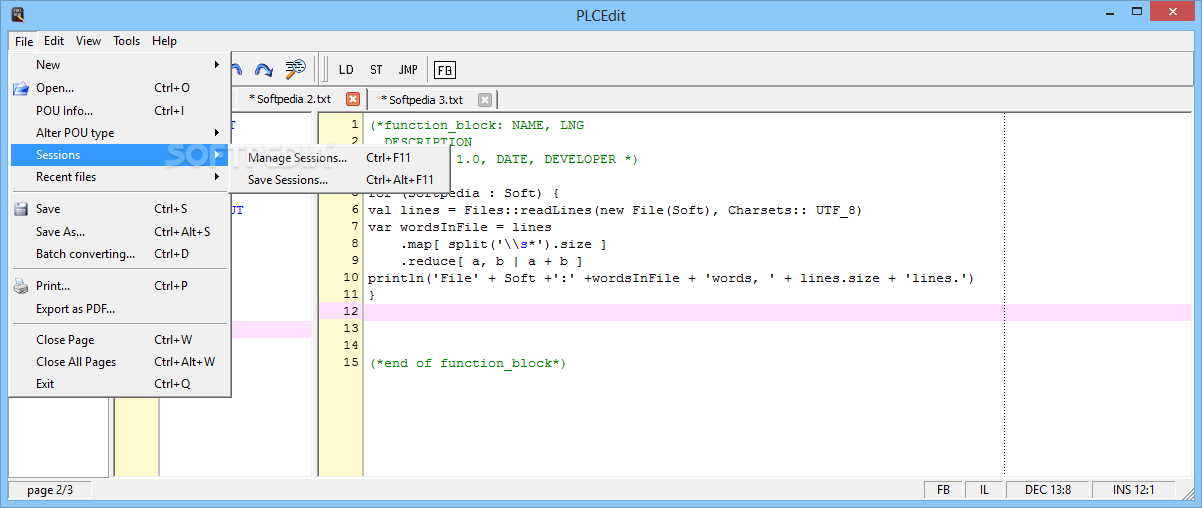

PLCEdit is a reliable application that enables you to edit text from source code scripts in POU files. The software allows you to create or edit program organisation unit files describing programs, functions and function blocks. Moreover, you can easily save the modifications you made to a separate text file, or to save the entire work session in a log document.

Easy to use script editor

PLCEdit or Programmable Logic Controller Editor allows you to manipulate POU (program organisation unit) files, by modifying the main body of the script, functions or function blocks. The software also enables you to make changes in the global variables list, according to the IEC61131-3 standard.

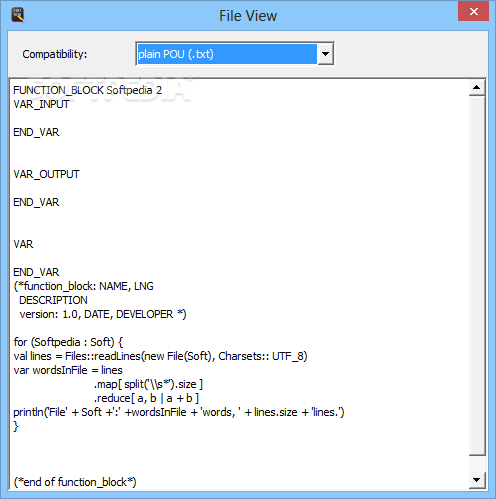

Moreover, PLCEdit offers a programming environment suitable for several other compiling and development software that do not support script editing. On the other hand, PLCEdit does not include script compiling, but it does allow you to save the scripts, functions and function blocks to text files as well as create new types or variablelists.

Friendly GUI for easy script editing

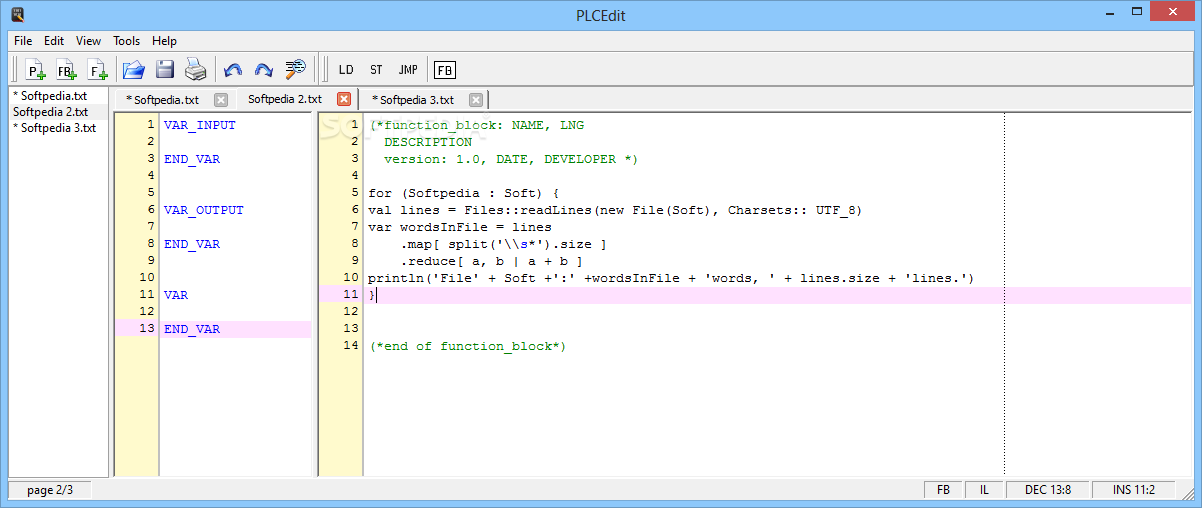

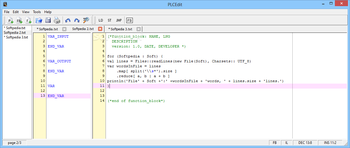

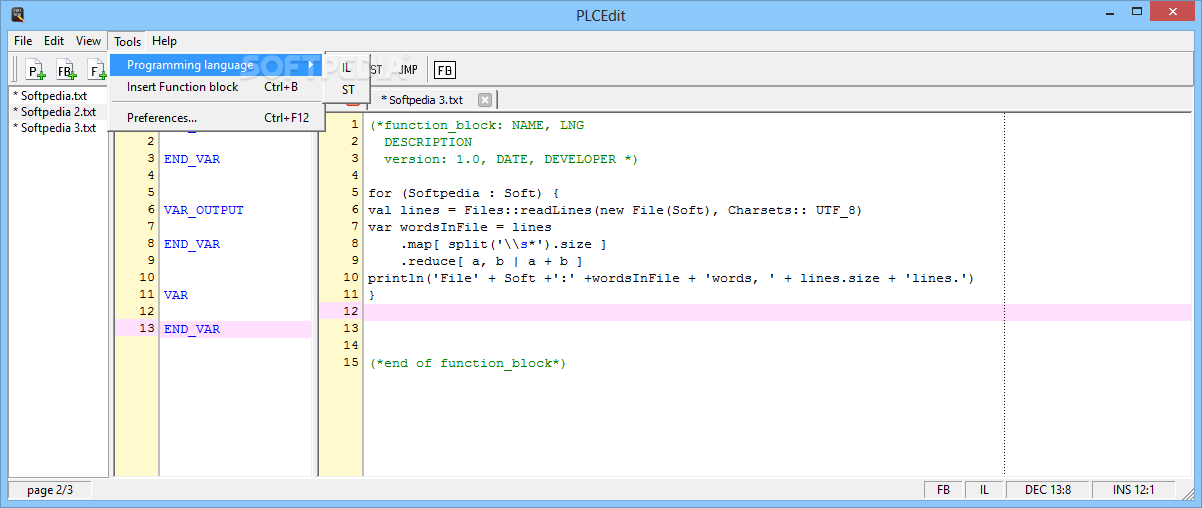

PLCEdit features an easy-to-use interface that allows you to view the documents pending modification, the variables list and the script displaying area. Moreover, it features quick command buttons that allow you can use in order to create a new function, function block or a program. Additionally, you may insert pre-configured LD, ST or JMP functions.

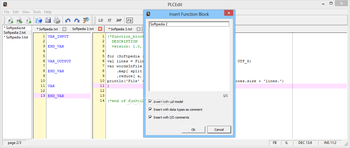

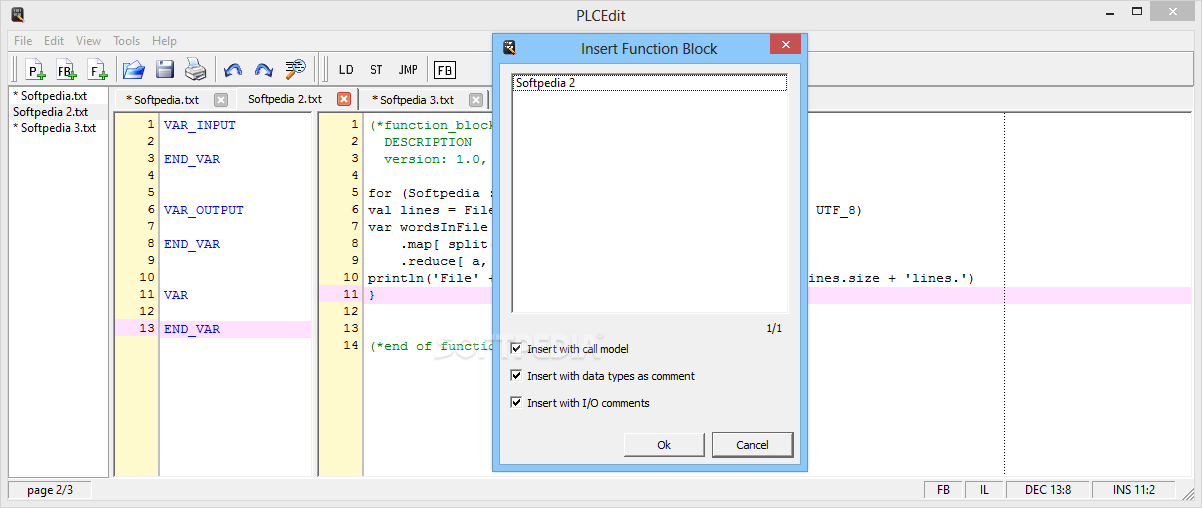

Another shortcut button enables you to insert one of the manually defined functions blocks into the main body of the script or any other opened file. The tab display allows you to view the contents of each on the file separately and easily work with them.

Script editing and multiple text modifying tools

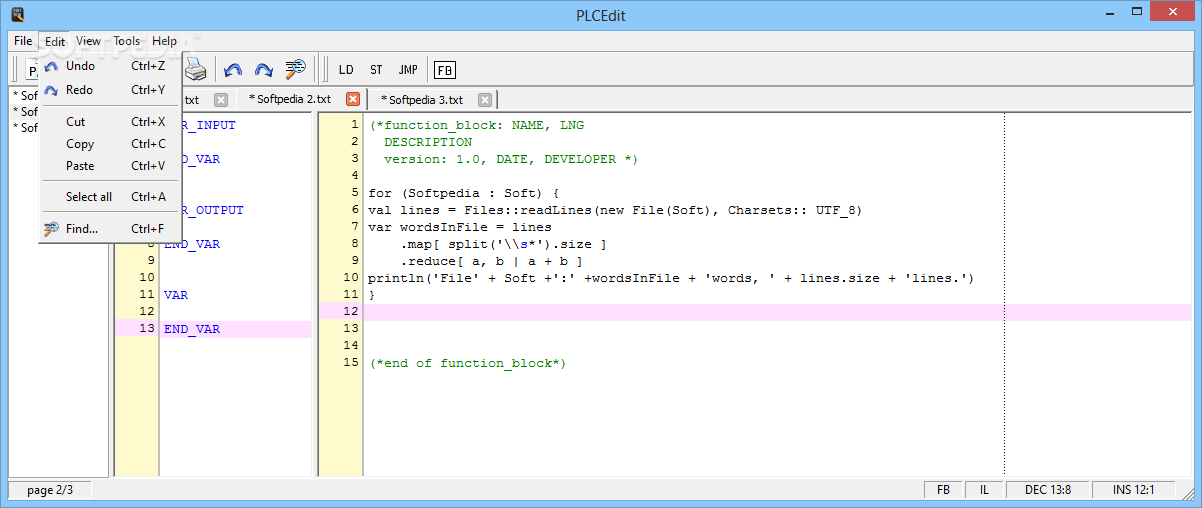

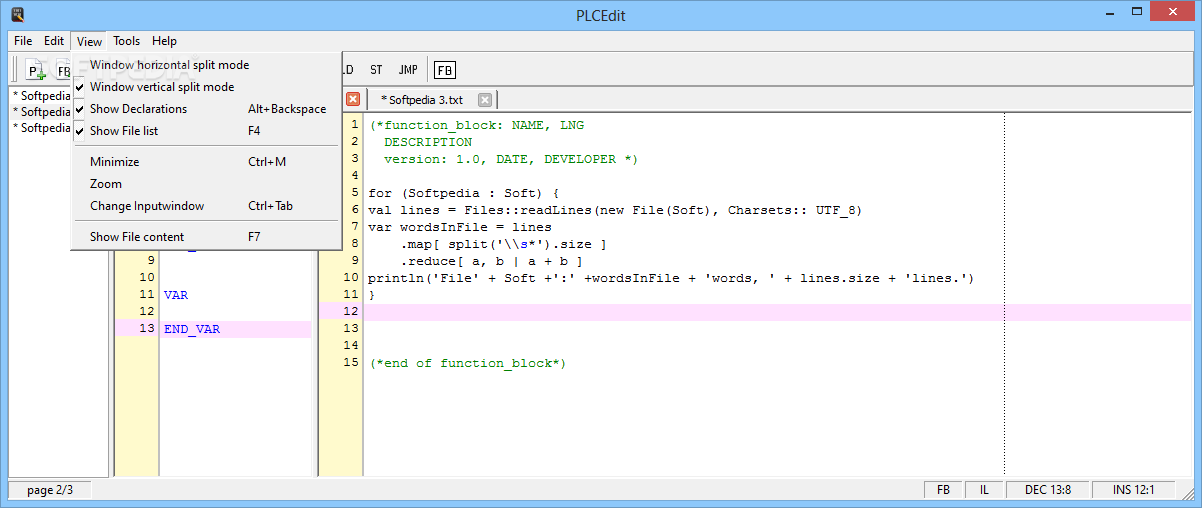

PLCEdit allows you to modify the text of the source code script, by using the several editing functions available. Aside from the common Cut Copy Paste buttons, you may also find and replace text. Additionally, the software enables you to work with horizontally or vertically divided windows. PLCEdit is easy to use, lightweight and allows you to save the source code in several output file formats.
