PlotVision

PlotVision is a reliable program that allows you to open various types of drawings and vector files, including HPGL, DWG, TGA, DWG and DXF. The program allows you to open, manage and print or export the file to several formats. It allows you to control files created with CAD applications.

Quickly read CAD files

PlotVision allows you to open a multitude of file types, from common images, such as PNG, TIFF, JPEG, or BMP, to PV8 files, CALS G4 projects, Calcomp 907, TGA or EMF images. Several formats are supported, including .HPGL, .RTL, .CGM, .DWG or .DGN. Data created with CAD programs can be exchanged, printed, controlled or inserted into production descriptions.

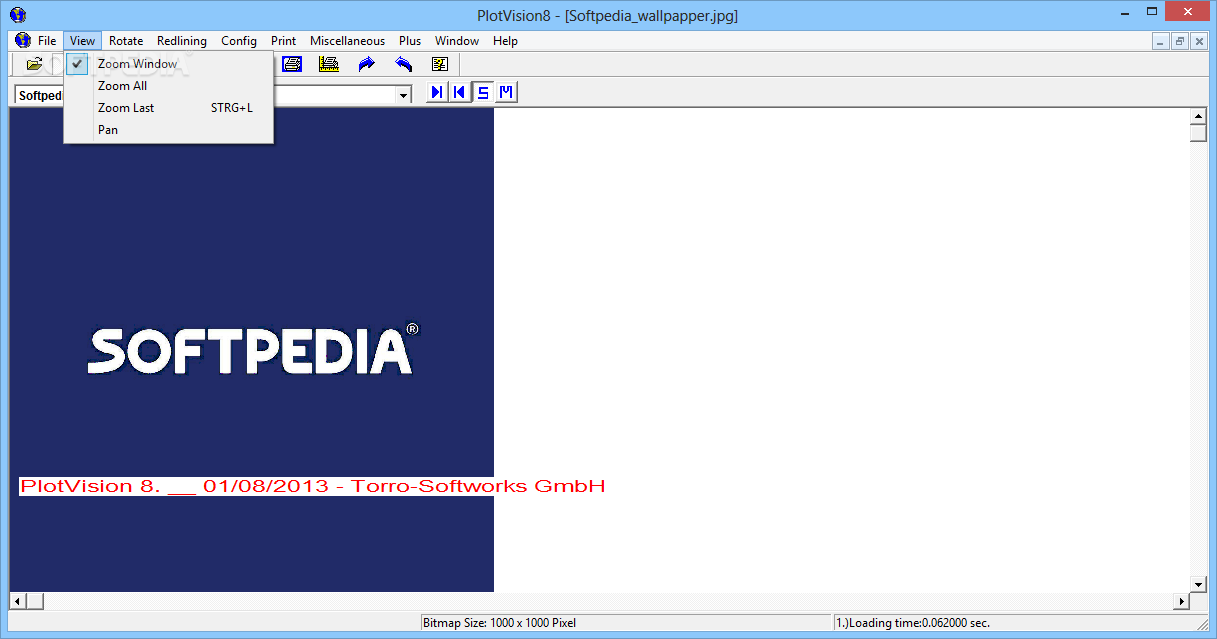

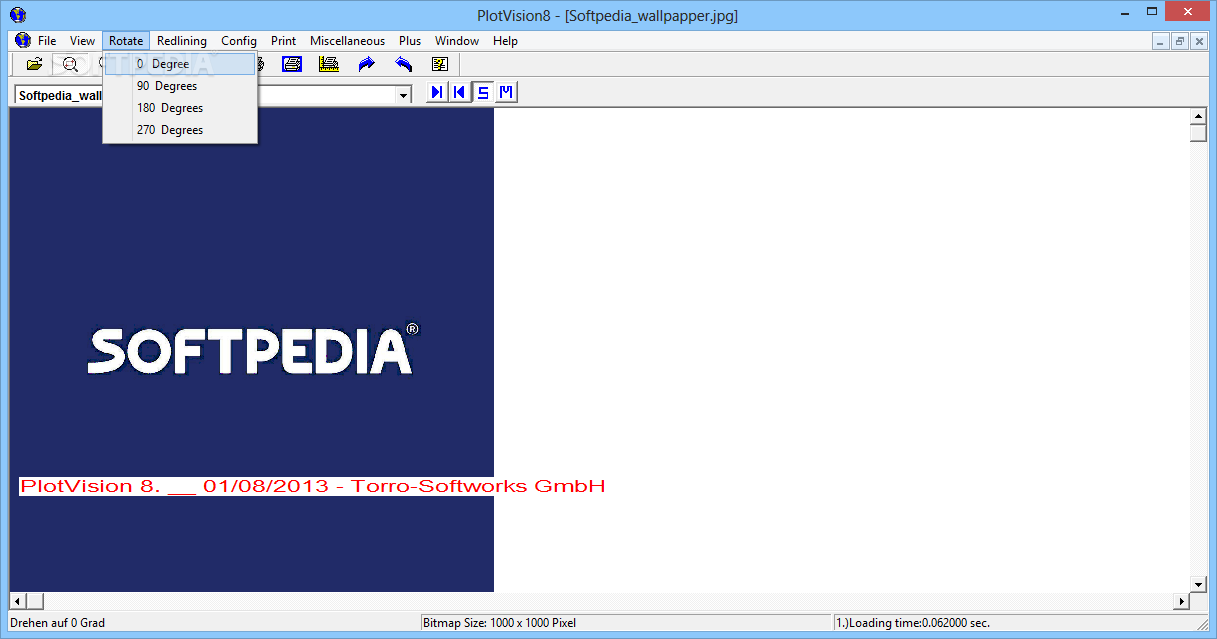

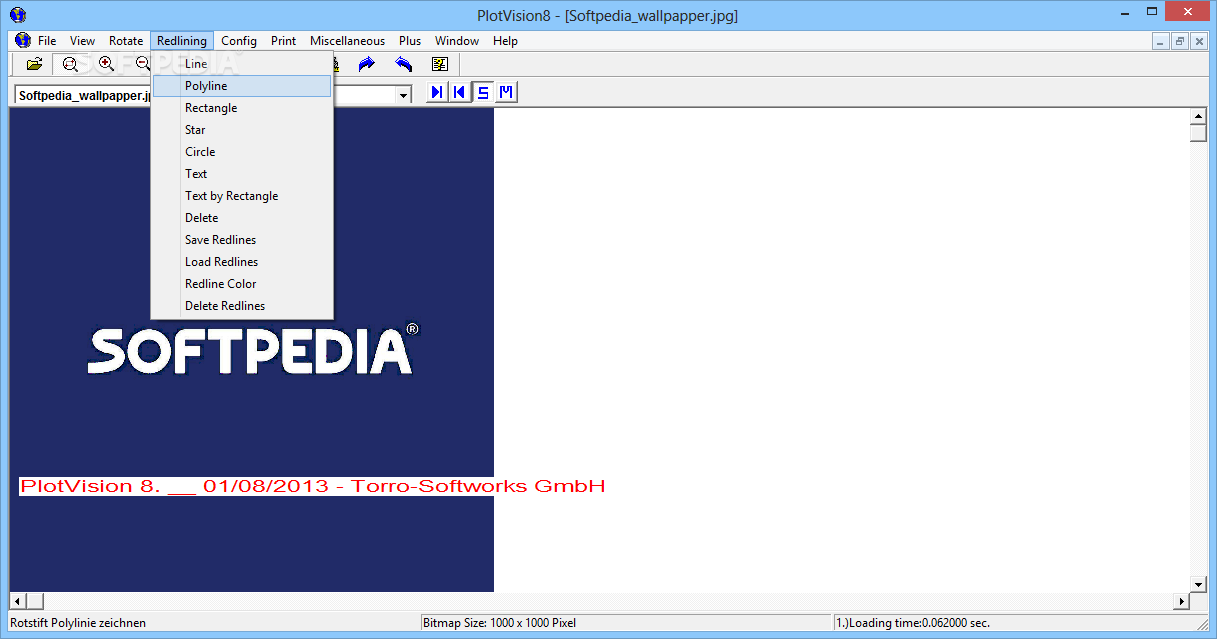

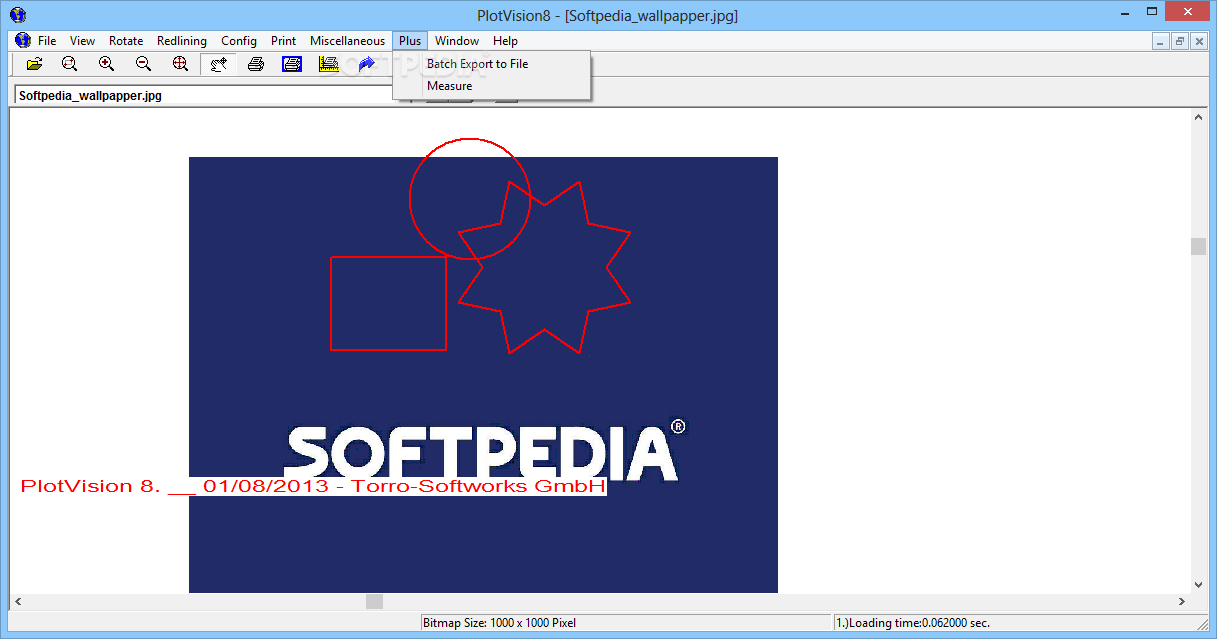

The program allows you to add red lines, shapes, custom text, such as instructions, without altering the image itself. Moreover the program offers several types of controllers, such as zoom in/out fit picture to window and rotate it by 90 / 180 / 270 degrees.

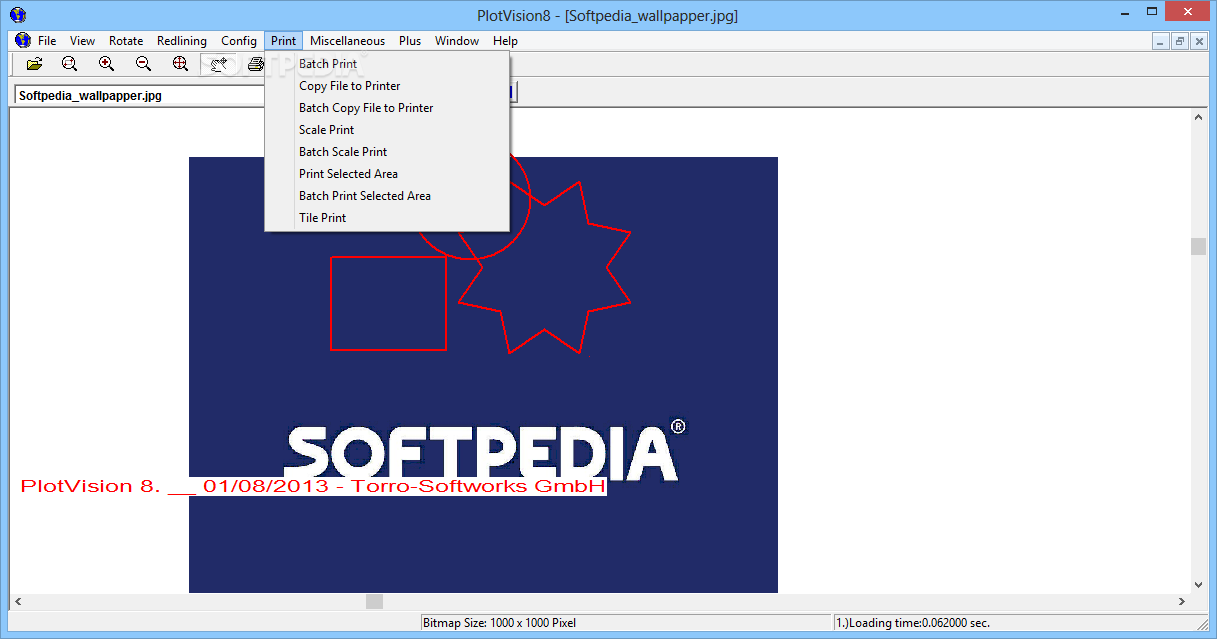

Print single or batch files

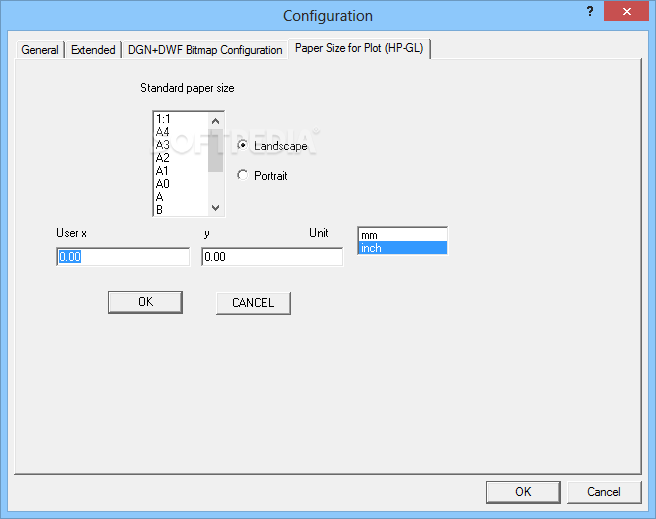

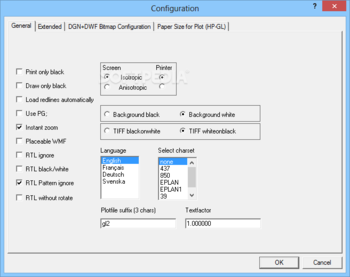

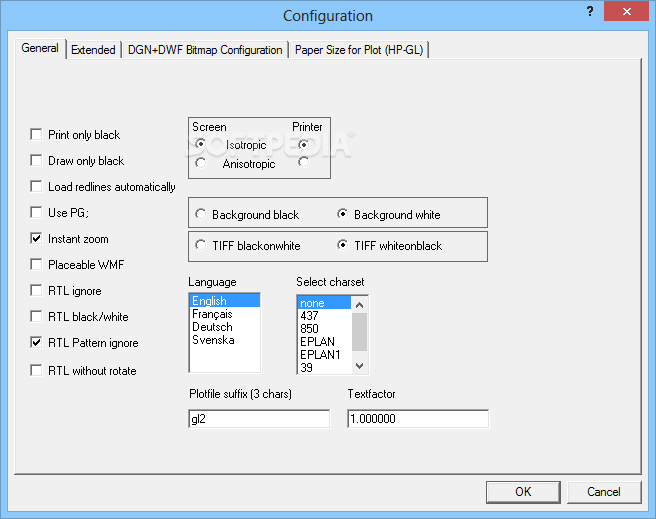

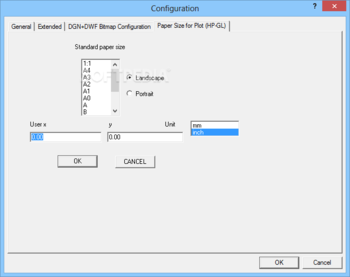

PlotVision allows you to set several options before printing a particular image, such as set the printer type (isotropic / anisotropic), enable automatic redline loading or print only the black areas.

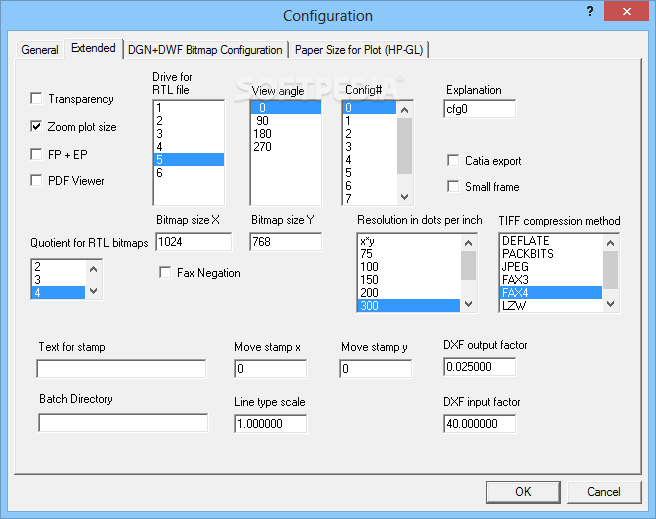

You may enable/disable file transparency, file resolution, bitmap size or quotient for RTL bitmaps. The program also allows you to batch files or only print a selected area from the currently opened file.

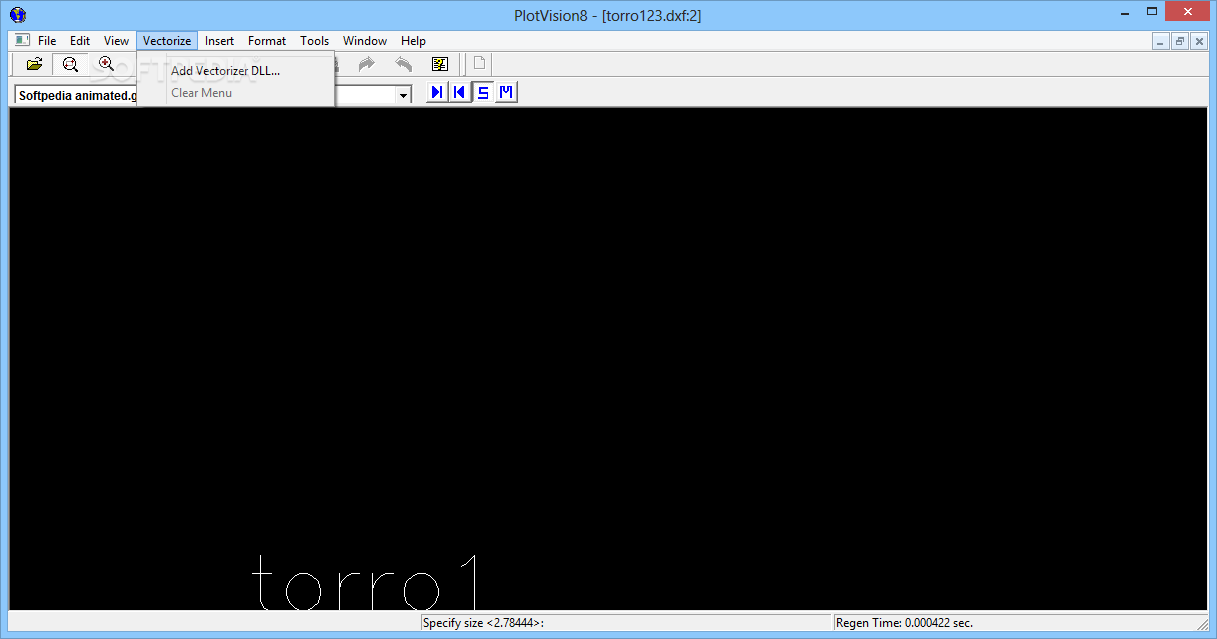

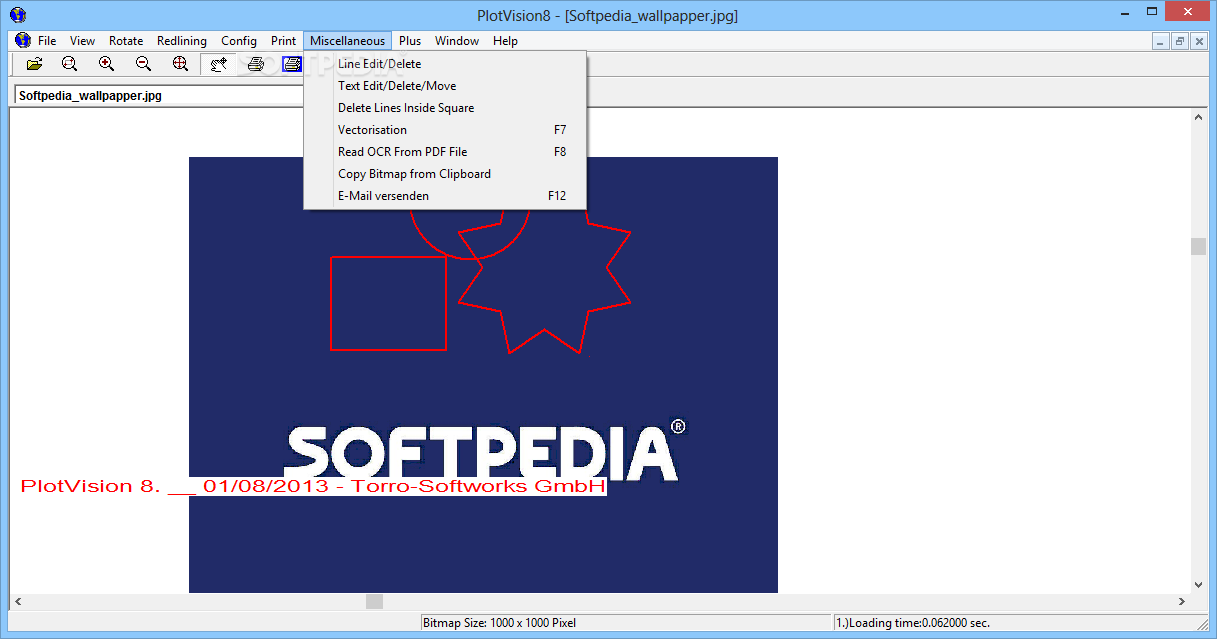

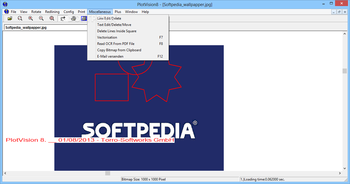

Vectorisation options are also available, the application allowing you to load vector dynamic link libraries. It can also apply OCR algorithms to read text from PDFs or import a picture from clipboard, as bitmap.

Extended support for file export

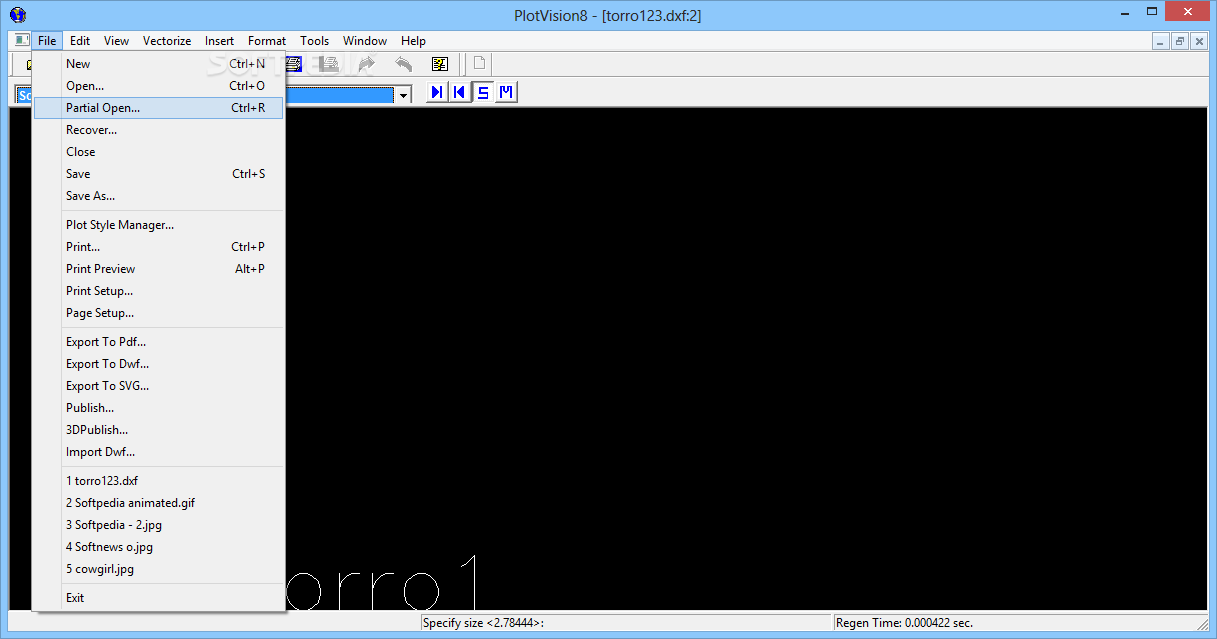

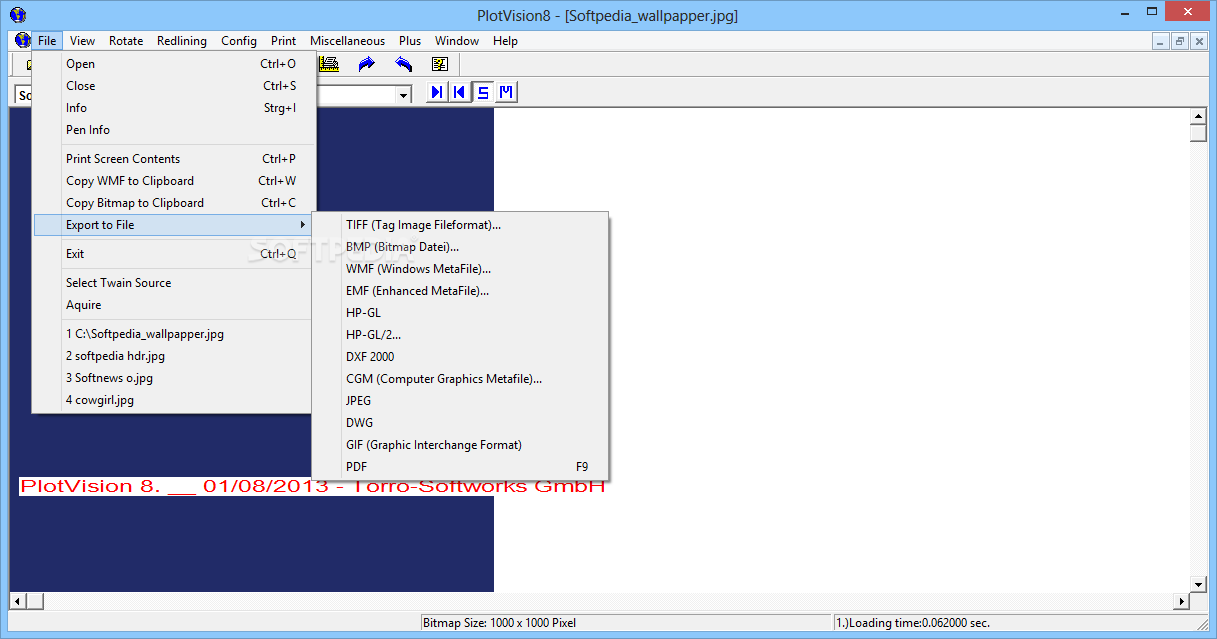

PlotVision allows you to save the currently opened file, in a different format than the input. Thus, the application allows you to export the contents to various formats, including TIFF, BMP, WMF, EMF, HP-GL, HP-GL-2, DXF 2000, CGM, DWG or PDF. It also enables you to acquire and select a custom Twain source.
