Pro CNC Draw

All CNC (Computerised Numerical Control) machines work with G code. This is simple text code. From idea to object, processing chain usually follows three steps : design using CAD (Computer Aided Design) software, this is the step where you draw the object. Second step is generation of G code which is done by CAM software (Computer Aided Manufacturing). And at last a CNC driver (Computerised Numerical Control) to drive the machine (mill or lathe) that will produce the final shape.

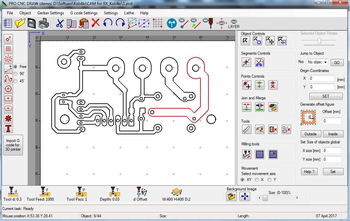

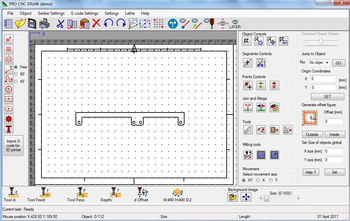

PRO CNC Draw combine CAD and CAM steps. It is very simple and good software to draw and generate G code for 2,5D objects. This is the most common task to any mill machine. It is so easy to work with the intuitive software so any beginner can work with it. There is no need of any deep mechanical knowledge.

Whats new in this version:

New functions added: points operations, segment operations, line drawing operations. New menu - export to dxf file enabled. Import gerber files and DXF files.
