SimPanel

Name: SimPanel
Works on: windows

Windows XP and above

Version: 3.1
Last Updated: 22 Apr 2017
Release: 06 Jan 2010
Category: System

Rate this software:
91 downloads

View Screenshots(1)

Comments

Download

Liked it? Tell others:

SimPanel Details

Rating: 2.130434782 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 91
License: Demo / Trial Version

SimPanel is a demo software by Sergey E.Shapovalov Software and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download SimPanel which is 764.68 KB in size and belongs to the software category System.
SimPanel was released on 2010-01-06 and last updated on our database on 2017-04-22 and is currently at version 3.1.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

SimPanel Description

SimPanel is a multi-functional virtual control panel designer/emulator, significantly extending capabilities of SIEMENS SIMATIC S7-300/S7-400/HMI software in field of control systems real-time simulation on PC. Using SimPanel together with native SIEMENS SIMATIC simulation software products such as S7-PLCSIM and WinCC flexible Runtime introduce following advantages to user: effective design of virtual operator control panels of any size containing HMI device and any number of electrical elements (lamps, buttons, switches); real-time debugging of designed virtual control panel together with virtual PLC (S7-PLCSIM software, multiple instances are also allowed) and HMI (WinCC flexible Runtime); fully functional launcher for WinCC flexible Runtime (showing functional Keys without CS environment), positioning it in a user-defined region within virtual control panel; on-the-fly connection/disconnection to any number of S7-PLCSIM instances; rapid project configuration in a single XML-formatted layout file; one-click layout activation/deactivation; multilanguage labels support; MATLAB Simulink blockset to synchronize SimPanel with running model; good resemblance to real equipment makes possible to use SimPanel as training application for working personnel.

Whats new in this version:

Version 3.1 features configurable text size, font and style, adds two more panel shapes.

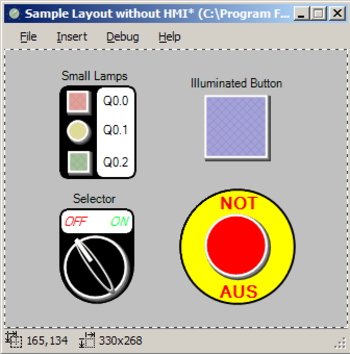

SimPanel Screenshots
