UnitCAD

UnitCAD is a unique 2D CAD automation solution designed to provide enormous power, ease and collaboration. With reusable unit components stored inside a database and controlled through parameters it automates the creation of drawings. Enabling you to put your focus back to where it belongs: your design rules and data.

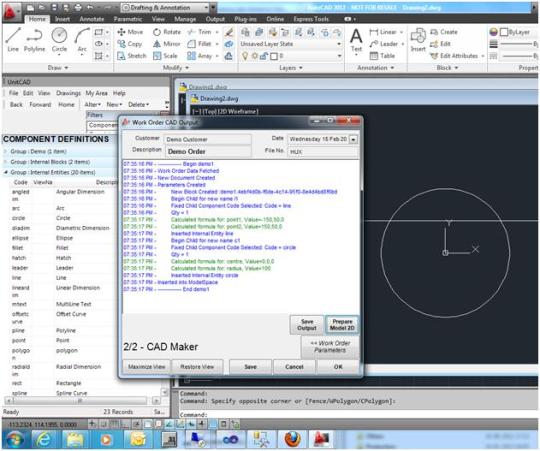

Features include data stored in Microsoft SQL Server database, comprehensive viewing, navigation, and printing engine for data, integrates seamlessly with AutoCAD works in the AutoCAD environment, define and manage work orders, define global parameters to be filled at work order level, define design tables for design data management, create parametric components such as, define local parameters for each component, associate with AutoCAD dynamic block and link AutoCAD Block Parameters to UnitCAD component parameters, create dynamic geometry like line, circle, and inside the component definition, create dynamic annotations like lineardimension, angulardimension inside the component definition, and components can have any combination of above for maximum flexibility, extensive formula language to define parameters, call components from within another component enabling high reuse and modularity, create design table based components to manage elements like Pipes, Channels, and Angles, define work order global parameters manually or import From Excel, generate geometry on the basis of work order data with full information and trace enabling easy error finding, export and import component definitions for easy sharing, and export and import design tables for easy sharing.
