ViaDesigner

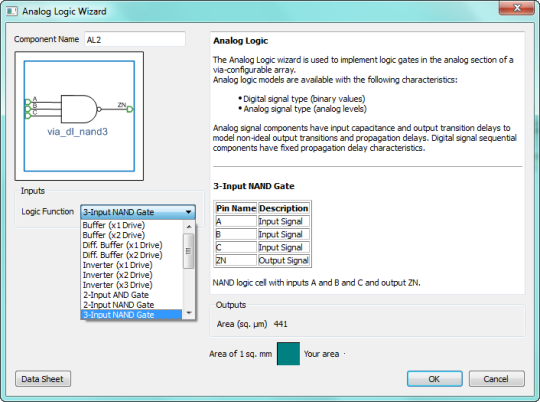

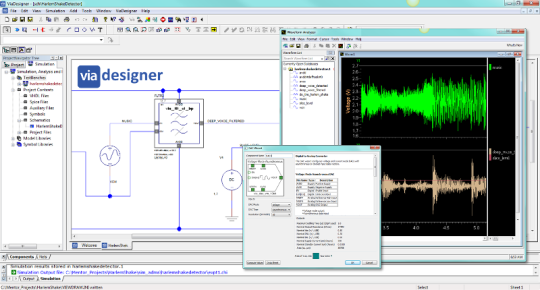

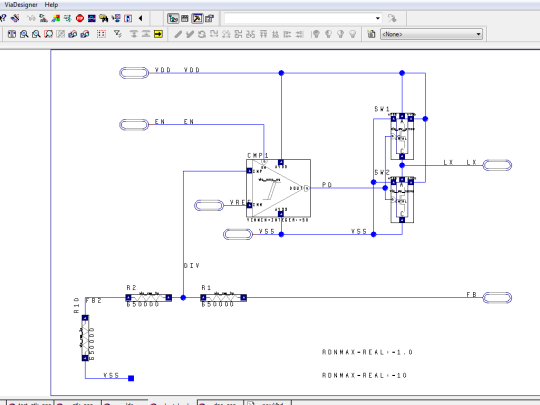

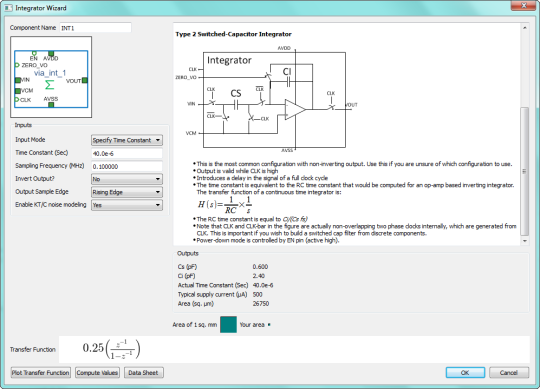

Complete mixed signal electronic circuit schematic capture and simulation software. Combine schematics, SPICE, VHDL, Verilog & VHDL-AMS in a unified design and simulation environment. Powerful and easy-to-use design wizards kick start your design. Design wizards include: filters, integrators, ADCs, DACs, power management, programmable gain amplifiers, high-voltage circuits, sigma delta modulators and more. ViaDesigner enables chip to system-level electronic design and simulation. You can use ViaDesigner as a general purpose mixed-signal simulator and you can target your designs to Triad Semiconductors via-configurable array (VCA) technology. VCAs combine silicon proven analog and digital IP that can be interconnected by making a simple and inexpensive single mask layer change. With ViaDesigner you design and simulate your design using high-level resources. Automatic place and route software known as ViaPath then maps your design to a VCA. VCAs allow system-level engineers to design mixed-signal integrated circuits without the need for full-custom IC design skills, tools or expense.
