Visual Circuit

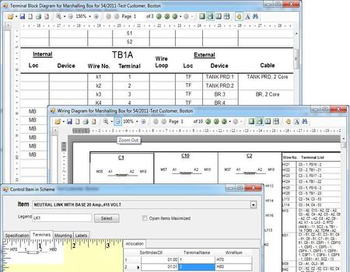

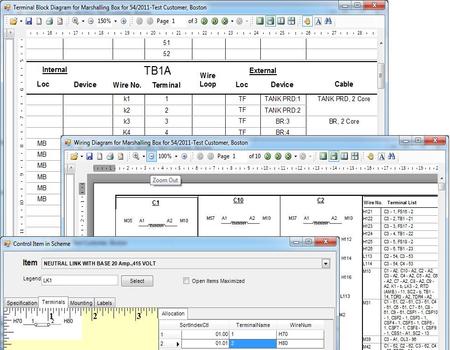

Visual Circuit enables GUI based entry of various devices and their wire buses and then generates various documents such as Terminal Block Diagram, Wiring Diagram, and Material Lists. Enabling you to draw schematics on your "normal" CAD workstation and still automating follow through documents.

Features include data stored in Microsoft SQL Server database, comprehensive viewing, navigation, and printing engine for data, standard data such as, define item coding system and item codes, define item BOM for control items (example Contactor Assembly with base contactor and add-on block), define mounting types and their description and hardware, and define control item characteristics like terminal information, mounting type, and lug information, define and manage work orders, define work order panels, add devices to panel in work order, define wire buses, assign buses to control device terminals, and outputs material list, wiring diagram per-device, wiring list - per wire bus, terminal block diagram, labels, hardware and lugs list, and panel interconnections.
