Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows XP | Windows 2000 | Windows 2003 | Windows 2008 | Windows Vista | Windows 2012 File Format: exe
Rating: 2.6896551724138
out of 5
based on 29 user ratings
Publisher Website: External Link Downloads: 1920 License: Demo / Trial Version
ZWCAD 2017 is a demo software by ZWCAD Software Co., Ltd. and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download ZWCAD 2017 which is 195.3 MB in size and belongs to the software category Science CAD. ZWCAD 2017 was released on 2016-09-06 and last updated on our database on 2017-04-15 and is currently at version 2016.07.
We also have ZWCAD 2017 64bit version which is 197.87 MB in size and will work on x64 computers.
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
ZWCAD 2017 Description
Full Support for DWG:
ZWCAD's drawing files are based on the world-standard .dwg format. This means that you can open, edit, and save .dwg files from any version -- without conversion or data loss -- all the way back to version 2.5 and right up to today's 2012. In addition, ZWCAD supports related formats, such as .dxf (interchange), .dwf (web), and .dwt (template).
Compatible with Mainstream CAD Platforms:
ZWCAD has seamless integration with Microsoft Windows. Its Windows-style user interface arranges menus, toolbars, the command line, and dialog boxes in a way that is familiar to Windows users. This lets Windows users begin working with ZWCAD immediately.
Friendly User Interface:
The Windows-style user interface of ZWCAD arranges the menus, toolbars, command line, and dialog boxes in a way that is familiar to Windows users. This lets you begin working with ZWCAD right away. A row of tabs, like the one found in Microsoft Office 2007 and later, makes it easy to switch between open drawings.
ZWCAD imports and exports the .mnu, .mns, and .pgp files that define menus, toolbars, and aliases. This means you can transfer your program customizations to ZWCAD.
Conceptualize Your Designs Easily:

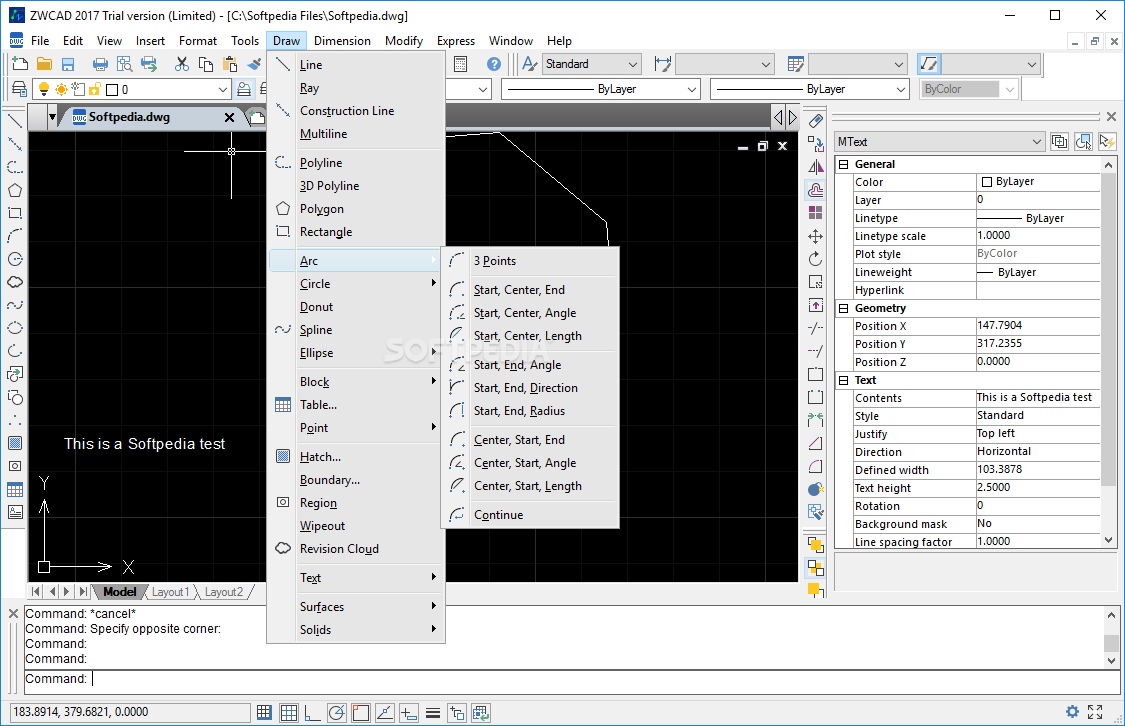

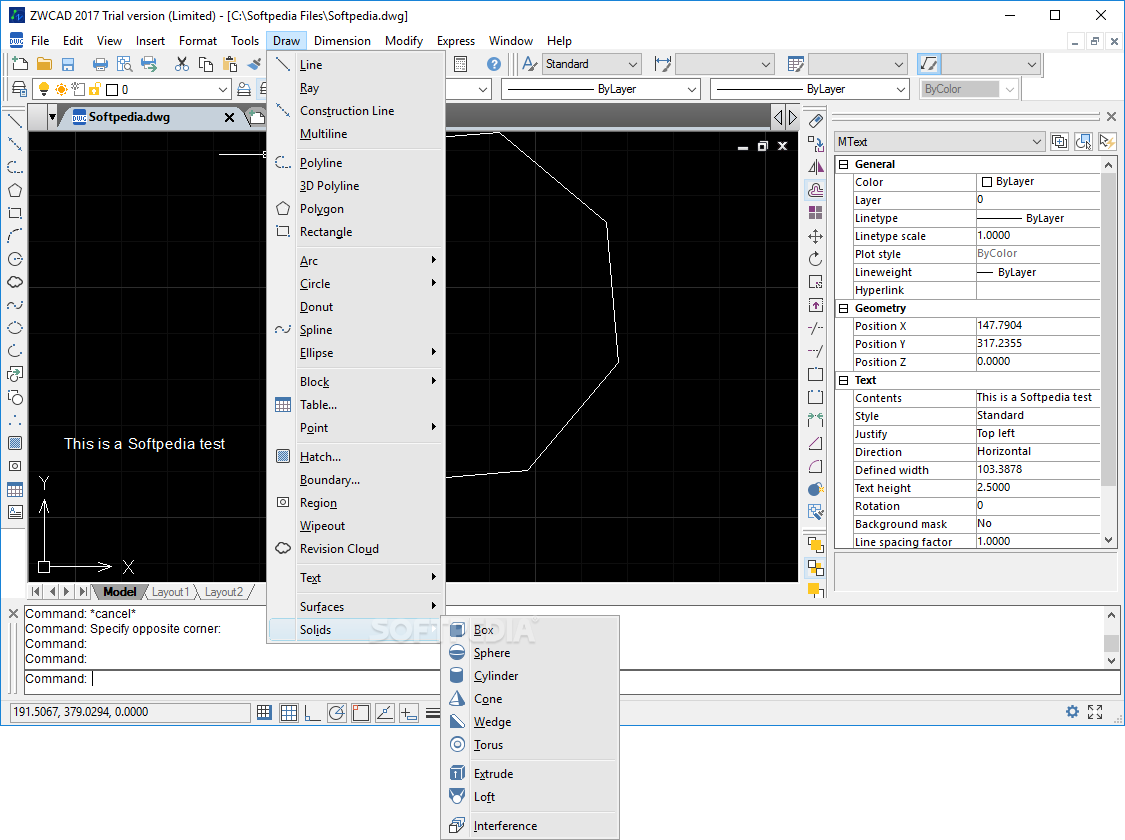

ZWCAD provides a wide number of drafting tools to help you easily conceptualize your ideas as drawings. Included are 2D and 3D drawing and editing tools for creating and modifying many kinds of objects.
Multi-line leaders:
Sometimes you need different types of leaders, or even different kinds of arrowheads for the same callout. With the multiple-line leader function, you can customize the leader style, and then create more than one leader at a time
Breaking Dimension Lines:
Dimension lines inevitably cross with other objects. To make drawings clearer, the dimension break function breaks dimension lines where they cross other lines -- without splitting the lines. This means that broken dimension lines are still easy to adjust.
FCMP:
When you need to find differences between two similar-looking drawings, the file compare function helps you do this. It highlights differences by color coding changed objects, blocks, and even external references.You can customize the comparison settings, such as colors and filters.
Solid profile:
The dynamic prompt interface displays related command names at the cursor. Both new and experienced users will find the alphabetical list of command names useful, because it reduces the time to remember and input commands.
Efficient Tools for Precise Drafting:
The parametric and constraints functions are powerful tools that enable you to create and modify families of objects in remarkably quick time, as compared with traditional redrawing in CAD. When you make a modification to a family of parametric objects, the action affects and drives the related objects by changing them together. Parametric and constraints ensure the objects always maintain their shape and/or measurements.
Parametric and Constraints:
The table feature lets you easily create neat and beautiful tables just in a single step; there is no need to draw cells from lines to form tables manually. In-place editing allows you to edit the contents of table cells, just as if you were working in Microsoft Excel. In addition, tables can export and import data files to and from Excel spreadsheets.
