2D Frame Analysis Static Edition

Name: 2D Frame Analysis Static Edition
Works on: windows

Windows XP and above

Developer: EngiSSol

Version: 2
Last Updated: 04 Apr 2017
Release: 15 Jan 2015
Category: Science CAD

Rate this software:
1655 downloads

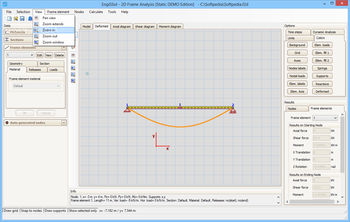

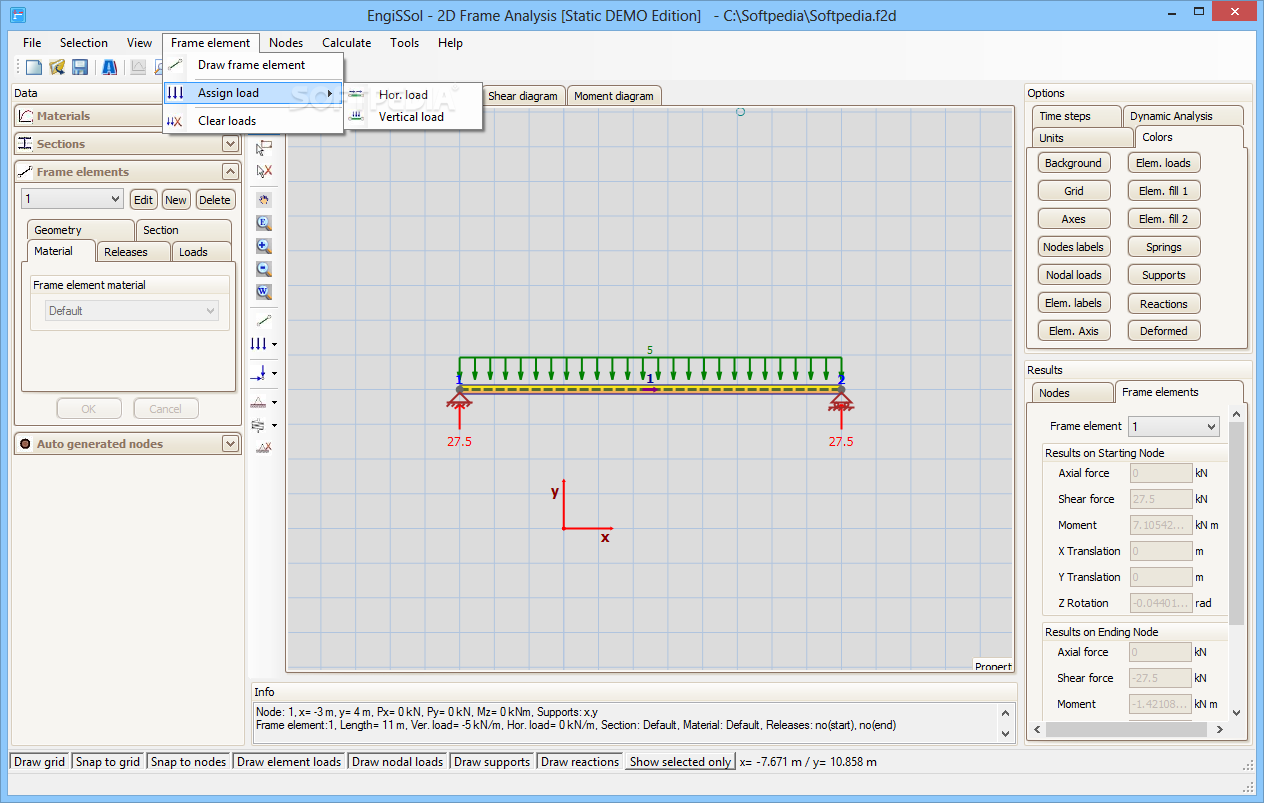

View Screenshots(6)

Comments

Download

Liked it? Tell others:

2D Frame Analysis Static Edition Tags

Frame Analysis Analyze Beam Frame Analyzer Frame Beam Analysis Node

2D Frame Analysis Static Edition Details

Rating: 2.652173913 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 1655
License: Demo / Trial Version

2D Frame Analysis Static Edition is a demo software by EngiSSol and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download 2D Frame Analysis Static Edition which is 38.82 MB in size and belongs to the software category Science CAD.
2D Frame Analysis Static Edition was released on 2015-01-15 and last updated on our database on 2017-04-04 and is currently at version 2.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

2D Frame Analysis Static Edition Description

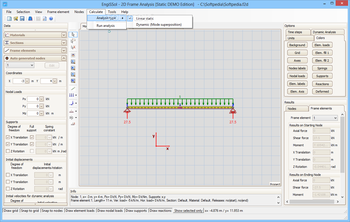

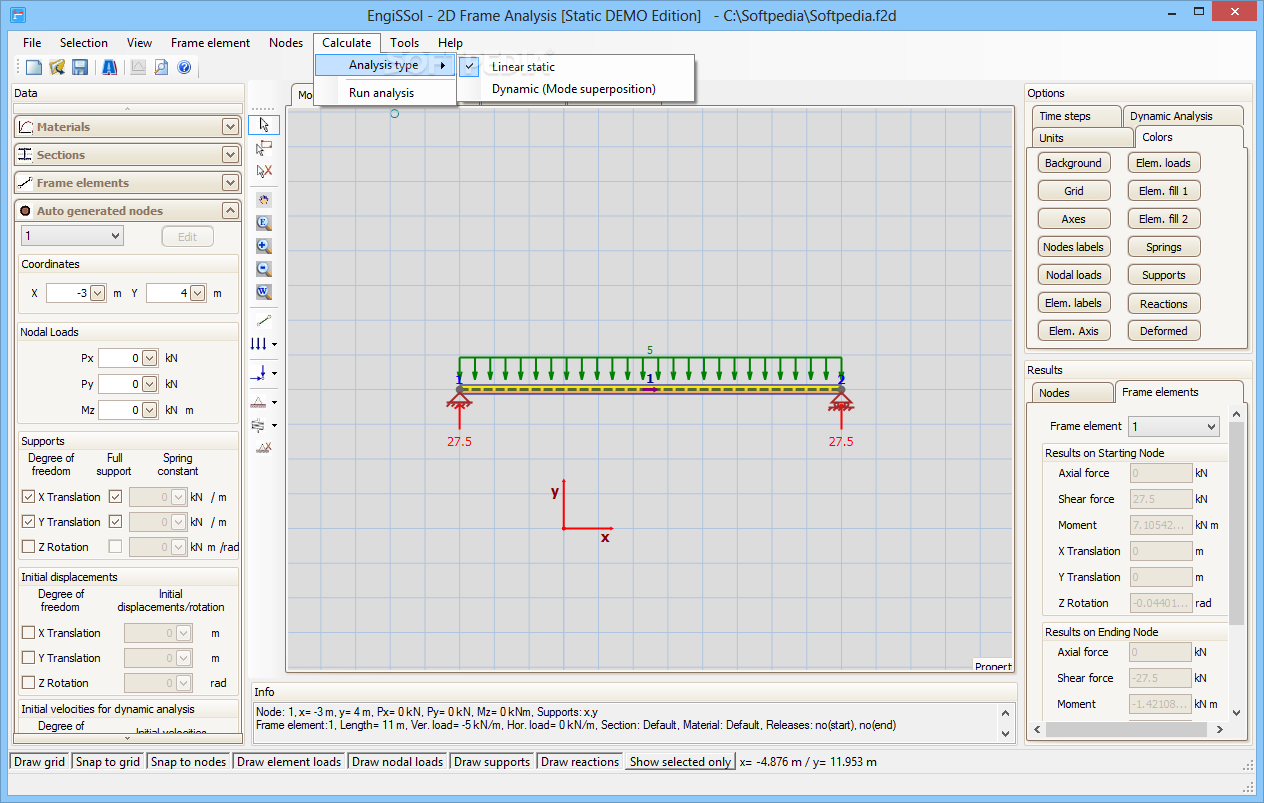

Use of highly flexible, general, finite element method
Static Analysis of Multi span beams, 2D Trusses and 2D Frames
Unlimited number of Nodes and Beams
3 Degrees of freedom per Node, 6 per Beam
Compatibility with any consistent system of units

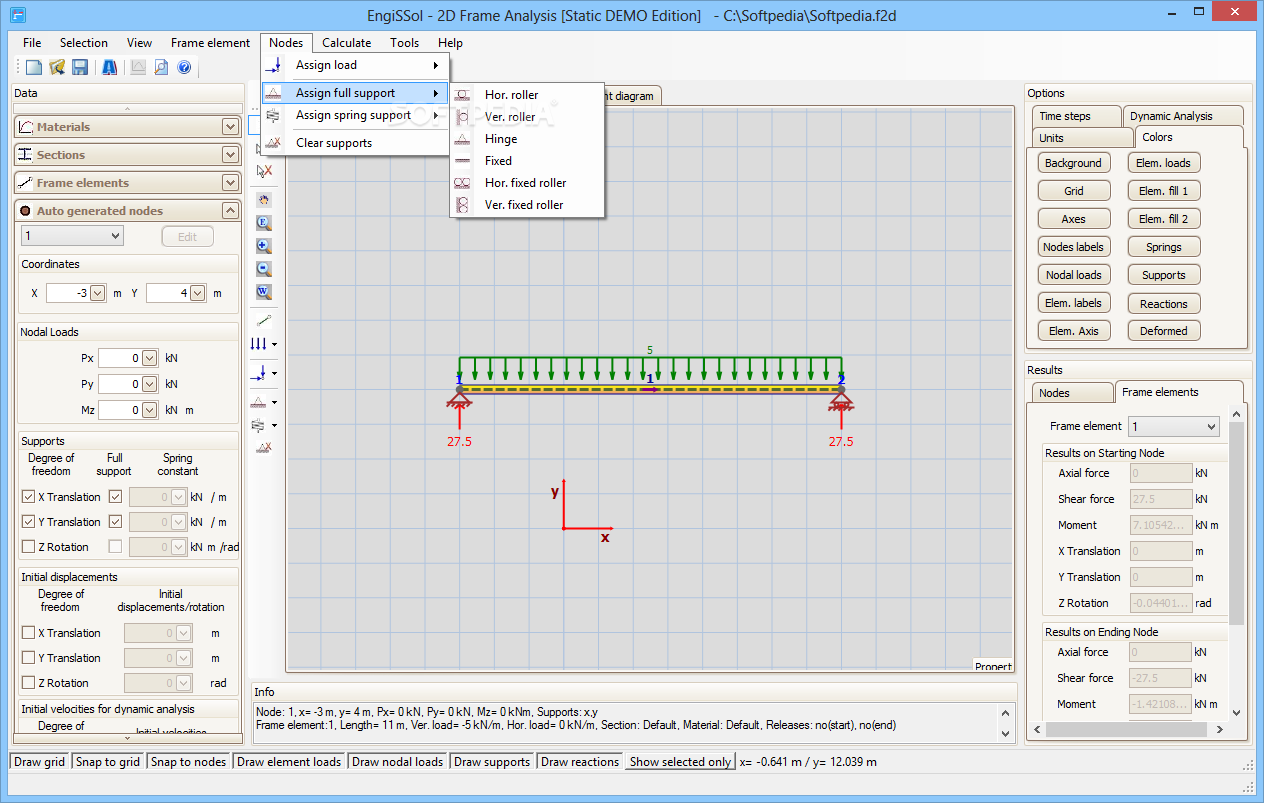

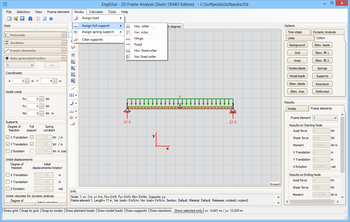

All type of boundary conditions (fixed, rollers, etc.)
Bent support conditions with respect to the global coordinate system, e.g. roller at 30 degrees in Node #4.(Nodal constraints in all directions)
Separate Coordinate System for each node

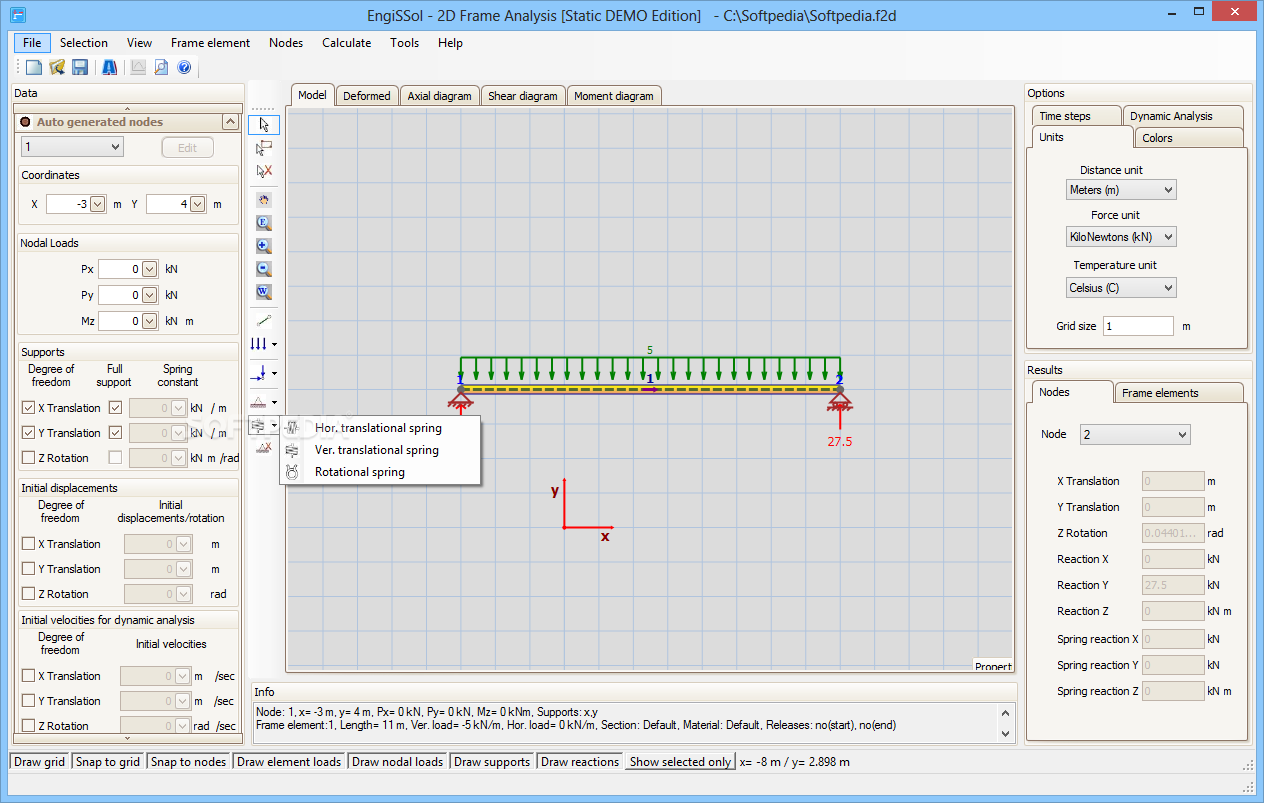

Rotational Springs
Unlimited number of translational around a node (direction and stiffness for each one)
Consideration of any translational and rotational displacements of the support conditions
No need to define first Nodes and then Beams, Nodes are produced automatically
Consideration of thermal loads

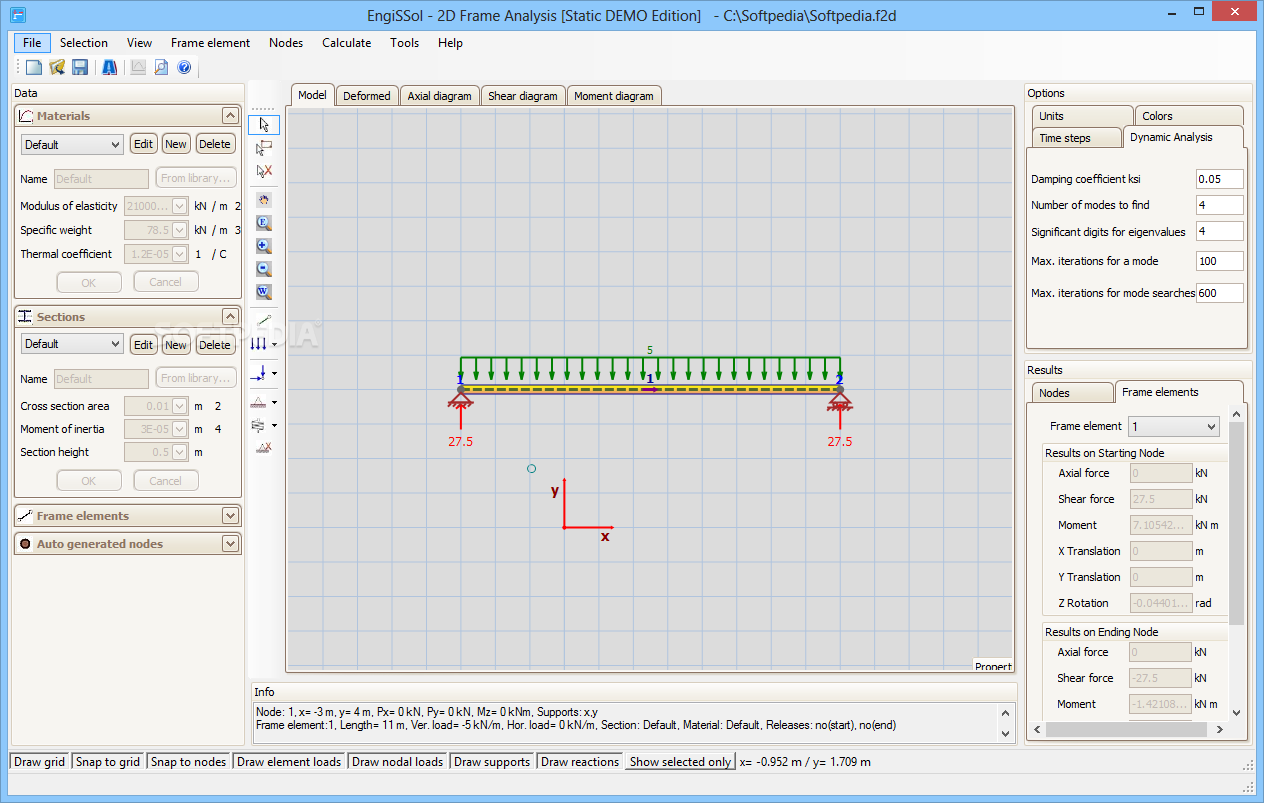

Ability to modify the beam material properties easily and fast
Static Load is given with respect to the global or local system of each beam or Node
Quick release 1 to 3 degrees of freedom at the starting or ending node of each beam in a user defined local coordinate system
Vertical and Horizontal Distribution Load on beams
Easy and interactive insertion of Arcs
Quick drawing of the model in a user friendly environment
Full GUI including zoom, pan, grid, snap options

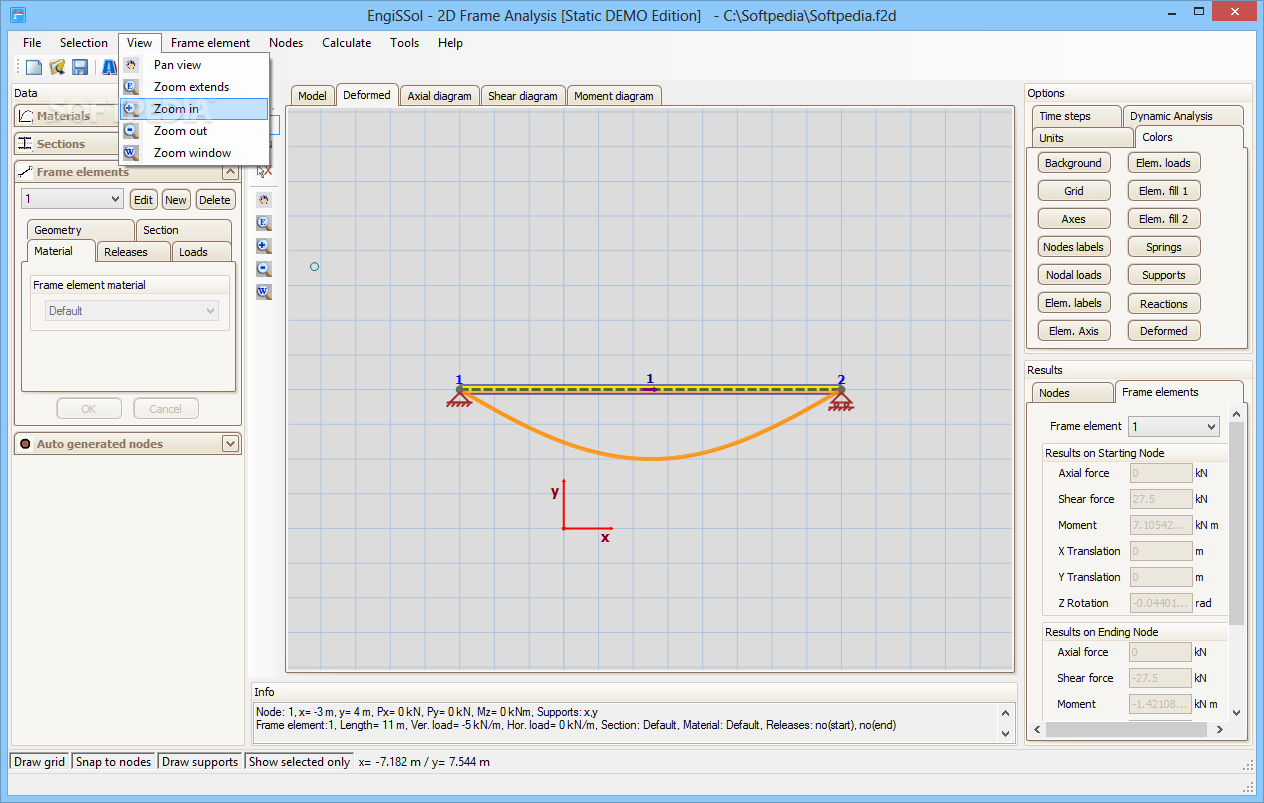

Calculation and Drawing of the deformed shape of the given model
Analytical view of the results of analysis, the geometry, the static model, the loads etc
Drawing of Diagrams of Axial and Shear Force and Bending Moment
Scaling to above diagrams and the deformed model interactively
Printings of analytical results, stress and displacements diagrams
Library with the major steel section shapes as well as typical concrete grades
