eSketch is a demo software by Schematica Software and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download eSketch which is 5.12 MB in size and belongs to the software category Science CAD. eSketch was released on 2013-06-24 and last updated on our database on 2017-03-28 and is currently at version 2.24.
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
eSketch Description
Schematica capture:
file merging
importing of (registered) Filter Wiz PRO files
rapid component (device) placementt
fast editing of component values

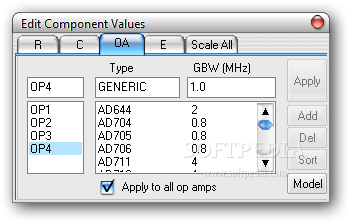

op amp device database provides Gain BandWidth values for over 600 op amps
full circuit editing capabilities such as copy, cut and paste
annotation with text boxes and markers
Analog circuit simulation:
both Filter Wiz PRO and Filter Wiz Lite can generate eSketch files
automatic indication of when circuit is ready to simulate
view two graphs simultaneously
two voltage probes - view both, either, or difference
save previous traces to view up to 13 voltages or currents at once
amplitude response (real, imaginary, dB, volts)
phase and group delay responses
input impedance
component current, impedance and power dissipation
Sensitivity of output voltage to changes in component values
transient response to impulse, step and "staircase" inputs
"ideal" and "real" op amp models
Monte Carlo analysis
Parameter Sweep analysis
pole-zero placement
