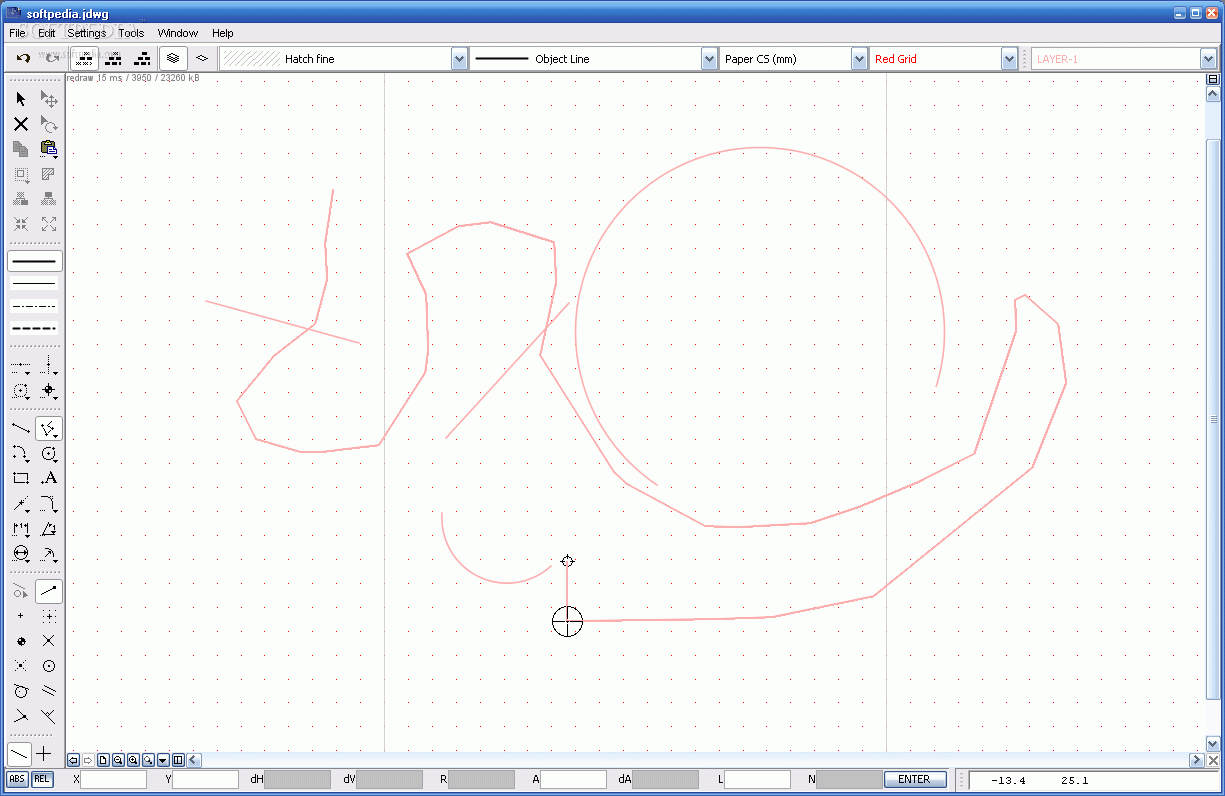

jDraft

jDraft is a 100% Pure Java software for creating engineering drawings.
Here are some key features of "jDraft":
Standard Desktop Application Features
ï¿­ Undo/Redo
ï¿­ Copy/Paste
ï¿­ Drag/Stretch
ï¿­ Drag & Drop
ï¿­ Recent Files
ï¿­ Templates
ï¿­ Context / Right Click Menus
Common CAD features Youd Expect
ï¿­ Snaps
ï¿­ Grids
ï¿­ Guide Lines
ï¿­ Reference Points
ï¿­ Layers
ï¿­ Coordinate systems
ï¿­ Hierarchical Grouping
ï¿­ Move, Scale, Rotate
ï¿­ Advanced Pasting
ï¿­ Dimensioning
ï¿­ Fillets
ï¿­ Chamfers
ï¿­ Triming
ï¿­ Standard drawing elements lines, polylines, arcs, circles texts and filled areas
Advanced CAD features
ï¿­ Rotated Views
ï¿­ Split Panes
ï¿­ Reference Images
Fully Featured Printing
ï¿­ Preview
ï¿­ Fit to page
ï¿­ Multipage
ï¿­ Scale Drawing
ï¿­ Crop Image
ï¿­ Print Selection
ï¿­ Drawing-to-Media alignment
Text Editing
ï¿­ Styles
ï¿­ Fonts
ï¿­ Any orientation
ï¿­ Flexible Anchoring
Flexibility Provided By User Definable
ï¿­ Hatches

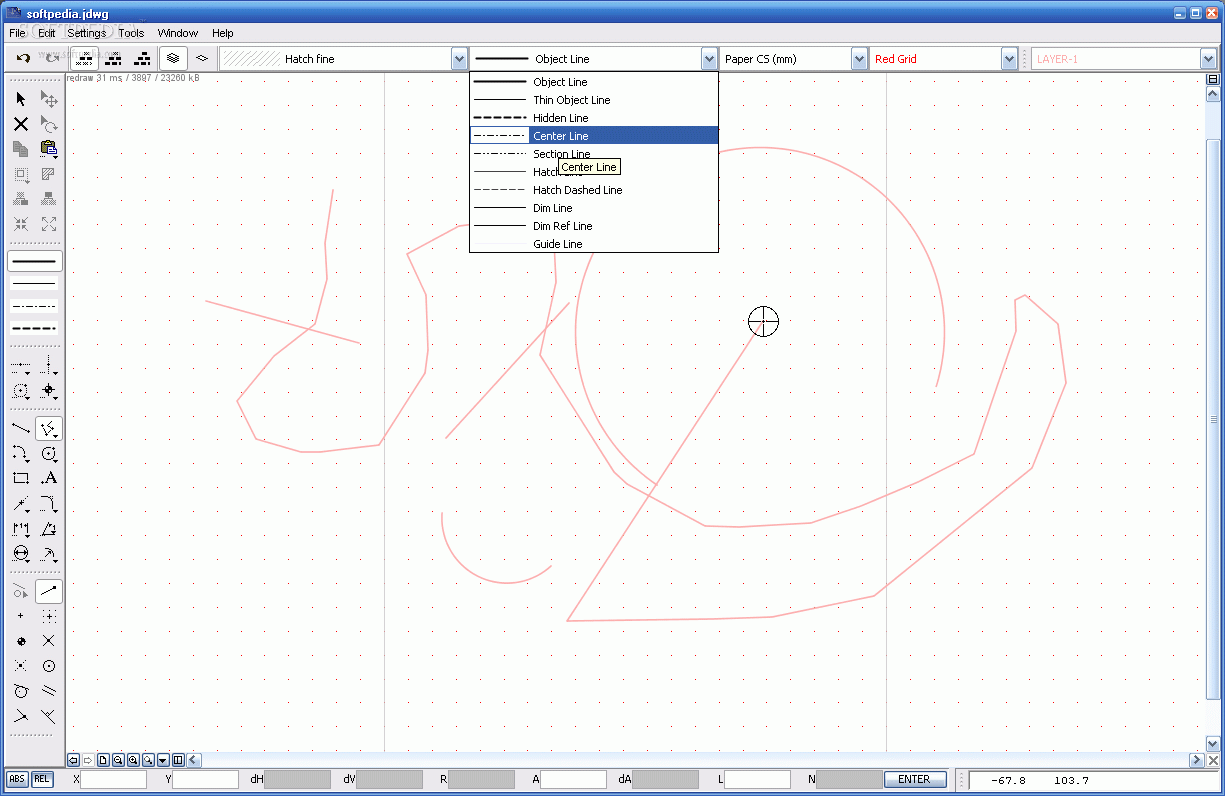

ï¿­ Line Styles
ï¿­ Coordinate Systems
ï¿­ Layers
ï¿­ Shortcuts
ï¿­ Performance Tuning
ï¿­ User Interface Tuning
ï¿­ Drawing Templates
Efficiency Enhancing Features
ï¿­ Intuitive User Interface
ï¿­ Features Just One Click Away
ï¿­ Shortcuts
ï¿­ Usefull Default Settings
ï¿­ Working with Rotated Views
Eas of Use With
ï¿­ Geometric Constuction
ï¿­ Accessible, Simple, Yet Powerfull User Interface
ï¿­ Built-in Interactice eGuide
ï¿­ Both Workstation and PC Style Operations
Draw Accurately With
ï¿­ Comprehensive Snaps
ï¿­ Geometric Constuction
ï¿­ Numeric Entry
ï¿­ Grids
ï¿­ Reference Points
ï¿­ Reference Point Patterns
ï¿­ Guide Lines
Connectivity With
ï¿­ DXF import / Exports
Requirements:
Hardware
ï¿­ Minimum Screen Resolution 1024 x 768 pixels
ï¿­ 1 GHz or faster CPU speed
ï¿­ 256 MB RAM
ï¿­ 10 MB Diskspace
ï¿­ Note that these are not absolute requiremens, the software has been tested on a 333 MHz P3 with 128MB RAM and it runs, but the speed is probably not acceptable.
ï¿­ All development is done on a Fujitsu/Siemens CELSIUS 2.8 GHz / 2 GB RAM / 1600 x 1200 pxls laptop.
Software
ï¿­ Java Runtime Enviroment 5.0 (JRE 5.0 aka 1.5)
