Logical Circuit

Logical Circuit is a comprehensive, practical and effective software solution whose main purpose is to help users design and simulate digital logic circuits.

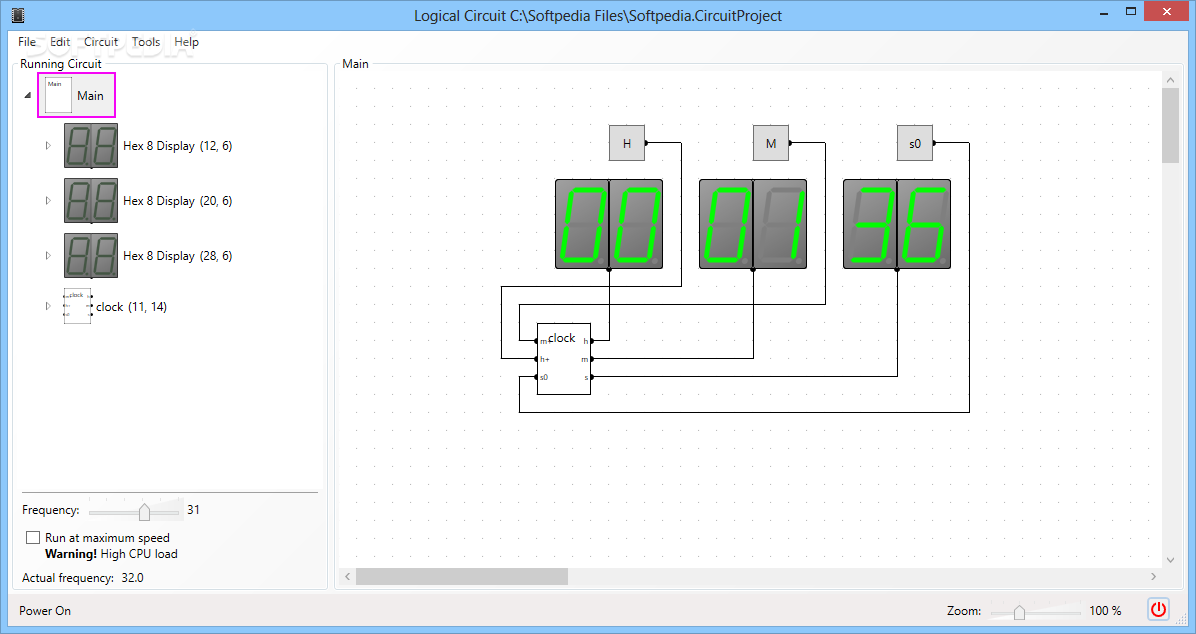

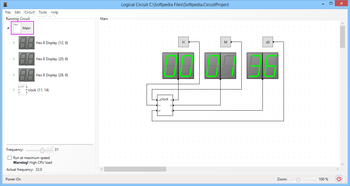

When you open the application for the first time, you are presented with a blank page that allows you to design your own circuits.

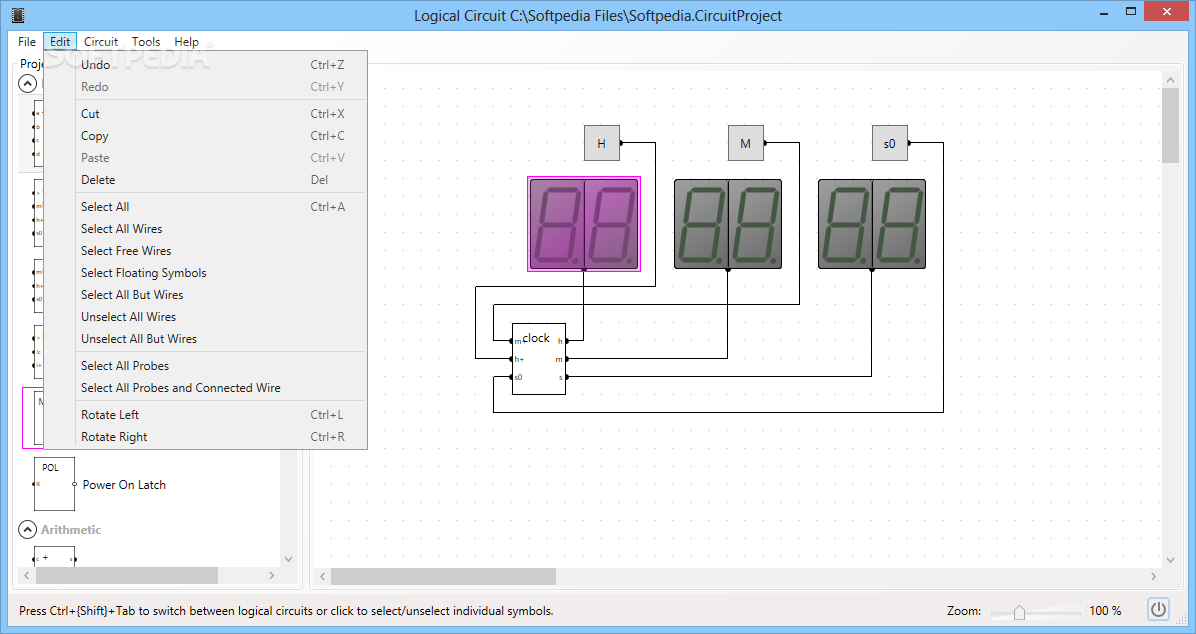

From the left panel, you have the possibility to choose any item you want and simply drag and drop it into the main page. Then, when you need to connect the elements between them, you just have to draw wires using your mouse.
Since Logical Circuit comes with an intuitive interface and makes it a breeze to find your way around, the application comes in handy when you need to create unrestricted circuit hierarchy.

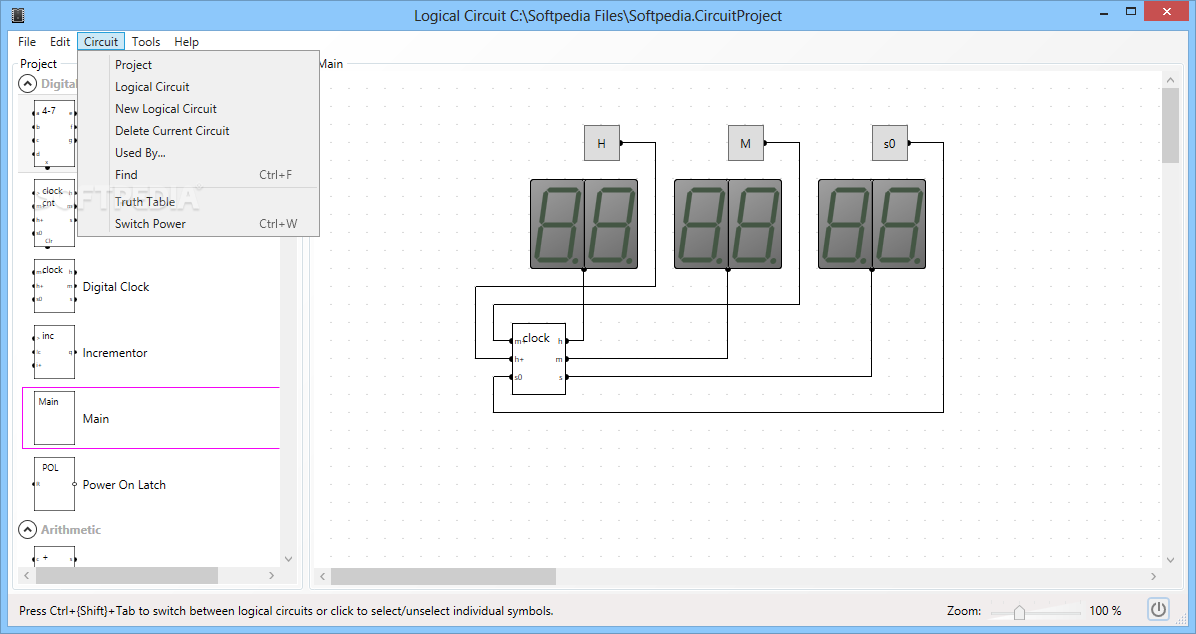

However, if you want to build advanced circuits, you just need to create reusable logical circuits. This way, complex tools are displayed in the left panel so you can easily switch between circuits pressing the right key combination such as ‘Ctrl+Tab’ or ‘Ctrl+Shift+Tab’. Thus, you have the possibility to navigate through multiple circuits and edit only those you are interested in.

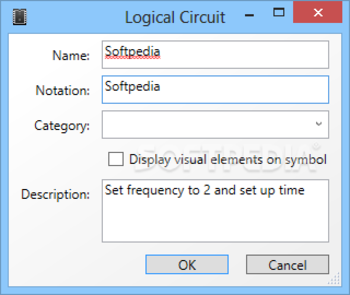

Other options that the application comes with are changing the circuit’s name or description, symbol and connected wires.
What’s more, Logical Circuit provides you with the right tools that enable you to debug circuits by specifying input values and observing outputs. As a side note, you can use constants if you want to obtain different values. Still, you can connect all the probes to the pins you want to monitor and get the final results.
Taking into consideration the features and options the utility comes with, Logical Circuit is a reliable and useful application that can be used when you need to design circuits and execute them to view the connections and the generated results.
