Look RS232

Look RS-232 is an instrument to debug computer connection with outer devices that use COM port such as modem, miniATS, projector etc. The program is designed to facilitate work with one of COM ports available and it has intuitively comprehensible interface.
Look RS-232 does this by giving you a means to monitor and send serial data packets to and from the PC, allowing full duplex communication to the external device.
Look RS-232 is able to send information through COM port to an outer device and receive data incoming through COM port from the device.
Look RS-232 supports:
Âï¿­ standard speed 110..115200 kbit/s connections;
Âï¿­ data entry in ASCII, BIN, OCT, DEC, HEX formats;
Âï¿­ display of data in ASCII, BIN, OCT, DEC ,HEX formats;
Âï¿­ file transmission and receipt;
Âï¿­ time link (from the moment of port activating).
Look RS-232 has a command of software management of COM port control signals and visual indication of such signals.

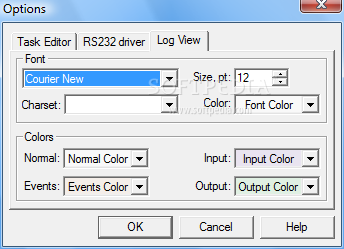

Look RS-232 keeps log of data sent and received, displays in the log common messages about port work, has a filter of log display, can save input and output data stream as separate files with extensions reserved.
Look RS-232 can effectively work with files:
Âï¿­ save and load tasks, including macros;
Âï¿­ transmit, receive and save the files and data received through the port.
LookRS-232 works with COM ports available in the system, regardless of their location whether on the mainboard, or on supplementary input/output boards, e.g. VS-Com (Roadrunner) PCI-800H 8-port PCI.
Here are some key features of "Look RS 232 Pro":
Âï¿­ In and out data streams logging
Âï¿­ Tracing, breakpoints, step by step debugging
Âï¿­ Communication ports staus displaying
Âï¿­ Using macros to automate frequently used operations
Âï¿­ Full history of sending and receiving commands and data
Âï¿­ Time stamp information for incoming and outgoing data and events
Âï¿­ Look RS is designed to give easy access to the PC serial ports. It has useful graphic user interface, no programming required.
Âï¿­ Transfers data from file
Âï¿­ Support of any formats of data (ASCII, BIN, HEX, OCT) and different length of words

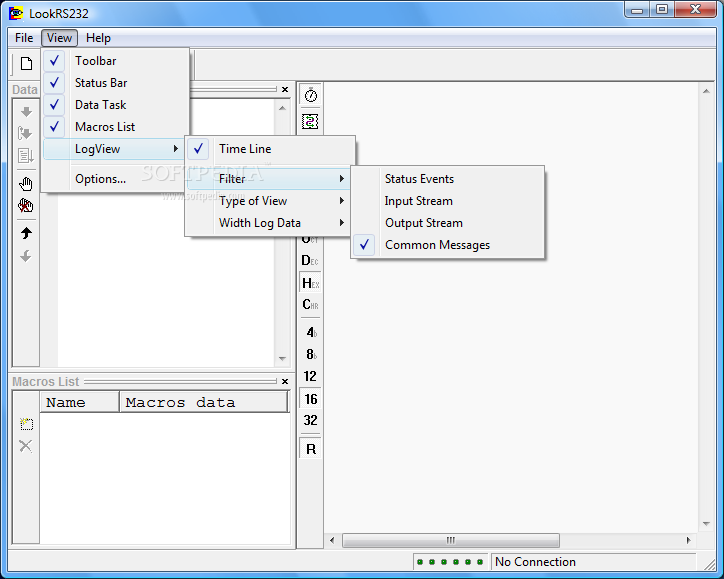

Âï¿­ Filters, different display modes
Âï¿­ Full duplex
Âï¿­ Supported baudrates range: 110..115200 kbit/s
Âï¿­ Can work with COM ports of the following types:
- standard on-board ports
- extension board ports
- COM ports connected to computer through USB port with COM port emulator
Âï¿­ Can save current session including all macros, data sent and received

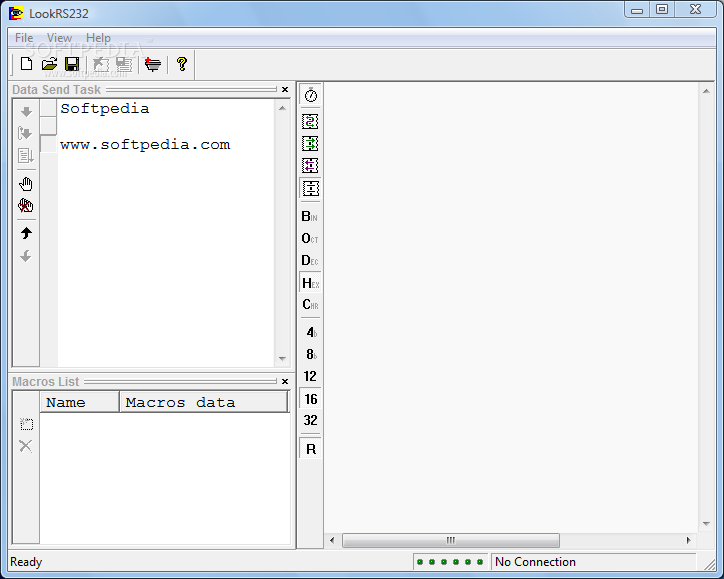

Âï¿­ Useful option of data format selection. The data is entered in Data Send Task window, switch is activated by pressing Spacebar. You can choose any type out of the list: bin, oct, dec, hex, macros, file, port properties. Char type is default.
Limitations:
Âï¿­ 15-day trial
Âï¿­ nag screen
Âï¿­ 30 minutes session
Âï¿­ Save function is disabled
