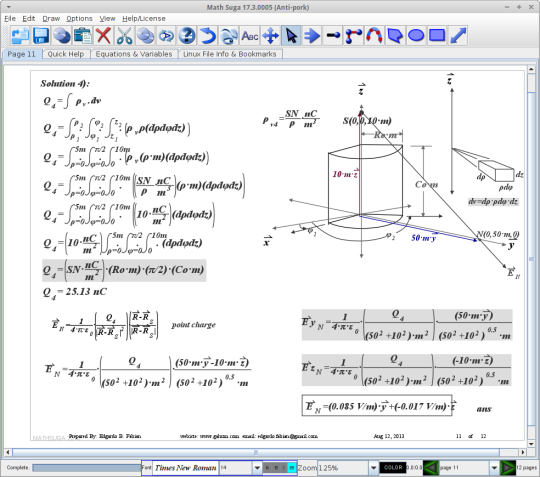

Math Suga

Evaluation of mathematical equations. Generation of graphs from equations. Drawing of two dimensional objects such as lines, circles, rectangles. Writing text, saving previously drawn objects to components, drawing electrical circuits using pre-drawn objects as components. Generate FreePCB compatible PCB Netlist. Generate Spice Netlist and generate Bill of Materials.

Whats new in this version:

Version 17.3.0005: 1) corrected bug on double clicking an sgf file in linux so that the file will open even without an initial mathsuga.ini file;2) added F1 for start of vector and F2 for end of vector;3) added quick adds for unit vectors for x, y, z, rho, phi, r, theta;4) Added a built in quick help on another tab;5) Improved equation rendering like integral and brackets from lines to curves;6) Added capability to display vector symbols (arrow head on top of name);7) Modified multip...
