Micrometals Inductor Design For Power Filter

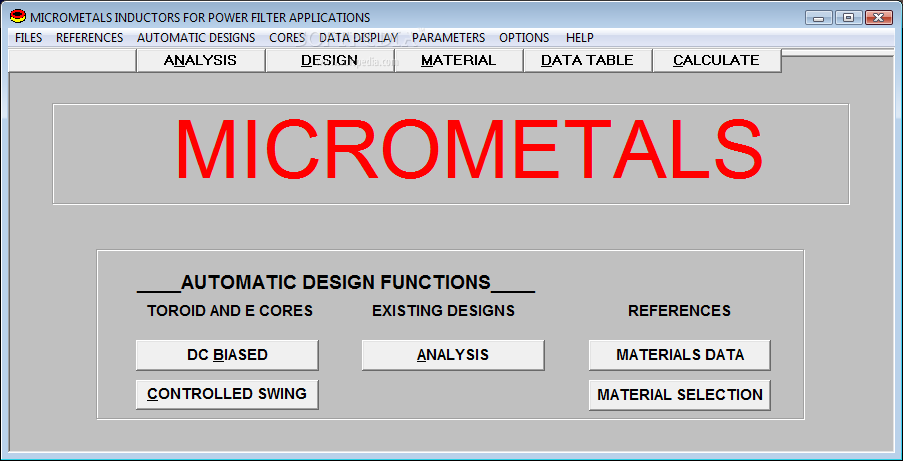

Micrometals Inductor Software is a flexible user friendly tool designed to assist in the selection of iron powder cores.

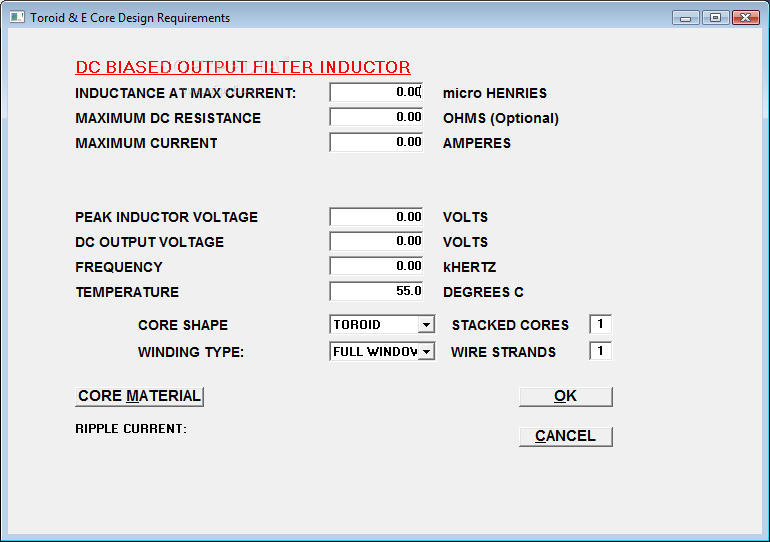

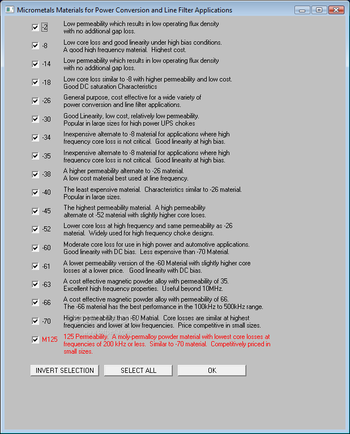

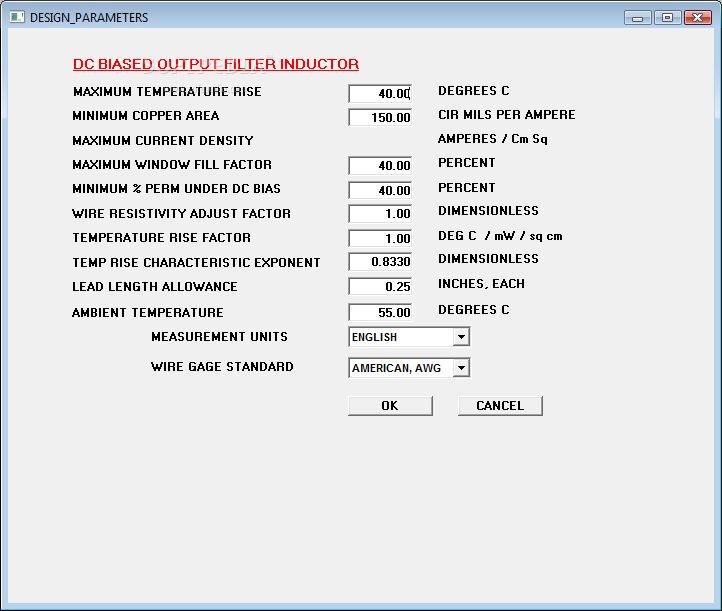

The program accepts user defined design requirements in terms of required inductance, dc resistance, dc bias current and applied ac voltage. The user has the option of specifying core geometry (i.e. Toroid, E-Core or Ferrite/Iron Powder Composite), specific core materials or all materials, metric units or English units, maximum window fill factor, temperature rise, ambient temperature, etc.

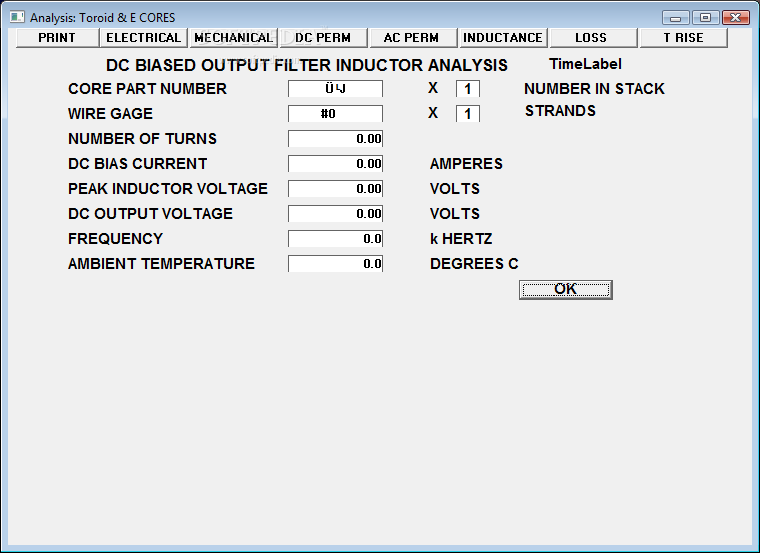

This program will automatically calculate the smallest core size possible and will display:

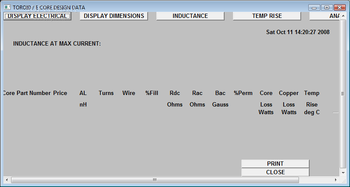

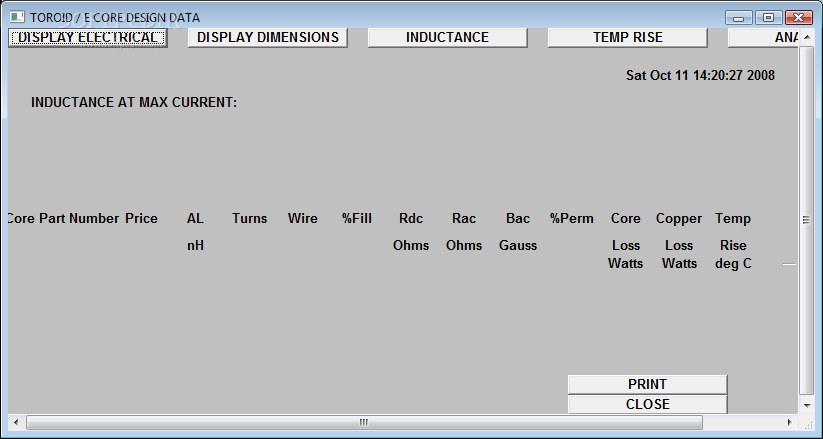

Micrometals Part Number
Approximate unit price
Core AL Value
Required Number of Turns
Wire Size
Percent Window Fill
DC Winding Resistance
B ac
Percent Initial Permeability
Core Loss
Copper Loss
Temperature Rise
The software allows the design engineer to quickly work up multiple design solutions based on user specified electrical requirements which all can easily printed for hard copies. Designs can also be saved to a file by using the F key.
