MITCalc - Welded connections

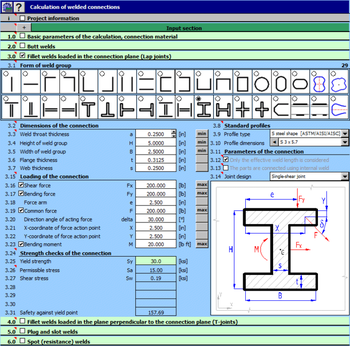

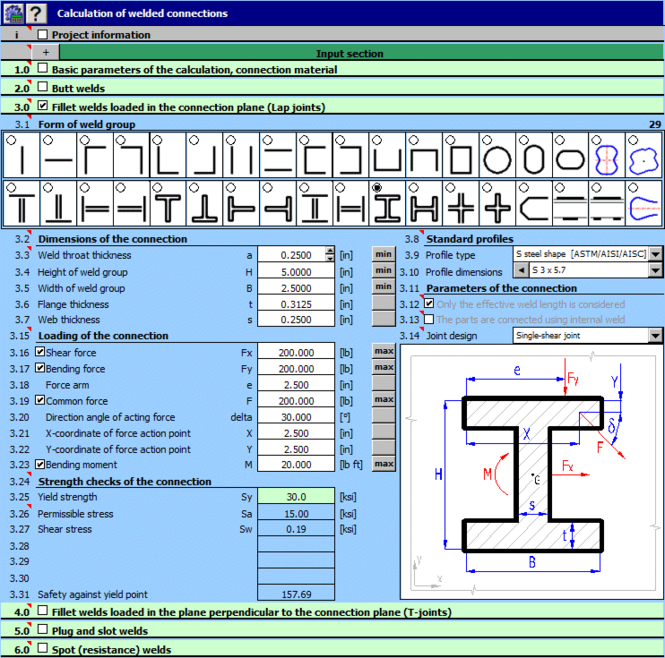

The calculation is intended for the geometrical design and strength control of statically loaded welded connections of machine structures manufactured from carbon steels. The program enables you to design over 50 of the most common types of welded connections stressed by various combinations of load. The calculation deals with the following tasks:
- Design of connections with butt welds.
- Design of connections with fillet welds.
- Design of connections with plug and slot welds.
- Design of connections with spot (resistance) welds.
- Strength control of designed connections.
- The program includes a table with approx. 700 carbon steels suitable for welding according to the material standards ANSI, EN, JIS, ISO, DIN, BS, NF, UNI, UNE, SIS, CSA, NBN, NP, NS, ON and CSN.
- The program also includes a dimensional table of steel sections S, ST, W, WT, C, L according to ASTM/AISI/AISC and T, I, U, L sections according to DIN/EN/ISO.
- The calculation is based on data, procedures and algorithms from specialized literature and standards AWS, AISC, ANSI, EN, ISO, DIN and others.
- List of standards: prEN 1993-1-8, EN 10024, EN 10034, EN 10055, EN 10056, EN 10279, DS 952, DIN 15018, DIN 18800, DIN 1024, DIN 1025, DIN 1026, DIN 1028, DIN 1029, CSN 050120
- Support of 2D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD) and 3D CAD in full
calculation package (Autodesk Inventor, SolidWorks, SolidEdge, Pro/E).
This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others.
