NewCAD.NET

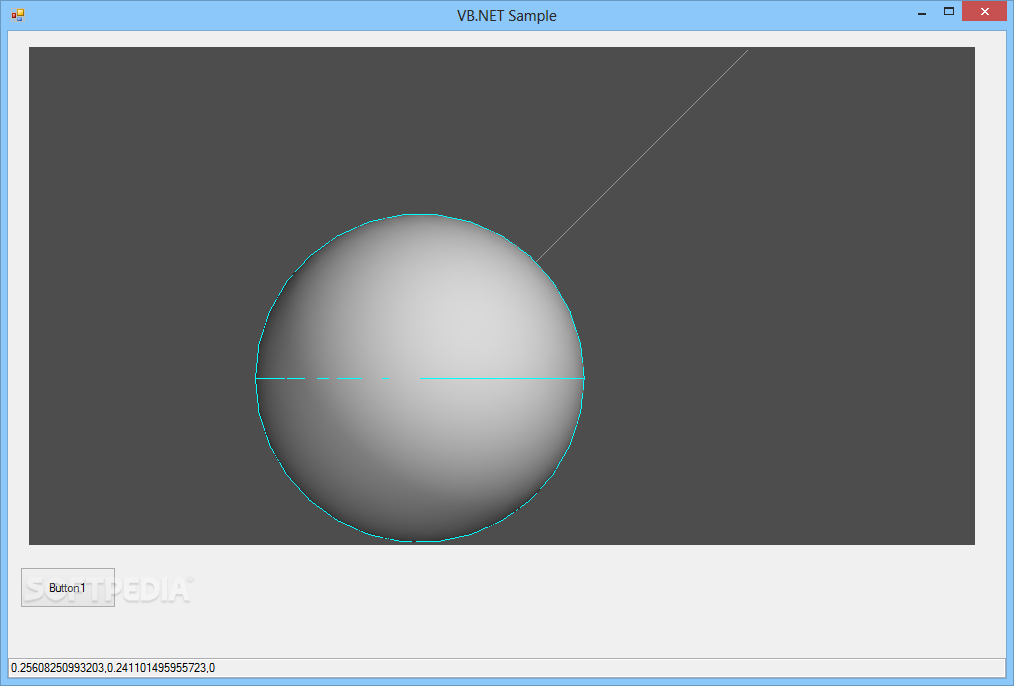

NewCAD.NET is a powerful component for C# and VB.NET, which can import 3D modelling capabilities to your project.
The component can be used with CAD, CAM or CAE in scientific computing program development, being suitable for use with .NET IDEs.

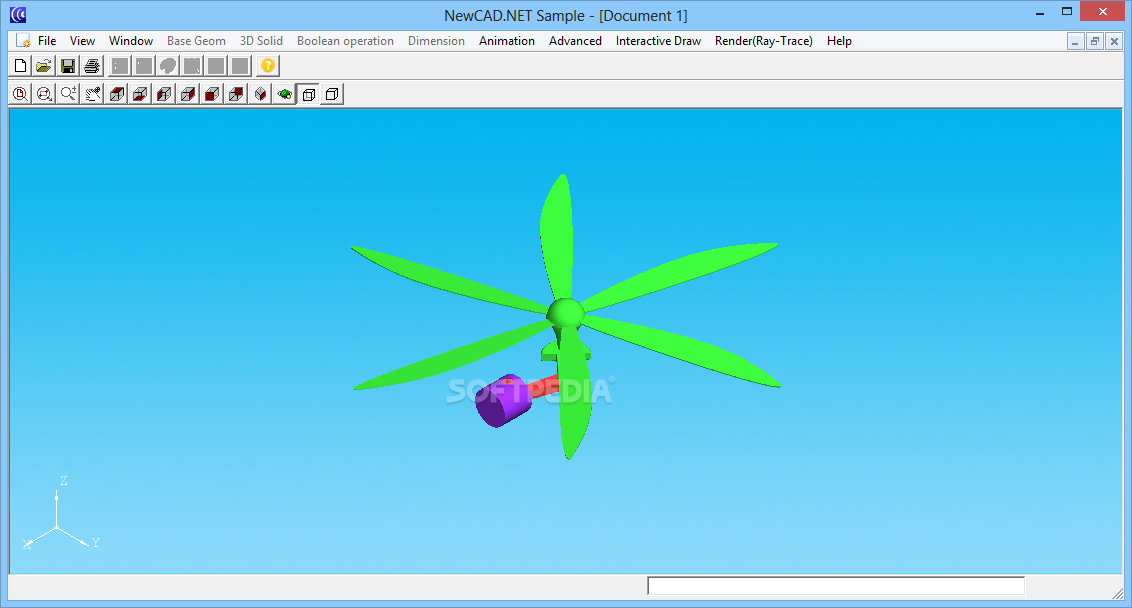

NewCAD.NET can add various 3D functions that you may easily manipulate: object modelling, wireframe building, light rendering, shading, animation are only a few examples.

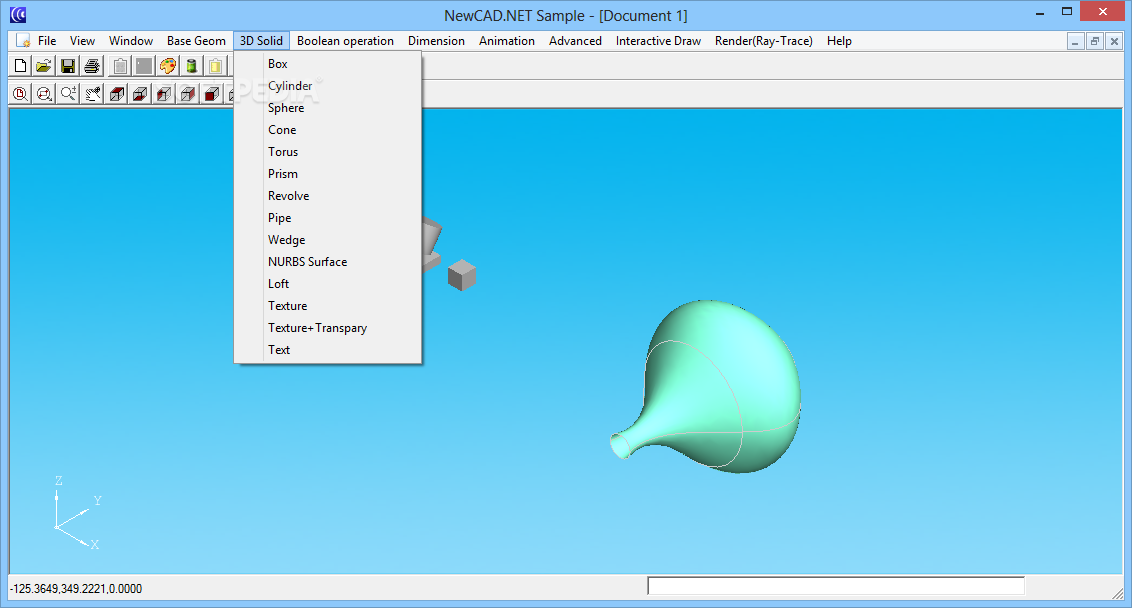

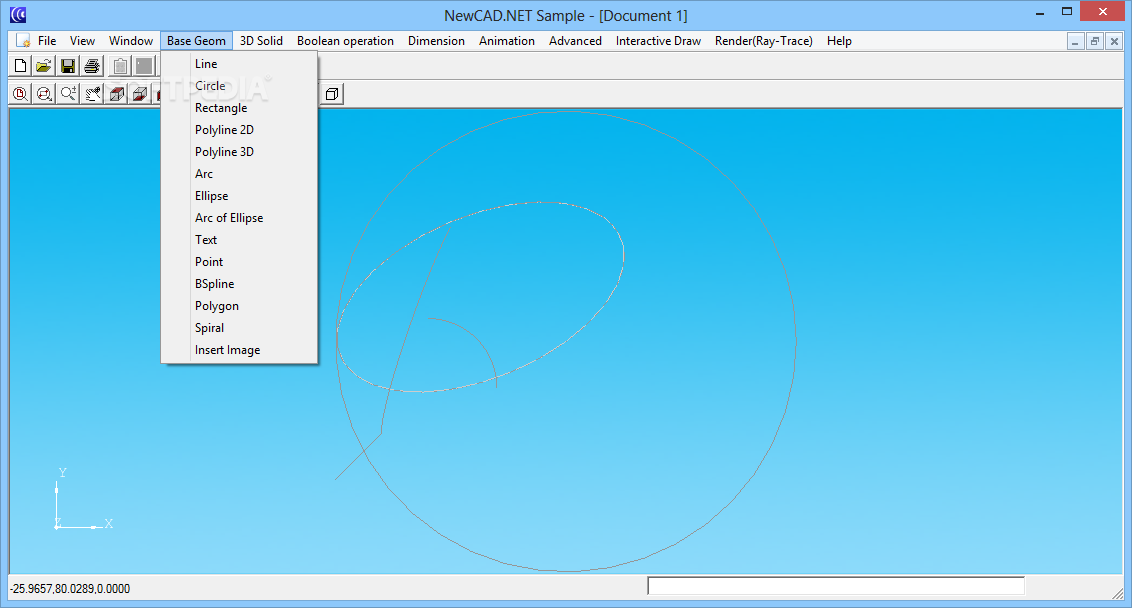

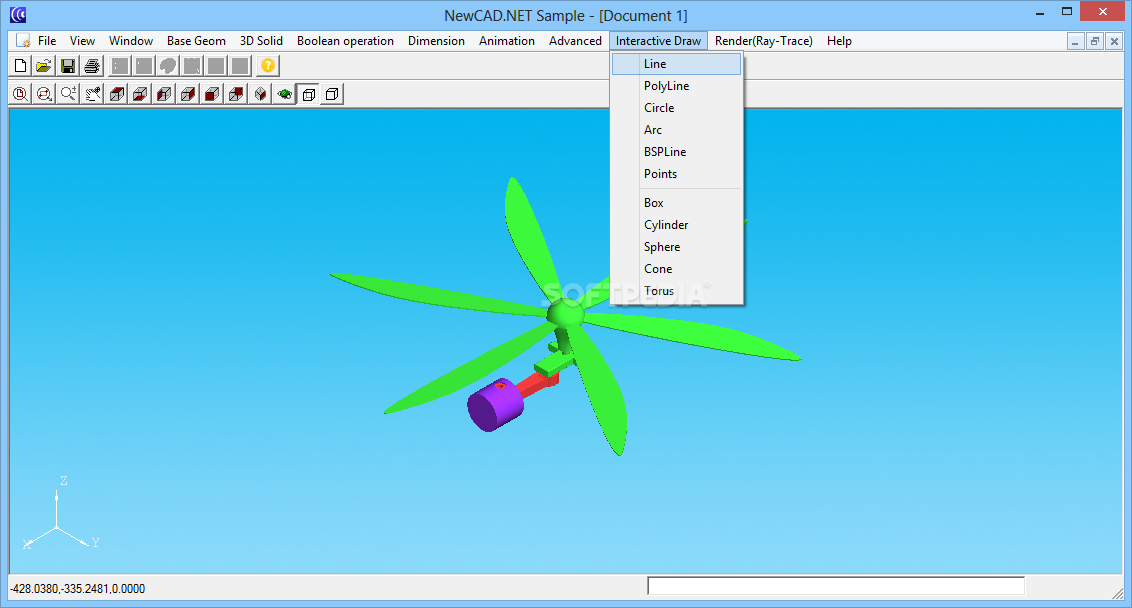

Not only can you build the model starting from lines and curves, but you may add surfaces, textures and transparency.
Moreover, the tool includes several libraries dedicated to performing Boolean operations on complex 3D solid objects.

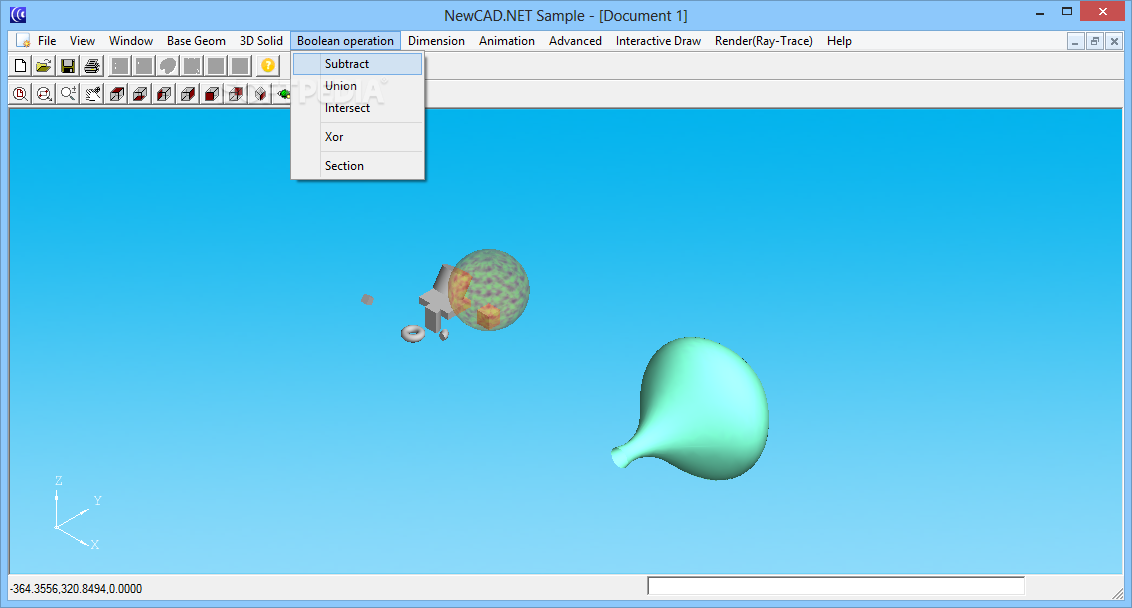

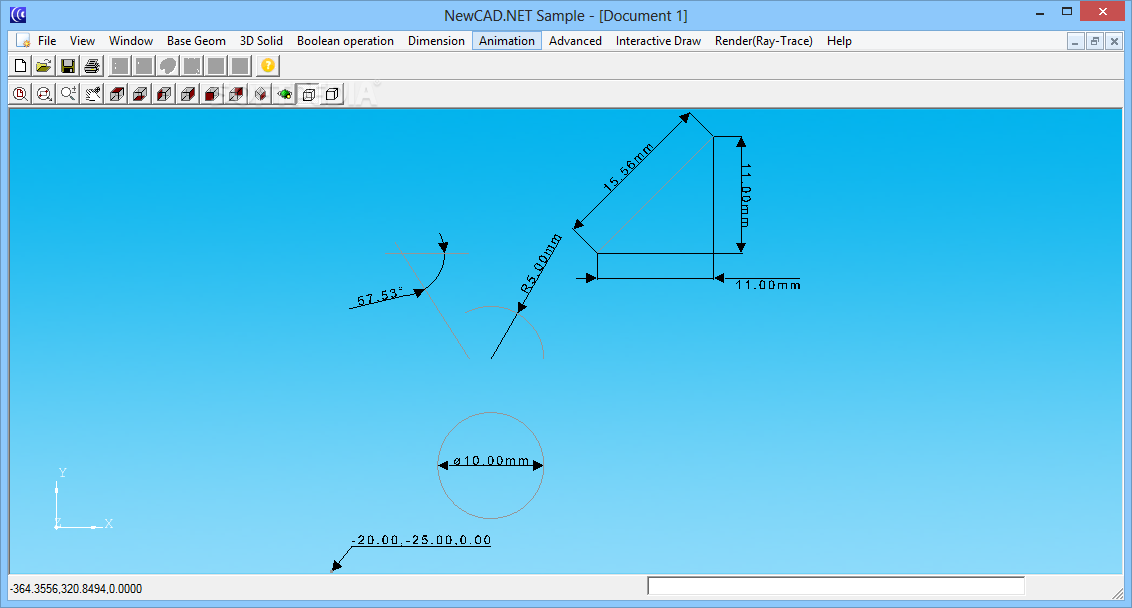

Some examples of such Boolean functions are subtraction, union, intersection, Xor or section highlighting. The operations can be used with 3D solid objects, as well as with dynamic dimensions, layers, OSNAP instances, transparency or textures.
The Boolean operations are also compatible with some of the advanced functions you may use thanks to NewCAD.NET.

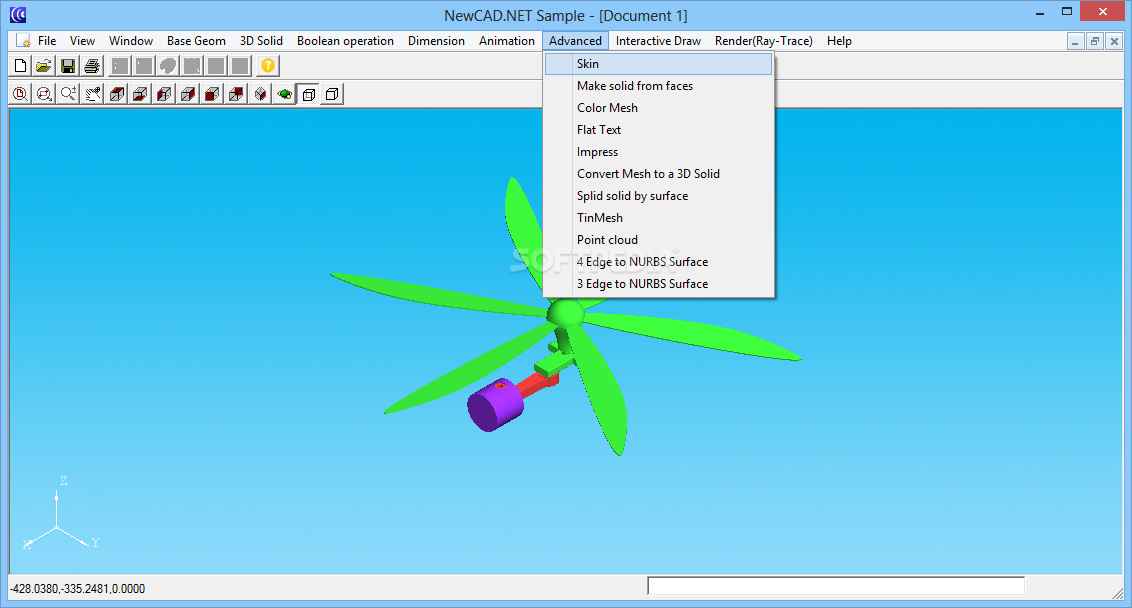

The component enables you to create the skin surface for a 3D model, as well as generate a solid object from facets.
You may create color meshes, generate flat text, impress elements (for example text) on objects, convert a mesh to a 3D solid, or generate a point cloud.
Other advanced functions allow you to convert a 3-edge or 4-edge model to a NURBS Surface.

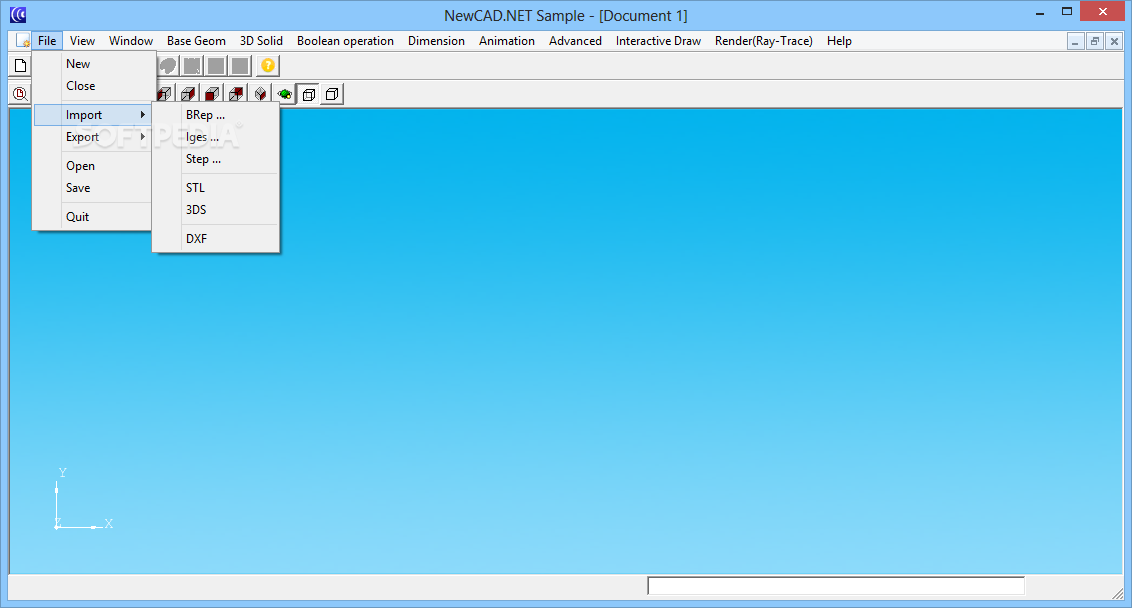

You may easily import elements from BRep, IGES, Step, STL, 3DS or DXF files, as well as to export your work to images, VRML, STL, STEP, IGES or BRep documents.

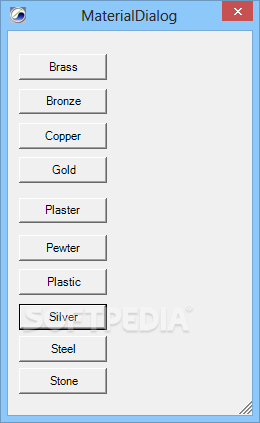

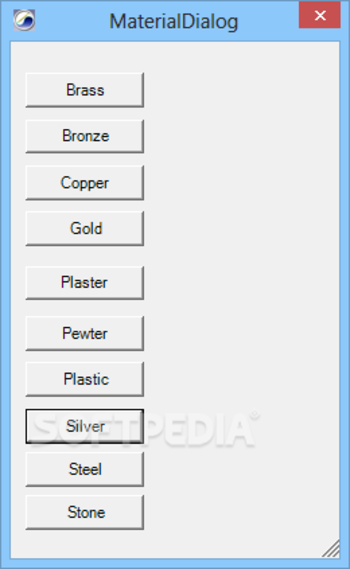

NewCAD.NET allows you to simulate an object’s functionality, with the animation tool or its shading / light effects with the help of Ray-Trace.
This powerful function is integrated with the component and can automatically render lights and shadows.
Thus, NewCAD.NET can help you save time in 3D object modelling and program development, thanks to its accurate and reliable CAD capabilities.System requirementsDisplay drive that supports OpenGL, DX9 or DirectX3D
Limitations in the unregistered versionYou may only use a sample application and create up to 30 entities
