Pi Filter Designer is a free software by Jenna Design and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download Pi Filter Designer which is 22.17 KB in size and belongs to the software category Science CAD.
Pi Filter Designer was released on 2010-11-06 and last updated on our database on 2017-02-28 and is currently at version 1.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

Pi Filter Designer Description

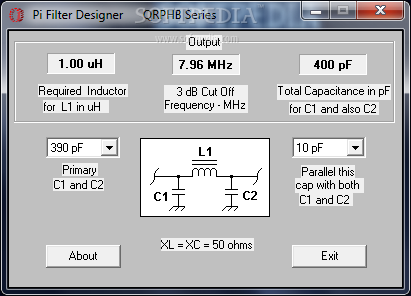

Pi Filter Designer is a handyÂ application designed to enable you to design simple lowpass filters by selecting from a variety of standard capacitor values either empirically or to suit what you have on hand.
The filter 3 dB cutoff frequency and required L1 inductance are automatically calculated and displayed. In addition, the user may select an additional capacitor value to put in parallel with both caps C1 and C2. In this app XL = XC = 50 ohms impedance. No other impedances can be calculated with this program.
