rattleCAD Description

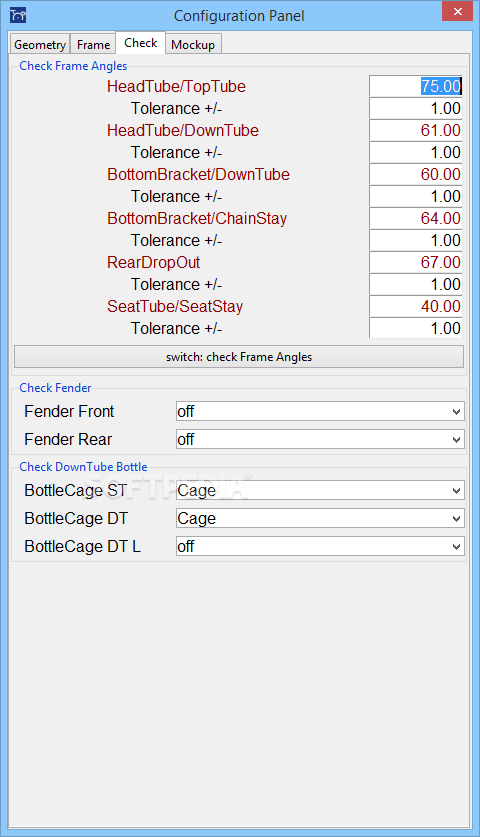

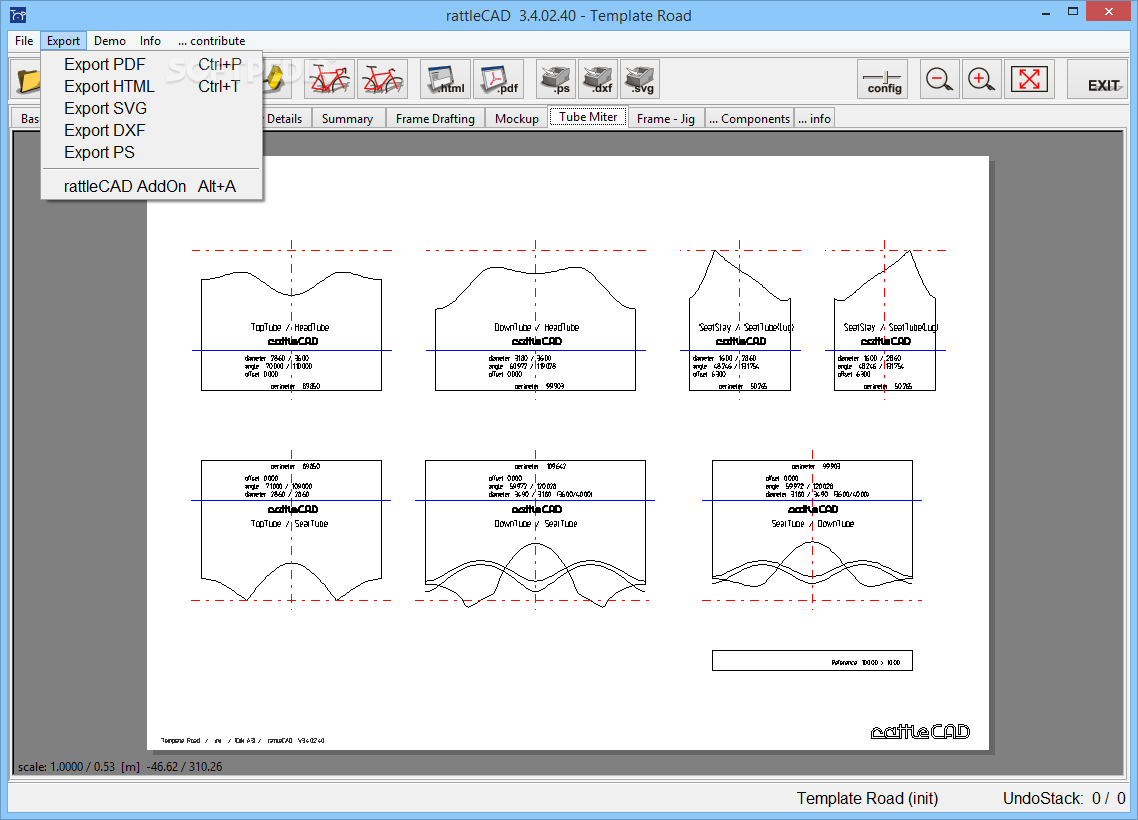

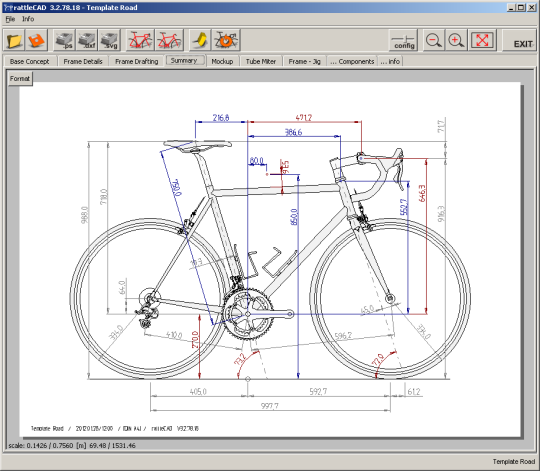

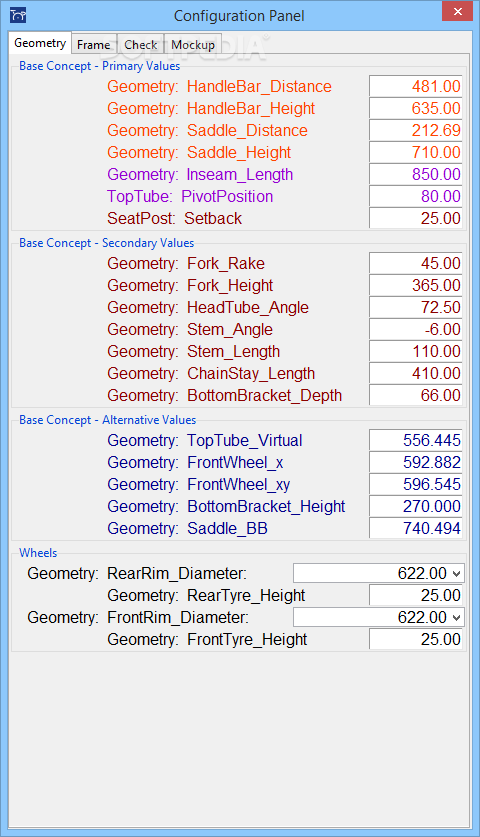

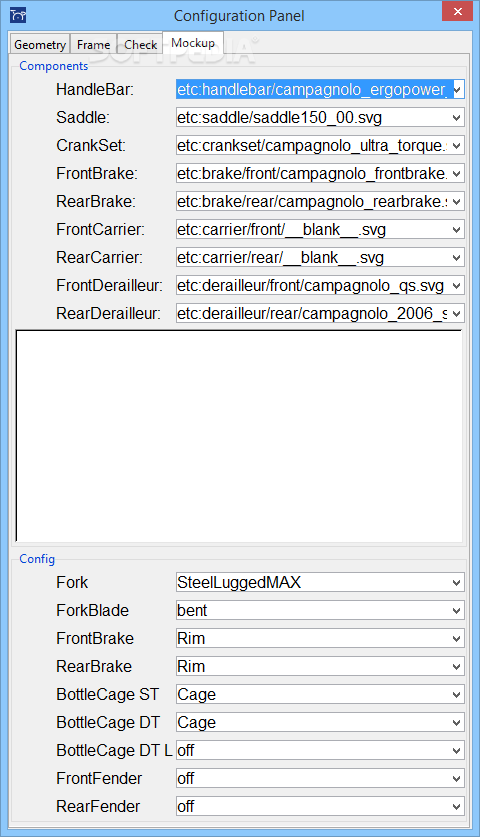

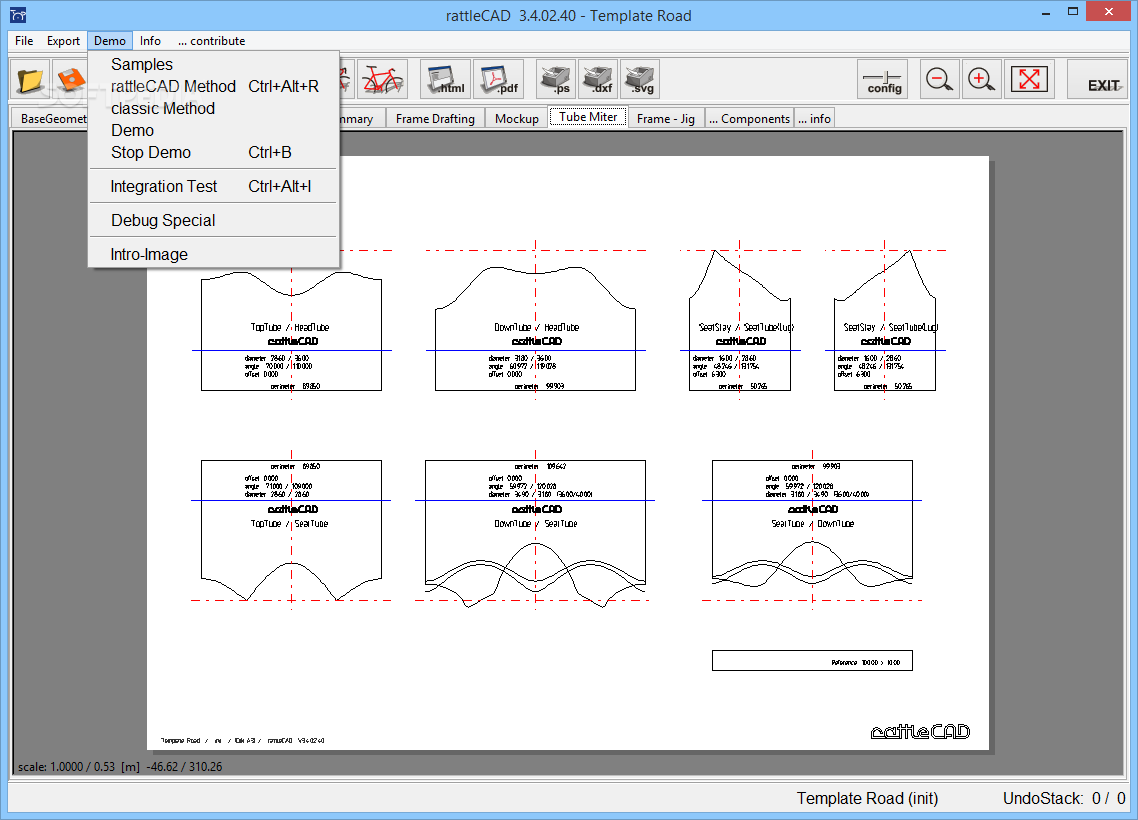

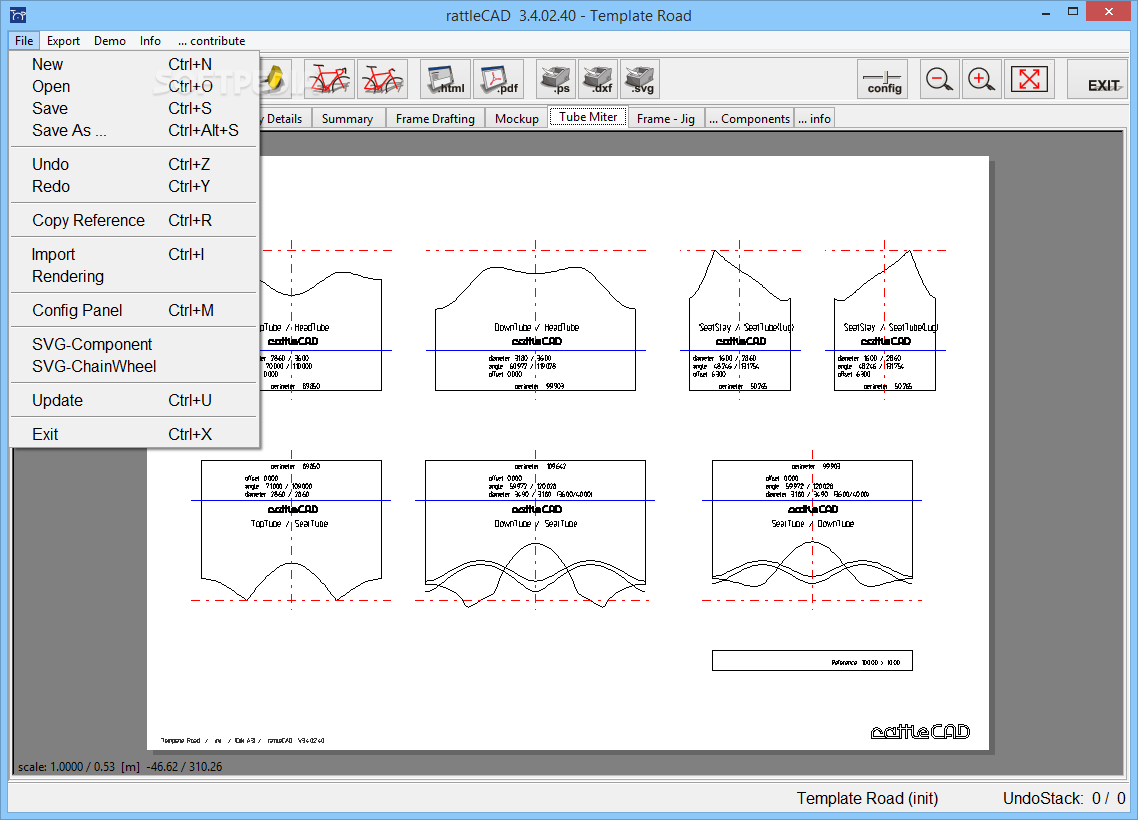

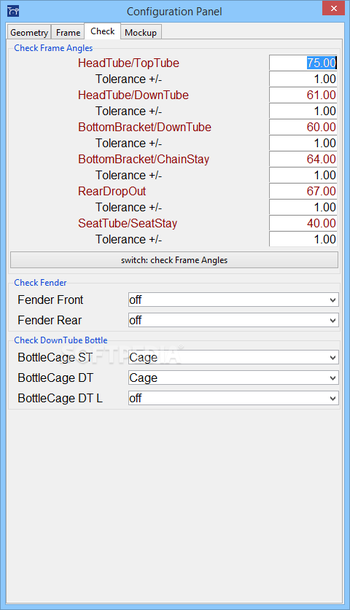

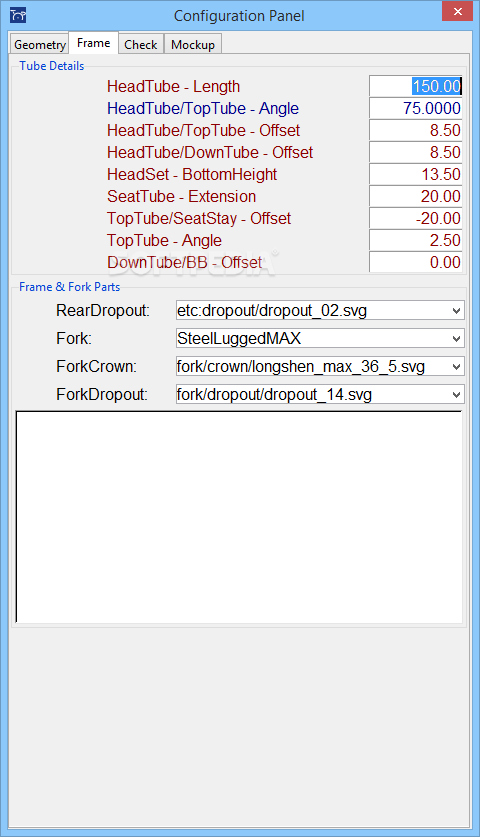

rattleCAD is graphical tool to design bicycles geometry and derive drawings from its configuration. It provides fully parametric bicycle Design and supports export formats SVG and DXF. A components library for mockup your bicycle can be extended for your own needs. All the graphics are configurable by parameters to configure your Bicycle Frame. rattleCAD supports your work in the workshop. Print out the tube miters and cut the tube ends per hand and provides a Components Library build up from SVG-Files to mockup your Bike. Extend your Library with own Components. rattleCAD provides Analysis of RearWheel, Crankset and Chainstay. rattleCAD provides an improved GUI for comfortable usage.

Whats new in this version:

Version 3.4.00.49 has added additional Bent of ChainStay in RearMockup.
