Name: snoCAD-X
Works on: windowsWindows 7 and above
Developer: Dan Graf
Version: 1
Last Updated: 23 Apr 2017
Release: 09 Feb 2017
Category: Science CAD
Rate this software:
2564 downloads
screenshotsView Screenshots(11)
commentsComments
downloadDownload
Liked it? Tell others:
details

snoCAD-X Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows 2012
SHA1 Hash: 70d86dfbf9d8fb17eb36462984cfd631fd1f3c01
Size: 1.46 MB
File Format: zip
Rating: 2.260869565 out of 5 based on 23 user ratings
Publisher Website: External Link
Downloads: 2564
License: Free
snoCAD-X is a free software by Dan Graf and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download snoCAD-X which is 1.46 MB in size and belongs to the software category Science CAD.
snoCAD-X was released on 2017-02-09 and last updated on our database on 2017-04-23 and is currently at version 1.
download button
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
features

snoCAD-X Description

SnoCAD-X is a cross-platform application especially designed for snowboarding and ski aficionados. Its main purpose is to allow those who are passionate about the winter sports to design their own boards, with customized dimensions and colors.
The application is intuitive enough for beginners to use it without encountering difficulties. Its interface allows you to work on multiple projects simultaneously, displaying each board in a separate window.

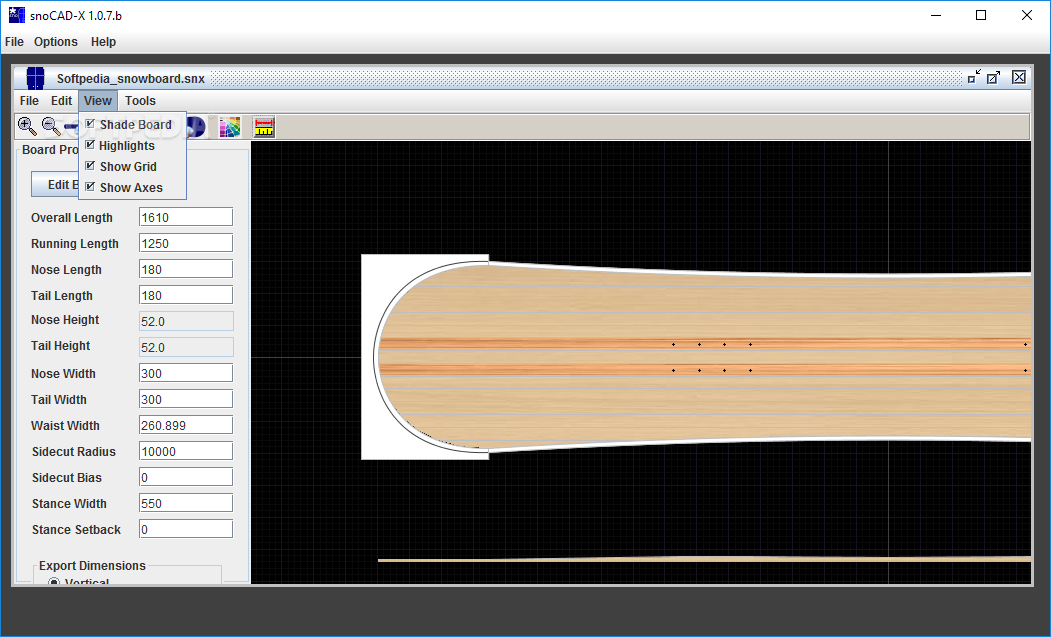

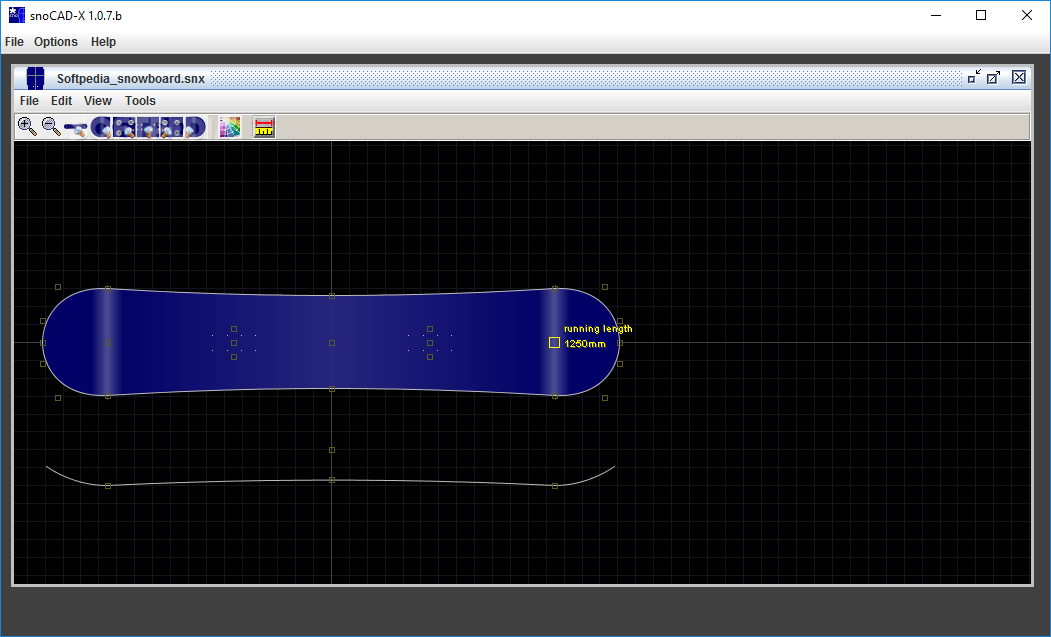

SnoCAD-X enables you to work with the mouse in order to drag and drop parts of the board and easily modify its geometry. Alternatively, you can specify the exact dimensions using the dedicated section: the overall and the running length, the nose and tail width and length, the sidecut radius and bias, as well as the stance width and setback.

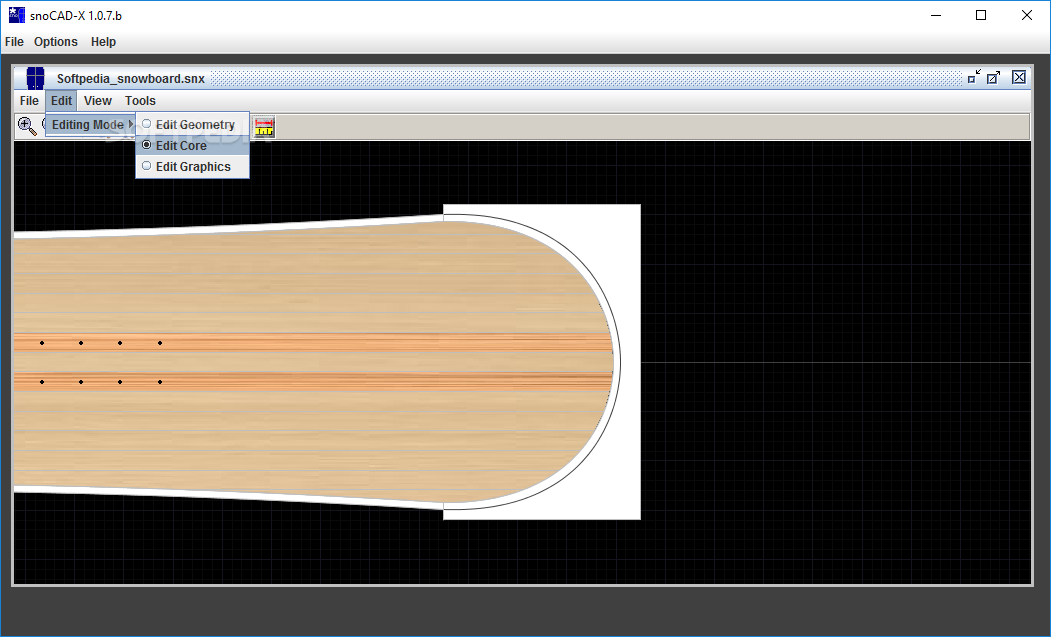

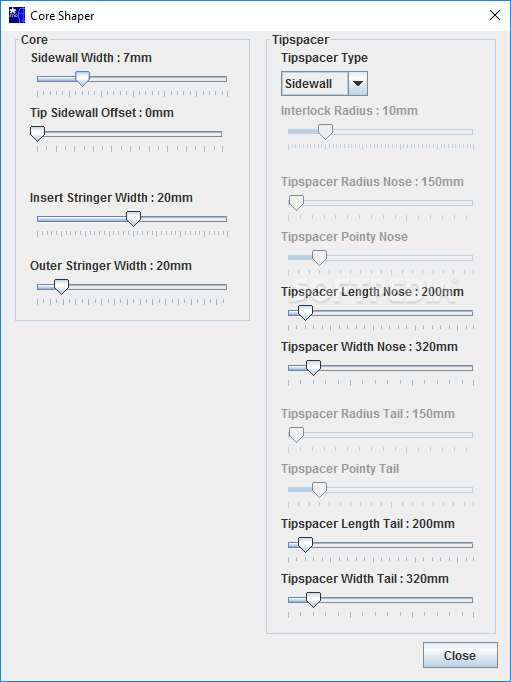

The core properties can also be customized. You can adjust the sidewall width and offset, the width of the insert and outer stringers, change the tipspacer type and size.
Last but not least, the appearance can be personalized by inserting locally stored images onto the board, with the possibility to rotate pictures, adjust their opacity level and modify their dimensions to fit the board dimensions.
The advanced zooming options are designed to help you get a close-up of the board, as well as an overview of the outcome.

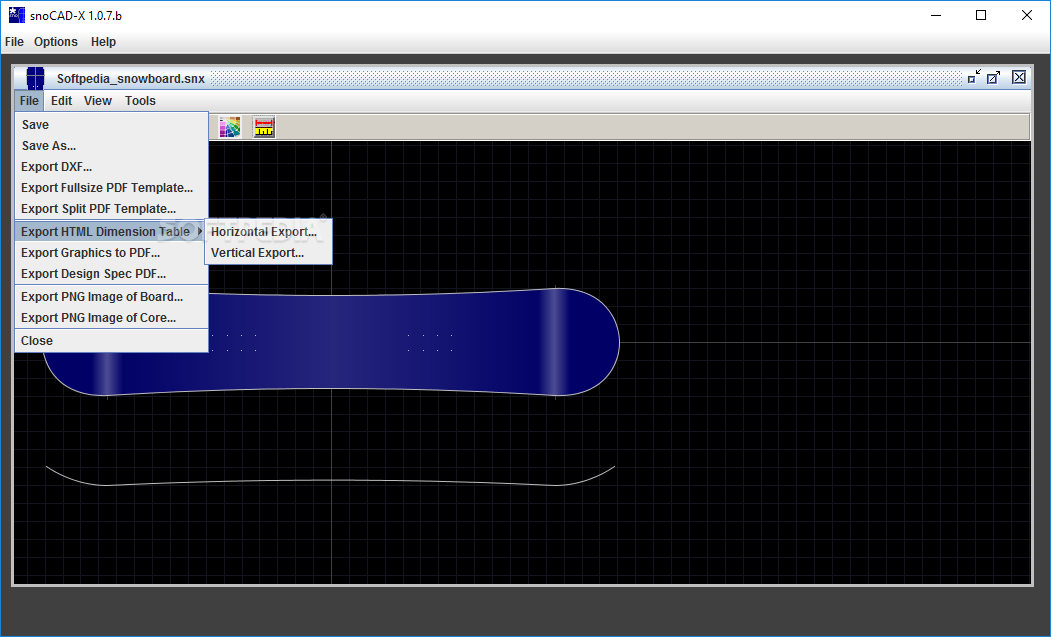

The generated design can be easily exported to DXF format and processed using a third party application or saved locally as a PDF template. Moreover, you can choose to export just the dimension table, the graphics or the design specifications.
To sum up, SnoCAD-X can be of great use for those who plan on creating a personalized board. It bundles the necessary tools for dealing with all the aspects of the design, from core and shape to the outside look and style.
screenshots

snoCAD-X Screenshots

snoCAD-X screenshot 1 snoCAD-X screenshot 2 snoCAD-X screenshot 3 snoCAD-X screenshot 4 snoCAD-X screenshot 5 snoCAD-X screenshot 6 snoCAD-X screenshot 7 snoCAD-X screenshot 8 snoCAD-X screenshot 9 snoCAD-X screenshot 10 snoCAD-X screenshot 11
