VideoCAD Lite is a demo software by CCTVCAD Software Inc and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download VideoCAD Lite which is 36.68 MB in size and belongs to the software category Science CAD. VideoCAD Lite was released on 2016-06-01 and last updated on our database on 2017-04-13 and is currently at version 8.2.
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:

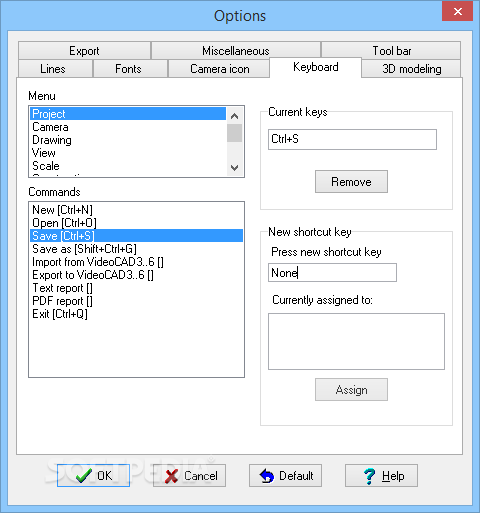

VideoCAD Lite Description
Calculations:

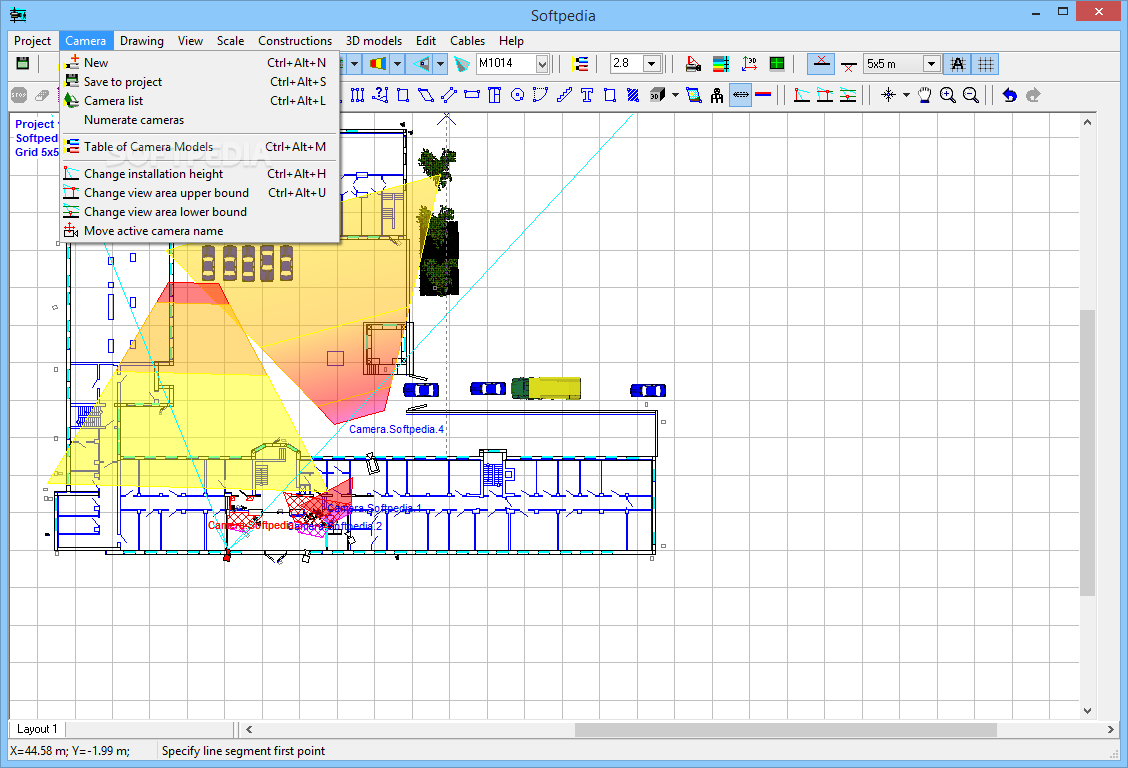

Calculating geometric parameters of camera view area in any camera position.
More accurate modeling cameras taking into account the size of active area of the image sensor in dependence of the aspect ratio of the image sensor and the aspect ratio of the output image of the camera.

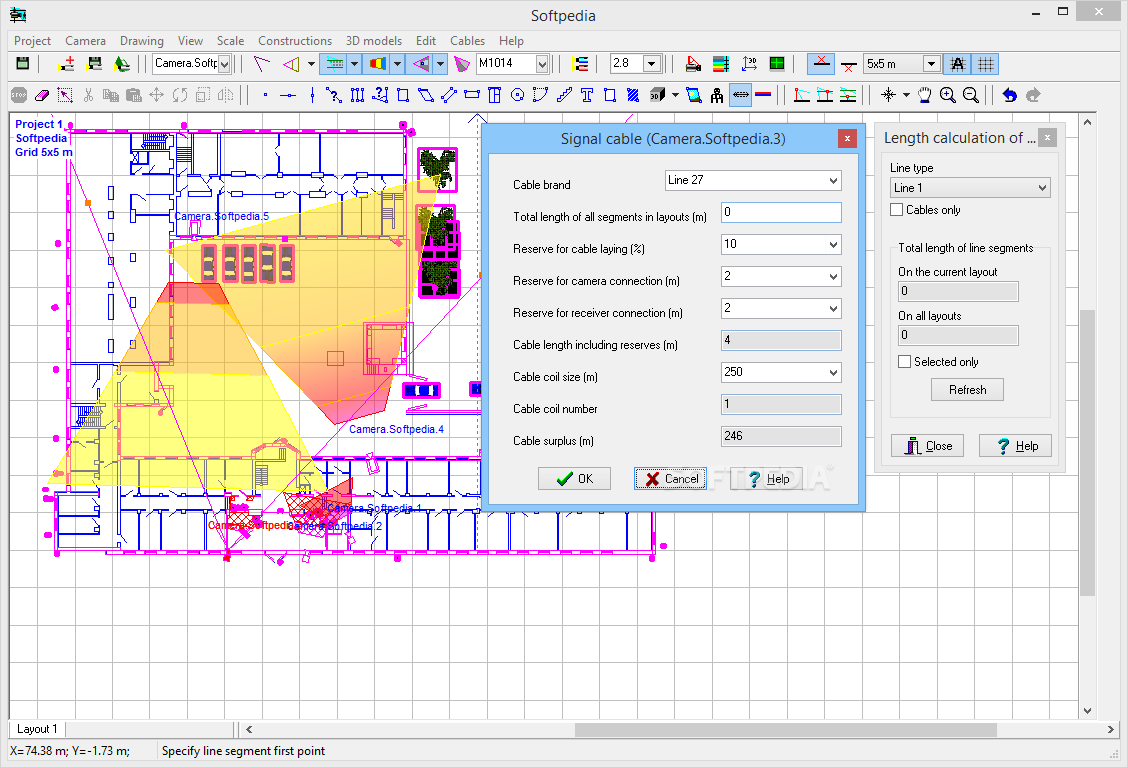

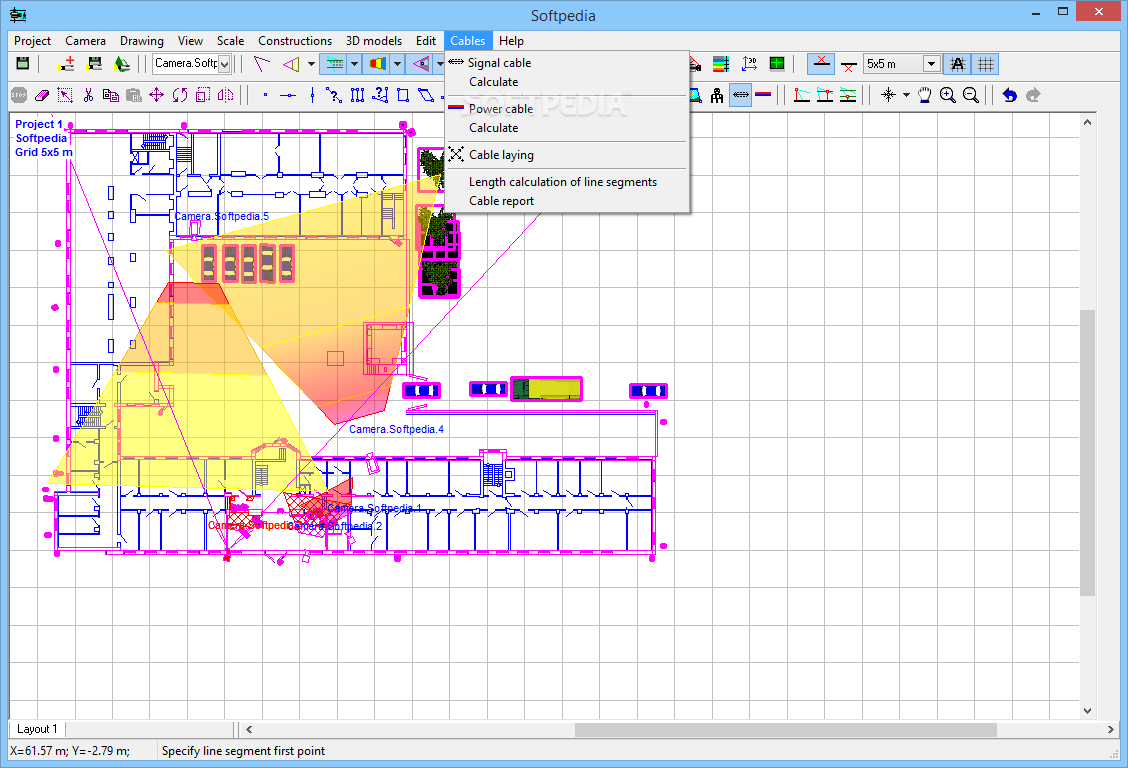

Calculate length and electric parameters of cables.
Working with 2D projections:

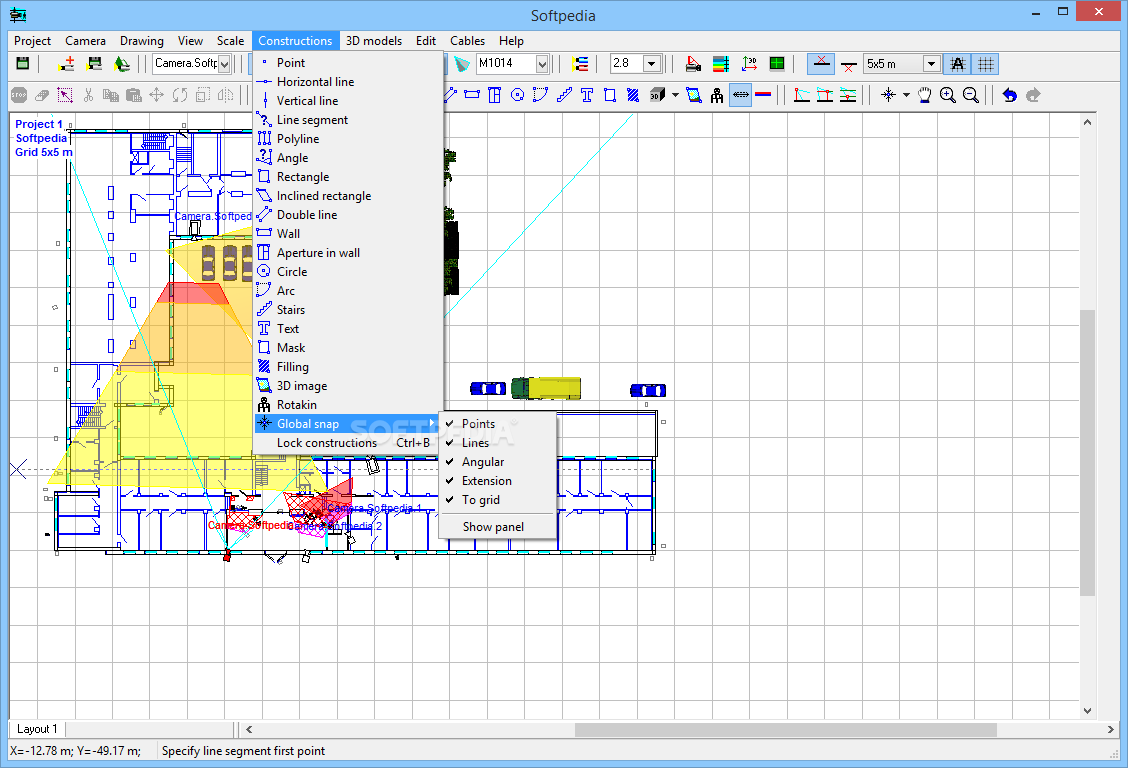

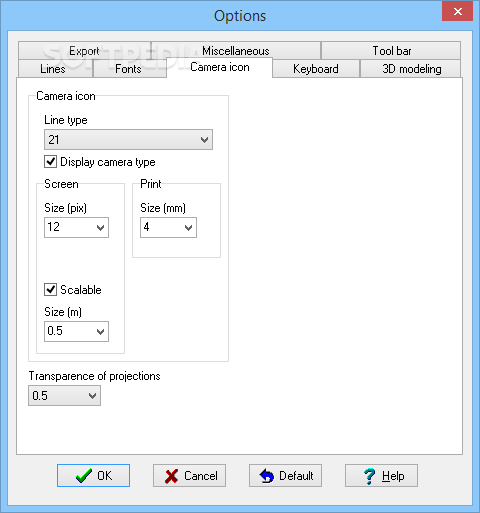

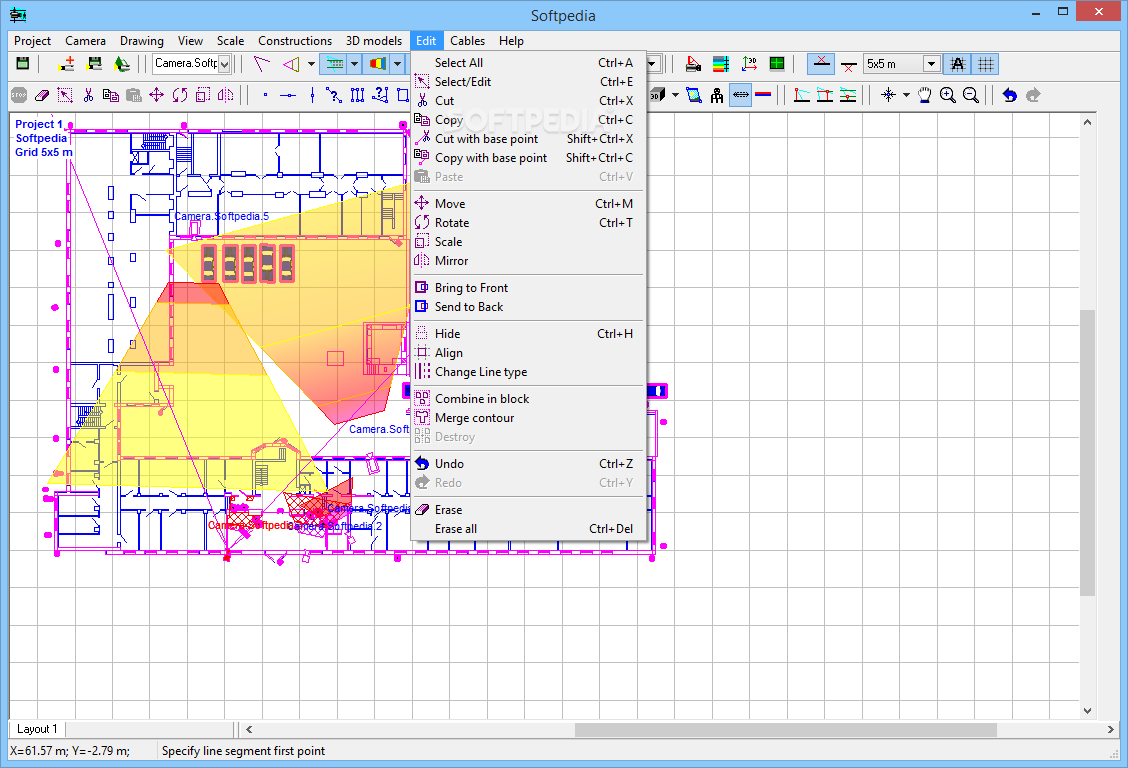

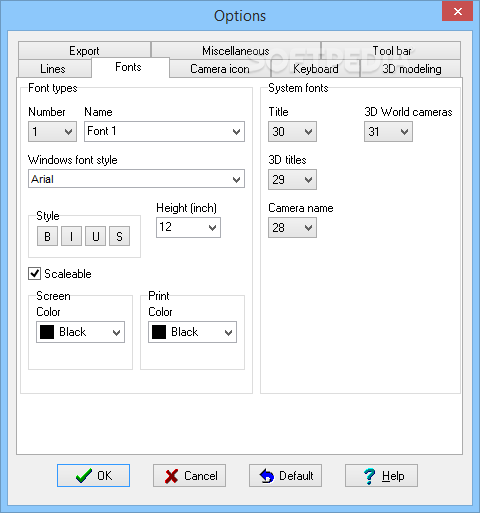

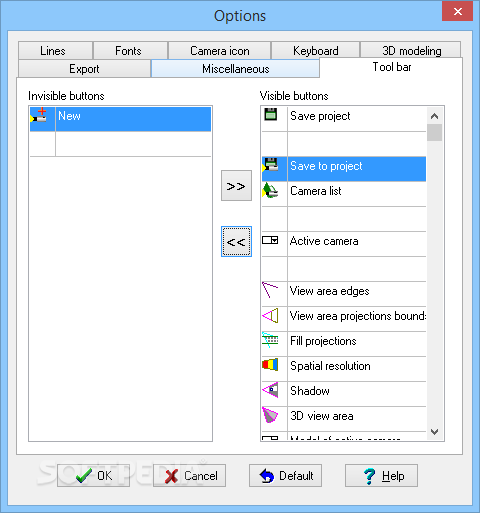

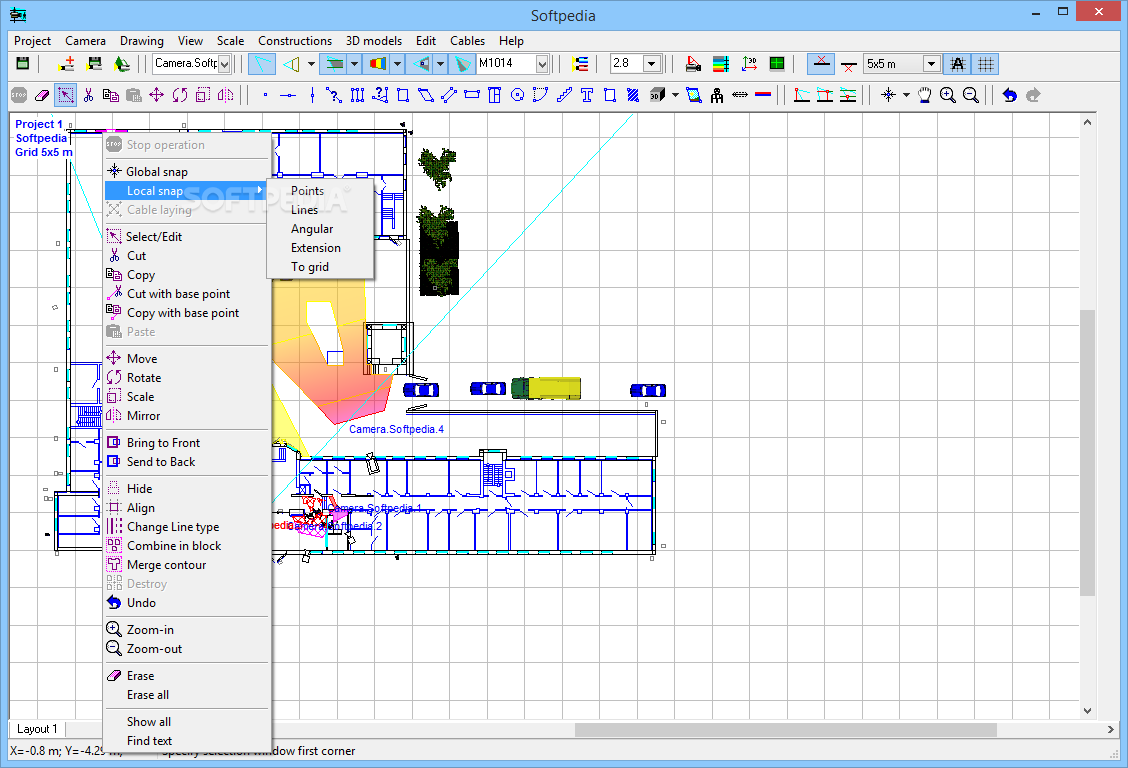

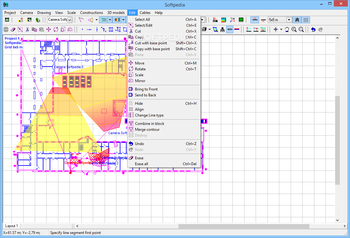

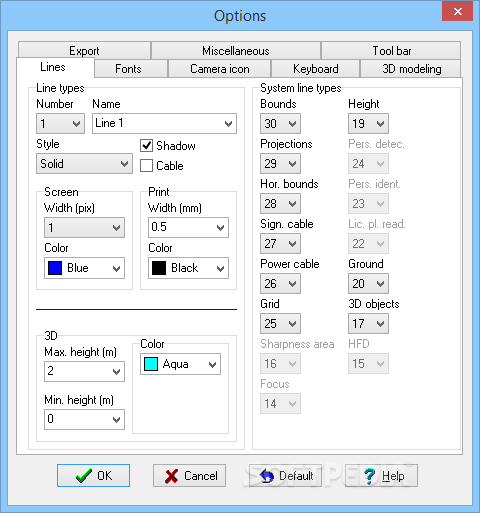

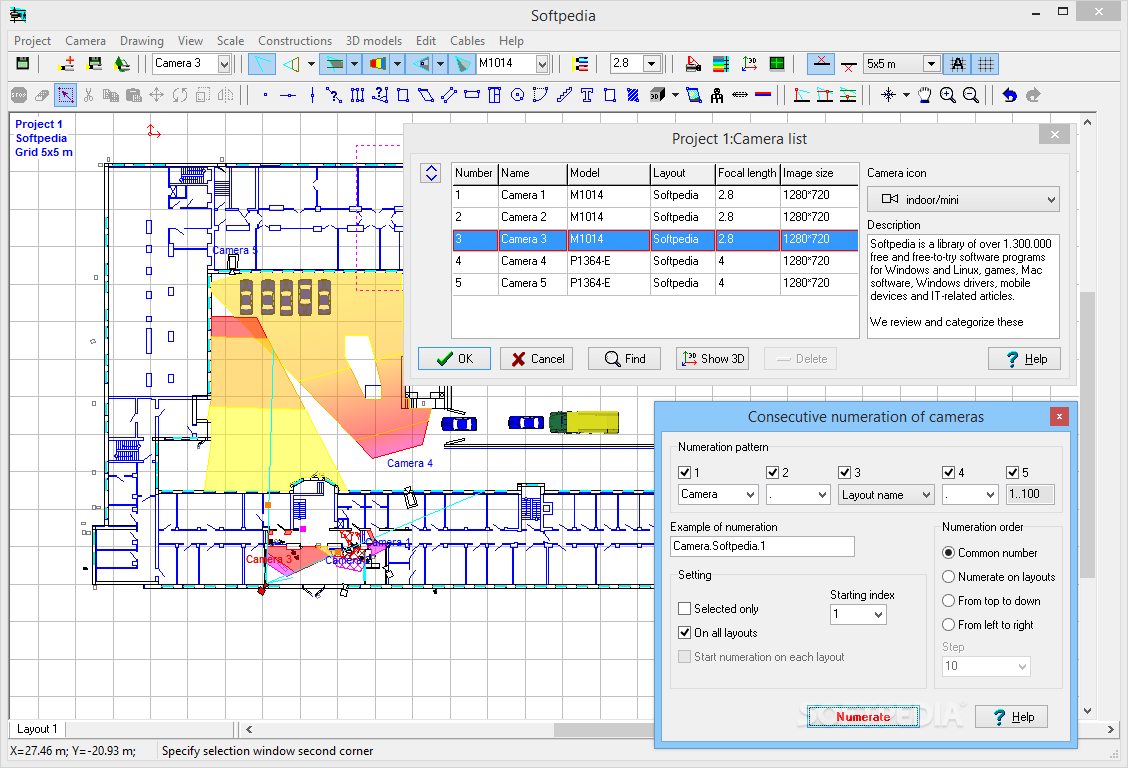

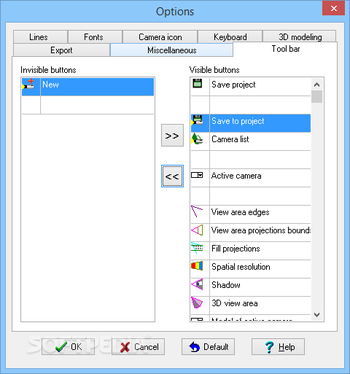

Use 2D Graphics window with CAD interface. Use a lot of 2D/3D constructions and CAD tools, line types, font types, snaps, horizontal and vertical projections, up to 10 layouts in each project.

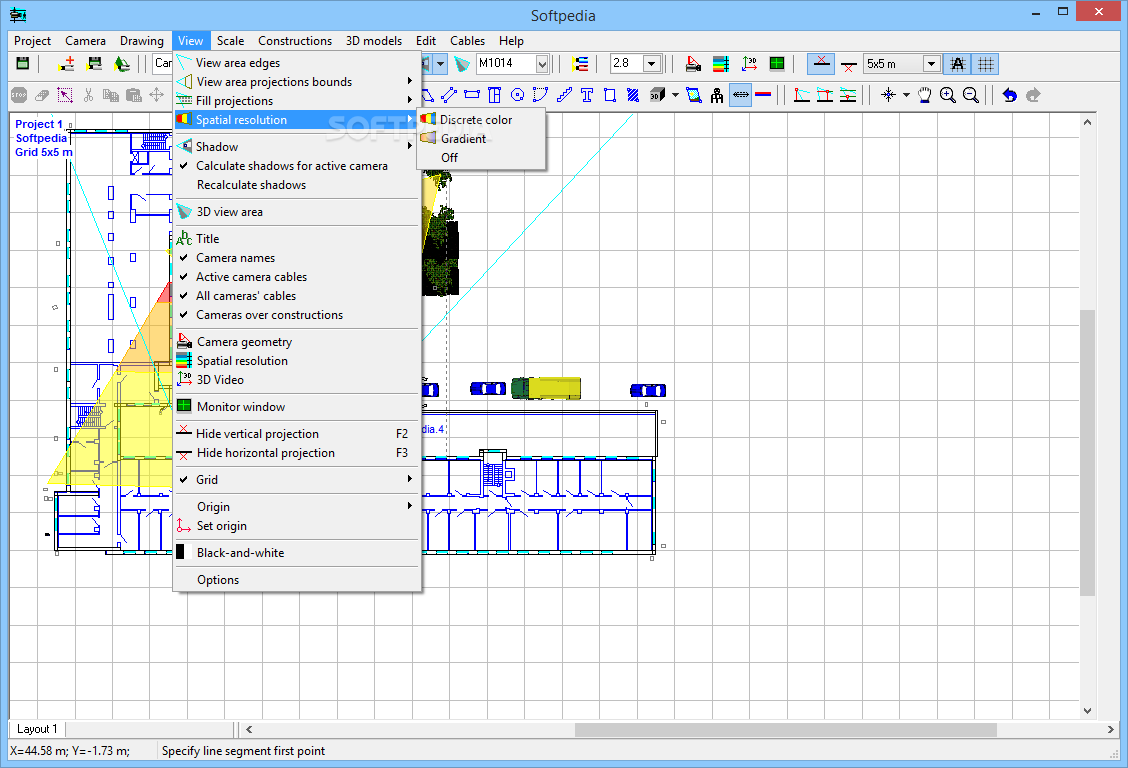

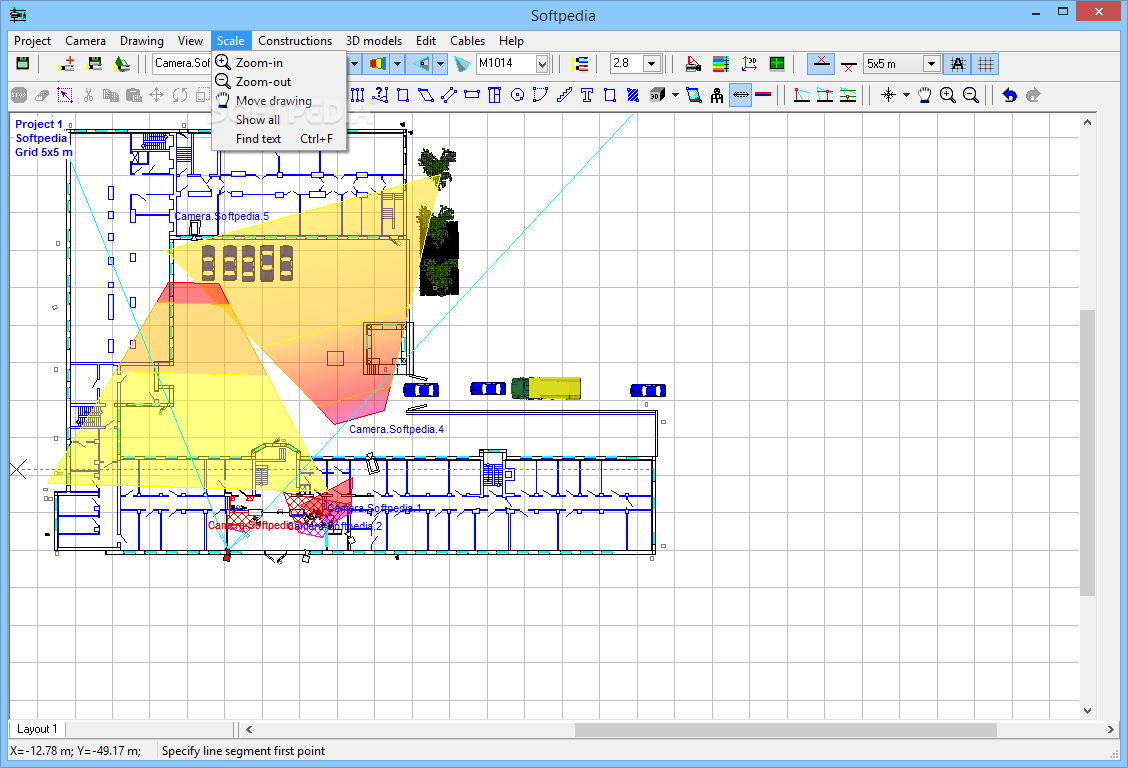

Display on the 2D layout results of calculations of view area projections.

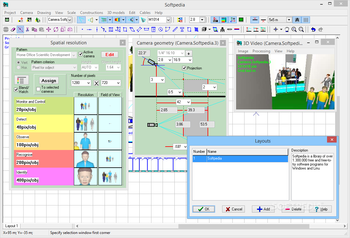

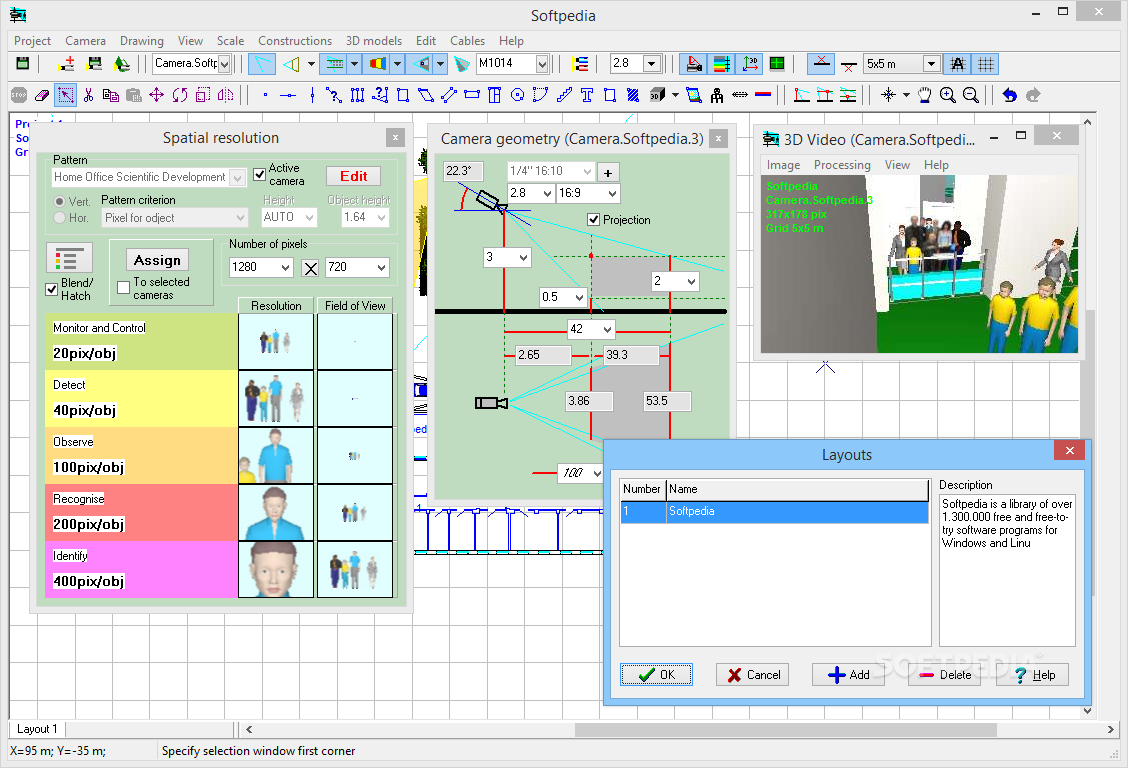

Display by separate colors and hatch styles different regions of spatial resolution and field-of-view size. There are prepared spatial resolution patterns according to the following criteria: Home Office Scientific Development Branch; Home Office Guidelines for identification; P 78.36.008-99, Australian Standard AS4806: Closed Circuit Television, European Standard EN50132-7, ISO/IEC 19794 Biometric data interchange formats.

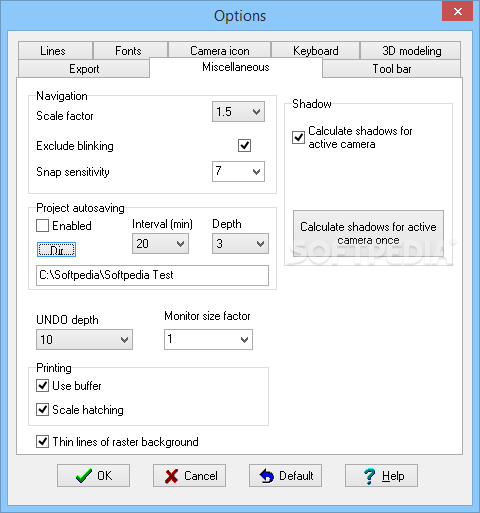

Construct the horizontal projection of camera control areas including shadows from obstacles on the scene. In VideoCAD Lite obstacles can be constructions only. In VideoCAD Professional 3D models also can be obstacles.

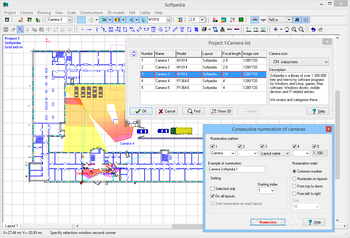

Choose the best positions and calculate control areas of PTZ cameras, Dome cameras and 360 degree cameras.
Simulation of the horizontal projection of the view area and visualization of the spatial resolution distribution of panoramic cameras (fisheye, 360°/180°).
3D modeling layout and camera view areas:

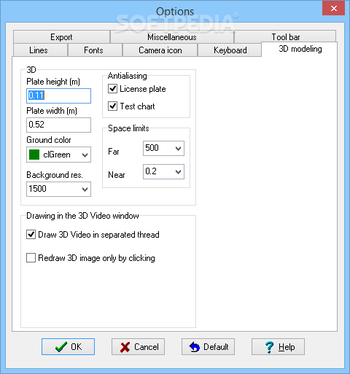

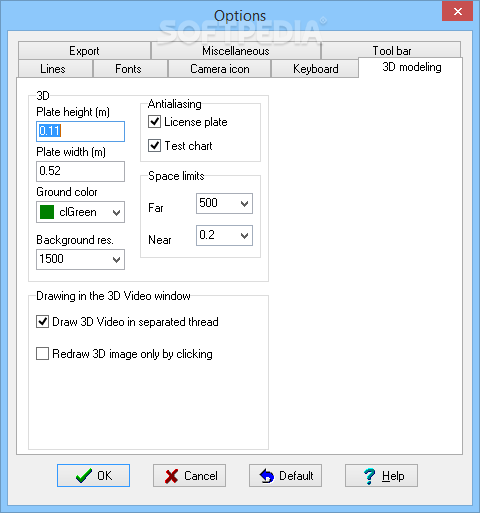

3D visualization of the location plan and camera view areas in the 3D Video window by other cameras. Visualization of the spatial resolution. Flexible adjustment of displaying view areas from the side.

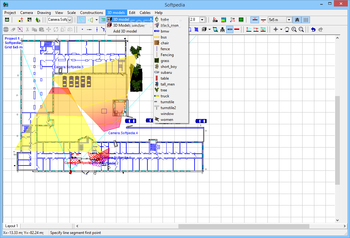

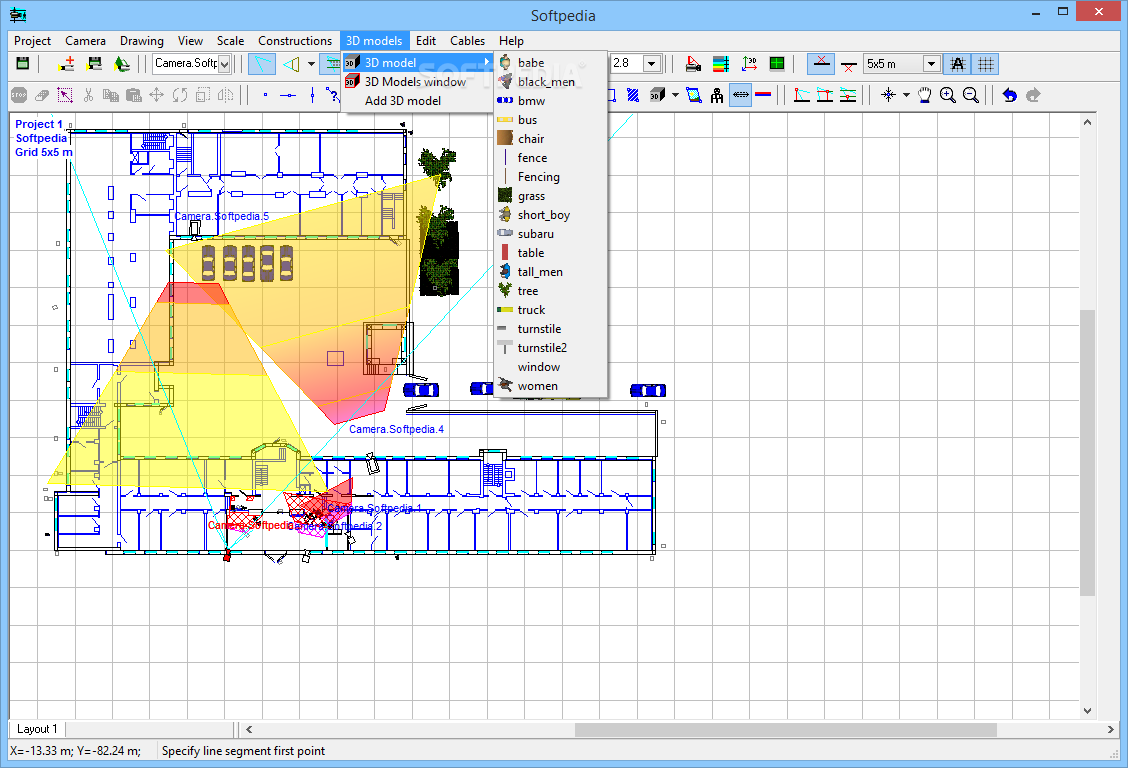

Possibility of loading prepared 3D models (a person, a car, etc.). You can add your own 3D models from 3ds max and Sketchup.
In special 3D models window you can create 3D model projections with specified resolution. You can load 3D models from files, save 3D models to files, create copies of 3D models.
Modeling images from cameras based on camera parameters and scene conditions:
Model camera parameters: number of pixels and compression.
Simulation of image resolution and view area limits of panoramic cameras (fisheye, 360°/180°).
Obtain Image Model for each camera in the project based on models of scene and equipment.
Design operator interface:

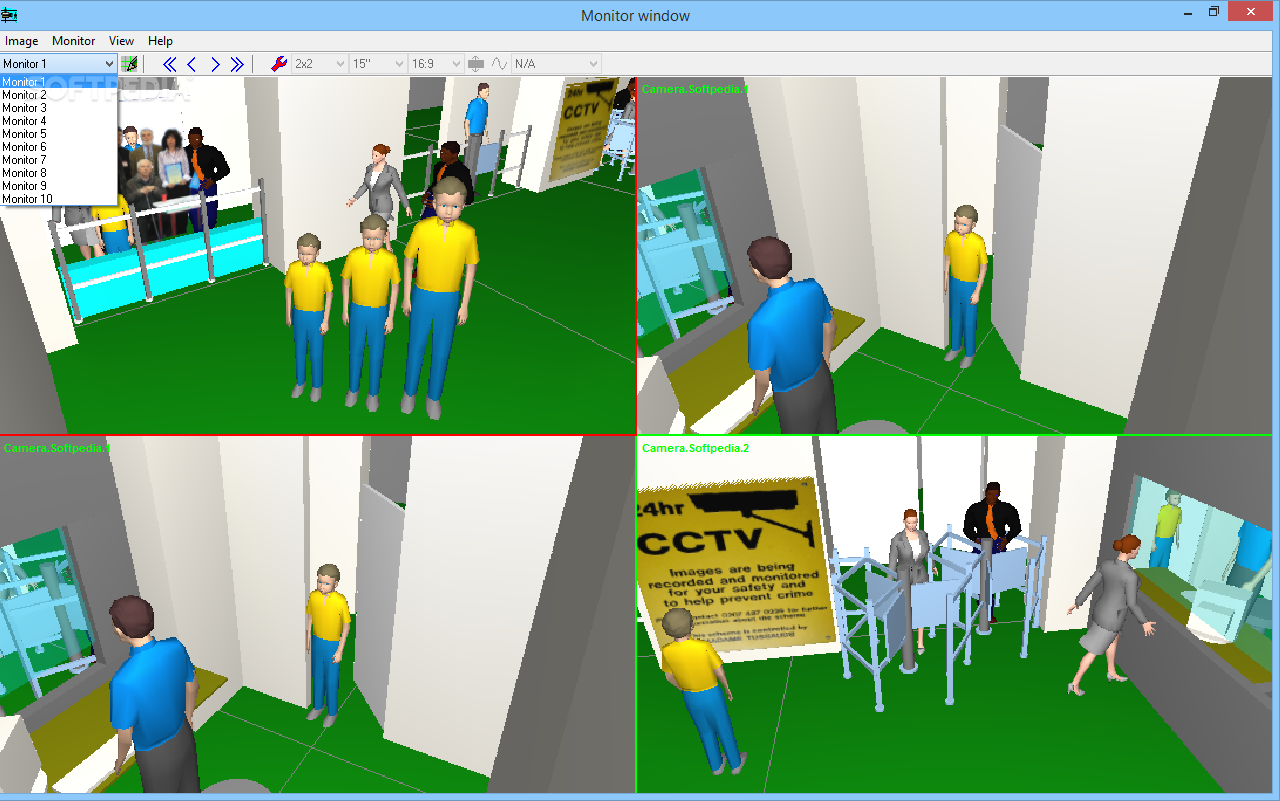

Design operator interface using the Monitor window.
Modeling size and resolution of monitors.
Import from other CAD programs:

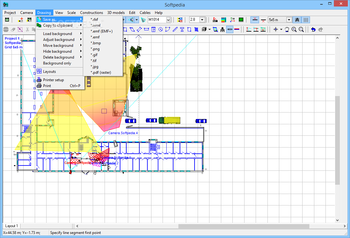

Locate cameras and cables on the prepared layouts in *.bmp, *.jpg, *.emf, *.wmf, *.png, *.gif, *.tif, *.pdf. AutoCAD *.dxf *.dwg formats.
For backgrounds in AutoCAD *.dxf *.dwg formats you can choose Layout in the background, control visibility of layers, hide texts. For backgrounds in PDF format you can choose page and resolution of the background.
Import 3D models of objects and 3D models of territory using VideoCAD plugin for SketchUP.
Import raster images to display them in 3D.
Import camera model parameters to the Table of camera models via copying and pasting from Excel.
Export:

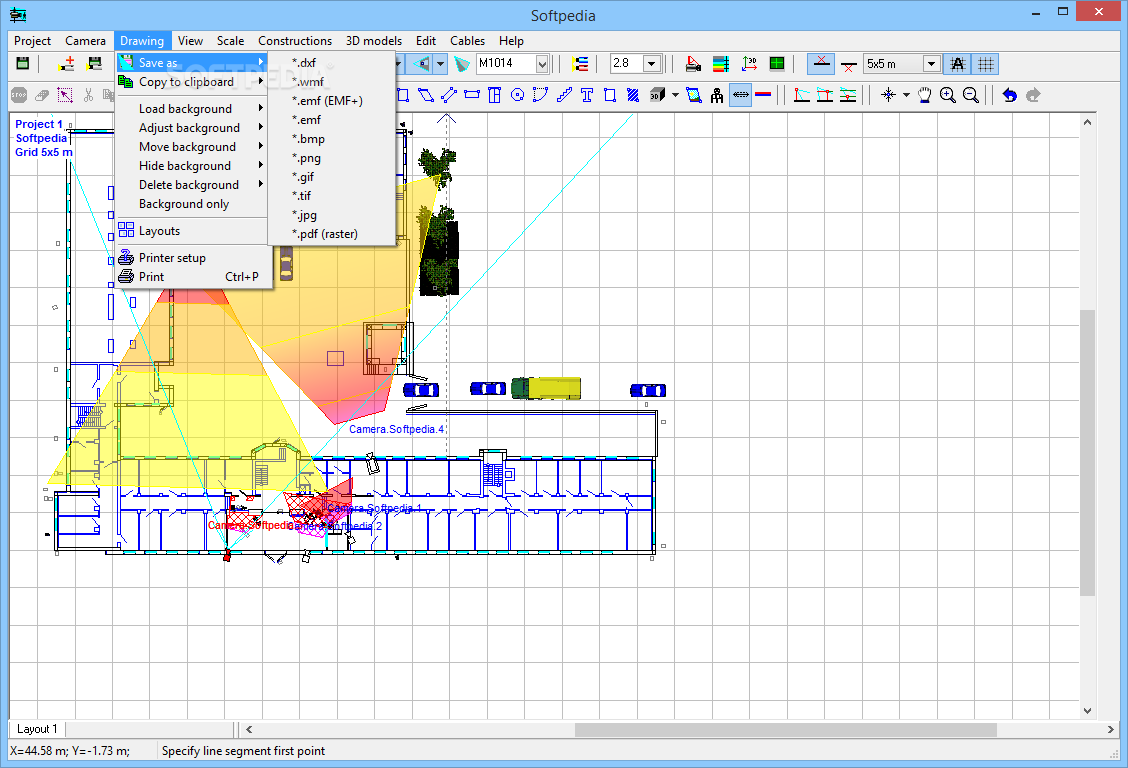

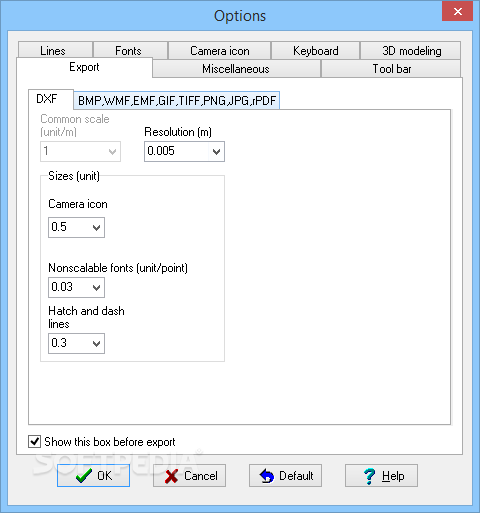

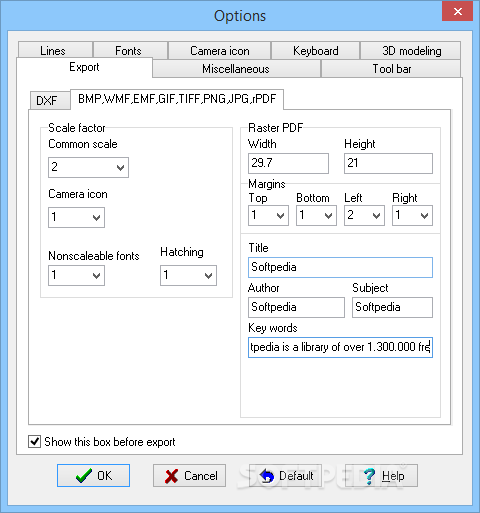

Export the 2D drawing into any of the following formats:*.bmp, *.jpg, *.emf, *.wmf, *.png, *.gif, *.tif, *.pdf (raster), AutoCAD *.dxf.
Export 3D images from cameras to any of the following formats: *.bmp, *.jpg,*.gif,*.tif,*.png.
Export images from monitors to *.bmp, *.jpg,*.gif,*.tif,*.png.

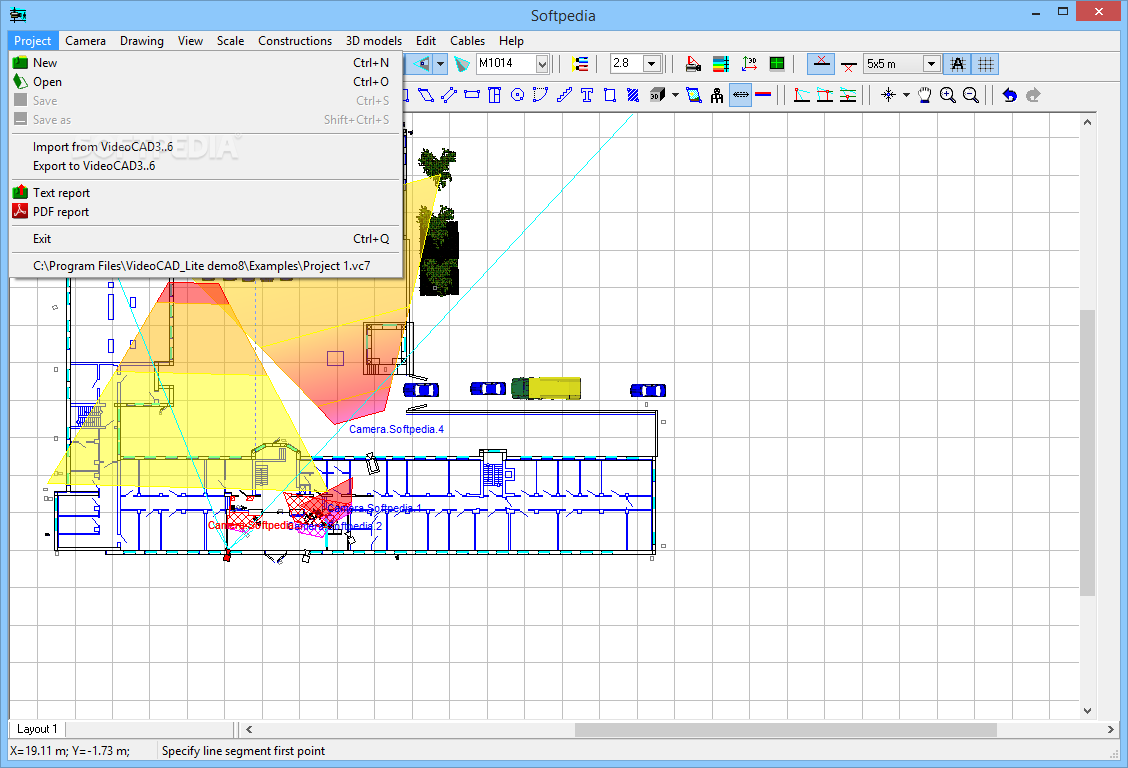

Obtain the text report with full description of all cameras in the project, view areas and cables to be pasted into a project explanatory note or used as instruction for installation.
Get a report in PDF format, with full description of all cameras in the project, view areas and cables. The PDF Report can include images from the cameras, fragments of layouts with camera placed, a cover with logo. Report parameters and the structure of information in the report is configurable. See example of PDF report.
Obtain the cable report.
Copy the Camera list with most important parameters to MS Excel, MS Word and other software.
Printing:
Printing the obtained 2D drawing in raster or vector mode on one or several pages for pasting together. You can use prepared frames with standard title-block and logo. Sizes, colors styles of fonts and lines, weights of lines can be adjusted.
Printing image models from cameras and monitors.
Printing the Table of camera models as a whole or by selected fragments.
Database of camera models:
Maintain database of camera models with the most important parameters (22 fields for each camera model). You can add your models, assign different models to cameras in project, compare models with each other.
