DWG Export for Pro/ENGINEER

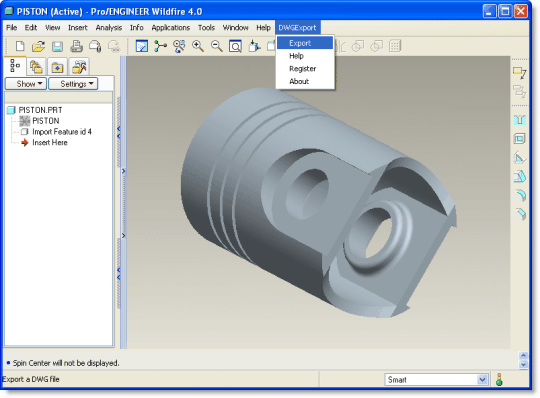

DWG Export for Pro/ENGINEER is an AutoCAD DWG file export plug-in for Pro/ENGINEER Wildfire�?�®. This plug-in gives Pro/ENGINEER Wildfire the ability to export 3D solid data from a Pro/ENGINEER part and assembly document to meshes in an AutoCAD DWG file.Pro/ENGINEER Wildfire already has the ability to export AutoCAD DWG files. However, the export feature is limited to 2D drawings only and cannot export parts and assemblies. DWG Export for Pro/ENGINEER reads the solid models from the current Pro/ENGINEER part or assembly and tessellates the solid bodies into individual triangular meshes. These meshes are then exported to a DWG file as 3D Polyface Mesh, 3D Face, Line or Point objects.DWG Export for Pro/ENGINEER is very easy to use. Once installed, it must be loaded into the Pro/ENGINEER Wildfire environment. Follow the simple instructions in the ReadMe document which can be found in the installation folder. Once loaded, it adds new commands to Pro/ENGINEER Wildfire and a submenu called "DWGExport" to the Pro/ENGINEER menu. The DWGExport submenu consists of the following commands: * Export - Exports a DWG file * Help - Displays the DWG Export for Pro/ENGINEER help file * Register - Registers your copy of DWG Export for Pro/ENGINEER * About - Displays the DWG Export for Pro/ENGINEER About box
