Gerbview

Name: Gerbview
Works on: windows

Windows XP and above

Version: 7.66
Last Updated: 24 Apr 2017
Release: 23 Mar 2017
Category: Science CAD

Rate this software:
2005 downloads

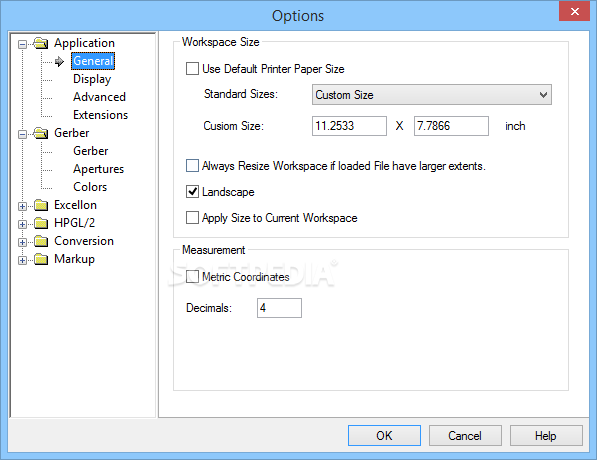

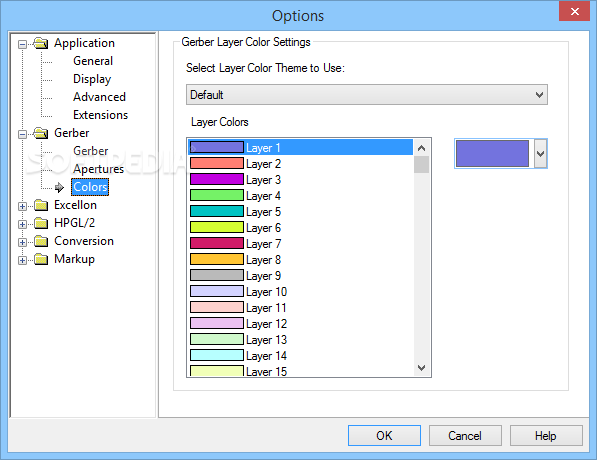

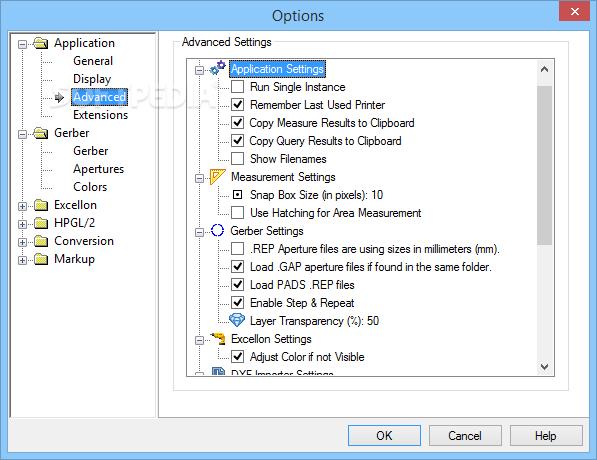

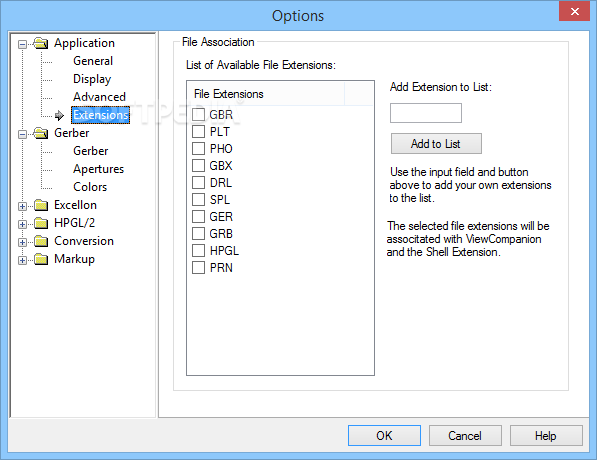

View Screenshots(24)

Comments

Download

Liked it? Tell others:

Gerbview Tags

print gerber image view plot convert gerber markup gerber modify adjust

Gerbview Details

Rating: 2.434782608 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 2005
License: Demo / Trial Version

Gerbview is a demo software by Software Companions and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download Gerbview which is 17.56 MB in size and belongs to the software category Science CAD.
Gerbview was released on 2017-03-23 and last updated on our database on 2017-04-24 and is currently at version 7.66.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

Gerbview Description

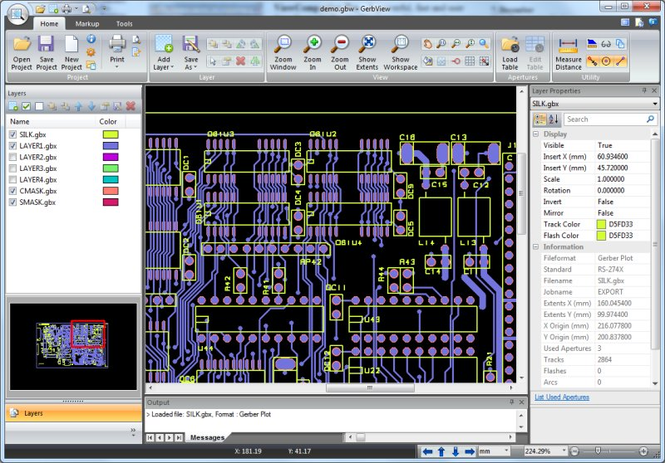

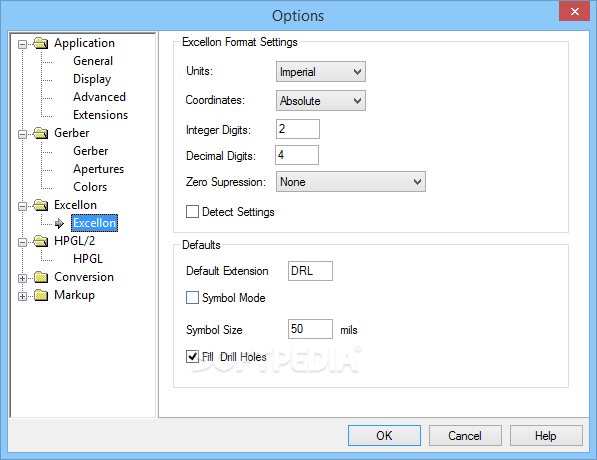

View, print, markup and convert Gerber, HPGL/2, Excellon and raster formats.

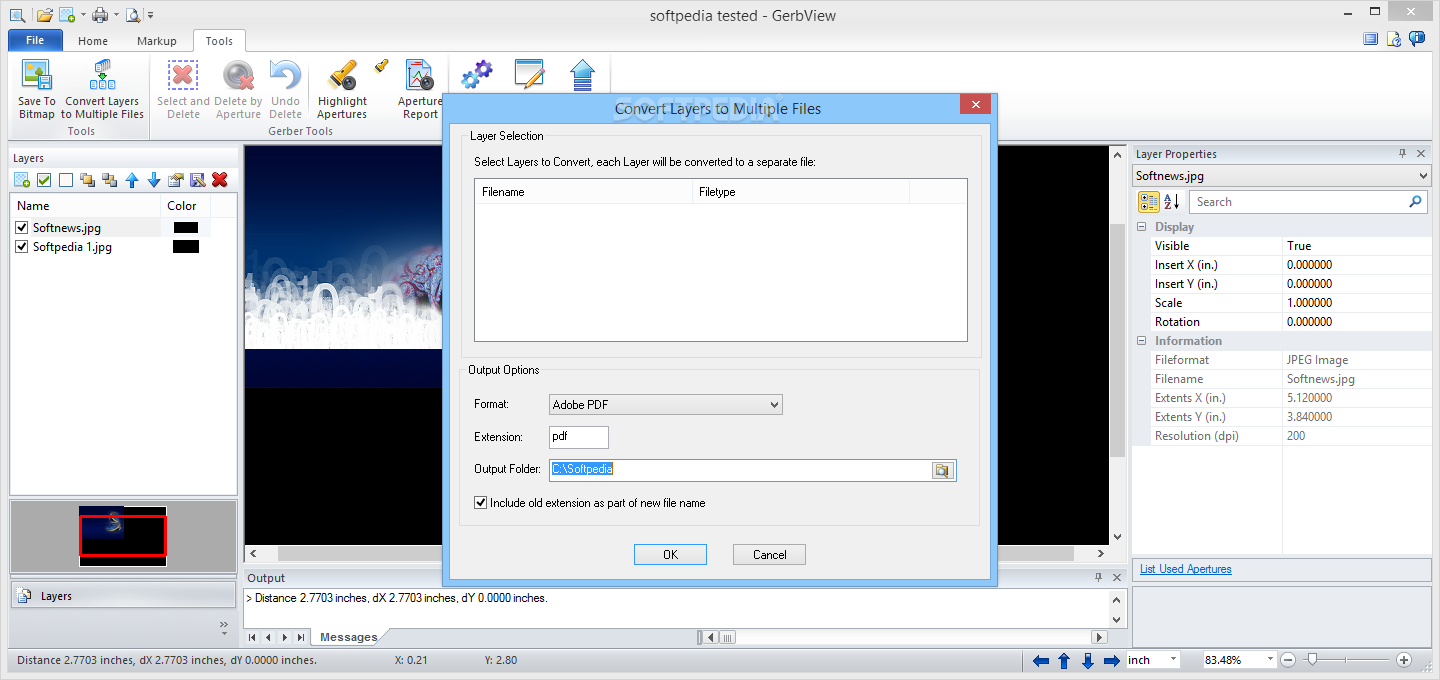

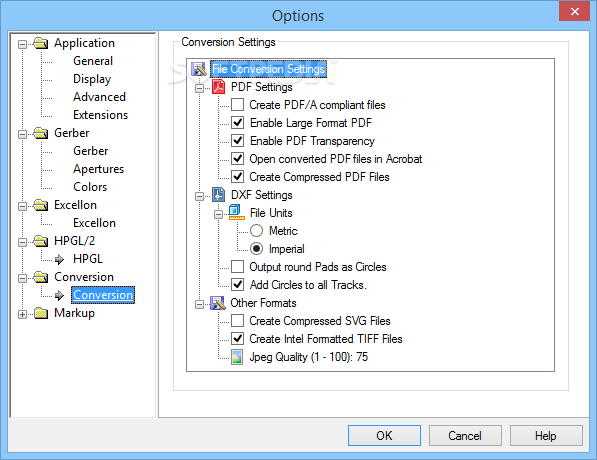

Convert Gerber, Excellon and HPGL/2 files to AutoDesk DXF, Adobe PDF and other formats.
Convert multiple Gerber files to a multi layer PDF, DWF or DXF file.
Query for entity information in Gerber, HPGL/2 and Excellon files.
Measure distances, areas and perimeters, with our without snapping to pads and tracks.

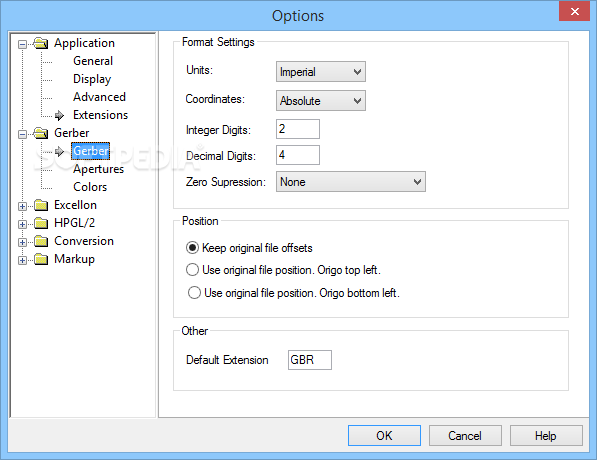

Both metric and imperial coordinates supported.
Support for absolute or relative coordinates.

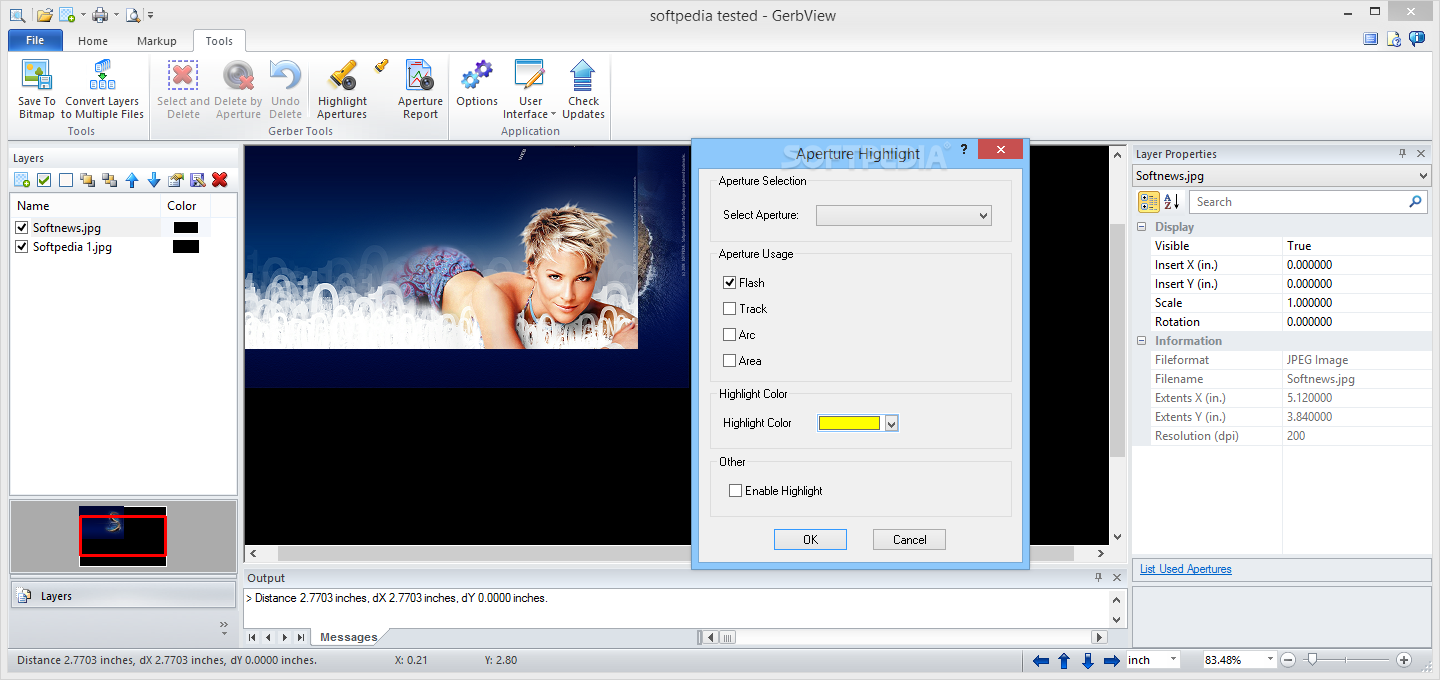

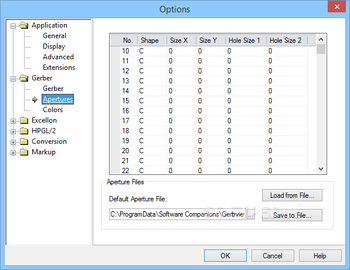

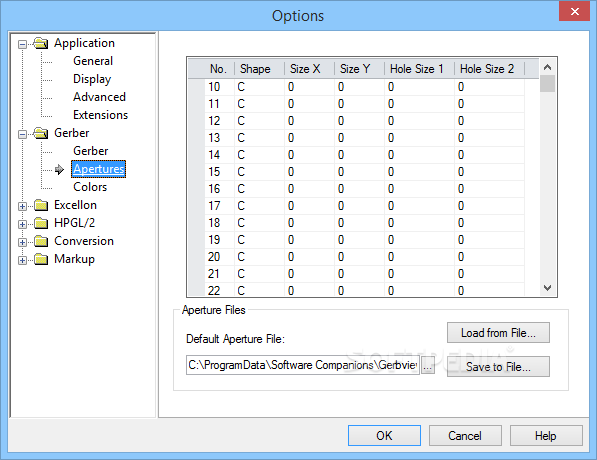

Highlight selected apertures in Gerber files.
Add files of different formats to a single workspace.
No limit for number of files within a workspace (only limited by memory).
TIFF, CALS, BMP, PNG and JPEG files can be added to a Workspace (for logos etc.).
Rotate added files by any angle.
Copy selected region to clipboard, and paste into another Windows application
User defined header and footer for printing.
Color or Black & White Printing.
Scaled print or fit to paper.
Full mode print preview.
Poster mode for printing big format drawings on eg. multiple A4 pages.
Print to all Windows supported plotter and printer devices.
Save whole Workspace or single files as raster files. Supported formats includes: TIFF (CCITT-G4,CCITT-G3,Packbits), CALS, Adobe PDF, Windows BMP, PNG and JPEG.

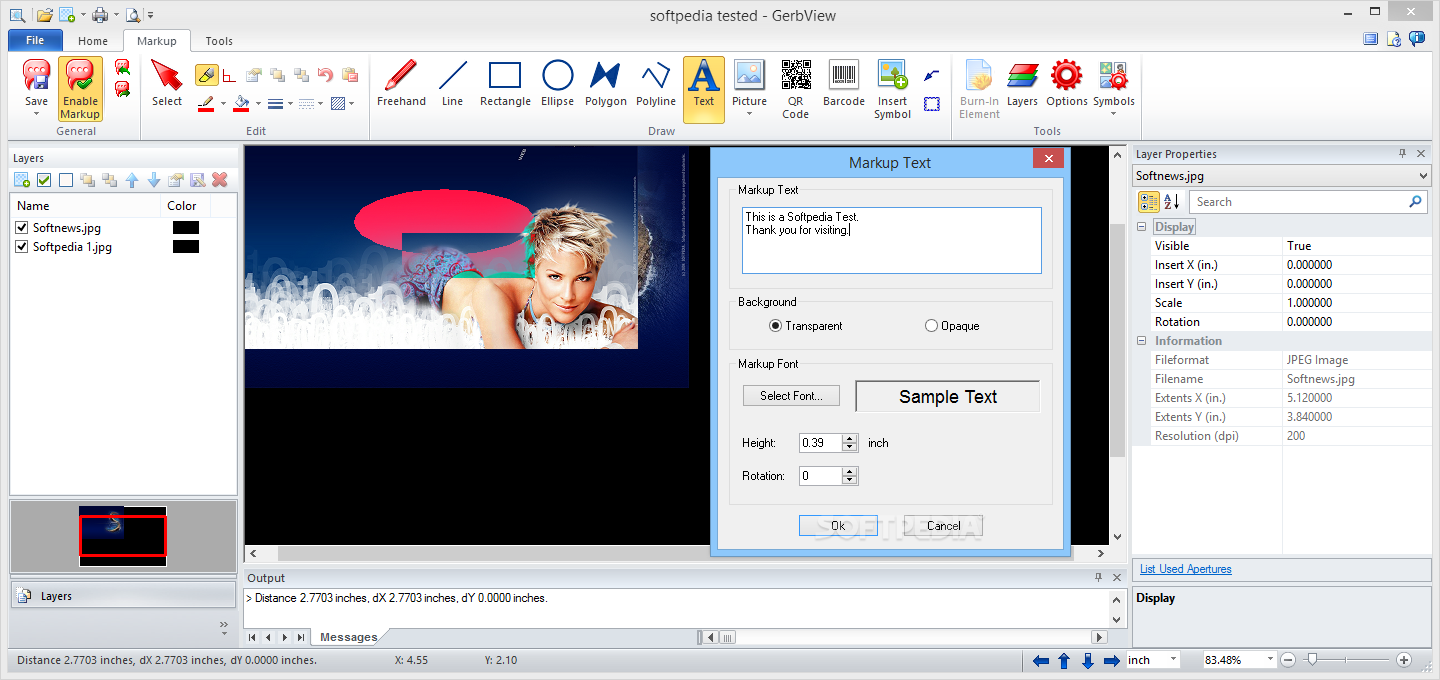

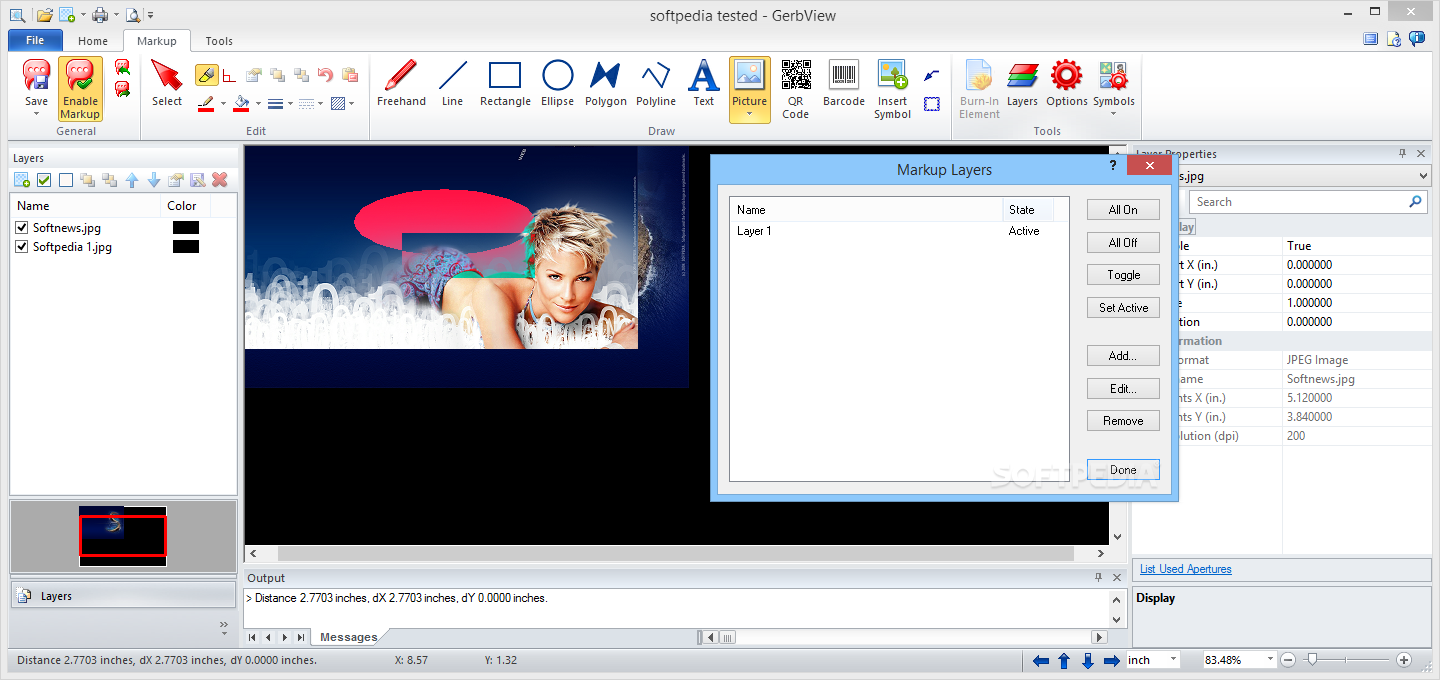

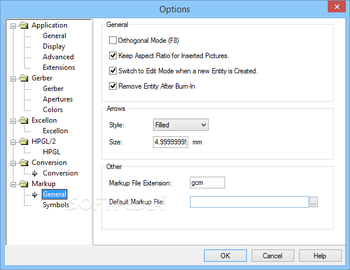

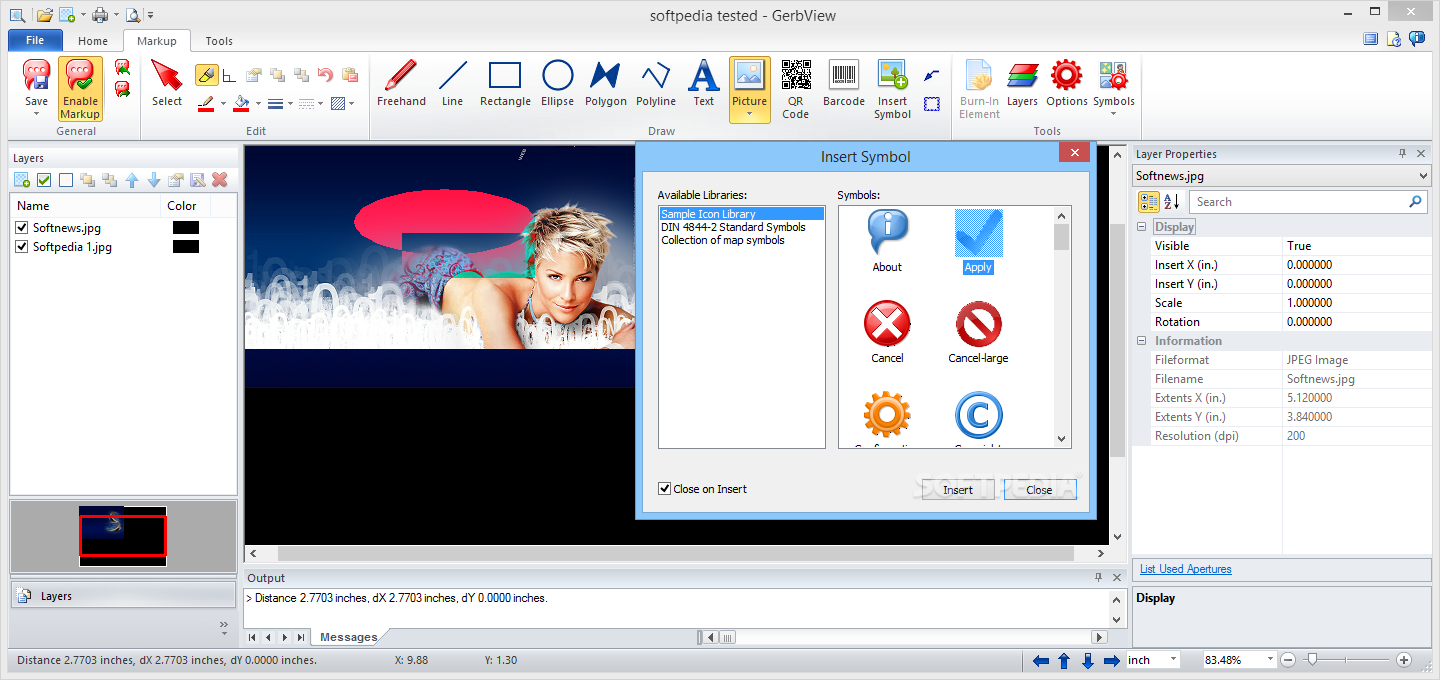

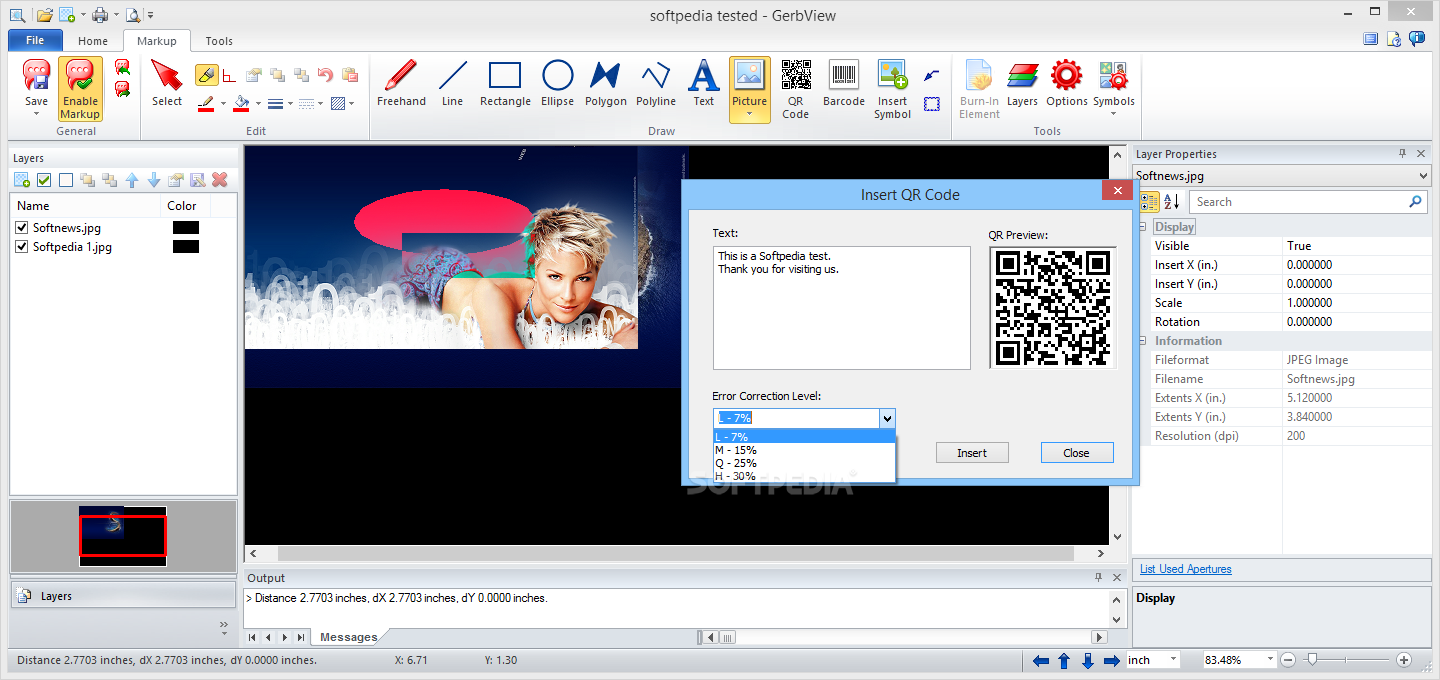

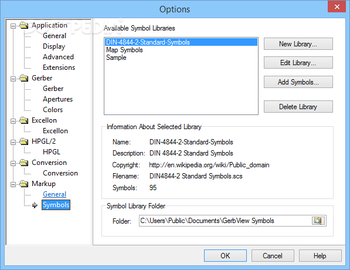

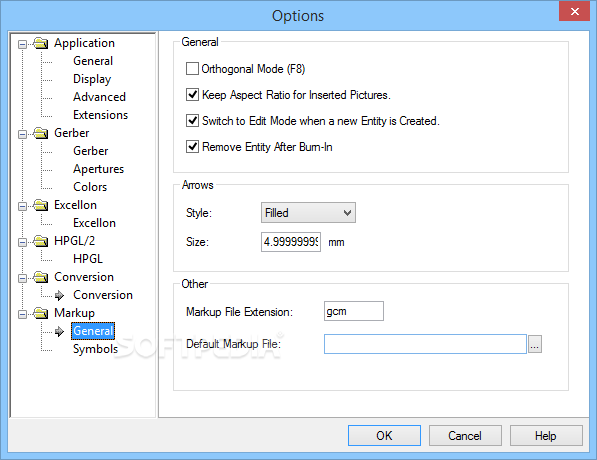

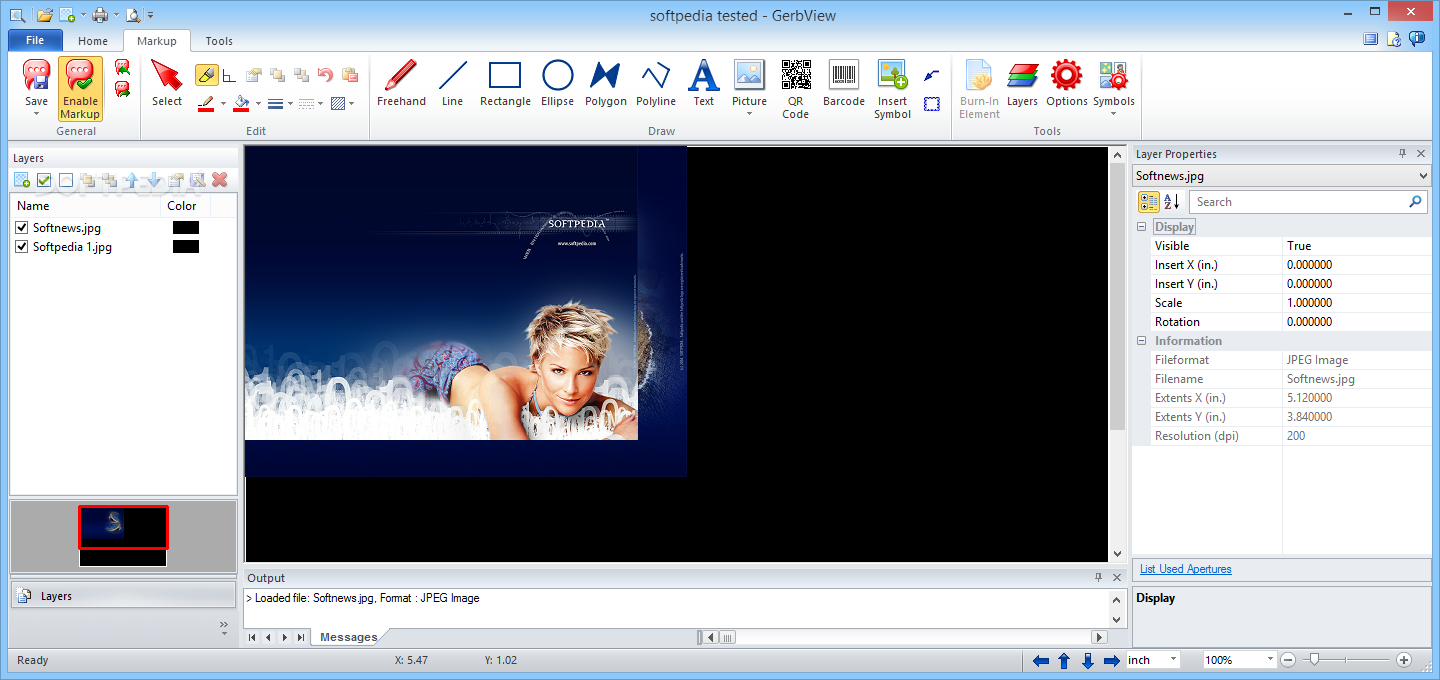

Add markup using lines, text, rectangles, images, polygons, arrows and ellipses.
Powerful markup features such as highlighted, hatched or solid filled areas.
Truetype fonts used for markup text entities.

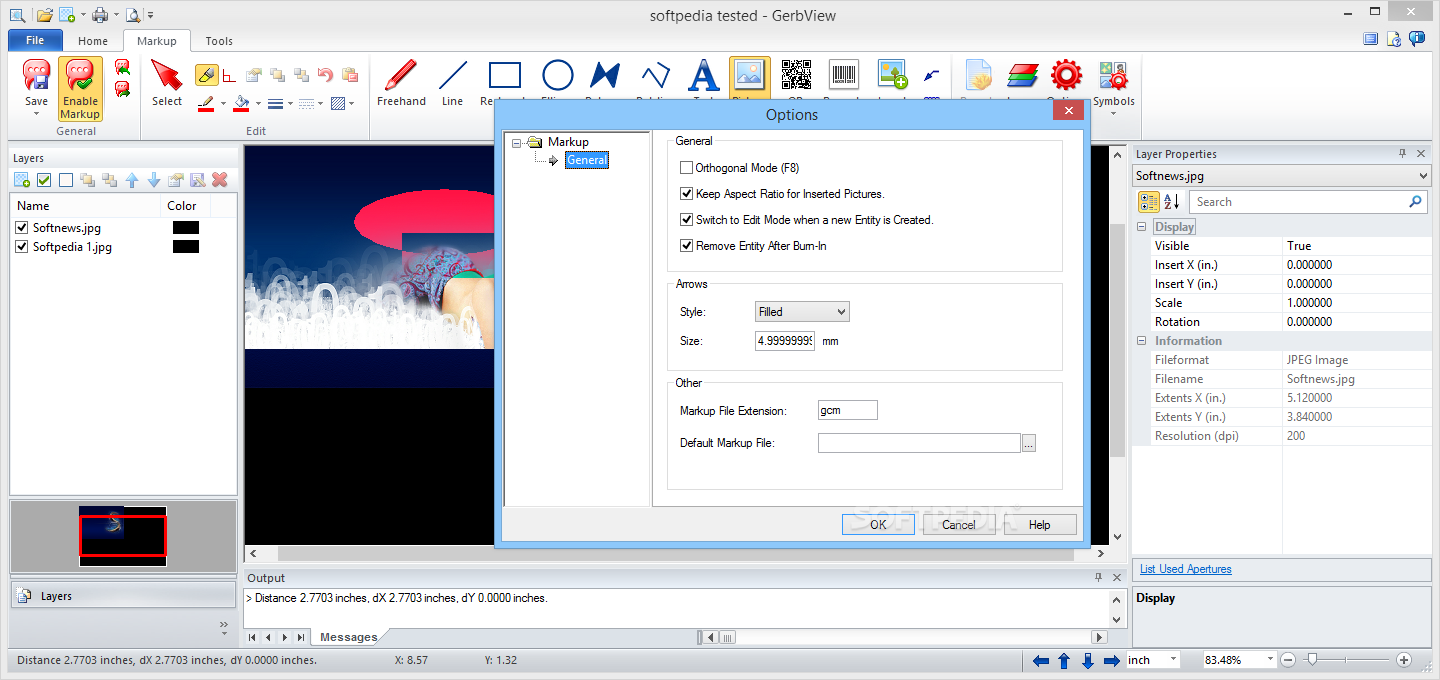

Ortho mode for fast drawing of horizontal and vertical markup lines.
Fully customizable user interface.
