LogicSim is a free software by Andreas Tetzl and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download LogicSim which is 317.83 KB in size and belongs to the software category Science CAD. LogicSim was released on 2010-09-29 and last updated on our database on 2017-02-28 and is currently at version 2.4.
Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:
Rate this software:
Share in your network:
LogicSim Description

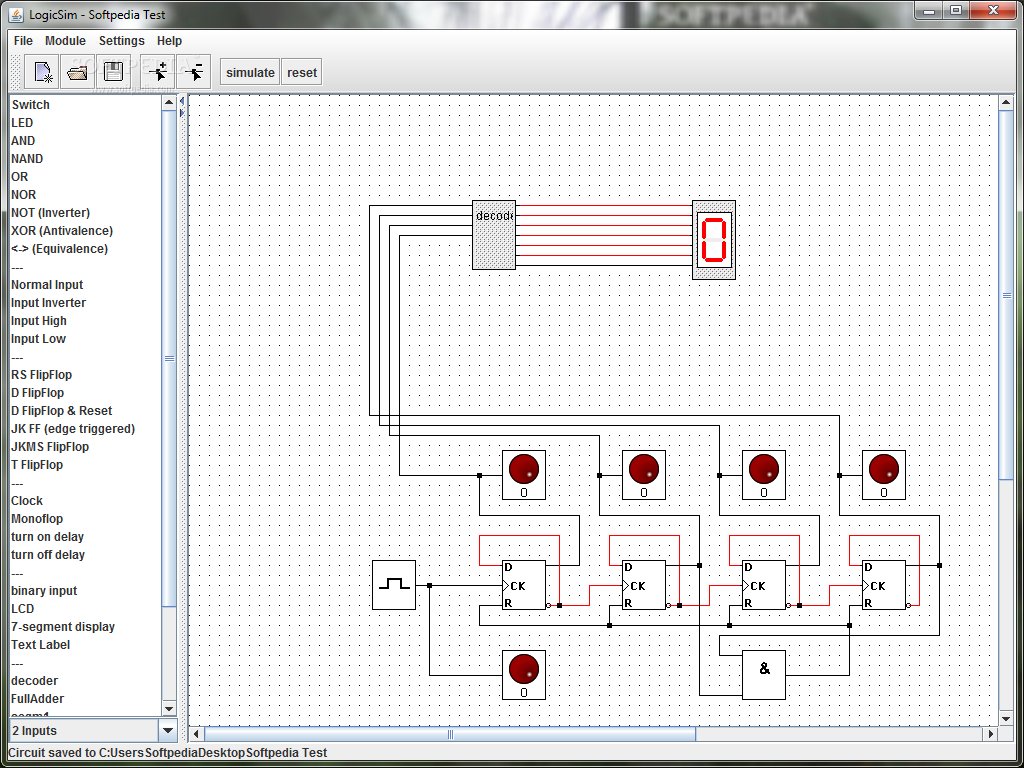

LogicSim is a simple, Java based tool specially designed to help you design and simulate digital logic circuits with logic gates like AND, OR, FlipFlop, etc.
The following types of logic gates are included:
· Basic: AND, NAND, OR, NOR, XOR (Antivalence), Equivalence, NOT
· Flip Flops: RS, D, T, JK, JKMS
· Timers: clock generator, MonoFlop, Turn on delay, Turn off delay
· Inputs: Switch, number-input for decimal and hexadecimal values
· Outputs: LED, LCD for decimal and hexadecimal values

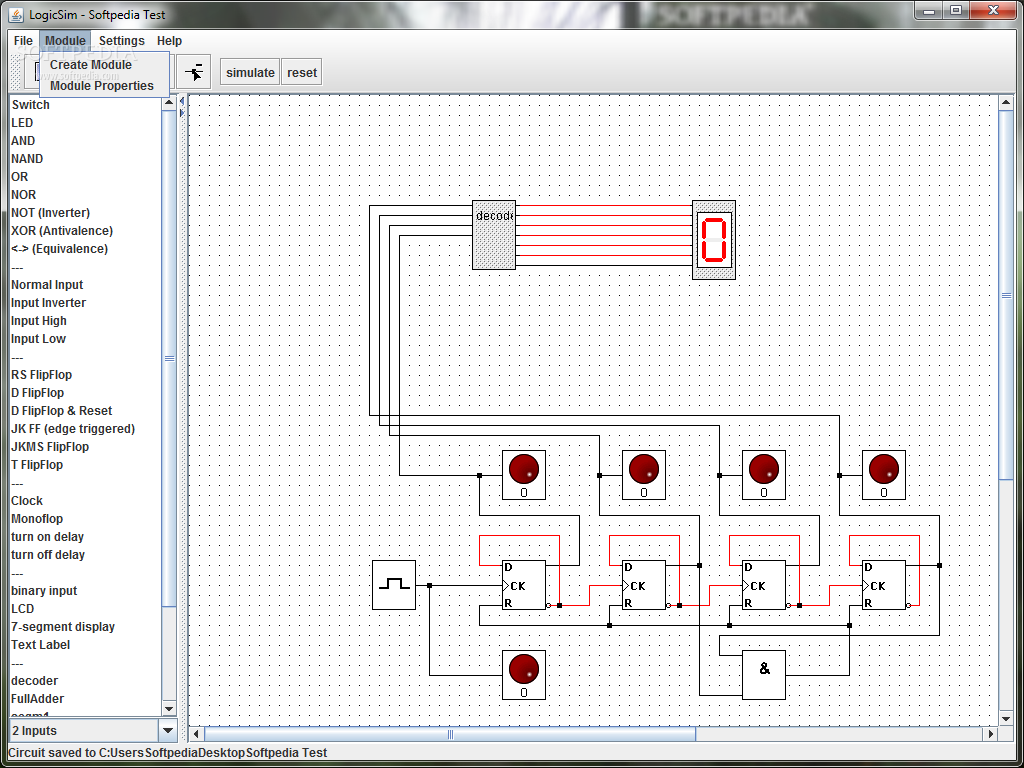

You can create your own gates by saving a circuit as a "module" and reuse this module in another circuit.System requirementsJava
